DRM-884VAP

Cod EAN: 4007754261806

Wall module, for remote control of audio matrix router DRM-884. Intended application: volume control with audio output LCD Volume control Connection to DRM-884 via RJ45 jack and Cat. 5e network cable (supplied w/o cable), cable length up to 100 m...

Citeste mai mult

Intreaba despre produs
Cumpara acum

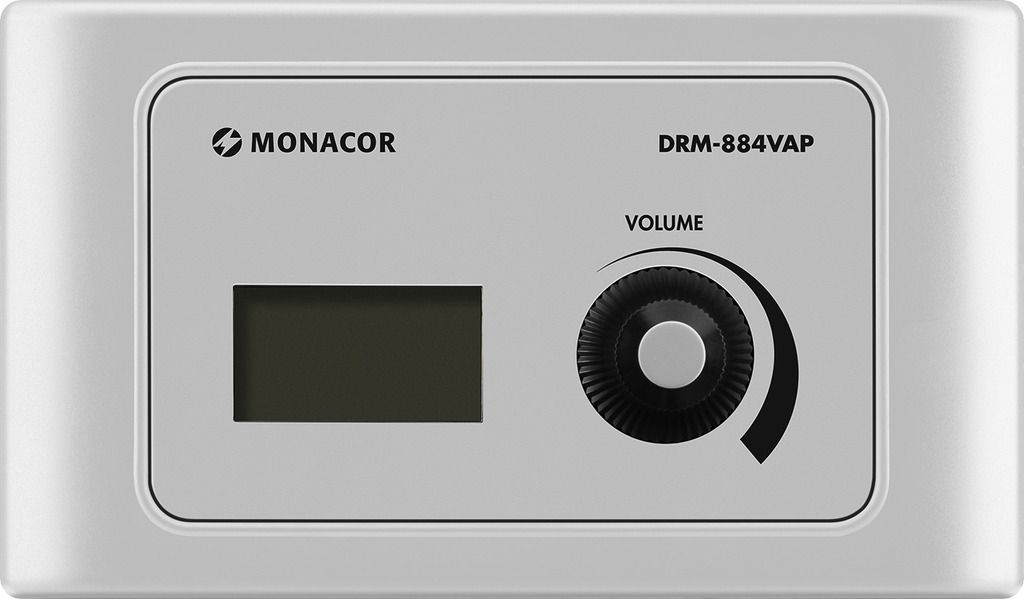

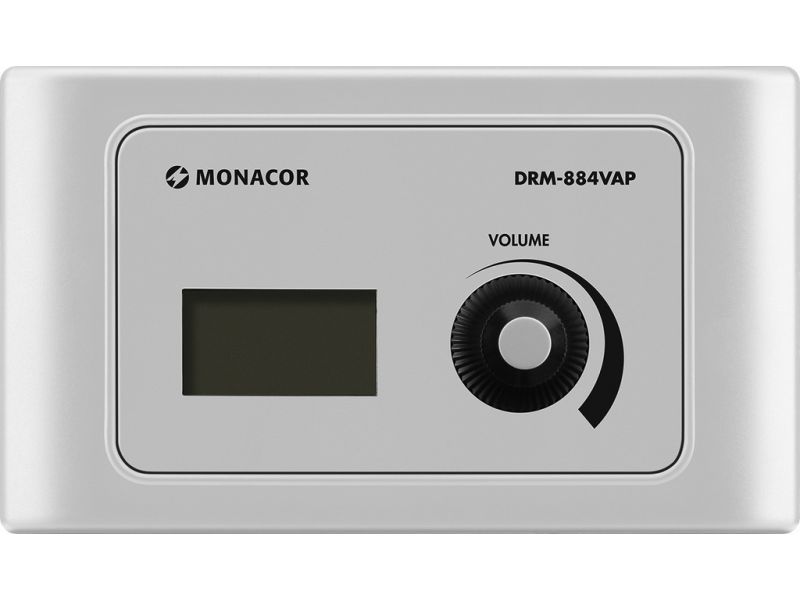

DRM-884VAP

Wall module,
for remote control of audio matrix router DRM-884.
  • Intended application: volume control with audio output
  • LCD
  • Volume control
  • Connection to DRM-884 via RJ45 jack and Cat. 5e network cable (supplied w/o cable), cable length up to 100 m
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Description wall module
Nominal value -120-0 dB
Type volume control
Colour white
Material plastic
Suitable for DRM-884
Power supply via DRM-884
Admiss. ambient temp. 0-40 °C
Dimensions 145 x 85 x 65 mm
Weight 281 g
Connections 1 x RJ45, screw terminal
Other features audio output
Packing unit 1
Packaging dimensions (W x H x L) 0.125 x 0.1 x 0.185 m
Gross weight 0.384 kg
Net weight 0.281 kg

Fisiere de descarcat

Fisa produsului DRM-884VAP konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
