DT-140

Cod EAN: 4007754235050

Hi-fi dome tweeter, 40 W, 4 Ω 25 mm (1") tweeter with silk dome Consistent radiation pattern due to waveguide in combination with 5" to 6.5" bass-midrange speakers Neodymium magnet system with heat sink Very low stray magnetic field HOBBY HIFI 01...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DT-140

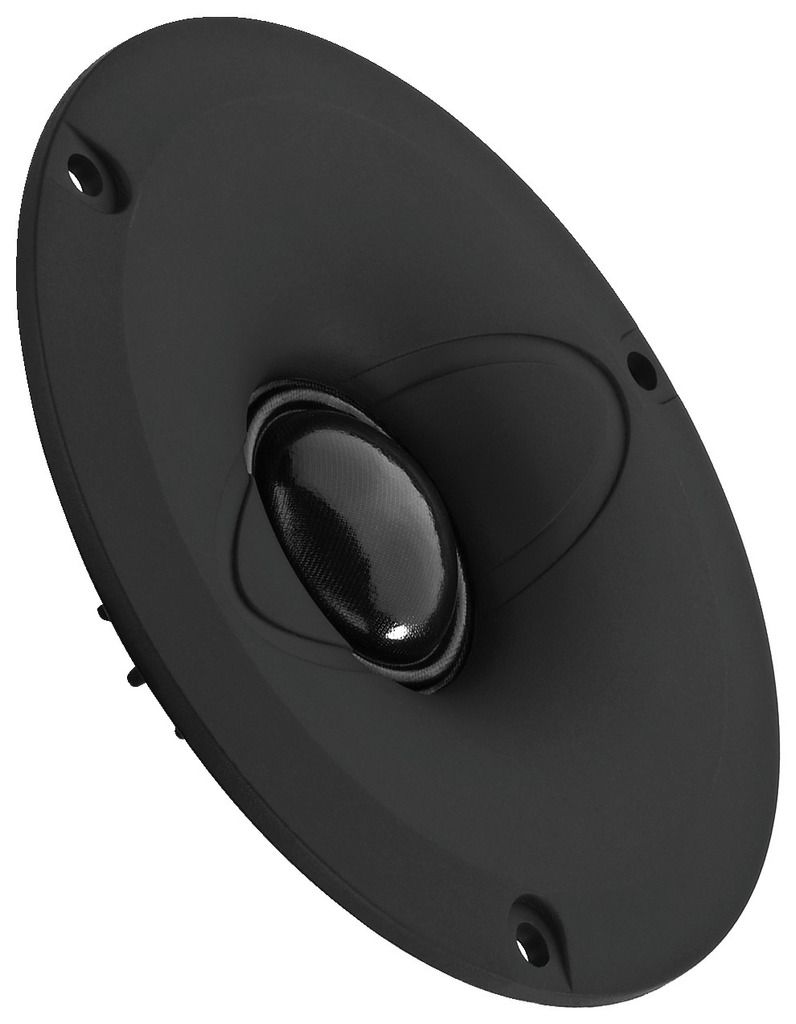

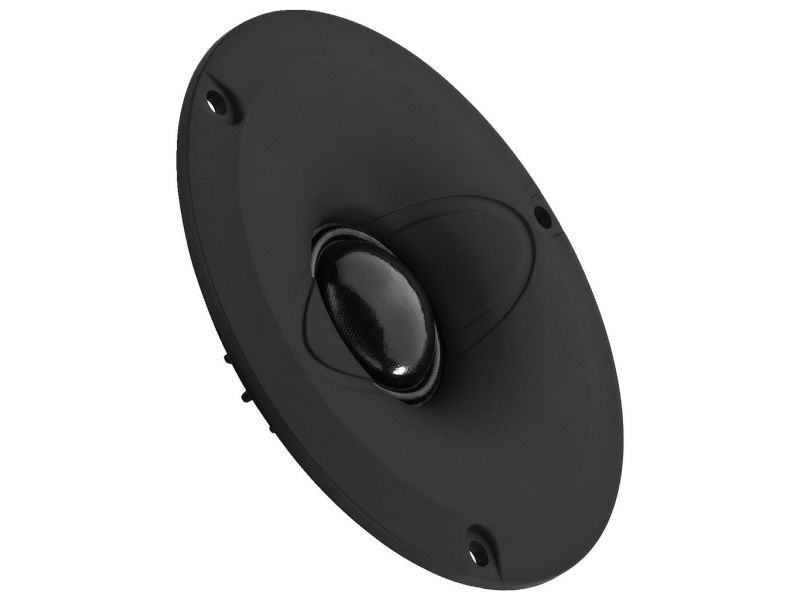

Hi-fi dome tweeter, 40 W, 4 Ω
  • 25 mm (1") tweeter with silk dome
  • Consistent radiation pattern due to waveguide in combination with 5" to 6.5" bass-midrange speakers
  • Neodymium magnet system with heat sink
  • Very low stray magnetic field
HOBBY HIFI 01/2014
“The product range of MONACOR now includes the DT-140 which is an excellent dome tweeter with perfect measurement values available at an attractive price.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

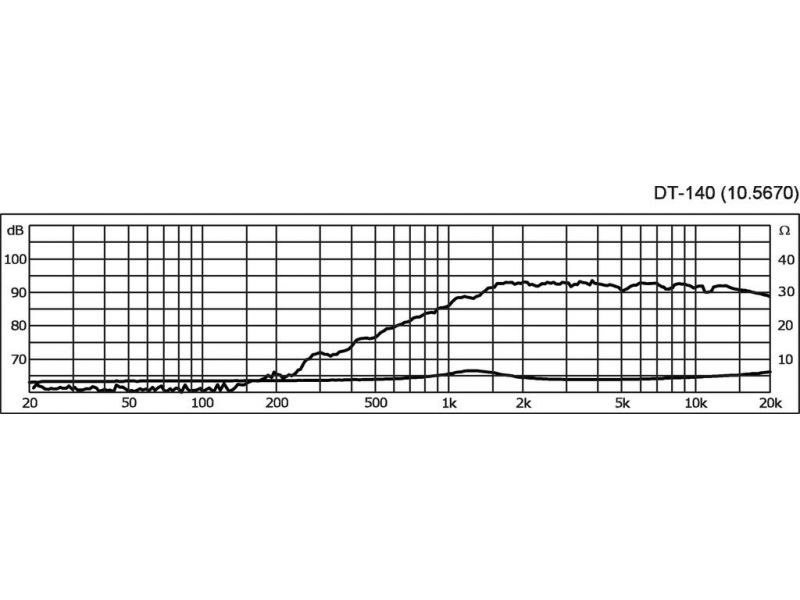

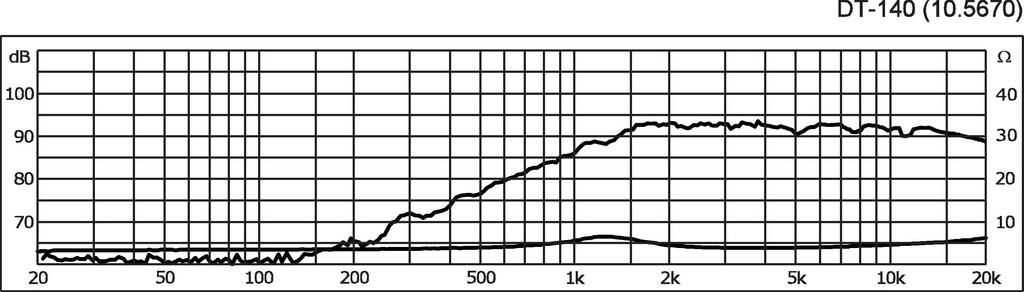

Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 90 dB/W/m

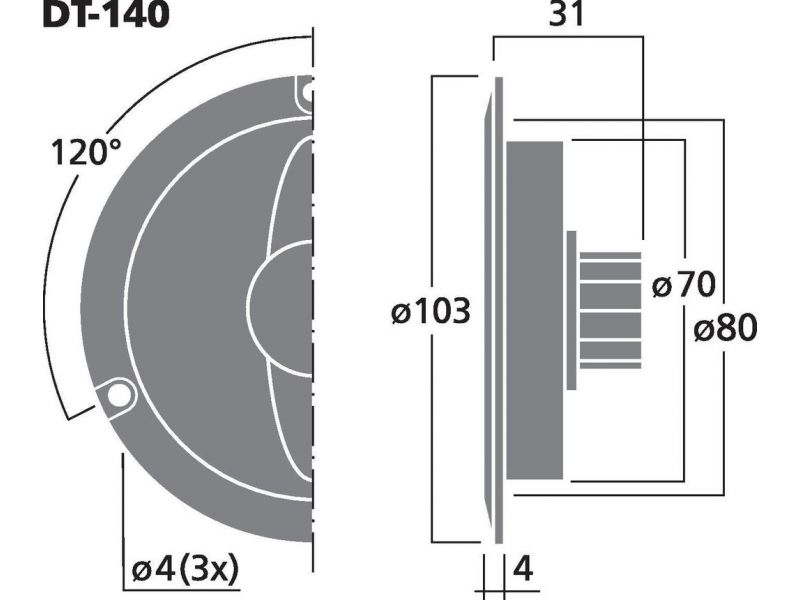

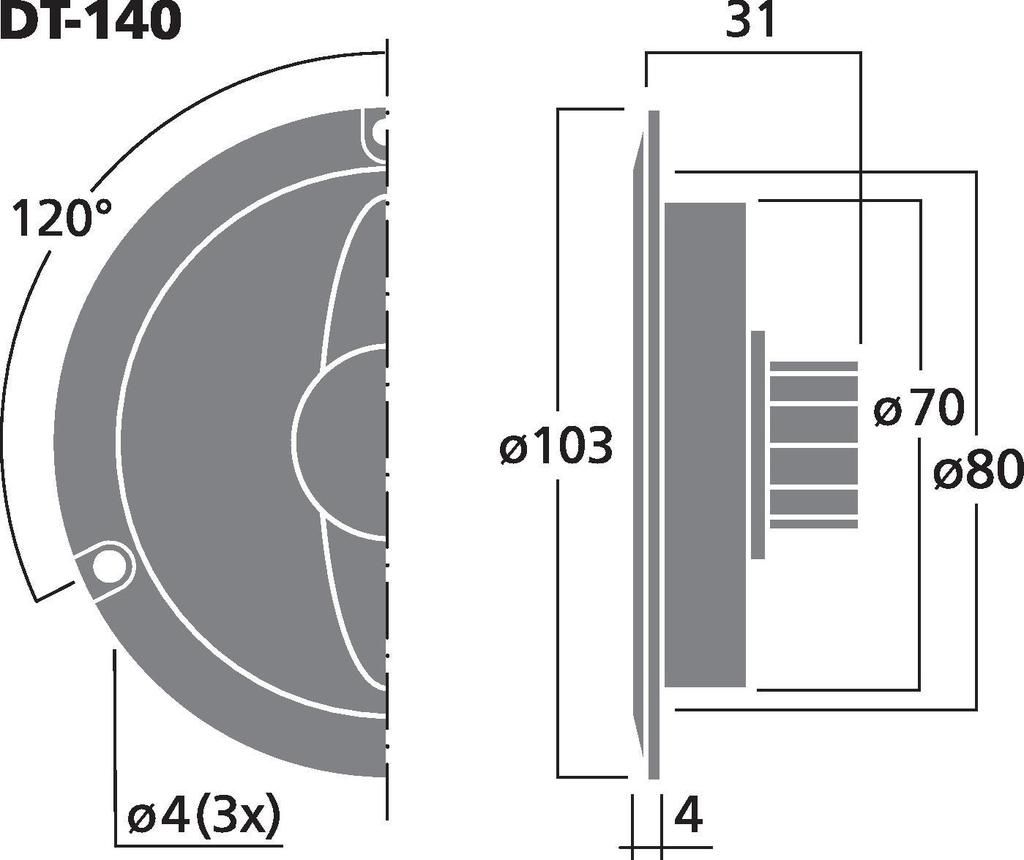

Voice coil diameter Ø 25 mm
Magnet diameter Ø 70 mm
Mounting cutout Ø 80 mm
Mounting depth 31 mm
Dimensions Ø 103 x 31 mm
Outside diameter Ø 103 mm
Width Ø 103 mm
Height Ø 103 mm
Depth 31 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.093 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.11 x 0.043 x 0.11 m
Gross weight 0.122 kg
Net weight 0.093 kg

Fisiere de descarcat

Fisa produsului DT-140 konformitaetserklaerung-ce konformitaetserklaerung-ukca
