SPH-145HQ
Cod EAN: 4007754228014
High-quality hi-fi bass-midrange speaker, 50 W, 8 Ω 130 mm (5½") bass-midrange speaker Further development of the classic speaker SPH-130 Diecast basket Rear-ventilated centering spider and drilled pole core for minimum mechanical loss High-quality,...
SPH-145HQ

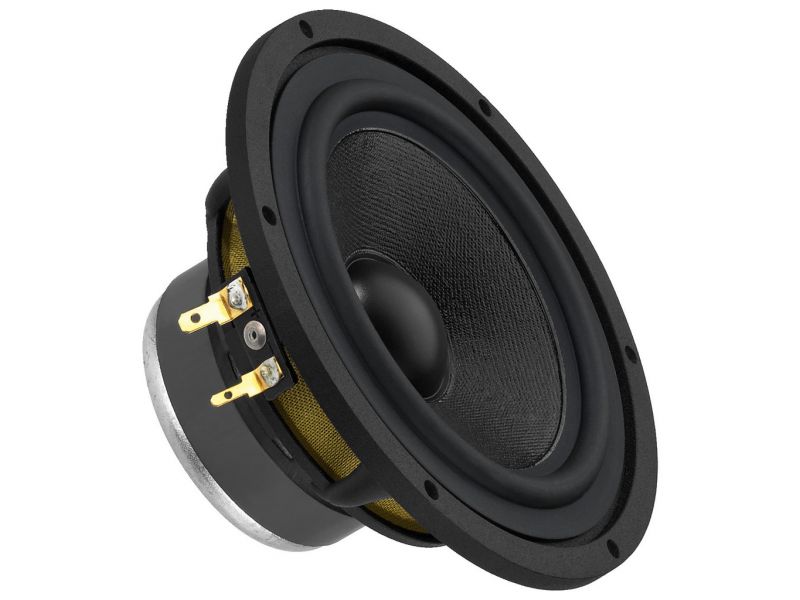

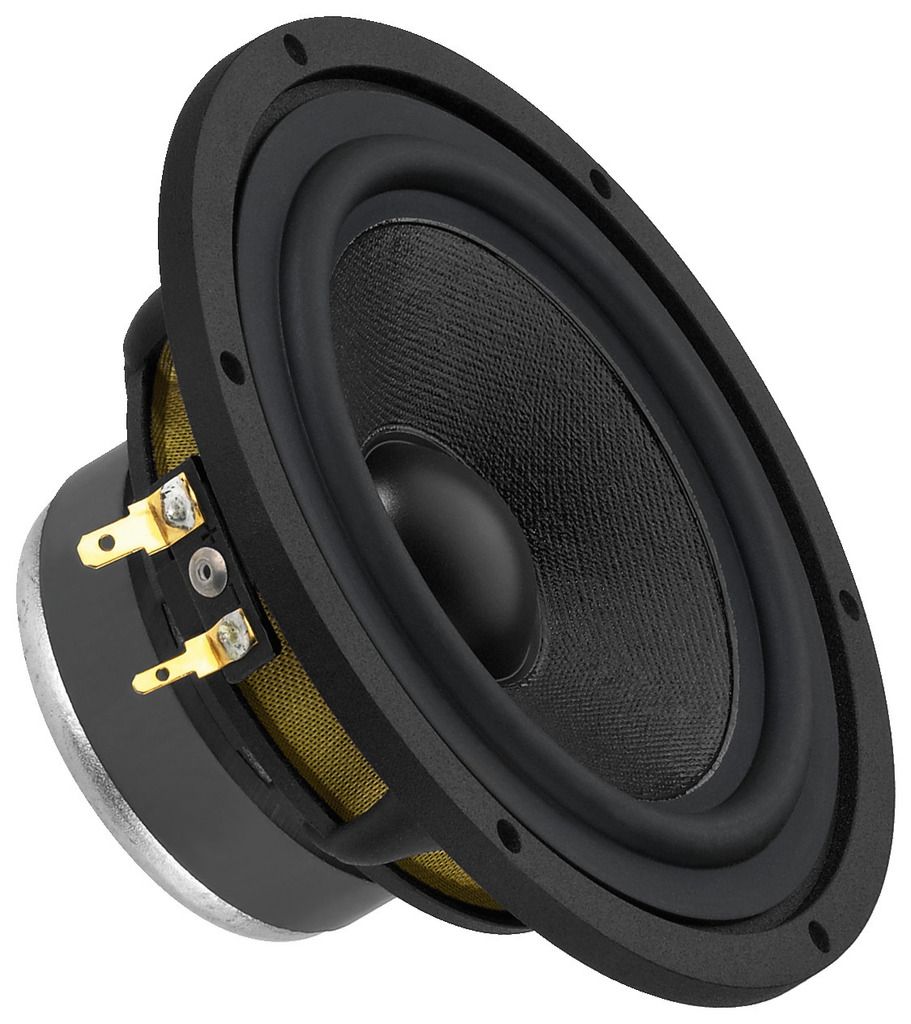

High-quality hi-fi bass-midrange speaker, 50 W, 8 Ω
- 130 mm (5½") bass-midrange speaker
- Further development of the classic speaker SPH-130
- Diecast basket
- Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
- High-quality, low-resonance paper cone
- Low-loss rubber surround
- Wide and linear radiation range
- Ideal for 2-way systems, DAppolito arrangements and as a midrange system in large column speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

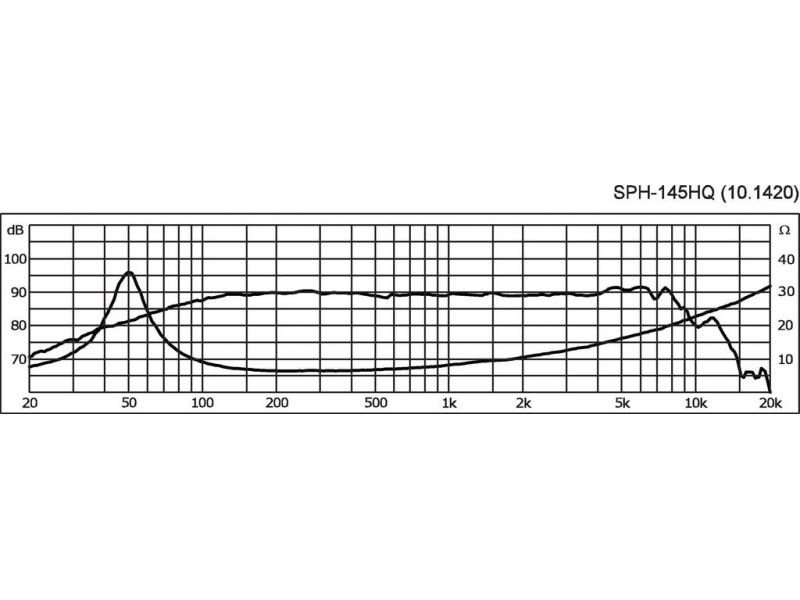

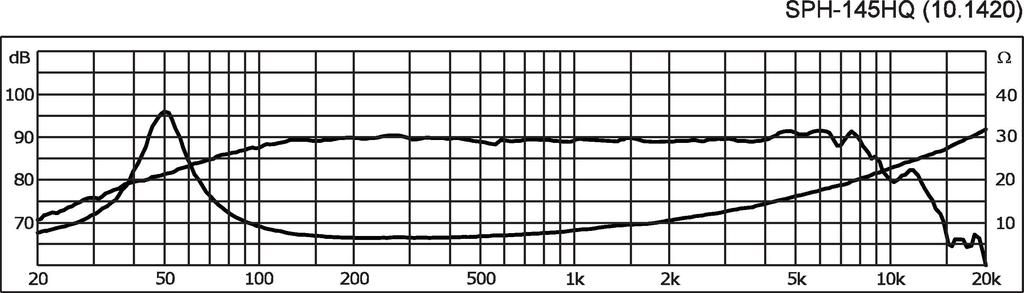

| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 52 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 88 dB/W/m |
| Suspension compl. (Cms) | 1.05 mm/N |
| Moving mass (Mms) | 7.6 g |
| Mech. Q factor (Qms) | 3.07 |
| Electr. Q factor (Qes) | 0.51 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 9.4 l |
| DC resistance (Re) | 5.8 Ω |
| Force factor (BxL) | 5.33 Tm |
| Voice coil induct. (Le) | 0.53 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3.5 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 230 g |

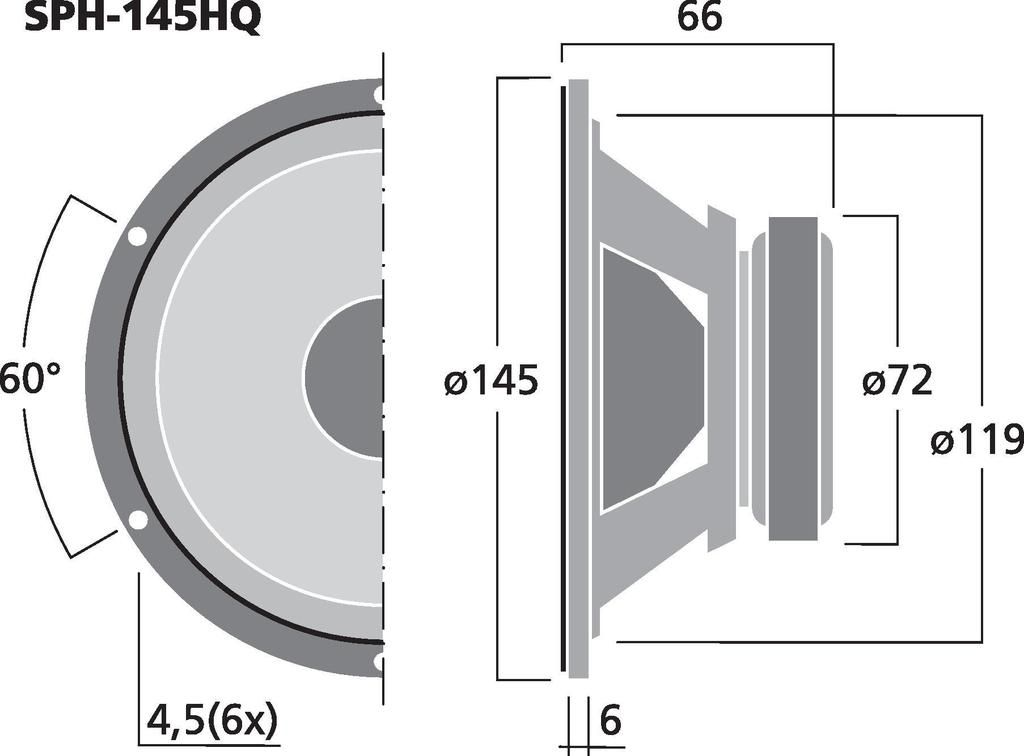

| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 119 mm |
| Mounting depth | 60 mm |
| Mounting hole diameter | Ø 118 mm |
| Dimensions | Ø 145 mm x 66 mm |
| Outside diameter | Ø 145 mm |
| Width | Ø 145 mm |
| Height | Ø 145 mm |
| Depth | 66 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.739 kg |
| Packing unit | 1 |
| Type of speaker | 5.5" |
| Packaging dimensions (W x H x L) | 0.165 x 0.11 x 0.17 m |
| Gross weight | 0.88 kg |
| Net weight | 0.739 kg |
