DT-19SU

Cod EAN: 4007754045772

Hi-fi dome tweeter, 50 W, 8 Ω 19 mm soft dome, laminate technology Double magnet Robust plastic front Low cone weight Optimum brilliance For hi-fi applications of high requirements, especially in 3-way systems Manufacturer information: MONACOR...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DT-19SU

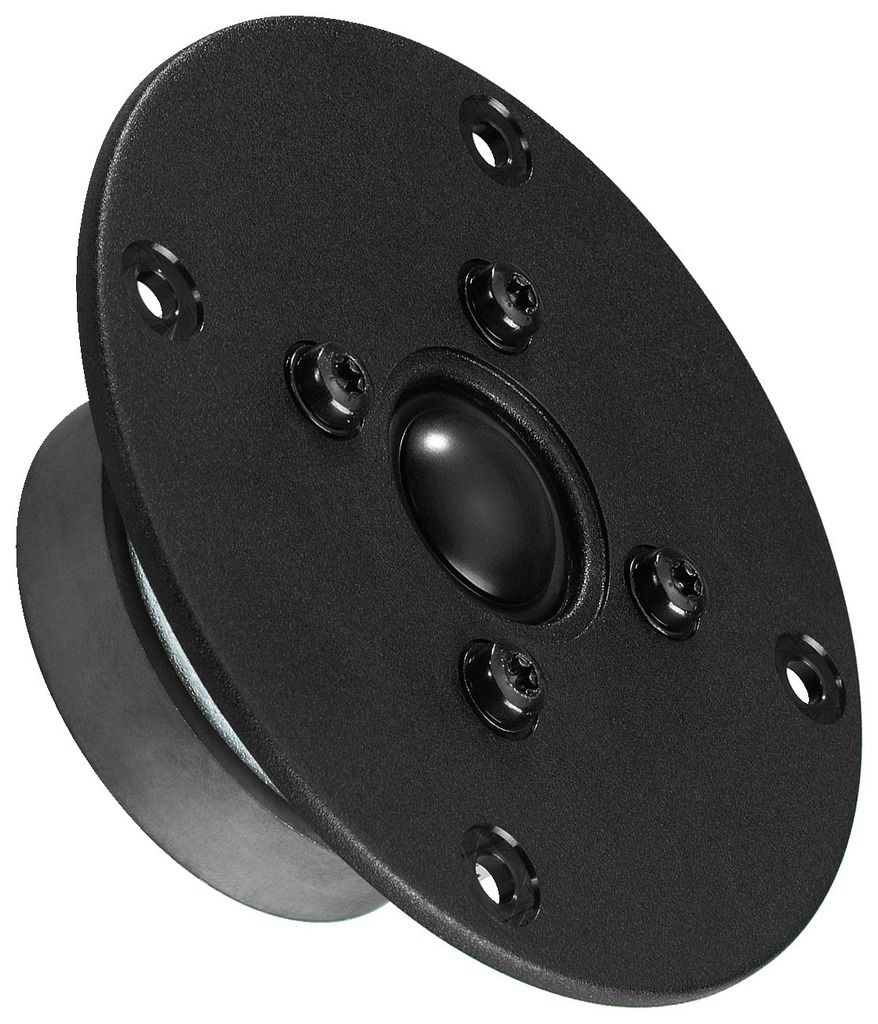

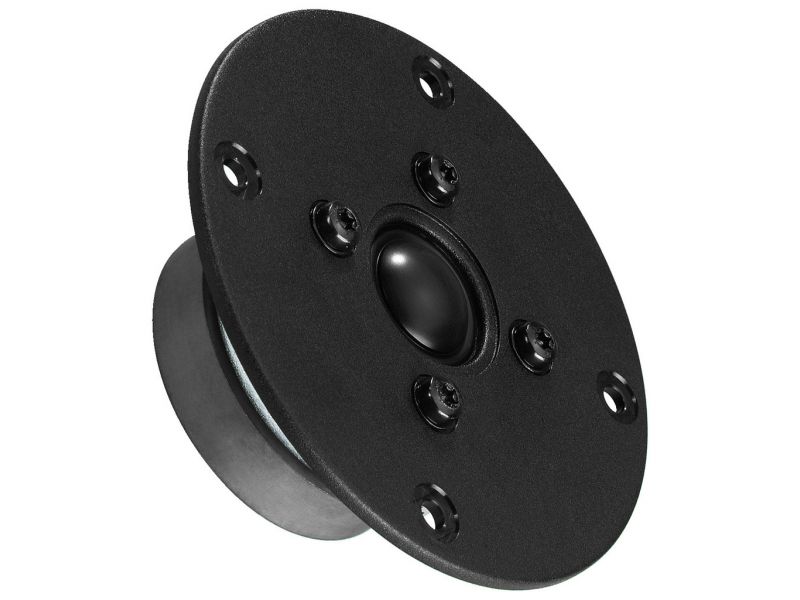

Hi-fi dome tweeter, 50 W, 8 Ω
  • 19 mm soft dome, laminate technology
  • Double magnet
  • Robust plastic front
  • Low cone weight
  • Optimum brilliance
  • For hi-fi applications of high requirements, especially in 3-way systems
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

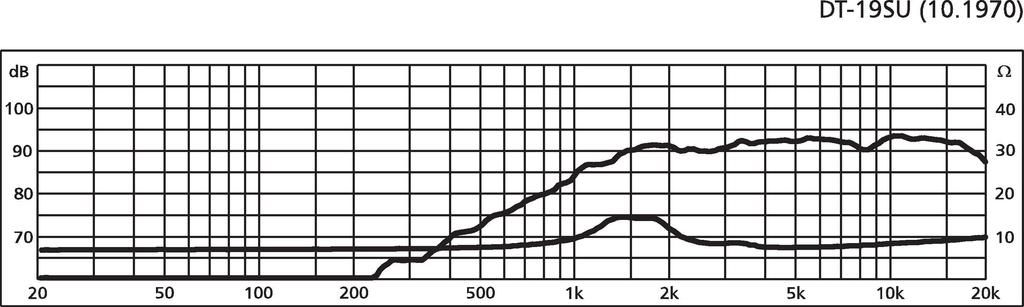

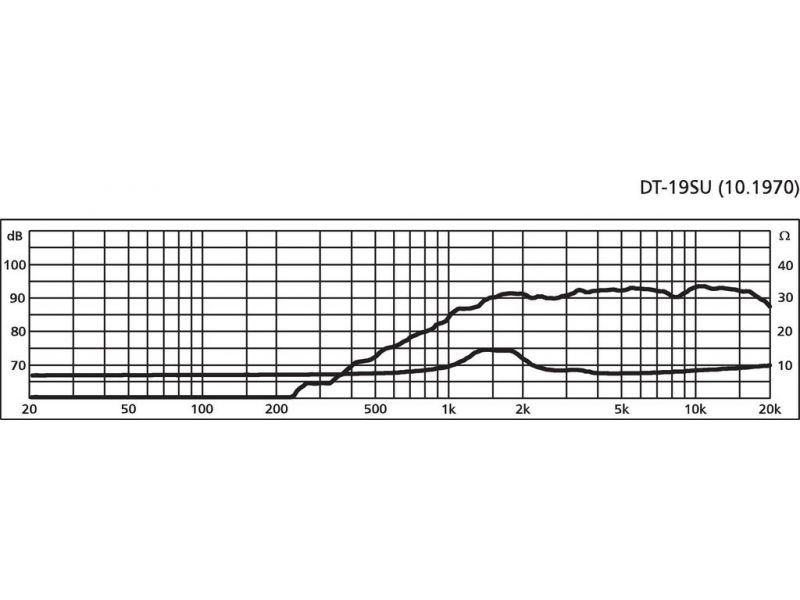

Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 80 W
SPL 91 dB/W/m

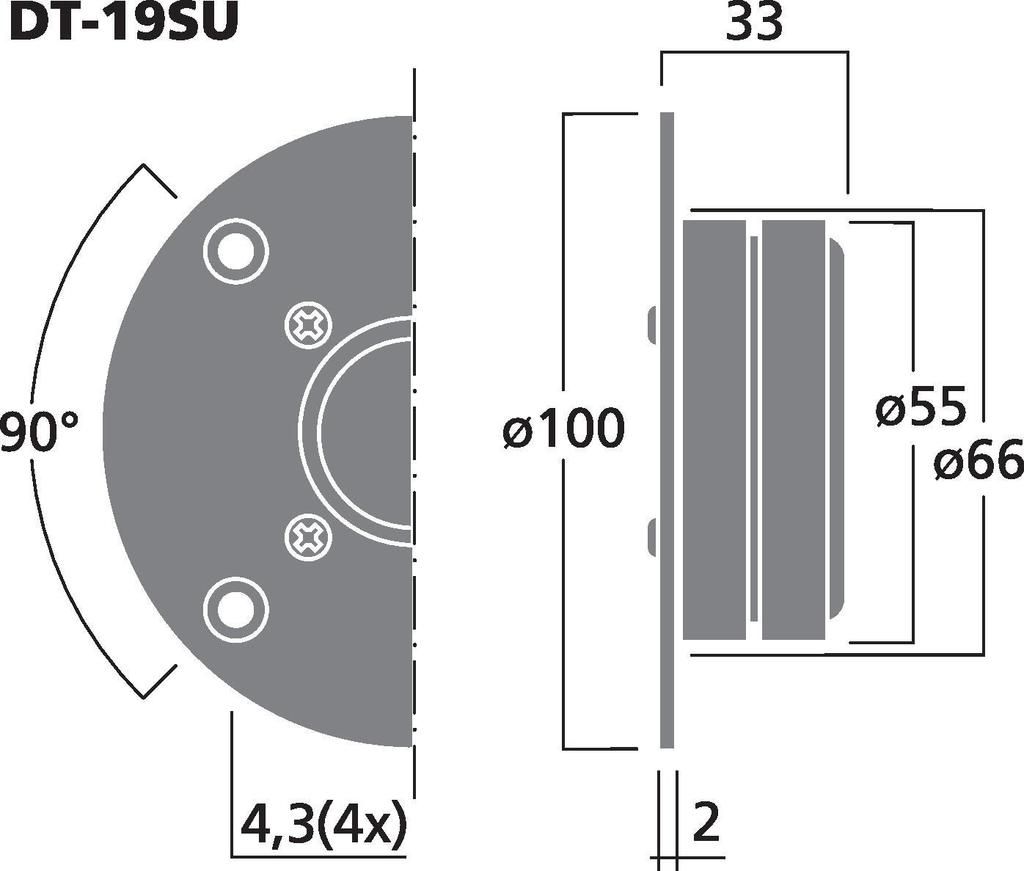

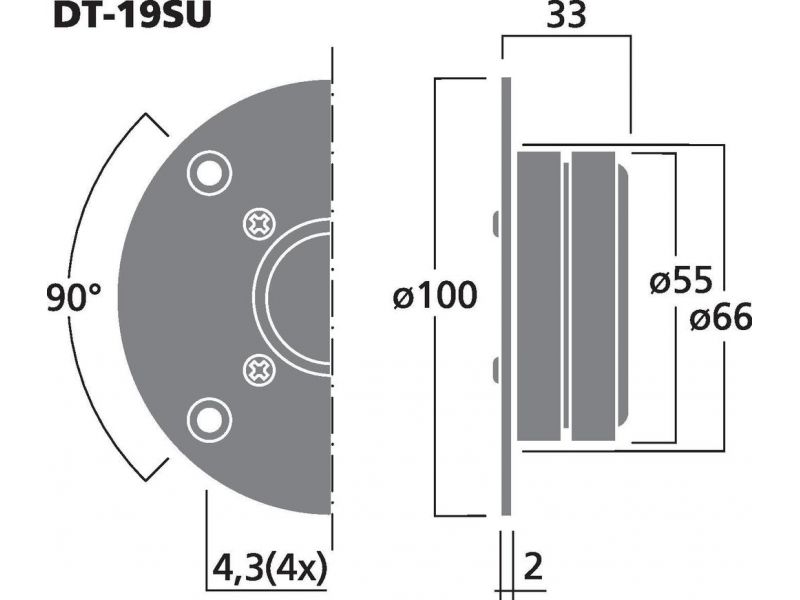

Voice coil diameter Ø 19 mm
Magnet diameter Ø 55 mm
Mounting cutout Ø 66 mm
Mounting depth 33 mm
Dimensions Ø 100 x 33 mm
Outside diameter Ø 100 mm
Width Ø 100 mm
Height Ø 100 mm
Depth 33 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.397 kg
Packing unit 1
Type of speaker 19 mm
Packaging dimensions (W x H x L) 0.115 x 0.045 x 0.13 m
Gross weight 0.444 kg
Net weight 0.397 kg

Fisiere de descarcat

Fisa produsului DT-19SU konformitaetserklaerung-ce konformitaetserklaerung-ukca
