DT-300

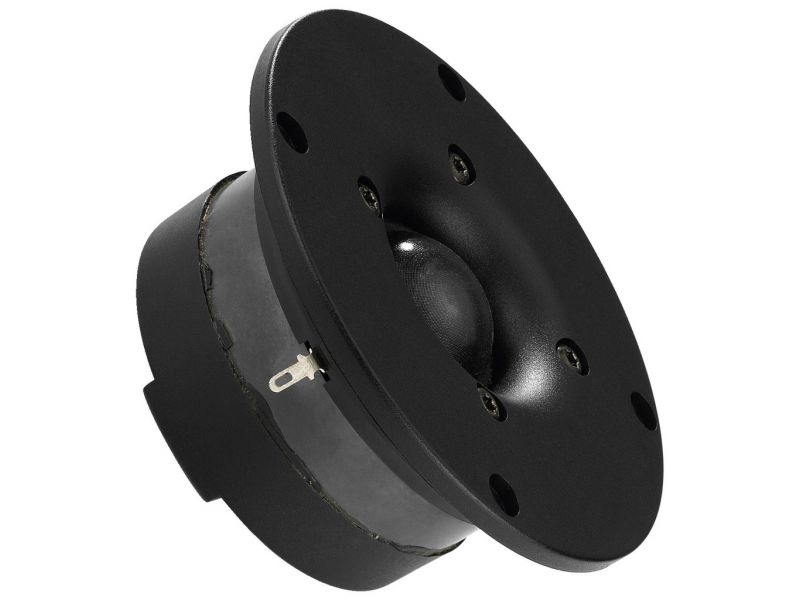

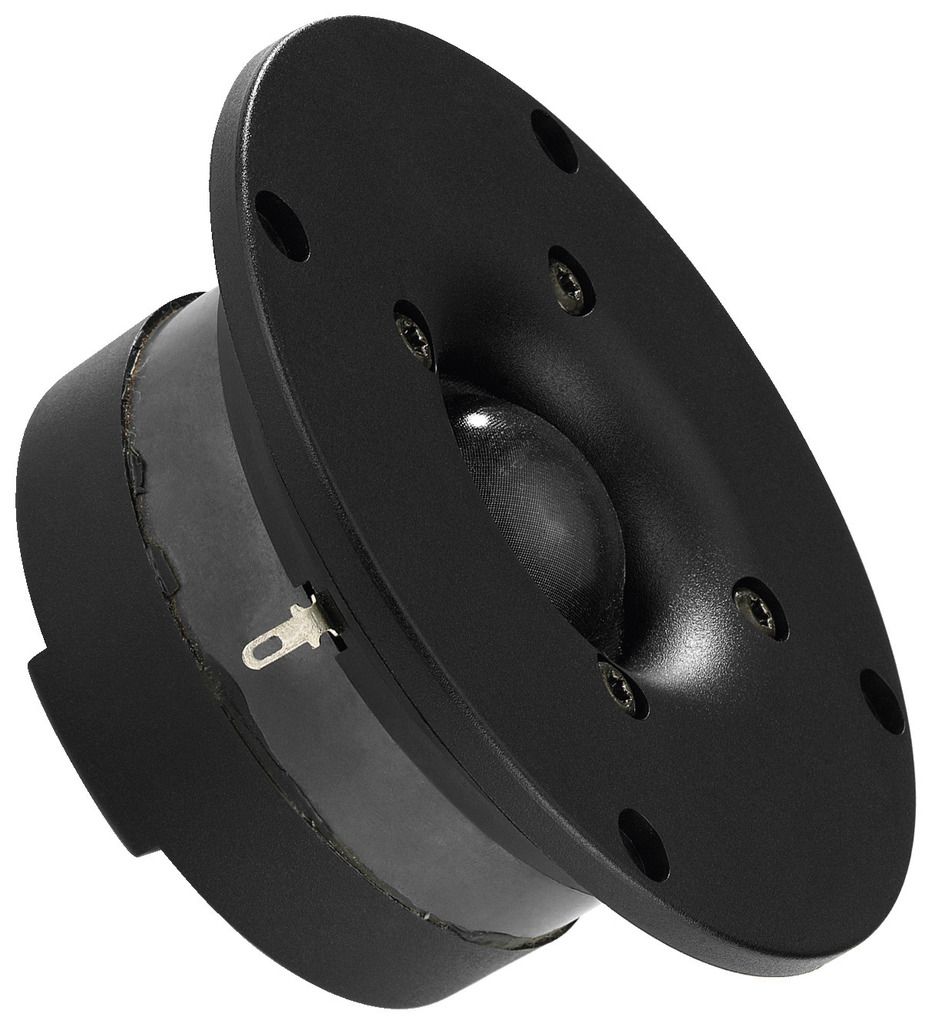

Hi-fi dome tweeters with large cone area
For extra high dynamic power also in case of low crossover frequencies. An ideal solution with excellent brilliant sound at the same time.
Hi-fi dome tweeter, 50 W, 8 Ω
  • 30 mm silk cone
  • Low resonant frequency
  • Excellent dynamic response and a high stability, even with low crossovers
  • Ferrofluid of high liquidity for a fine brilliance
  • Particularly suitable for high-performance applications and DAppolito arrangements in the top hi-fi range
Klang+Ton 06/2014
“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range fx-19,000 Hz
Resonant frequency (fs) 750 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,000 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 93 dB/W/m
Voice coil diameter Ø 30 mm
Magnet diameter Ø 88 mm
Mounting cutout Ø 90 mm
Mounting depth 52 mm

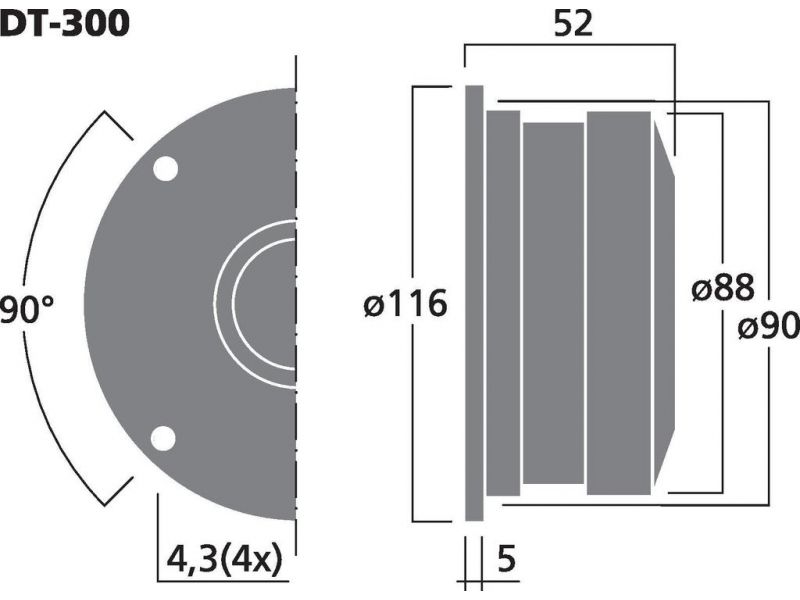

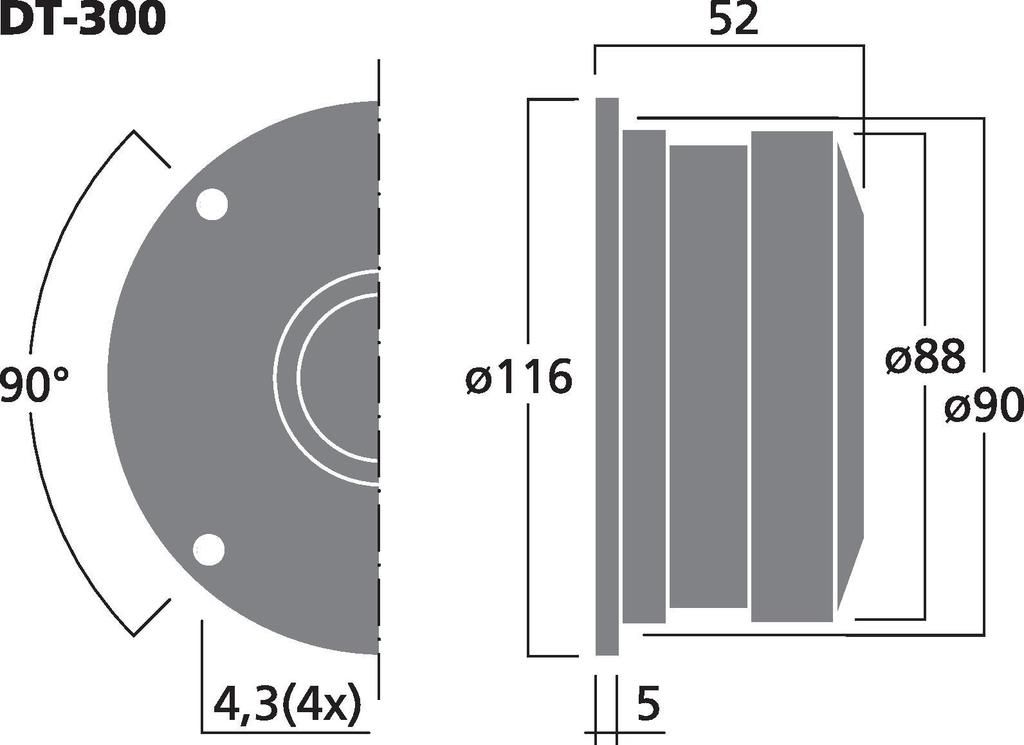

Dimensions Ø 116 x 52 mm
Outside diameter Ø 116 mm
Width Ø 116 mm
Height Ø 116 mm
Depth 52 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.65 kg
Packing unit 1
Type of speaker 30 mm
Packaging dimensions (W x H x L) 0.12 x 0.055 x 0.13 m
Gross weight 0.715 kg
Net weight 0.655 kg
