EDL-110/WS

Cod EAN: 4007754190519

Weatherproof PA sound projector 100 V transmission technology 1 speaker with polypropylene cone Splashproof due to plastic housing with rubber seals and high-strength cable gland Connection cable with 3 power taps Stainless steel screws and pivoting...

Citeste mai mult

Intreaba despre produs
Cumpara acum

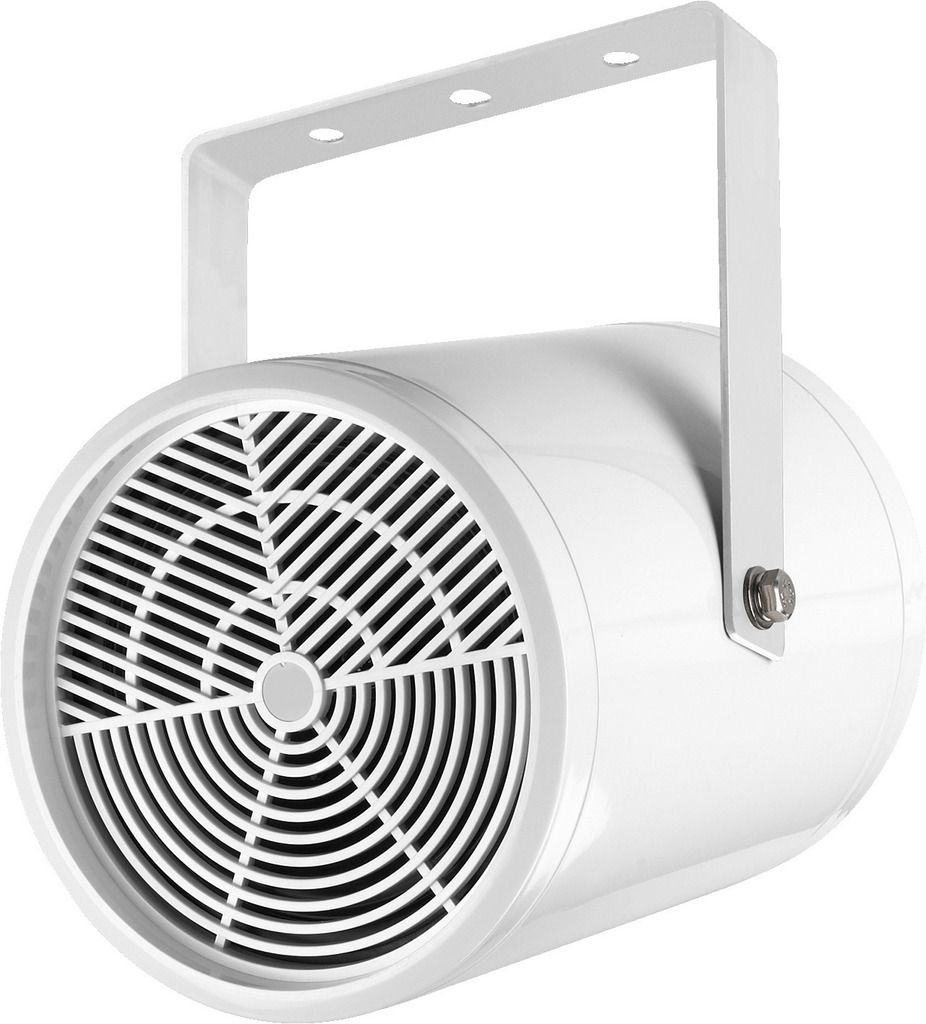

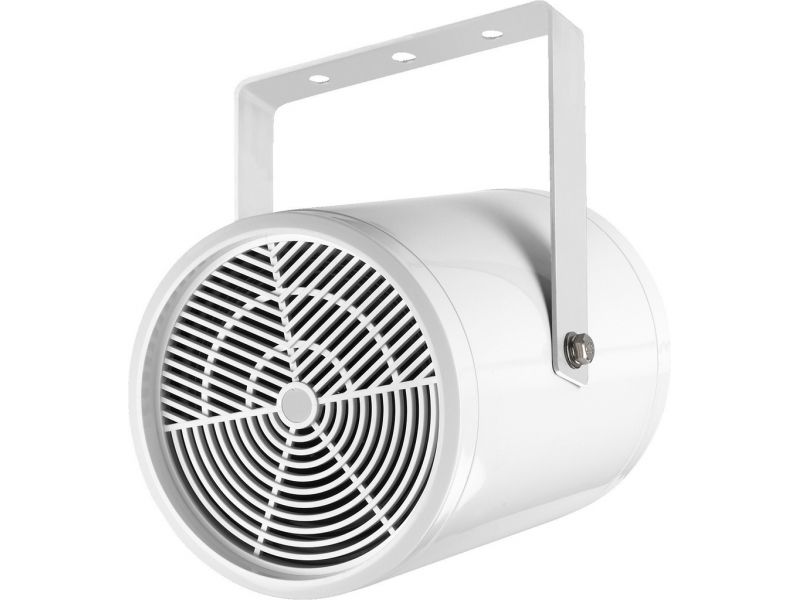

EDL-110/WS

Weatherproof PA sound projector
  • 100 V transmission technology
  • 1 speaker with polypropylene cone
  • Splashproof due to plastic housing with rubber seals and high-strength cable gland
  • Connection cable with 3 power taps
  • Stainless steel screws and pivoting mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W

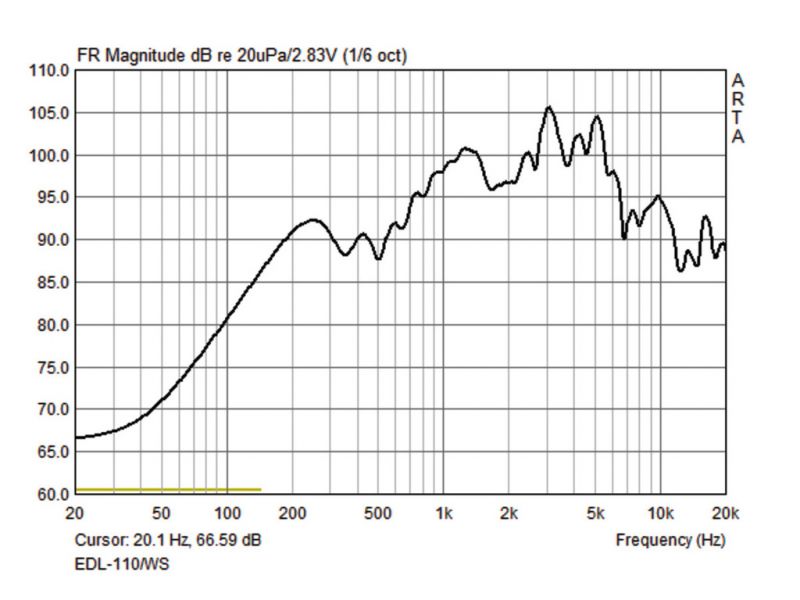

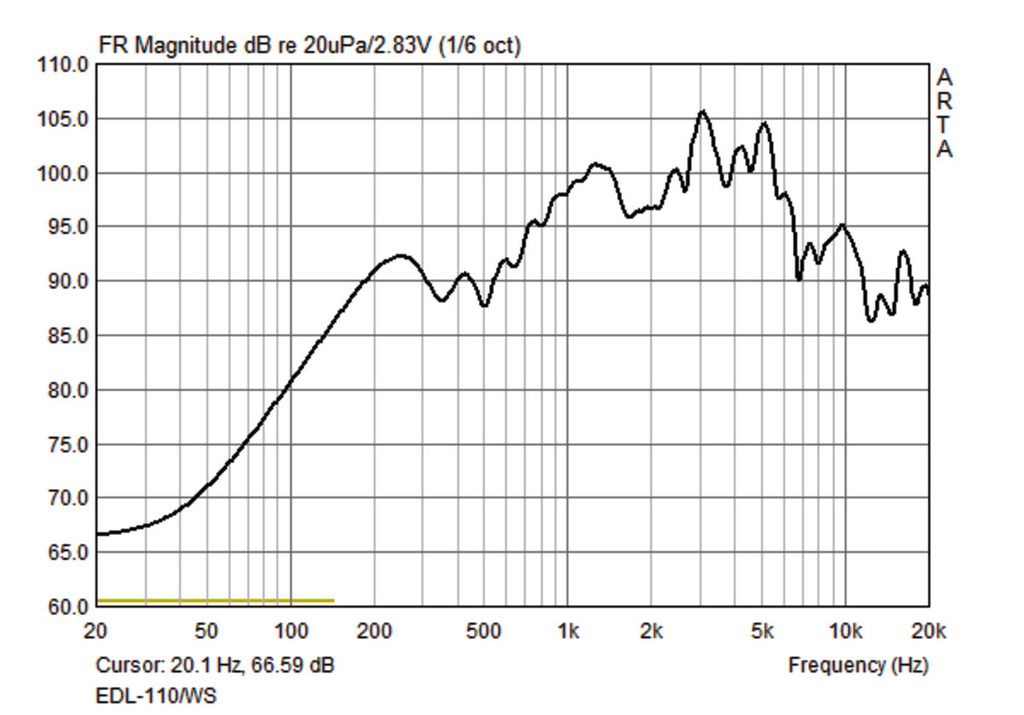

Frequency range 120-20,000 Hz
Number of speakers 1
Speaker size 16 cm (6.5")
SPL 94 dB/W/m

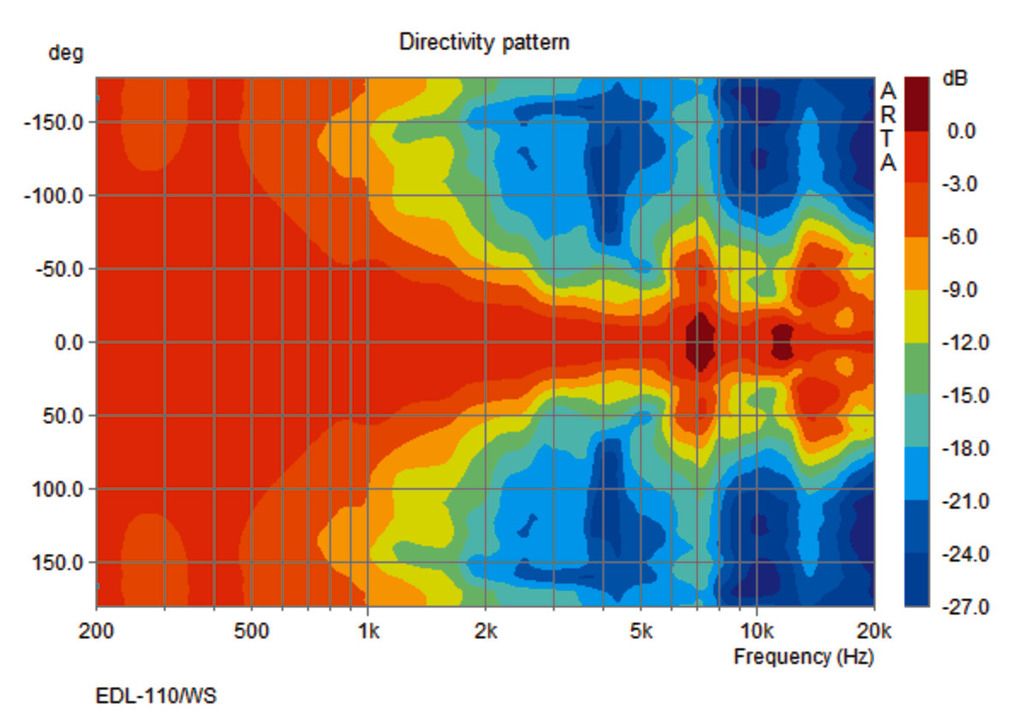

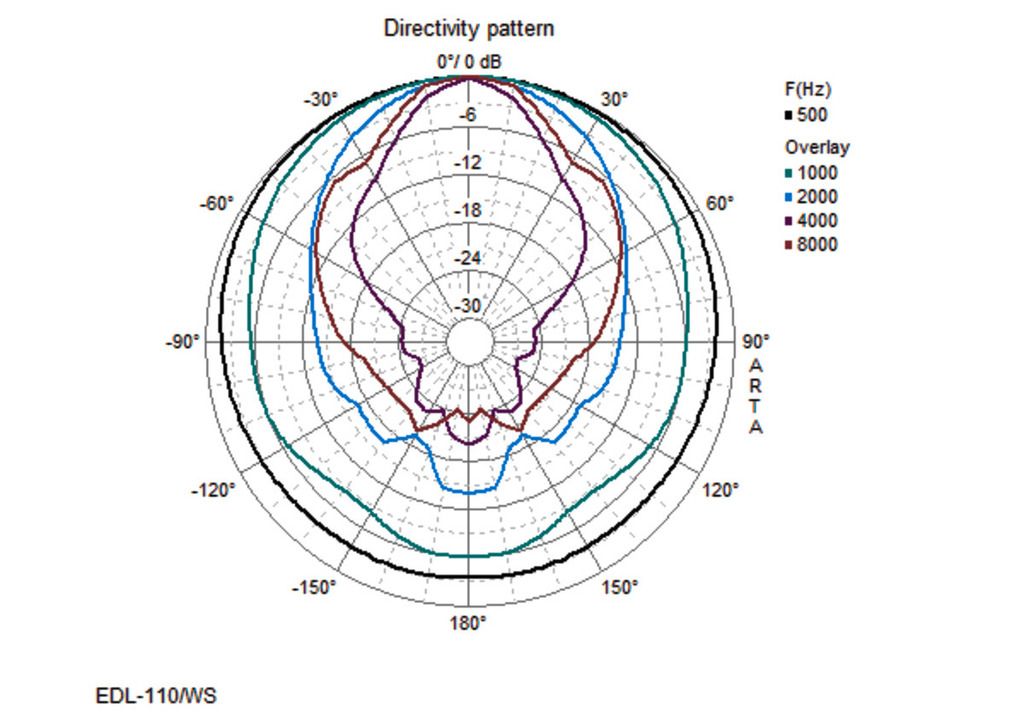

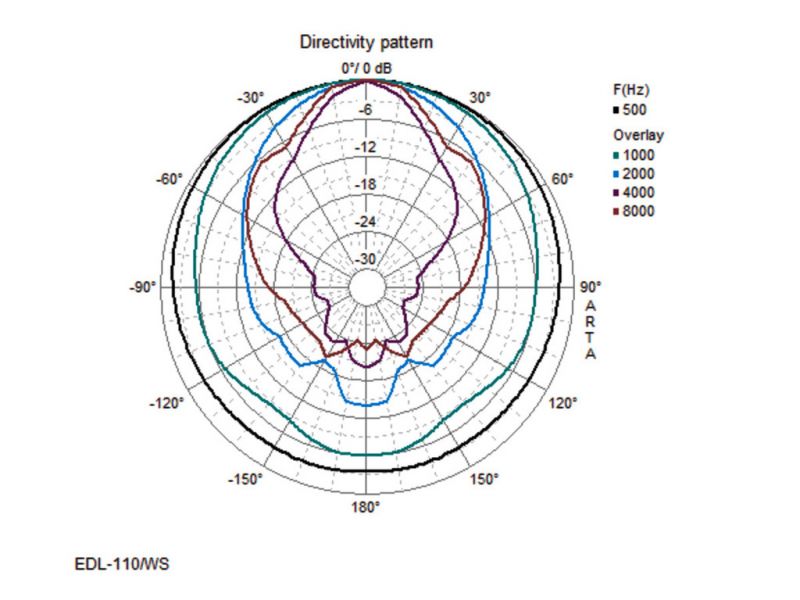

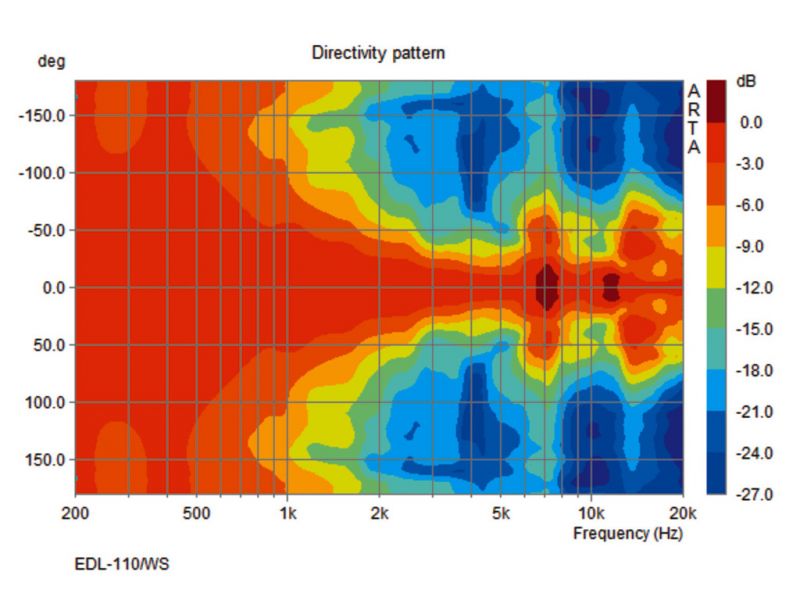

Radiation angle/beam angle 110°
Radiation angle, horizontal 110°
Radiation angle, vertical 110°
Housing material plastic
Colour white
Mounting device mounting bracket
Protection class IP44
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 180 mm x 270 mm
Width Ø 180 mm
Height Ø 180 mm
Depth 270 mm
Weight 2 kg
Inputs connection cable with 3 power taps
Packaging dimensions (W x H x L) 0.24 x 0.305 x 0.275 m
Gross weight 2.5 kg
Net weight 2.08 kg

Fisiere de descarcat

Fisa produsului EDL-110/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
