EDL-116TW

Cod EAN: 4007754266436

PA ceiling speaker 100 V transmission technology 15 cm (6") 2-way coaxial speaker Metal housing with protective speaker grille Power taps: 10/6/3/1.5 W Quick-mounting facility with spring clips Connection via spring-loaded terminal For a ceiling thic...

Citeste mai mult

Intreaba despre produs
Cumpara acum

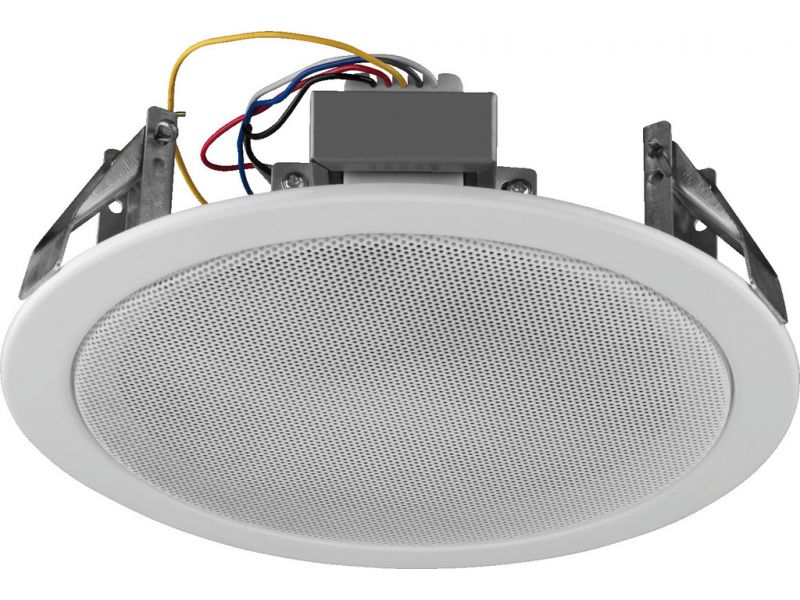

EDL-116TW

PA ceiling speaker
  • 100 V transmission technology
  • 15 cm (6") 2-way coaxial speaker
  • Metal housing with protective speaker grille
  • Power taps: 10/6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm

Parametrii

Transmission technology 100 V
Frequency range 90-20,000 Hz
Power rating (RMS) 10/6/3/1.5 W
SPL 92 dB/W/m
Max. rated SPL 102 dB

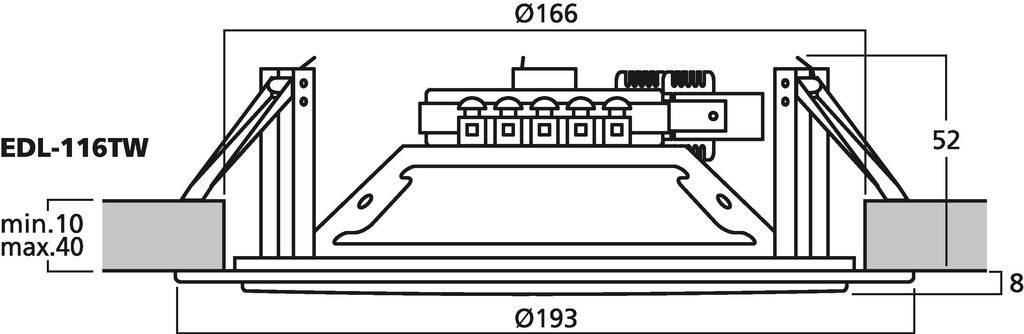

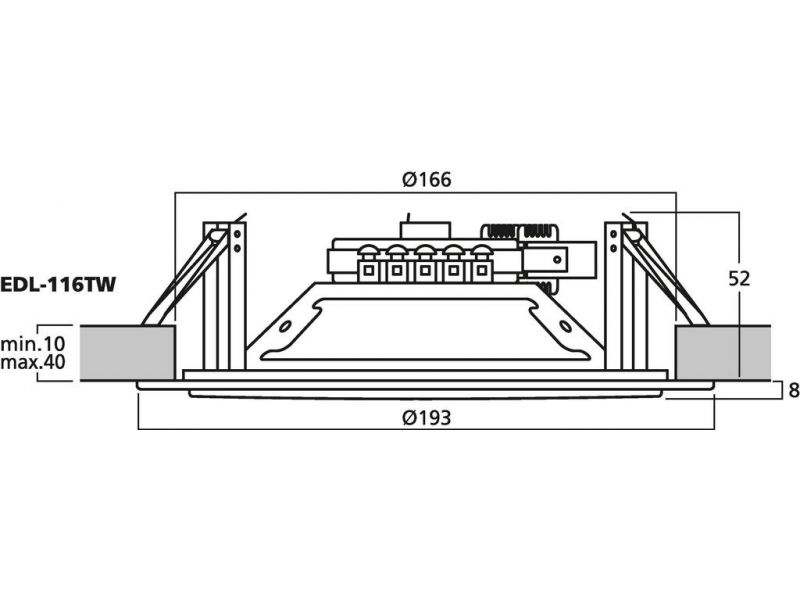

Mounting cutout Ø 166 mm
Mounting depth 55 mm
Dimensions Ø 195 mm x 55 mm
Outside diameter Ø 195 mm
Width Ø 195 mm
Height Ø 195 mm
Depth 55 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 0.82 kg
Packing unit 1
Type of speaker 150
Packaging dimensions (W x H x L) 0.215 x 0.07 x 0.215 m
Gross weight 0.918 kg
Net weight 0.821 kg

Fisiere de descarcat

Fisa produsului EDL-116TW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
