EDL-11TW

Cod EAN: 4007754132052

PA ceiling speaker 100 V transmission technology White metal housing Including fire protection cover for a high safety level Additional integrated tweeter Quick-mounting facility For a ceiling thickness from 3 to 20 mm Manufacturer information:...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-11TW

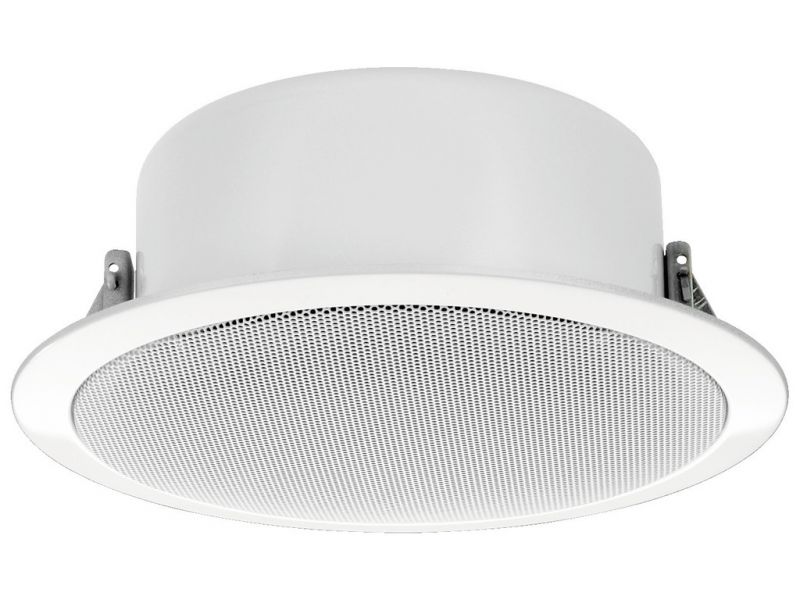

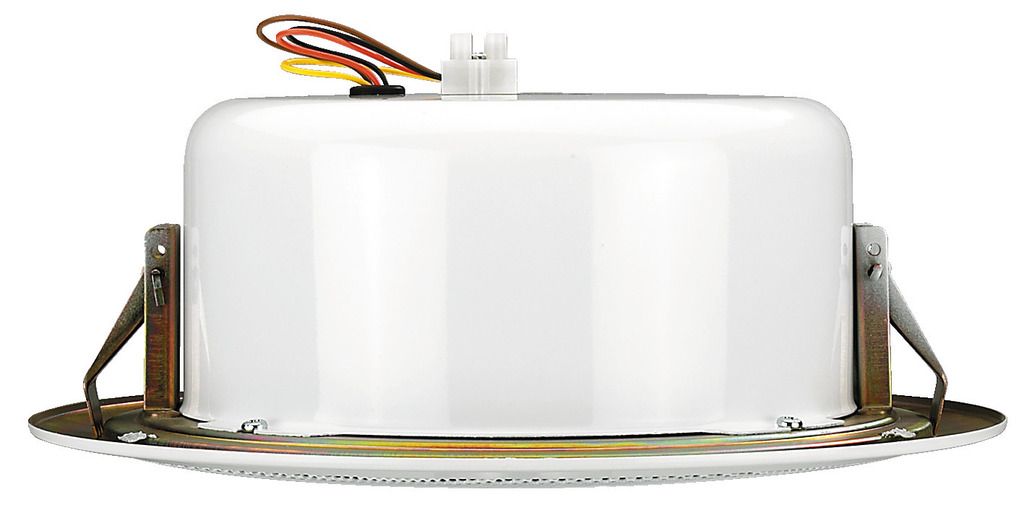

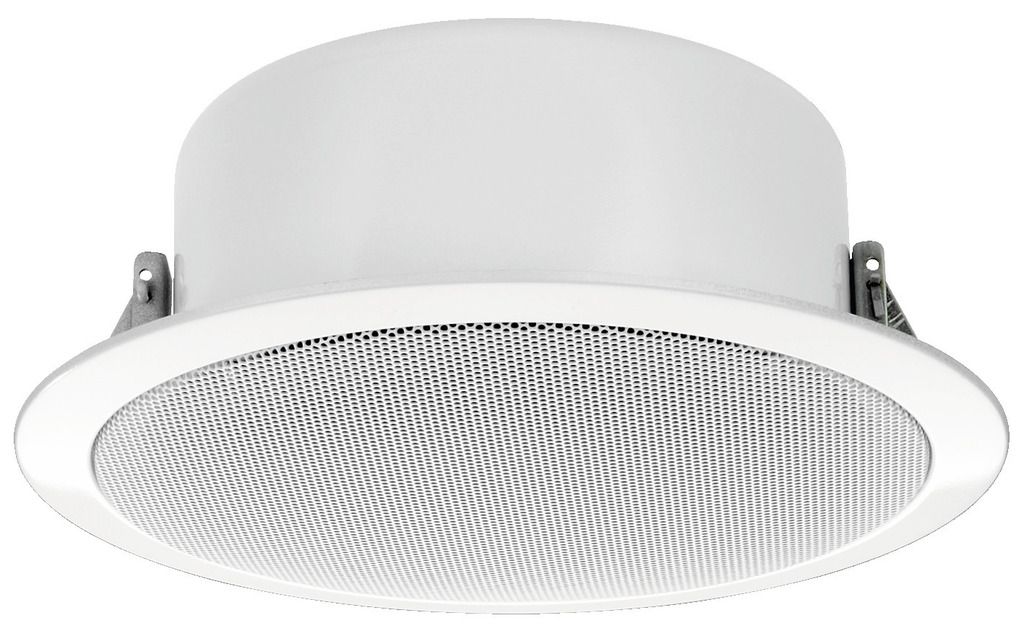

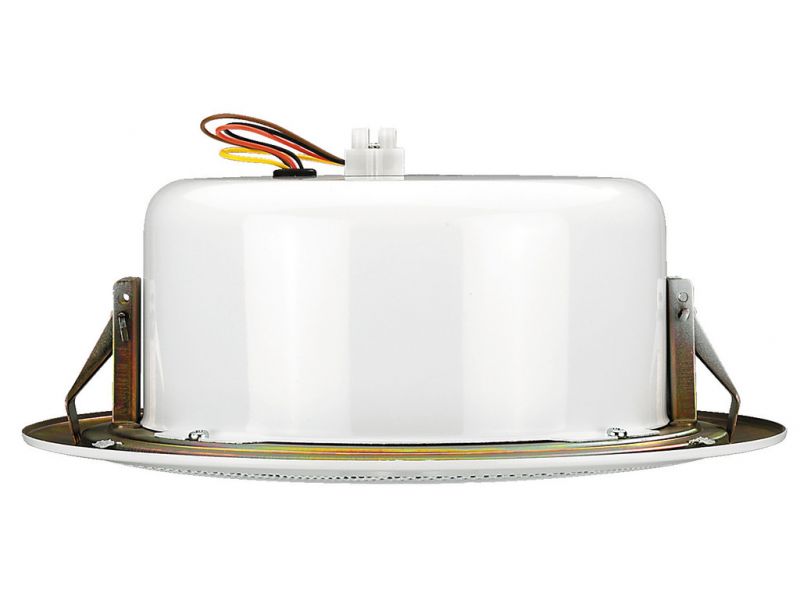

PA ceiling speaker
  • 100 V transmission technology
  • White metal housing

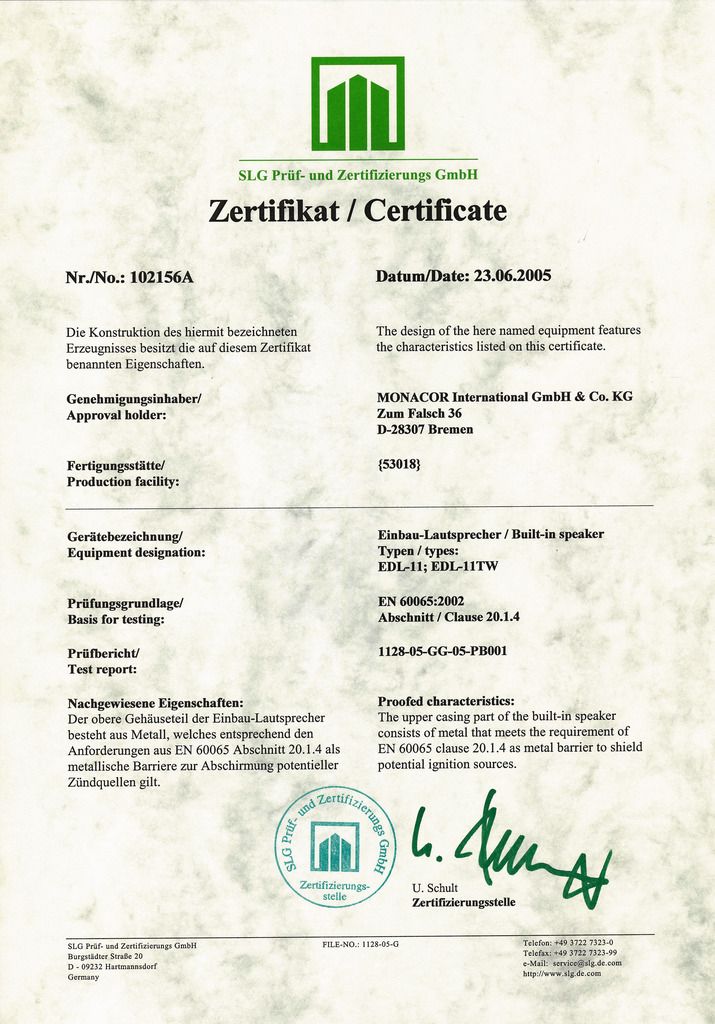

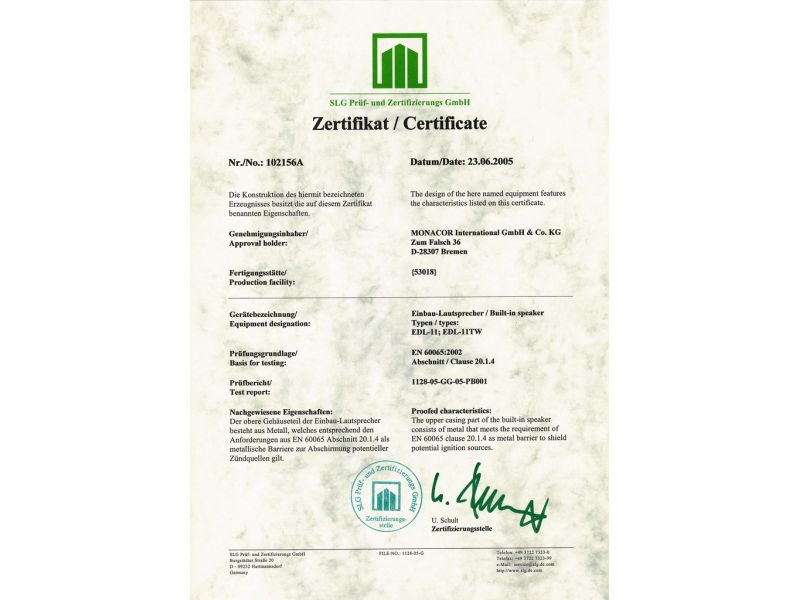

  • Including fire protection cover for a high safety level
  • Additional integrated tweeter
  • Quick-mounting facility
  • For a ceiling thickness from 3 to 20 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 60-20,000 Hz
Power rating (RMS) 10/5/2.5 W
SPL 97 dB/W/m

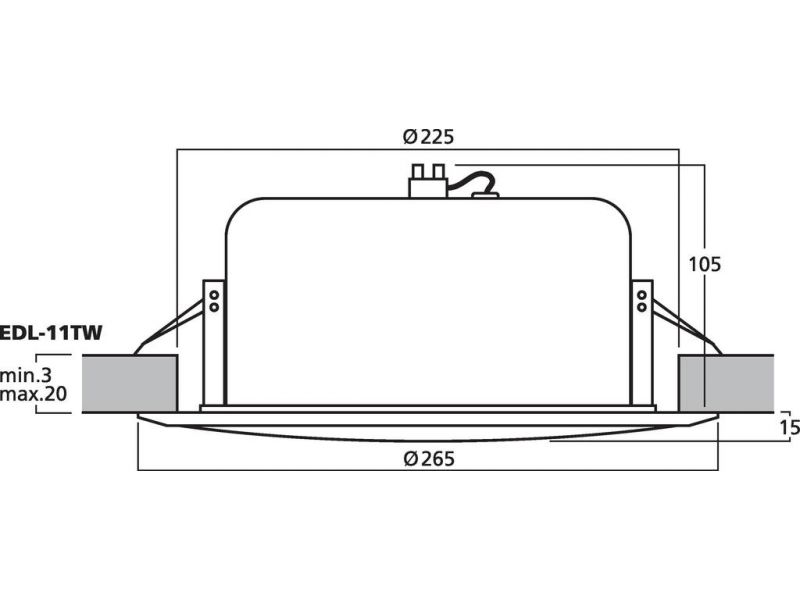

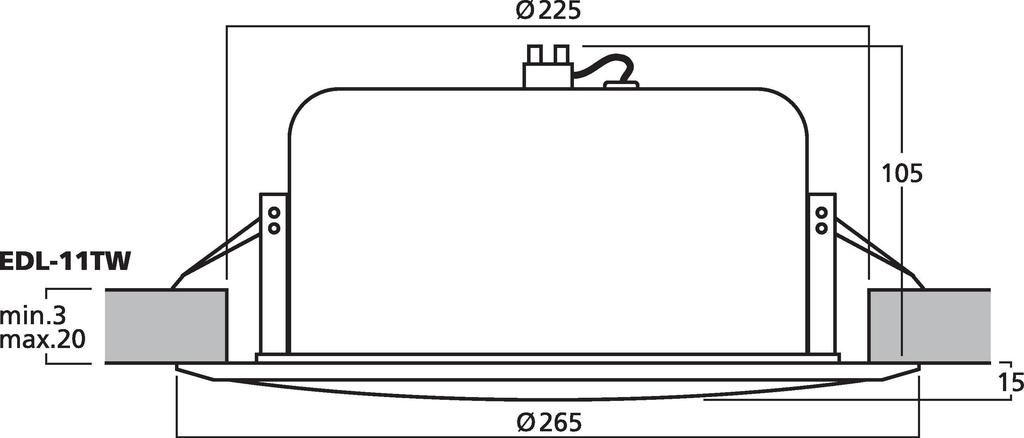

Mounting cutout Ø 225 mm
Mounting depth 110 mm
Dimensions Ø 264 mm x 120 mm
Outside diameter Ø 264 mm
Width Ø 264 mm
Height Ø 264 mm
Depth 120 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.73 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.31 x 0.14 x 0.31 m
Gross weight 2.156 kg
Net weight 1.73 kg

Fisiere de descarcat

Fisa produsului EDL-11TW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
