EDL-18

Cod EAN: 4007754266115

PA ceiling speaker 100 V transmission technology 20 cm (8") full range speaker Metal housing with protective speaker grille Power taps: 10/6/3/1.5 W Quick-mounting facility with spring clips Connection via spring-loaded terminal For a ceiling thickne...

Citeste mai mult

Intreaba despre produs
Cumpara acum

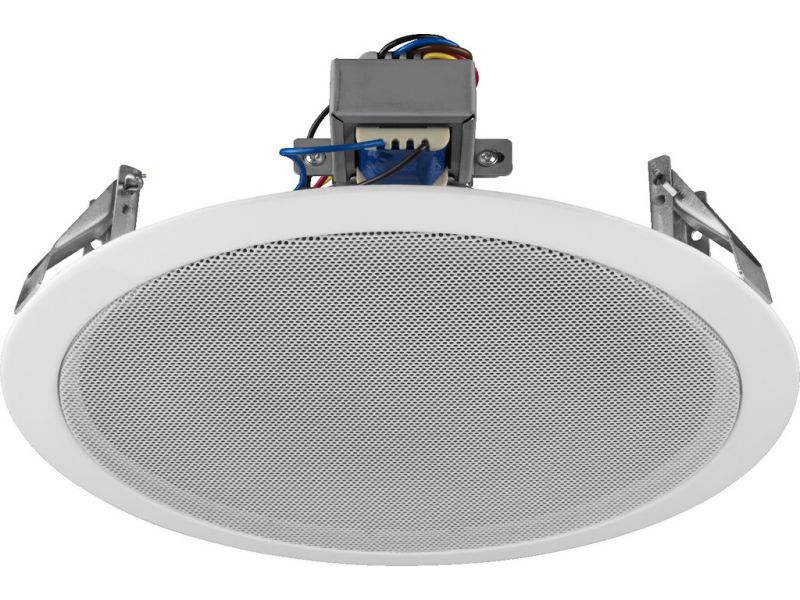

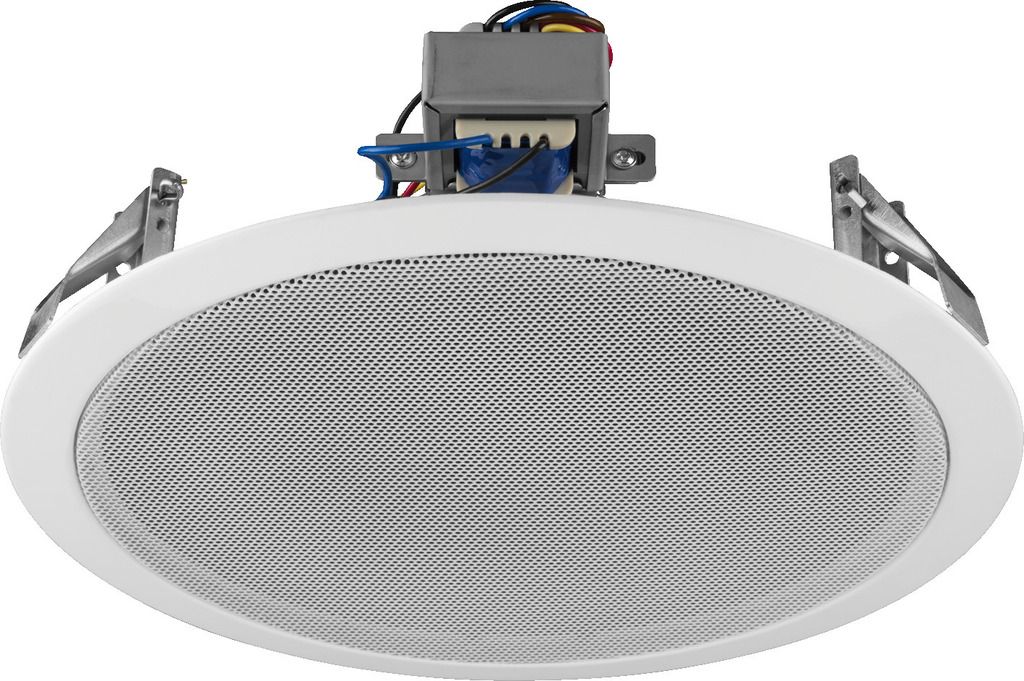

EDL-18

PA ceiling speaker
  • 100 V transmission technology
  • 20 cm (8") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 10/6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 90-16,000 Hz
Power rating (RMS) 10/6/3/1.5 W
SPL 94 dB/W/m
Max. rated SPL 106 dB

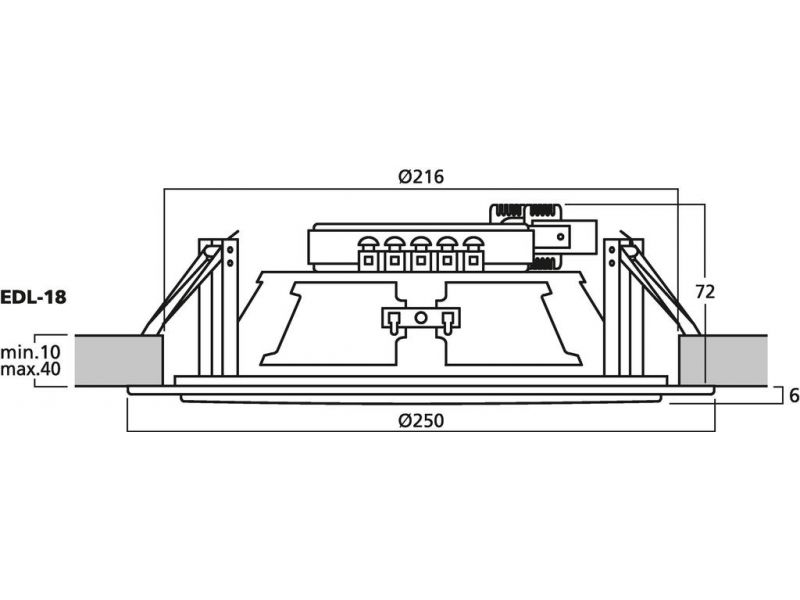

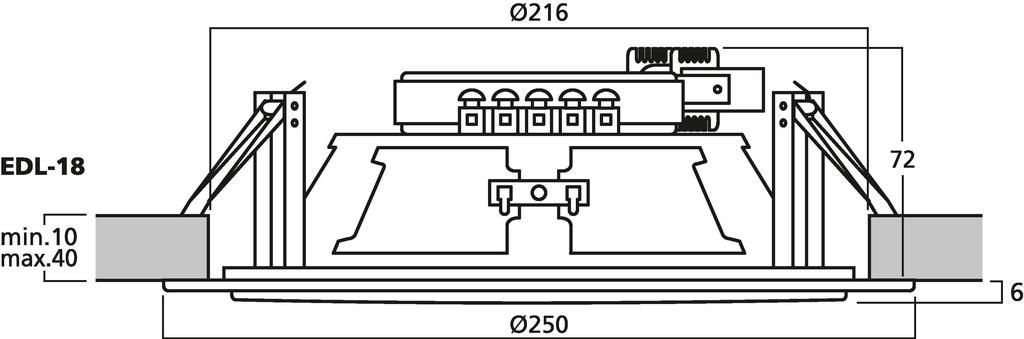

Mounting cutout Ø 216 mm
Mounting depth 85 mm
Dimensions Ø 252 mm x 85 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 85 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.18 kg
Packing unit 1
Type of speaker 200er
Packaging dimensions (W x H x L) 0.255 x 0.085 x 0.265 m
Gross weight 1.345 kg
Net weight 1.183 kg

Fisiere de descarcat

Fisa produsului EDL-18 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
