EDL-224ABC

Cod EAN: 4007754233353

PA A/B ceiling speaker, with EN 54-24 certification. For systems with A/B speaker distribution. Cost-effective reduction of the required ceiling cutouts. 100 V transmission technology 2 separate speaker systems Full range speaker with a very high e...

Citeste mai mult

Intreaba despre produs
Cumpara acum

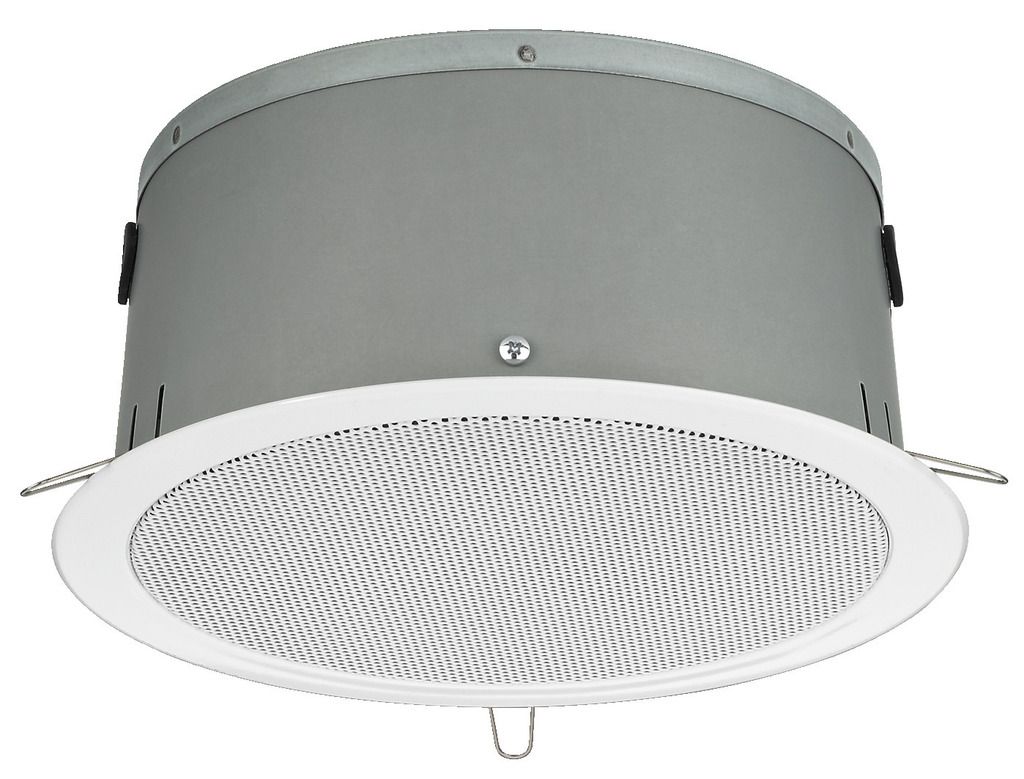

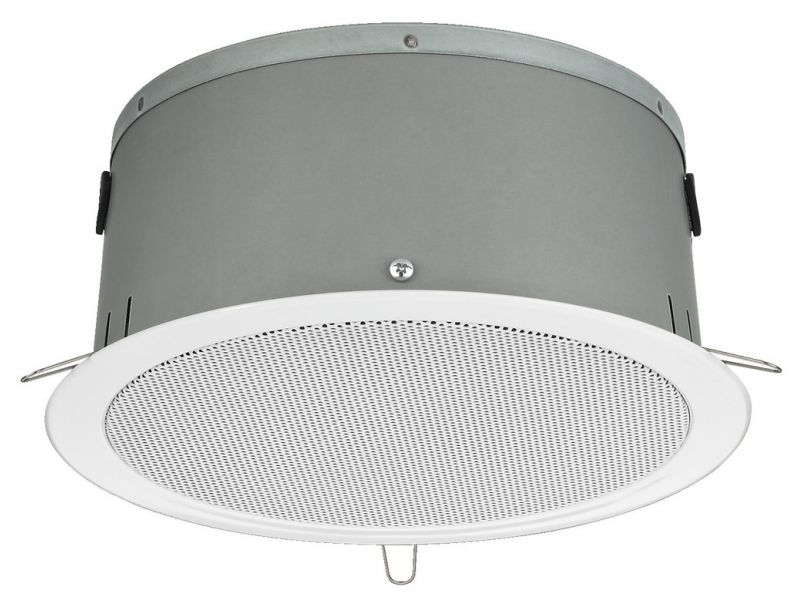

EDL-224ABC

PA A/B ceiling speaker,
with EN 54-24 certification. For systems with A/B speaker distribution. Cost-effective reduction of the required ceiling cutouts.
  • 100 V transmission technology

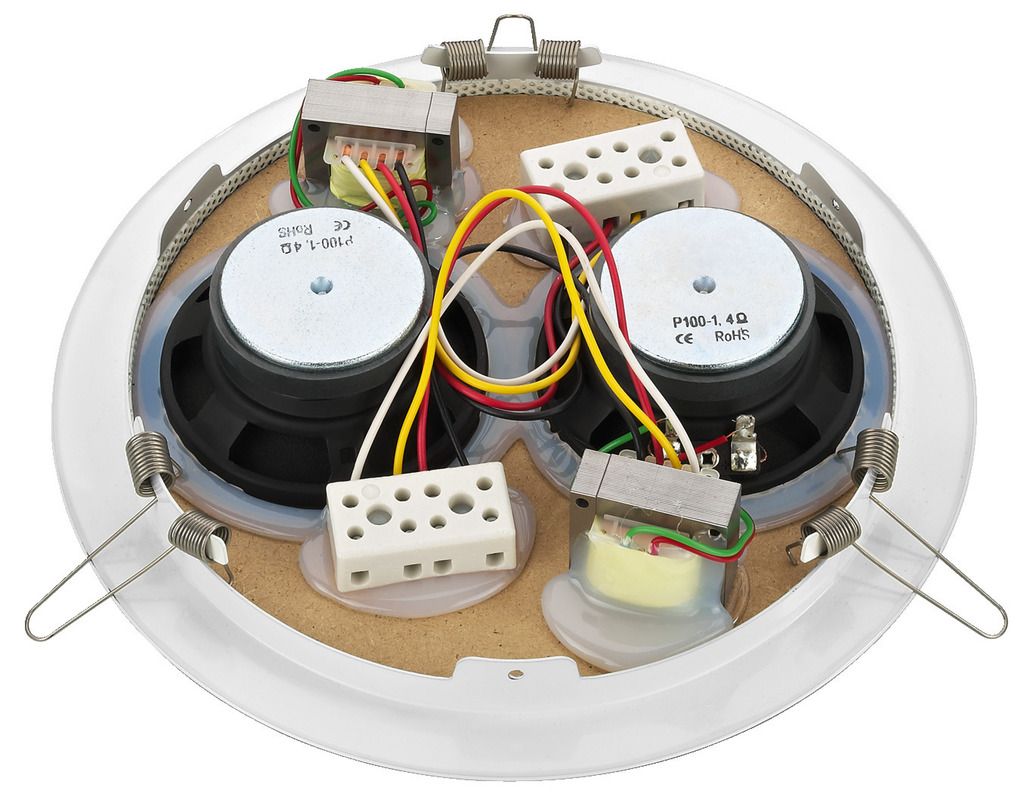

  • 2 separate speaker systems
  • Full range speaker with a very high efficiency and high maximum volume level
  • Metal housing
  • Fire protection cover
  • Quick mounting facility
  • 3 power taps via push terminals
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 75-20,000 Hz
Power rating (RMS) 2 x 6/2 x 3/2 x 1.5 W
SPL 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 2 x 100 dB (1 m) 85 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz), 180° (1,000 Hz), 160° (2,000 Hz), 80° (4,000 Hz)
Radiation angle, vertical 180° (500 Hz), 180° (1,000 Hz), 160° (2,000 Hz), 80° (4,000 Hz)
Mounting cutout Ø 230 mm
Mounting depth 110 mm
Dimensions Ø 252 mm x 115 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 115 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.84 kg
Packing unit 1
Type of speaker 2 x 100
Packaging dimensions (W x H x L) 0.28 x 0.13 x 0.28 m
Gross weight 2.02 kg
Net weight 1.84 kg

Fisiere de descarcat

Fisa produsului EDL-224ABC konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
