PSUB-15AKA

Cod EAN: 4007754229264

The high-performance subwoofers of compact size with integrated 2.1 active modules are suitable for a wide range of applications. They are the basis for setting up a small or medium-sized compact PA system without the need for transporting additional...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PSUB-15AKA

The high-performance subwoofers of compact size with integrated 2.1 active modules are suitable for a wide range of applications.

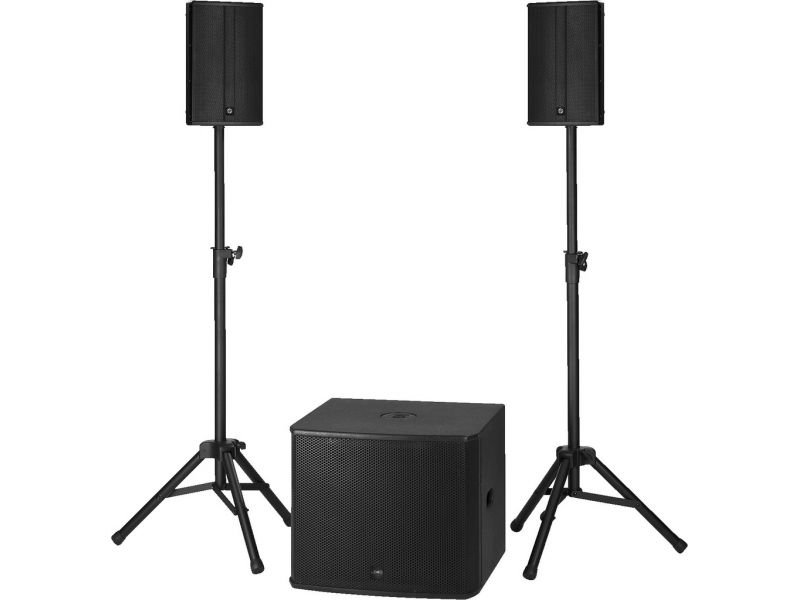

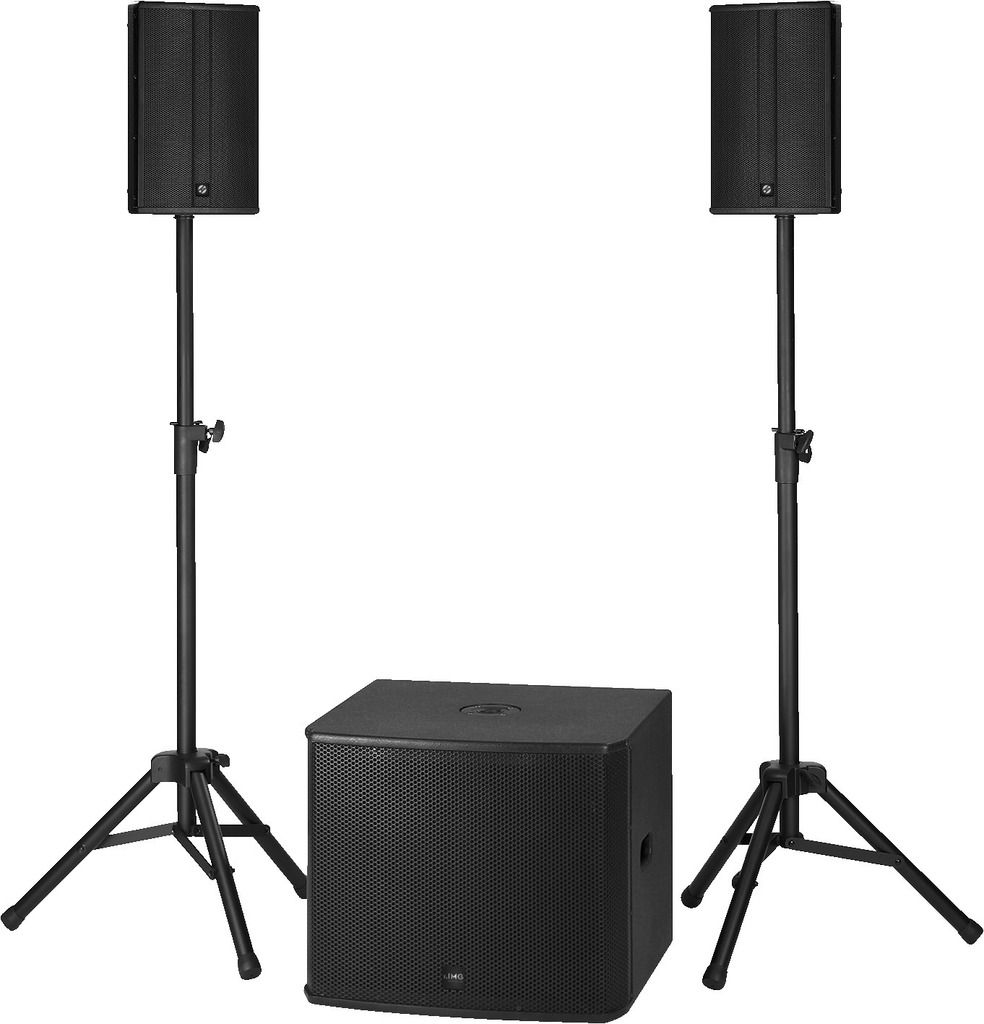

They are the basis for setting up a small or medium-sized compact PA system without the need for transporting additional amplifier systems. The microphone and line inputs can be mixed and the crossover frequency of the subwoofer to the passive satellite speakers can be adjusted over a wide range. The mixed signal can then be passed on to further systems via stereo pre out.
Active 2.1 PA subwoofer, 1,200 W

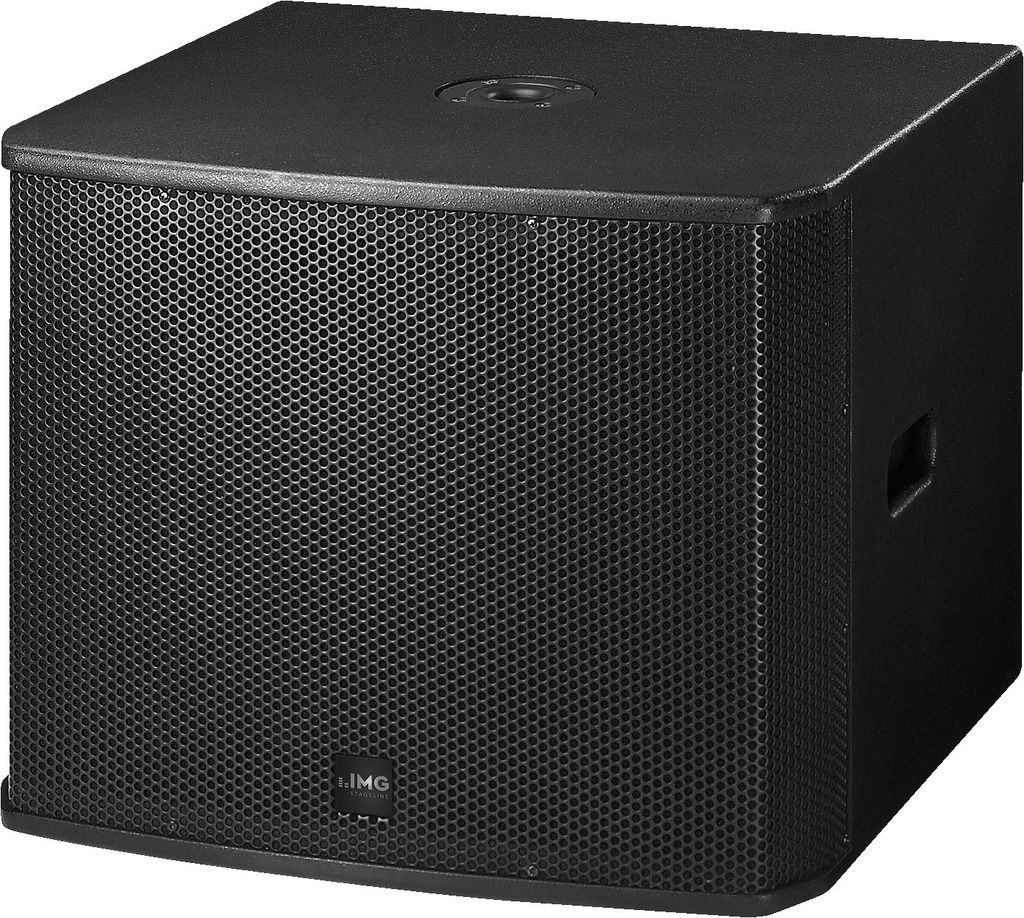

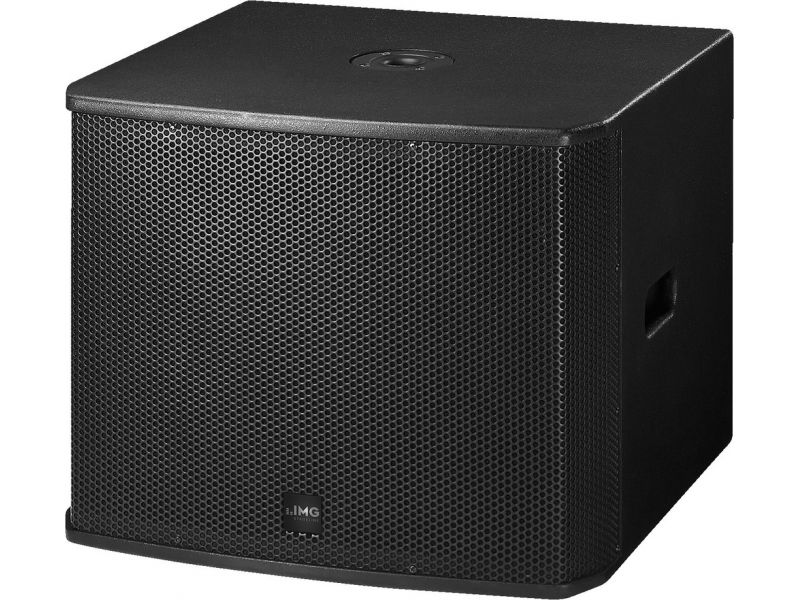

  • Active bass-reflex subwoofer system with wooden cabinet

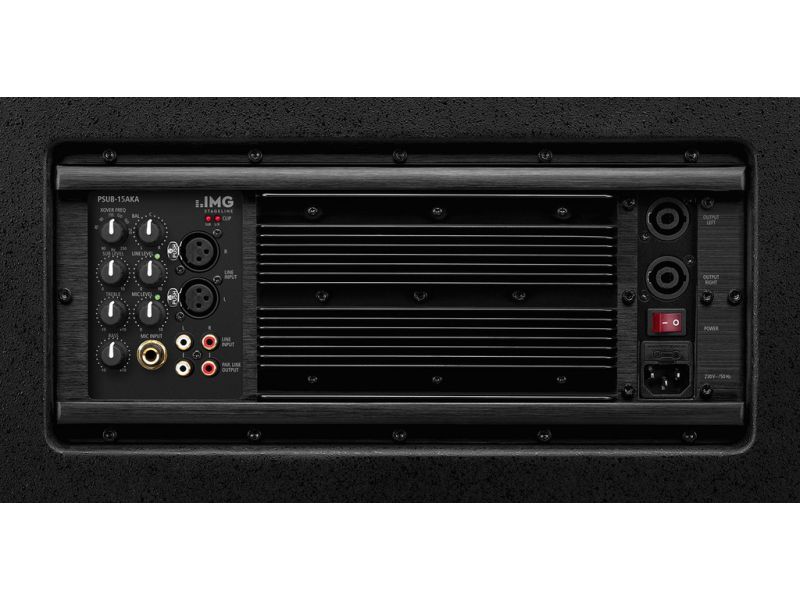

  • Integrated 2.1 active module
  • Power rating: SUB: 500 W, SAT: 2 x 150 W
  • 38 cm (15") bass speaker of high power capability and long excursion

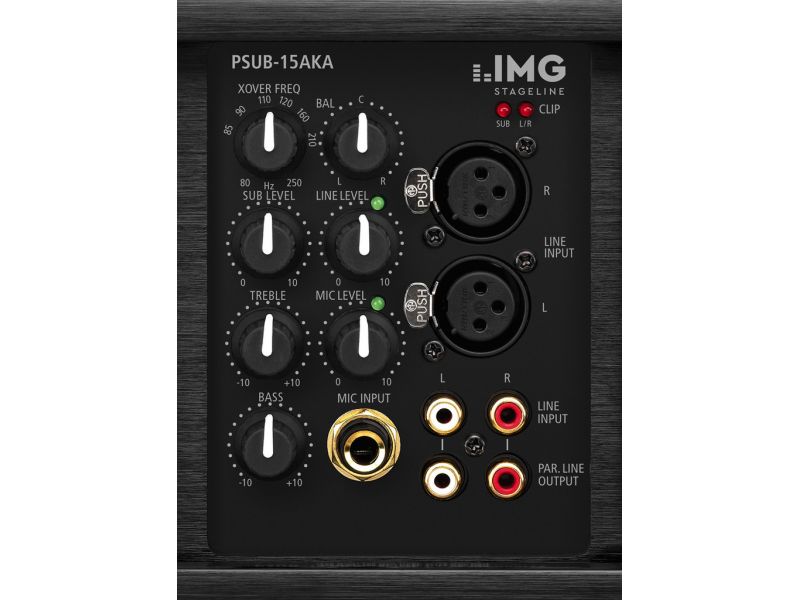

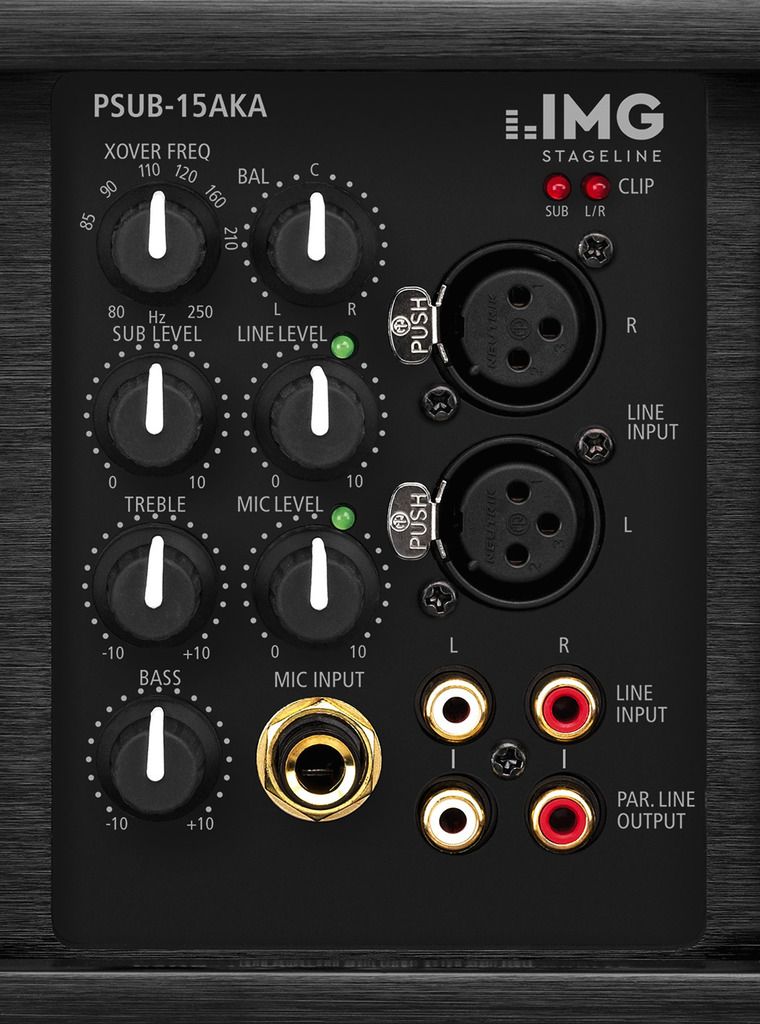

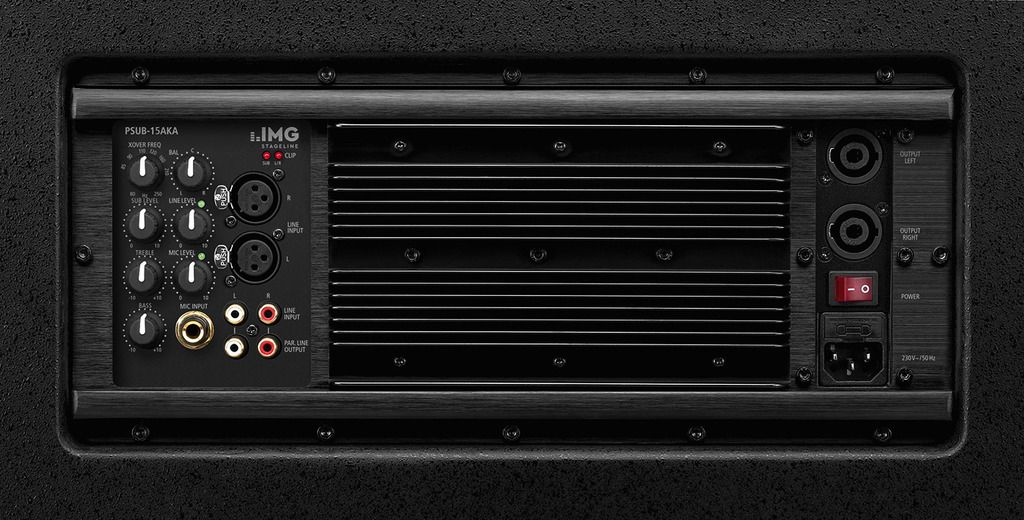

  • Stereo line input and mic input with gain control
  • Adjustable crossover frequency: 80-250 Hz
  • 2-way tone control for bass and treble, balance
  • Integrated limiter, clipping indication
  • High-quality workmanship, integrated carrying handles

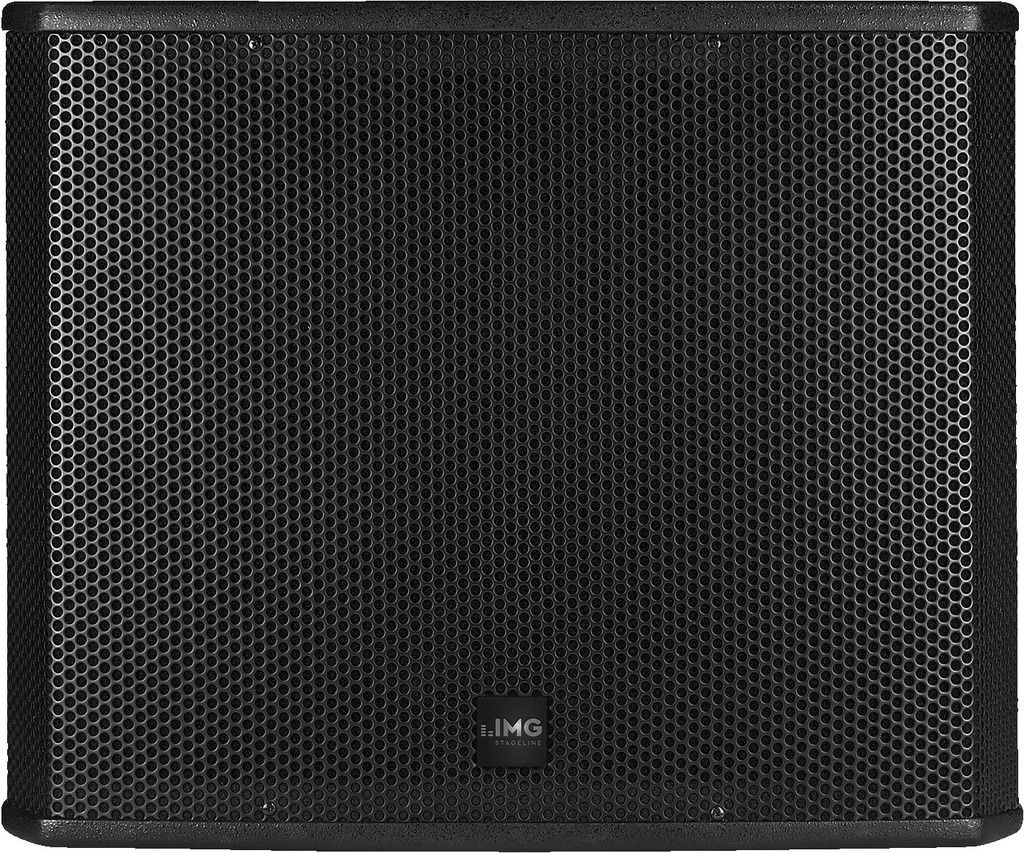

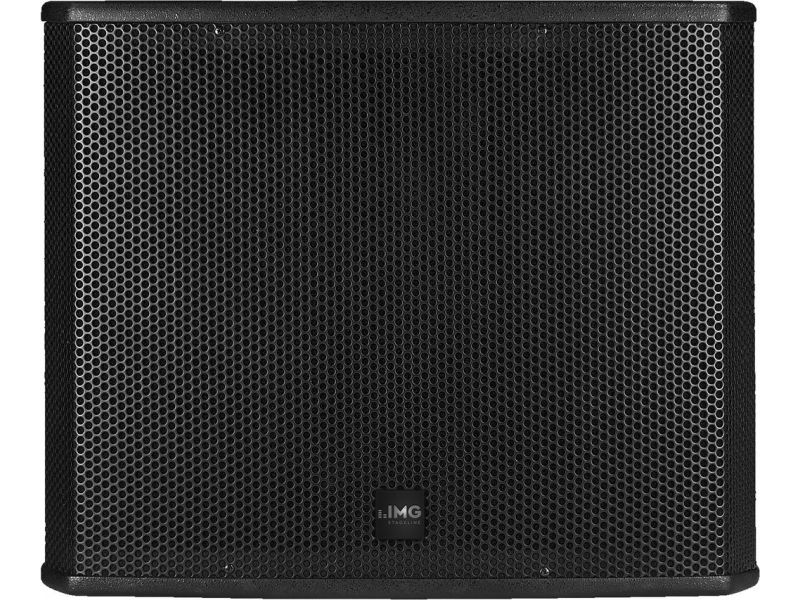

  • Metal front grille, stand sleeve, rubber feet
SOUNDCHECK 04/2013
“With the PAB-308/SW and the PSUB-15AKA, IMG Stage Line provides PA systems which, despite their small size, are capable of very high volume levels. The PAB-308/SW allows for a good intelligibility whenever speech is reproduced. You were able to understand every word sung by the vocalist, even without any help from the equalizer.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 1,200 W
Power rating (RMS) 500 W (SUB), 2 x 150 W (SAT)
Frequency range 30-250 Hz
S/N ratio > 74 dB
Input signal 880 mV-7 V (line) 30 mV (mic)
System bass-reflex
Bass speaker 38 cm (15") bass speaker
Number of speakers 1
Speaker size 38 cm (15")
Max. rated SPL 124 dB
Radiation angle/beam angle omnidirectional
Housing material wood
Colour black
Mounting device stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/1,870 VA
Dimensions 600 x 500 x 580 mm
Width 600 mm
Height 500 mm
Depth 580 mm
Weight 44 kg
Inputs XLR L/R, bal. RCA L/R, unbal. 6.3 mm jack, unbal.
Outputs RCA L/R NEUTRIK SPEAKON L/R (sat: > 150 Hz)
Packaging dimensions (W x H x L) 0.73 x 0.66 x 0.76 m
Gross weight 52.9 kg
Net weight 44.82 kg

Fisiere de descarcat

Fisa produsului PSUB-15AKA konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
