EDL-250C/WS

Cod EAN: 4007754233360

PA ceiling speaker, with EN 54-24 certification. 100 V transmission technology Full range speaker with a very high efficiency and high maximum volume level Metal housing Fire protection cover Quick mounting facility 3 power taps via push terminals...

Citeste mai mult

Intreaba despre produs
Cumpara acum

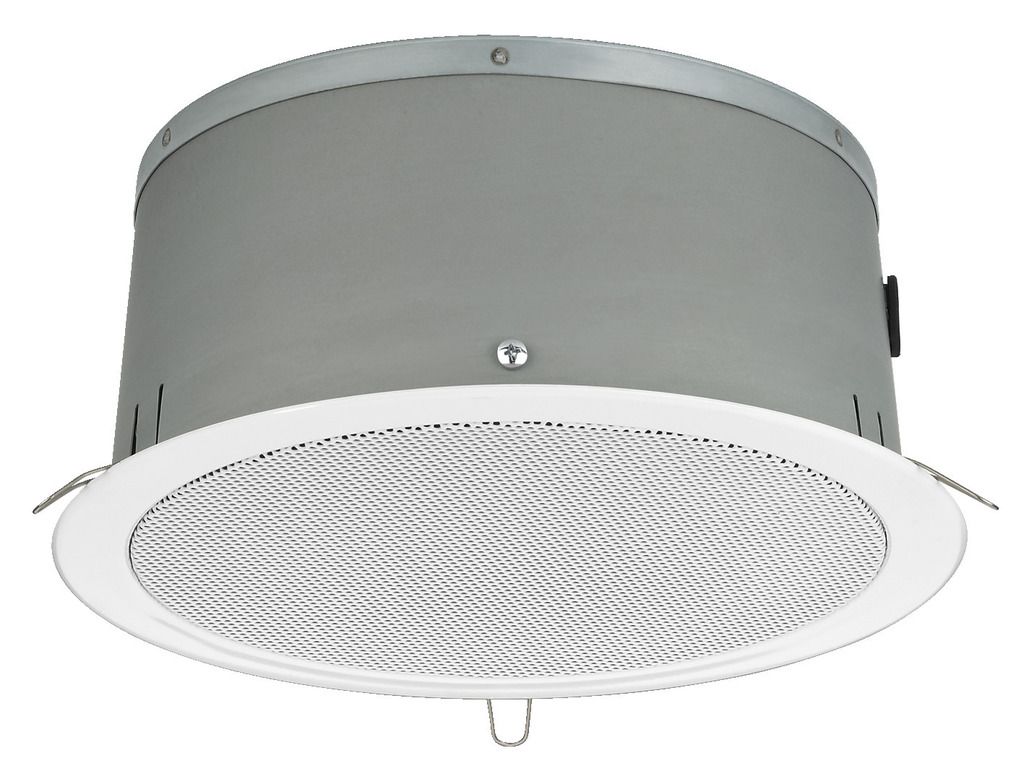

EDL-250C/WS

PA ceiling speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • Full range speaker with a very high efficiency and high maximum volume level
  • Metal housing
  • Fire protection cover
  • Quick mounting facility
  • 3 power taps via push terminals
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 70-19,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 98 dB (1 W/1 m) 81 dB (EN, 1 W/4 m)
Max. rated SPL 106 dB (1 m) 90 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz), 180° (1,000 Hz), 90° (2,000 Hz), 49° (4,000 Hz)
Radiation angle, vertical 180° (500 Hz), 180° (1,000 Hz), 90° (2,000 Hz), 49° (4,000 Hz)
Mounting cutout Ø 230 mm
Mounting depth 110 mm
Dimensions Ø 252 mm x 110 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 110 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.8 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.28 x 0.13 x 0.28 m
Gross weight 2.005 kg
Net weight 1.81 kg

Fisiere de descarcat

Fisa produsului EDL-250C/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
