EDL-310L

Cod EAN: 4007754206562

Special Speakers which show completely new ways of invisible PA applications: the super dispersion ceiling speakers effectively utilise an open baffle technology for PA ceiling applications. Super dispersion PA ceiling speaker 100 V transmissio...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-310L

Special Speakers
which show completely new ways of invisible PA applications: the super dispersion ceiling speakers effectively utilise an open baffle technology for PA ceiling applications.
Super dispersion PA ceiling speaker
  • 100 V transmission technology with 3 power taps up to 10 W
  • High-quality full range speaker (20 cm) with an exceptionally good linearity, extensive bass reproduction and high efficiency
  • For all suspended ceilings and for free suspension
  • Easiest installation by simply resting the speaker on the ceiling grid or suspending it above the ceiling (to prevent rattling noise with lightweight ceilings)
  • A very good sound with excellent stereophony with all suspended ceiling grids
  • With most of the more soundproof ceilings, typical treble dampening can be compensated to a large extend by simply readjusting the treble control at the amplifier and background PA applications can be realised without any cutouts or visible speakers

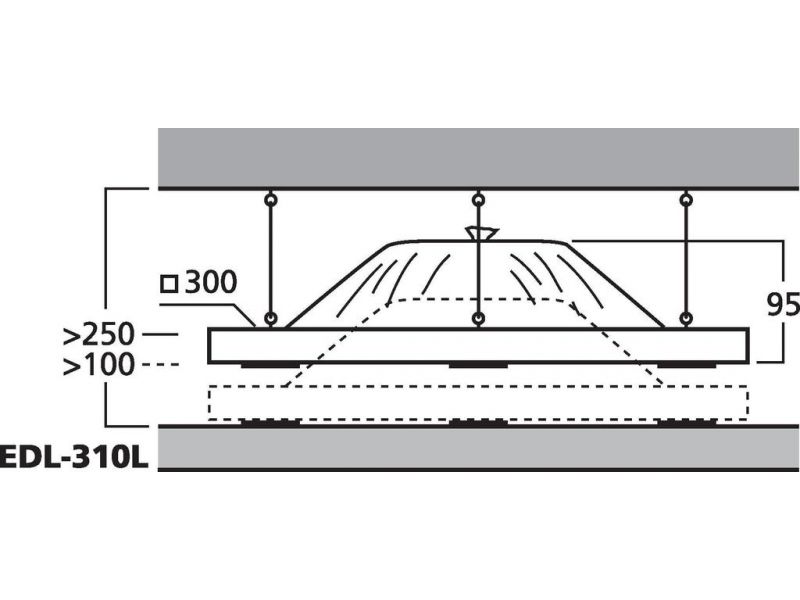

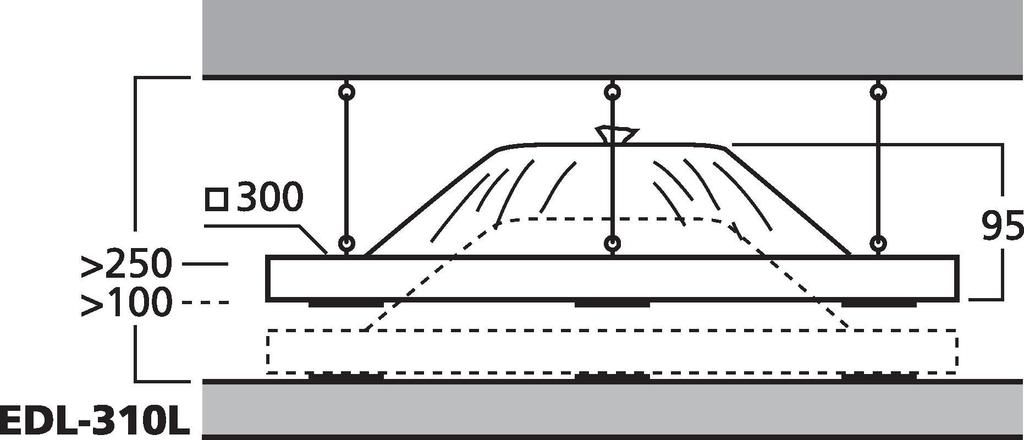

  • Dimensions: 300 mm x 300 mm, required clearance above the ceiling when resting the speaker directly on the grid: >10 cm, when suspending it above the ceiling: >25 cm

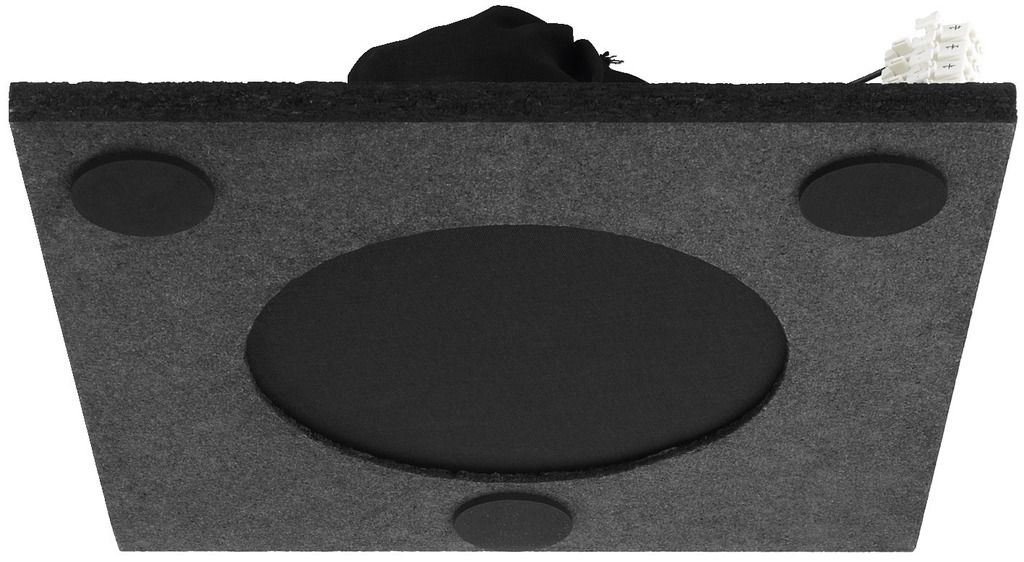

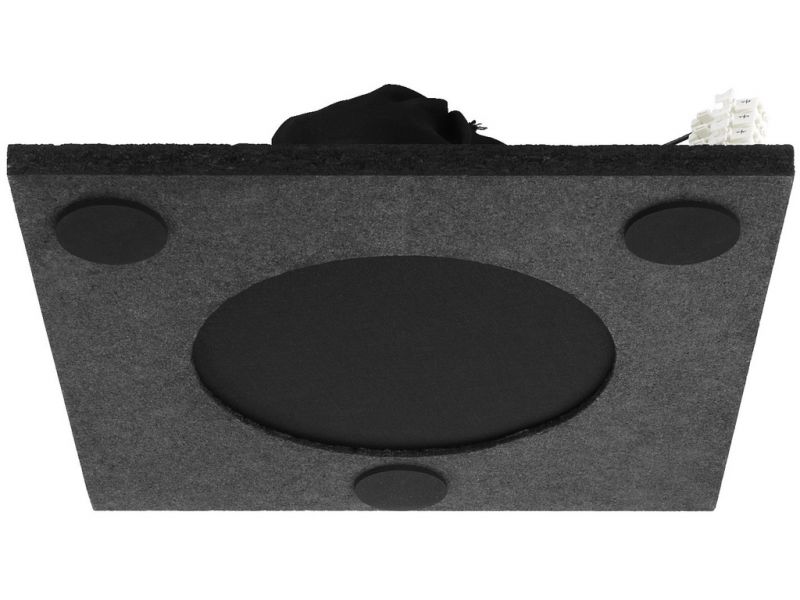

  • The sound absorption plate is fitted with 3 foam rubber pads for resting the speaker on the grid and 3 predrilled holes for suspending it
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 50-18,000 Hz
Power rating (RMS) 10/5/2.5 W
SPL 98 dB/W/m
Mounting cutout not applicable, as the speaker will be placed on ceiling panels
Mounting depth 95 mm
Dimensions 300 x 300 x 95 mm
Width 300 mm
Height 300 mm
Depth 95 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.535 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.31 x 0.12 x 0.31 m
Gross weight 1.762 kg
Net weight 1.535 kg

Fisiere de descarcat

Fisa produsului EDL-310L konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
