EDL-412/SW

Cod EAN: 4007754411027

Weatherproof PA ball speaker 100 V transmission technology or 8 Ω operation Black ABS housing (self-extinguishing, complies with standard UL 94V-0) Supplied with 480 cm connection cable and canopy

Intreaba despre produs
Cumpara acum

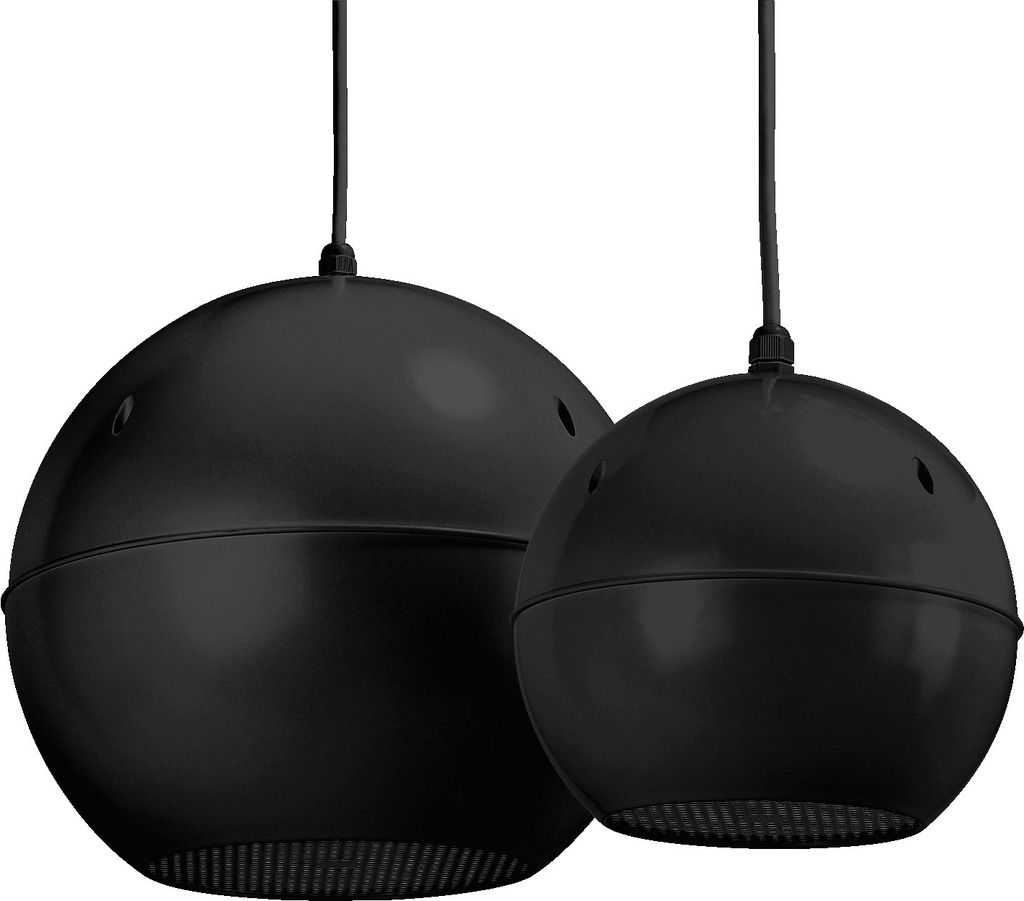

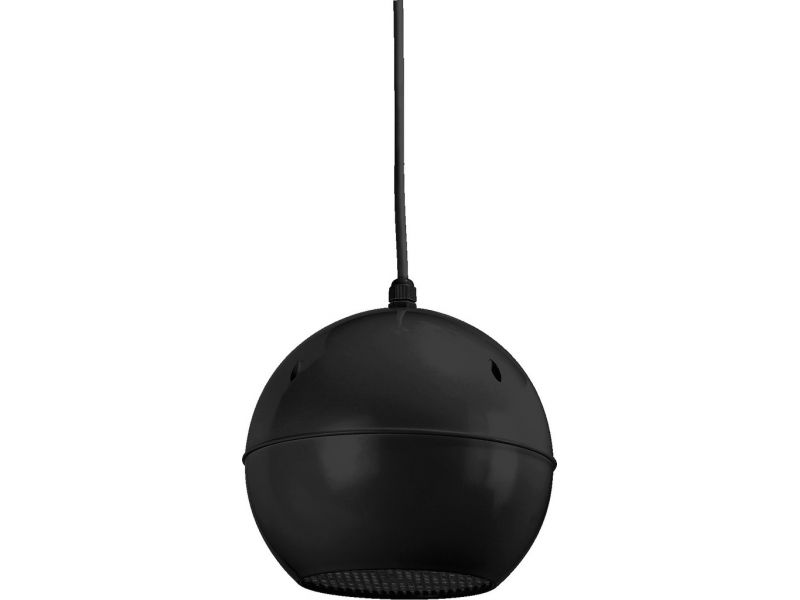

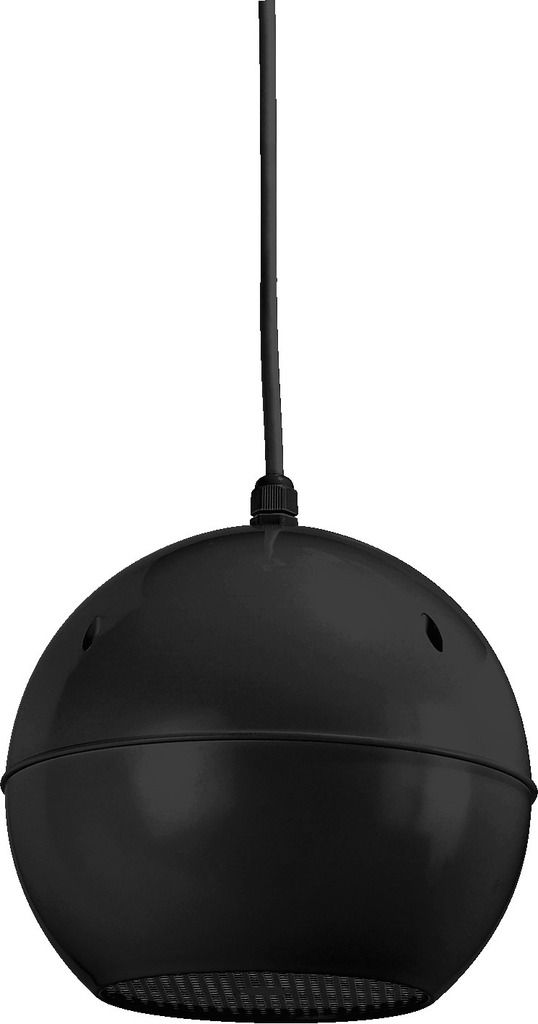

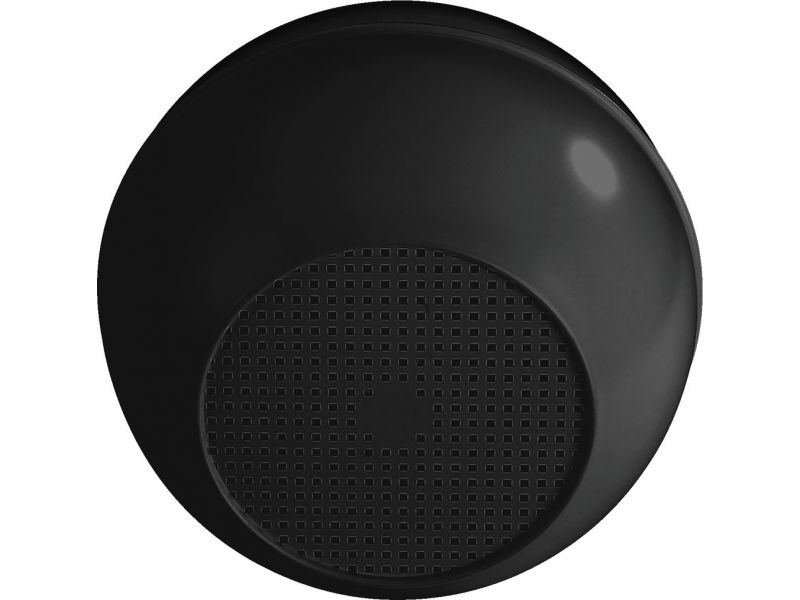

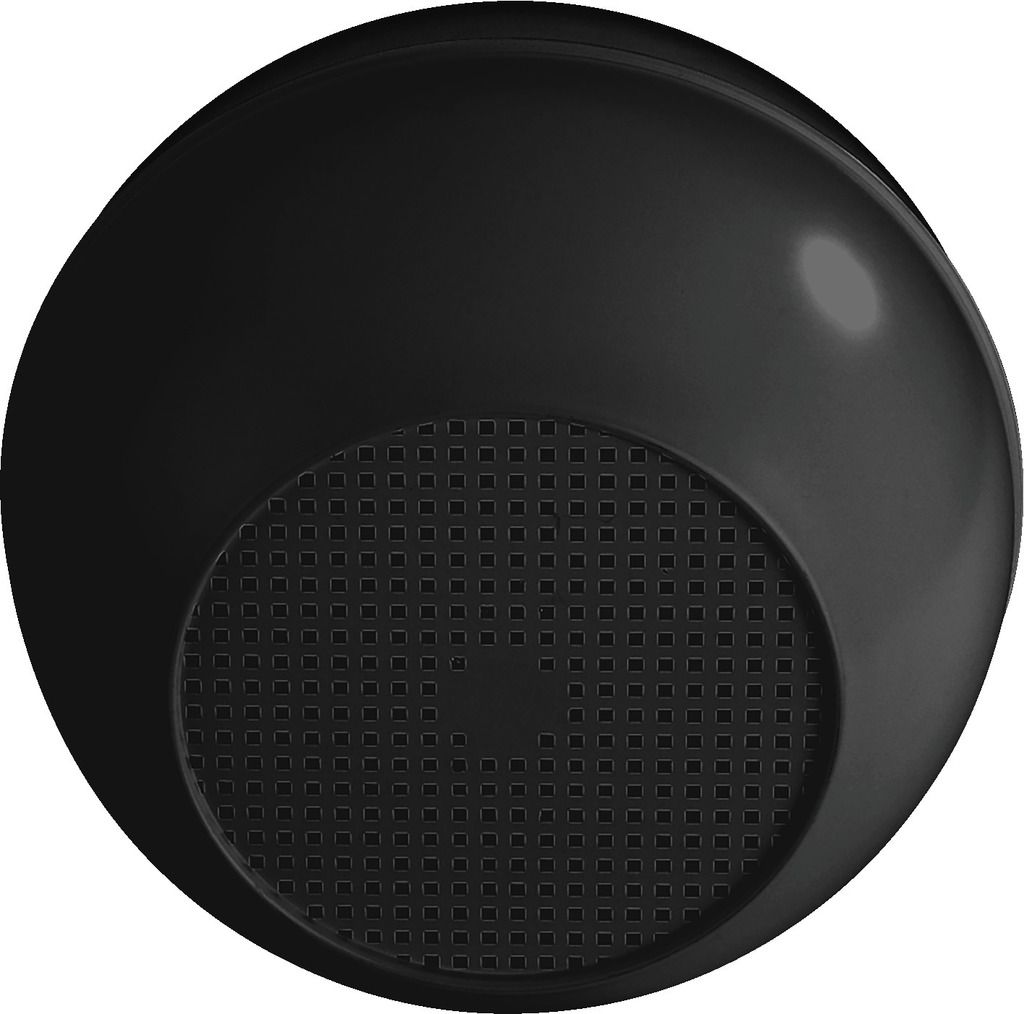

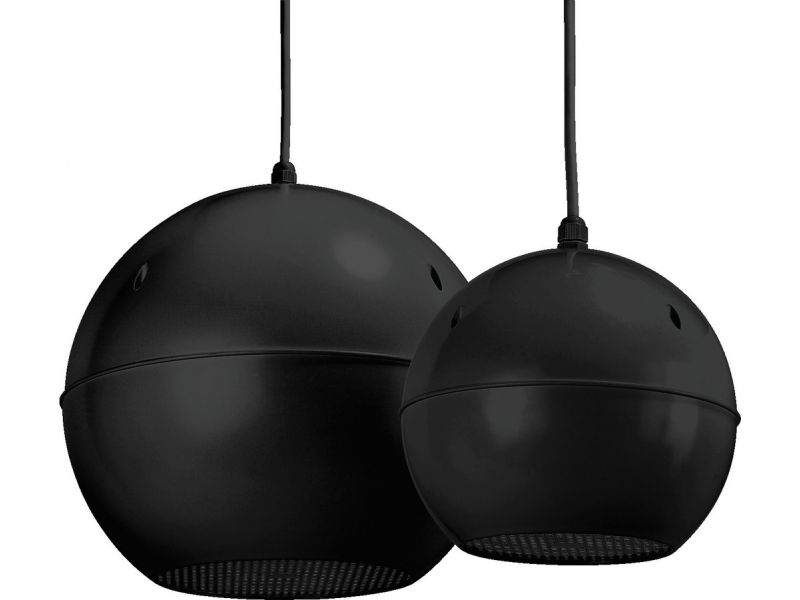

EDL-412/SW

Weatherproof PA ball speaker
  • 100 V transmission technology or 8 Ω operation
  • Black ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W
Impedance 8 Ω

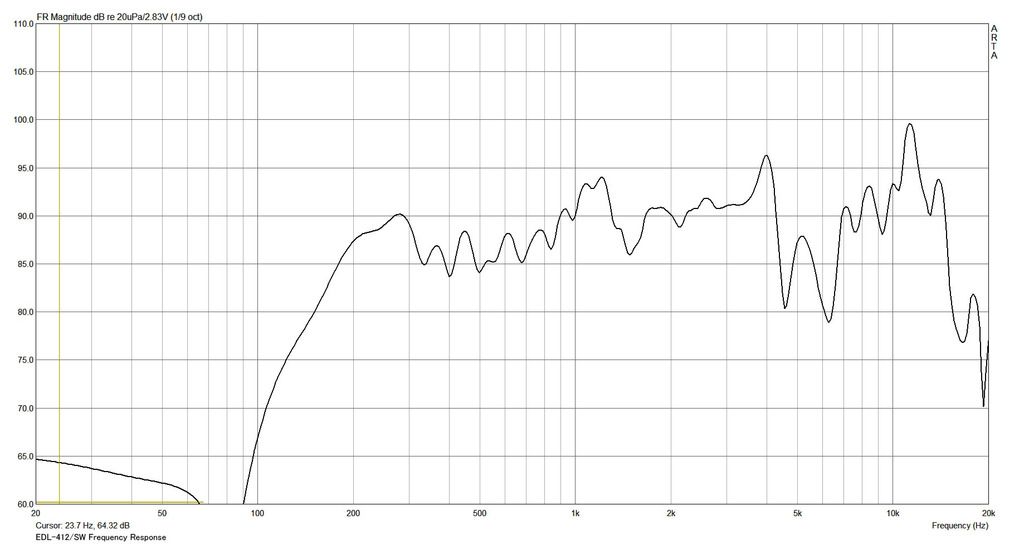

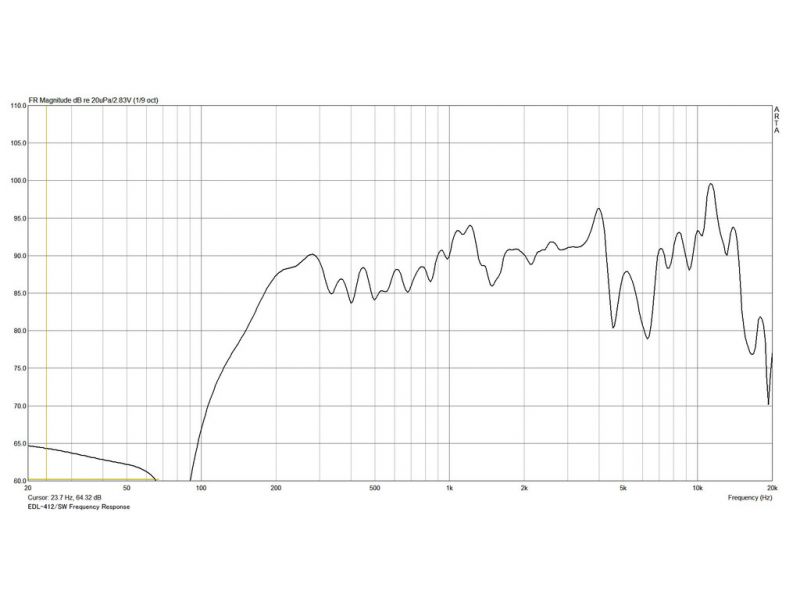

Frequency range 160-20,000 Hz
Full range speaker 130 mm (5")
Number of speakers 1
Speaker size 13 cm (5")
SPL 92 dB/W/m

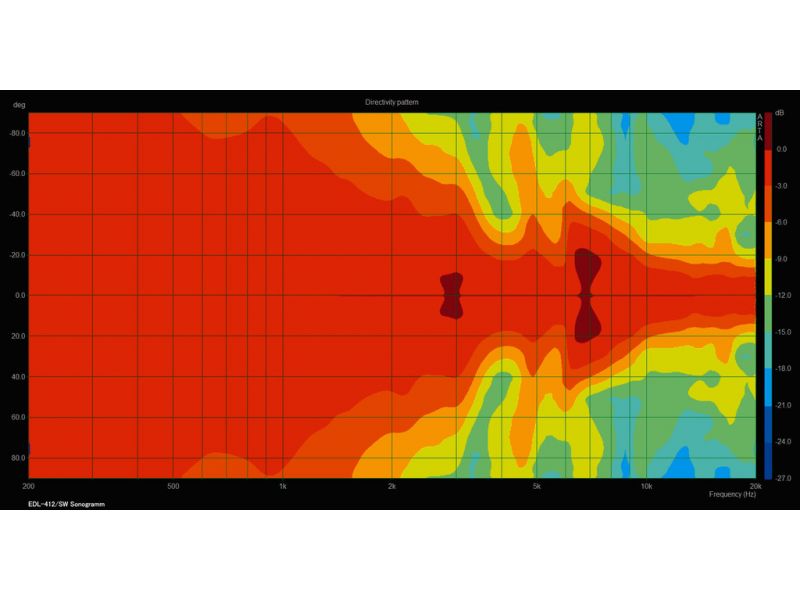

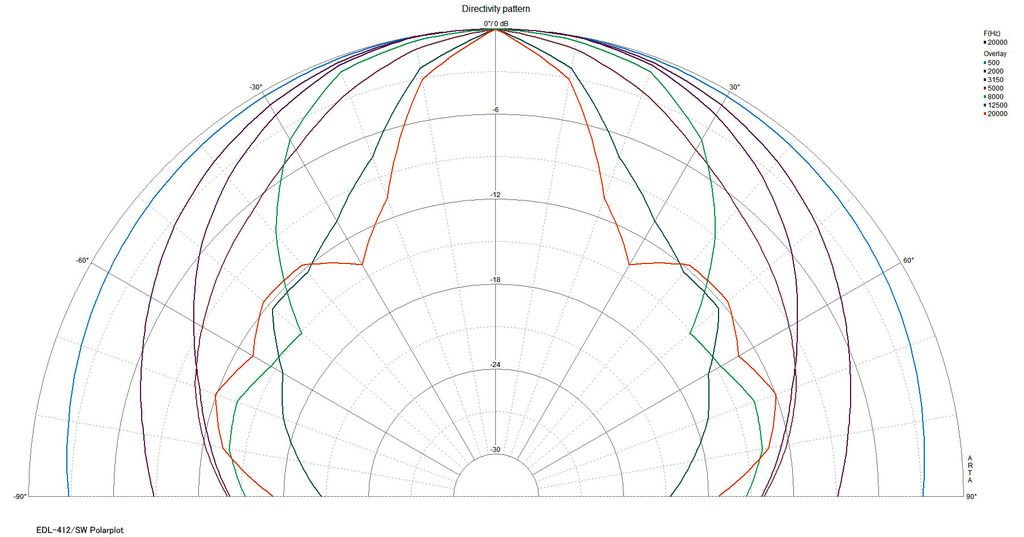

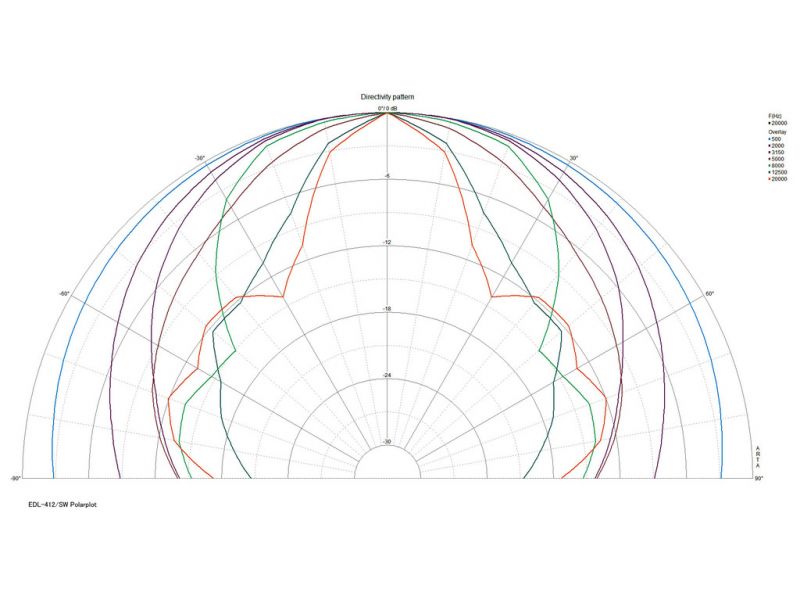

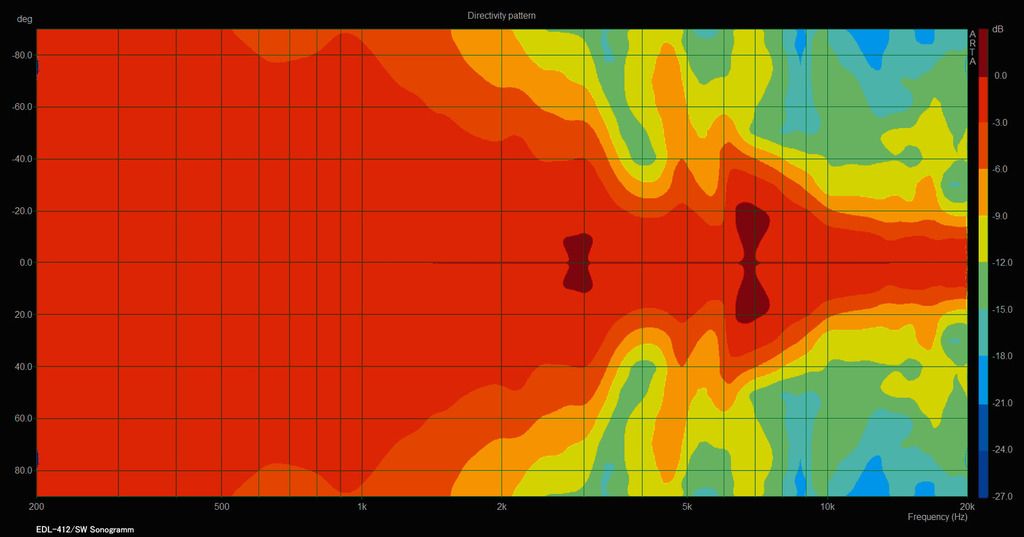

Radiation angle/beam angle 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Housing material ABS, UL 94V-0
Colour black
Mounting device cable with canopy
Protection class IP44
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 184 mm
Width Ø 184 mm
Height Ø 184 mm
Depth Ø 184 mm
Weight 1.65 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.3 x 0.22 x 0.23 m
Gross weight 2 kg
Net weight 1.65 kg

Fisiere de descarcat

Fisa produsului EDL-412/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
