EDL-420/SW

Cod EAN: 4007754411034

Weatherproof PA ball speaker 100 V transmission technology or 8 Ω operation Black ABS housing (self-extinguishing, complies with standard UL 94V-0) Supplied with 480 cm connection cable and canopy Manufacturer information: MONACOR INTERNATIONAL...

Citeste mai mult

Intreaba despre produs
Cumpara acum


EDL-420/SW

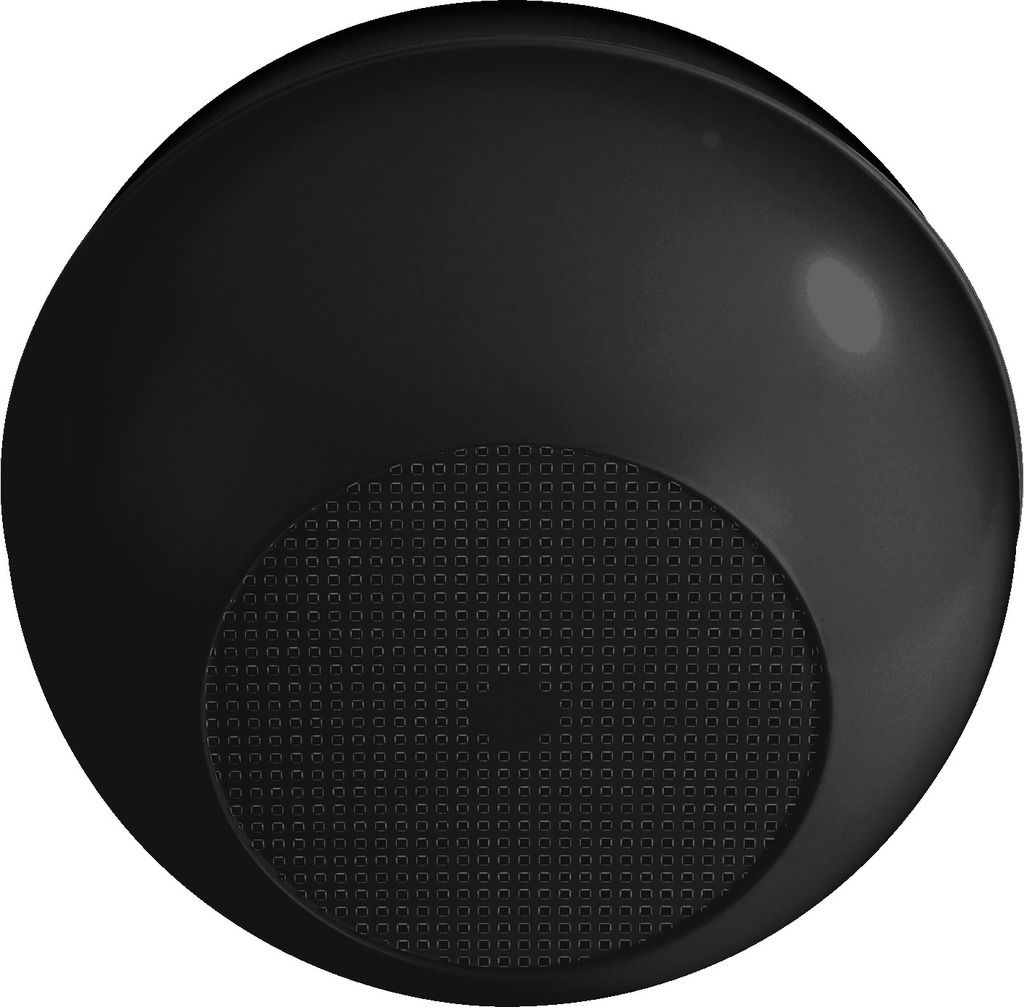

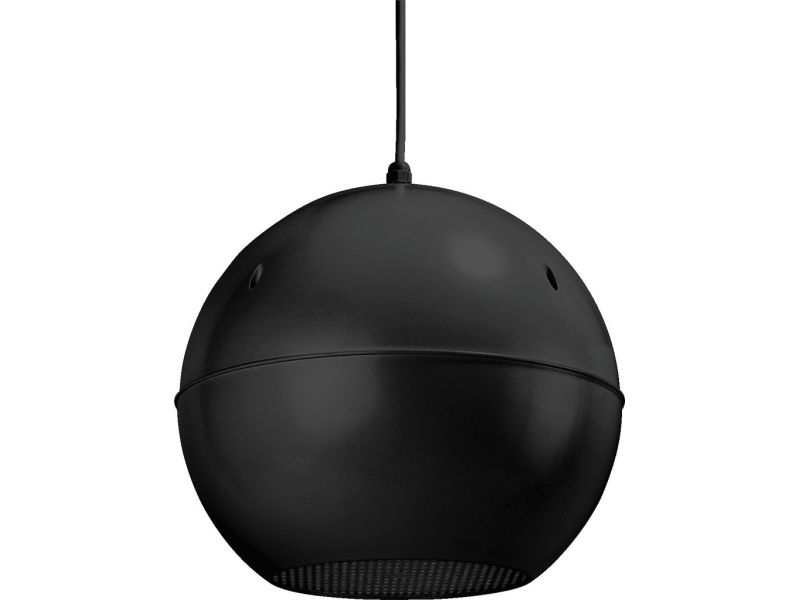

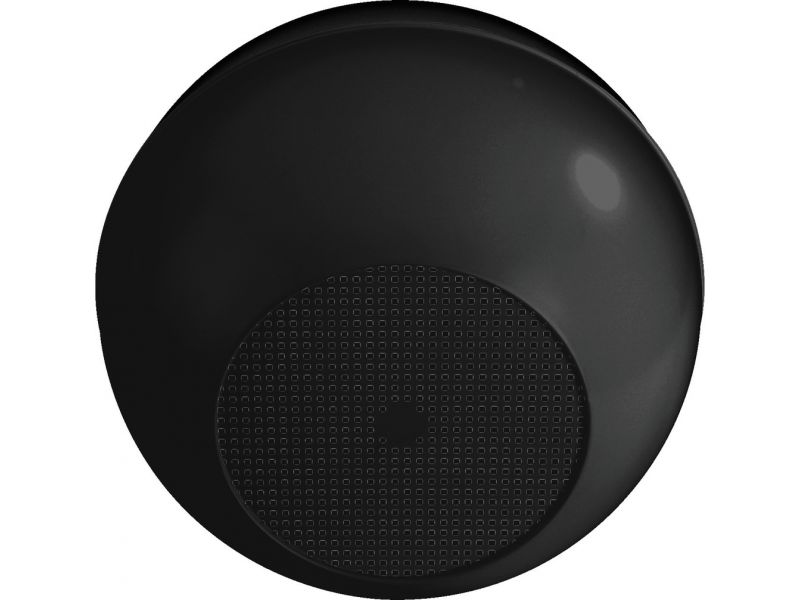

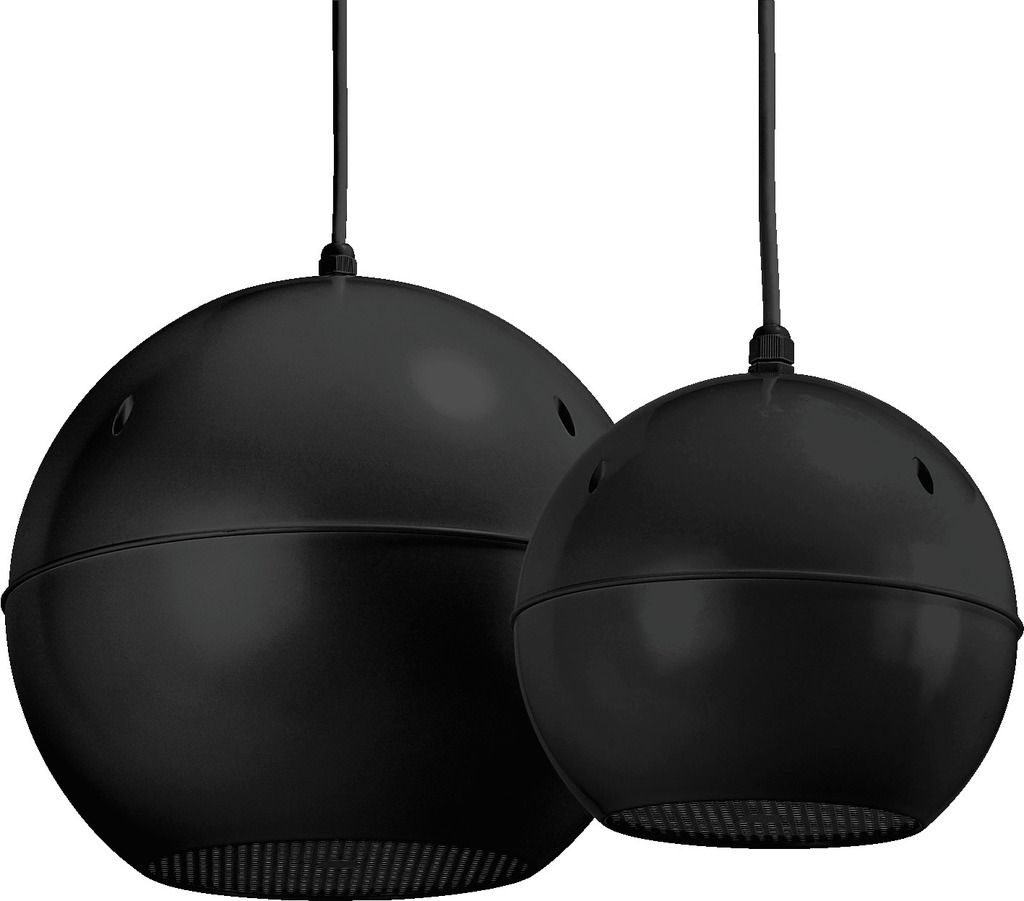

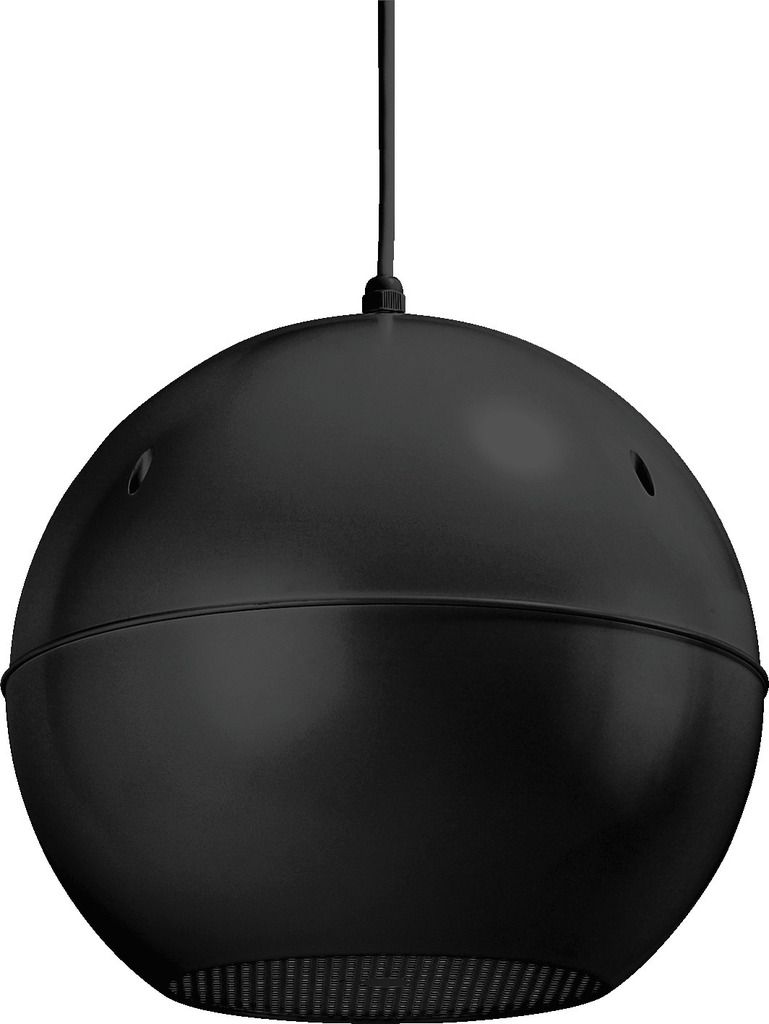

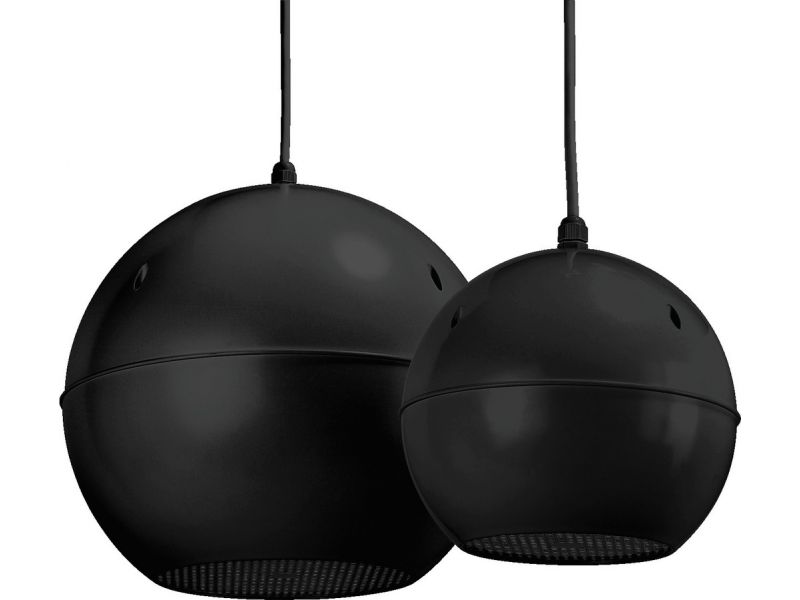

Weatherproof PA ball speaker
  • 100 V transmission technology or 8 Ω operation
  • Black ABS housing (self-extinguishing, complies with standard UL 94V-0)
  • Supplied with 480 cm connection cable and canopy
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 20 W
Power rating (RMS) 20/10/5 W
Impedance 8 Ω

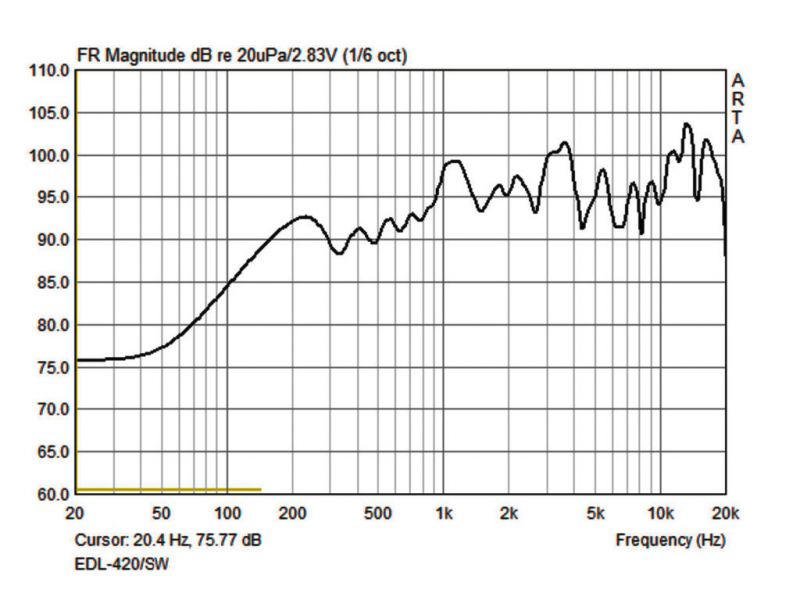

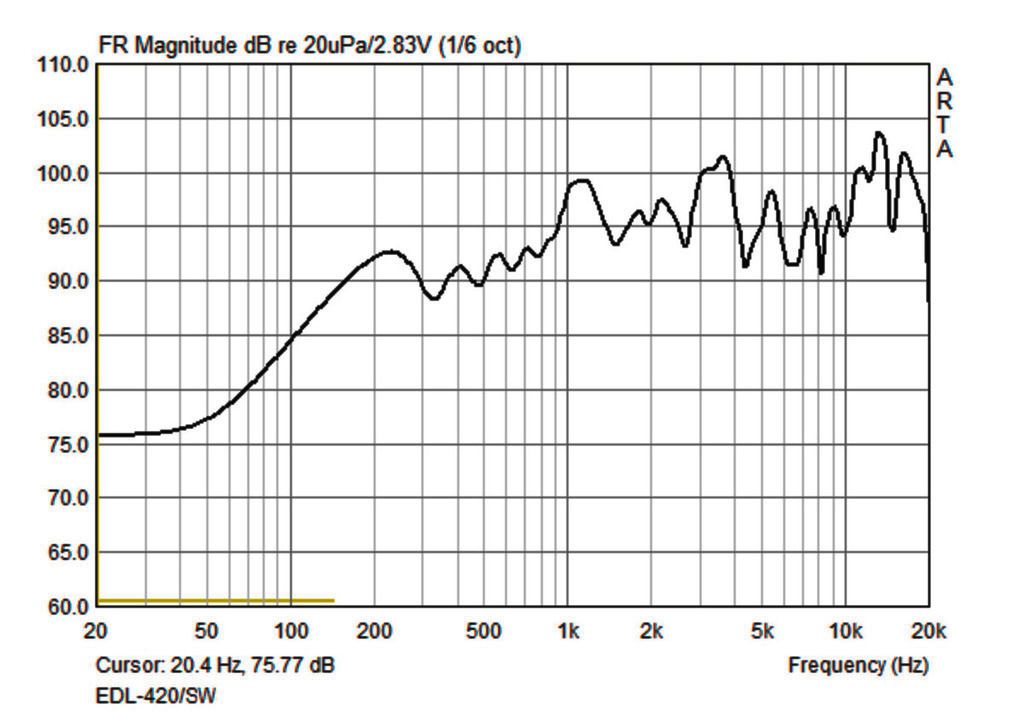

Frequency range 120-20,000 Hz
Full range speaker 160 mm (6")
Number of speakers 1
Speaker size 15 cm (6")
SPL 94 dB/W/m

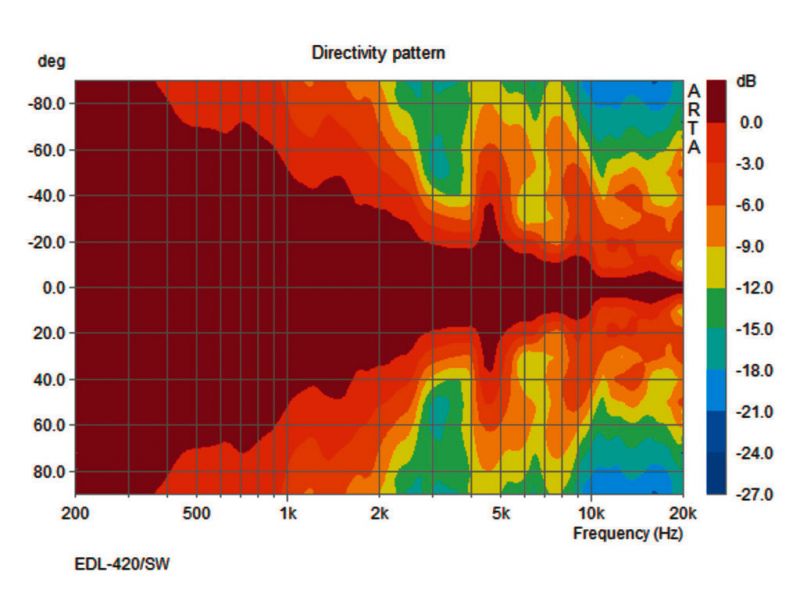

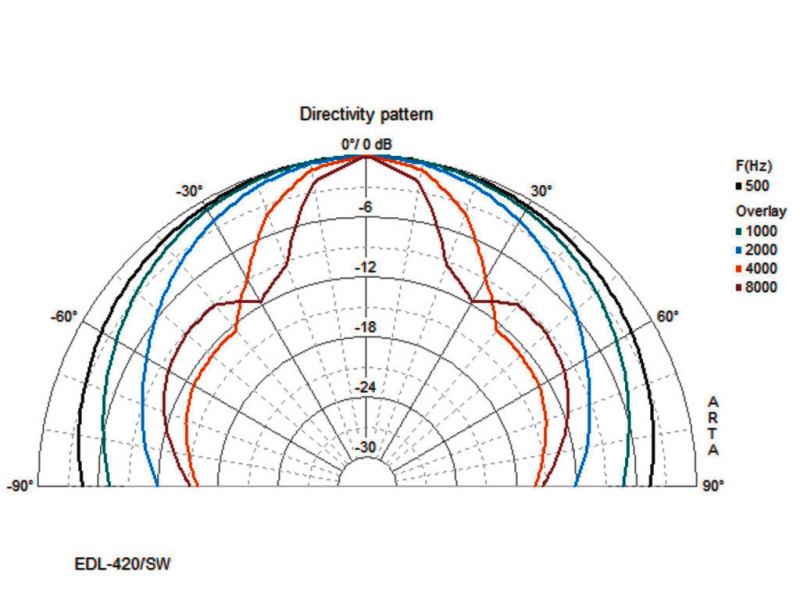

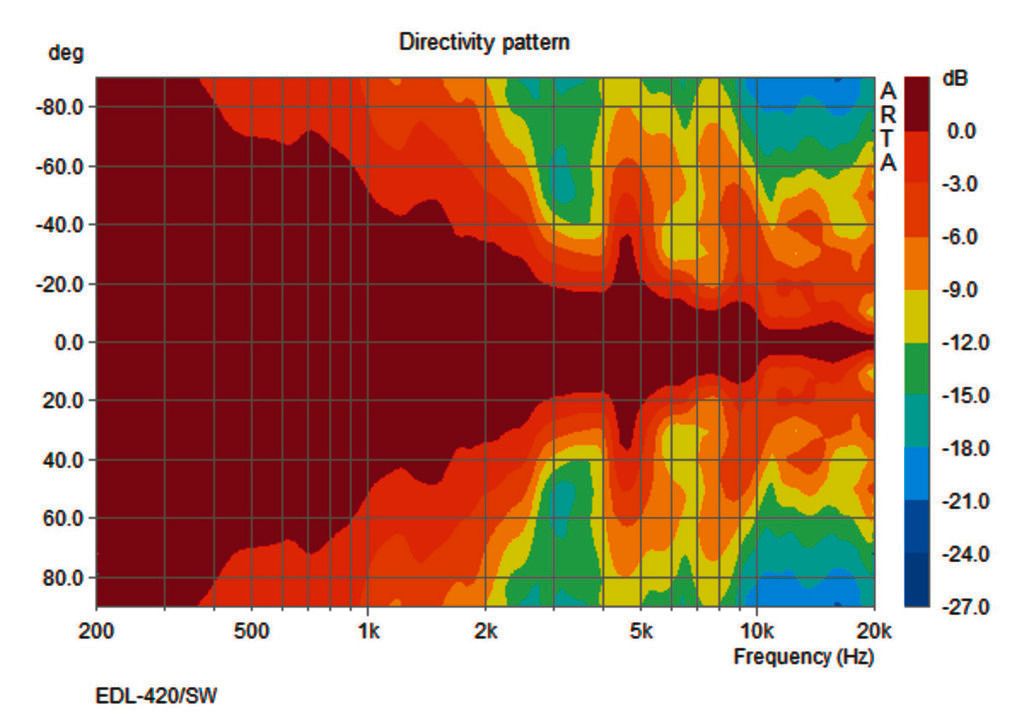

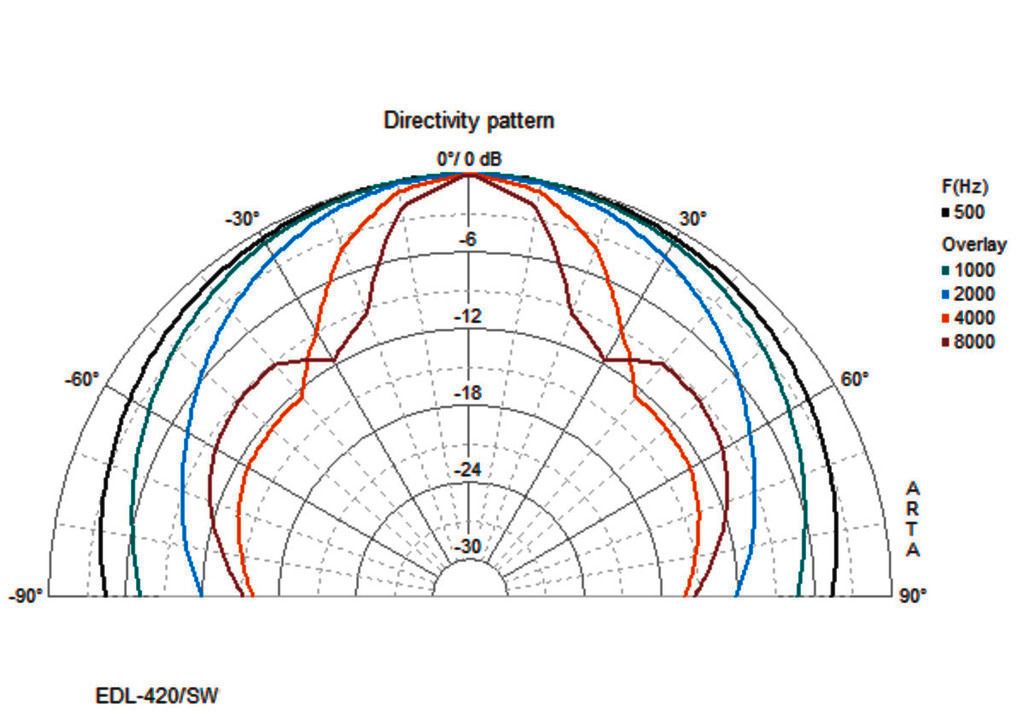

Radiation angle/beam angle 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Housing material ABS, UL 94V-0
Colour black
Mounting device cable with canopy
Protection class IP44
Admiss. ambient temp. -30 °C to +40 °C
Dimensions Ø 265 mm
Width Ø 265 mm
Height Ø 265 mm
Depth Ø 265 mm
Weight 2.3 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.305 x 0.285 x 0.38 m
Gross weight 2.84 kg
Net weight 2.34 kg

Fisiere de descarcat

Fisa produsului EDL-420/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
