RL-1EN

Cod EAN: 4007754263879

PA sound projector for wall mounting, with EN 54-24 certification. 100 V line technique 13 cm full range speaker 100 V transformer with power taps on the cable 6/3/1.5 W Connection via 4-core cable (length: 1.5 m) Metal housing with front protectiv...

Citeste mai mult

Intreaba despre produs
Cumpara acum

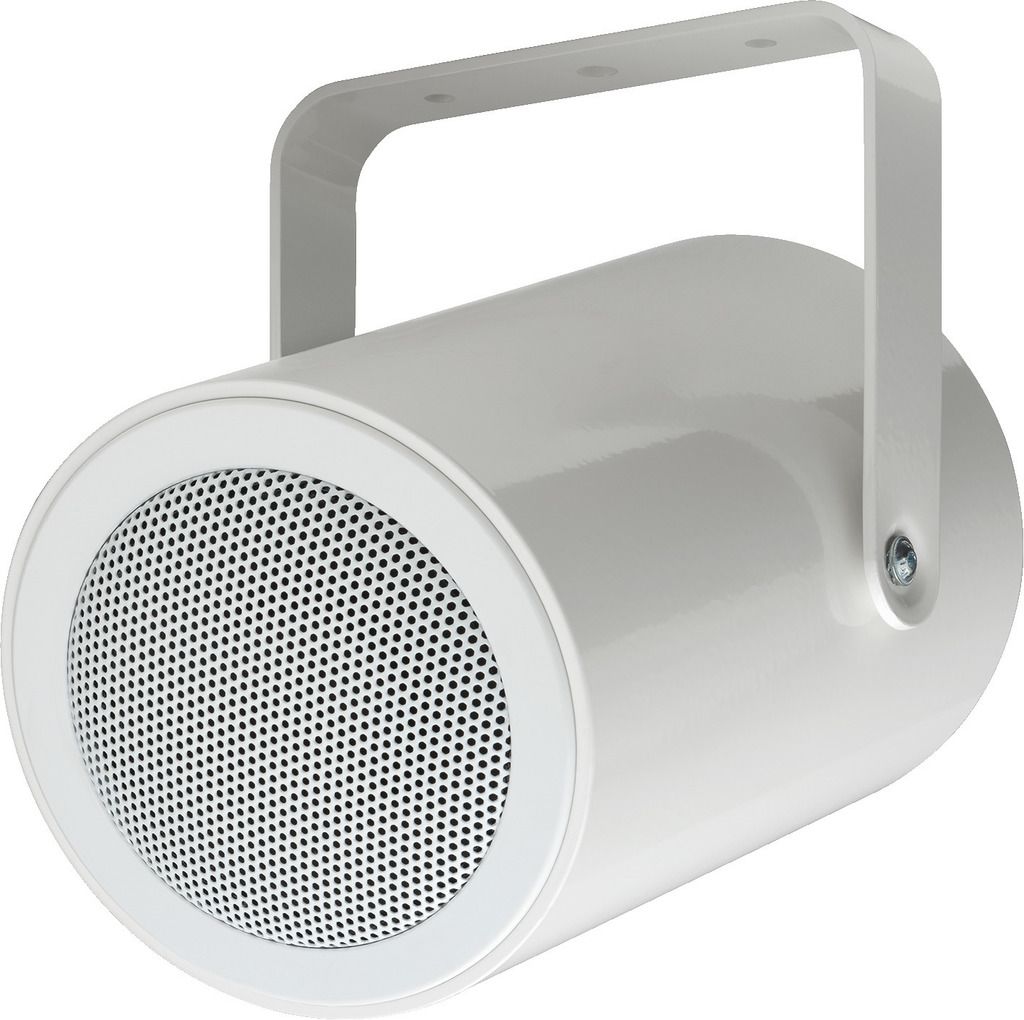

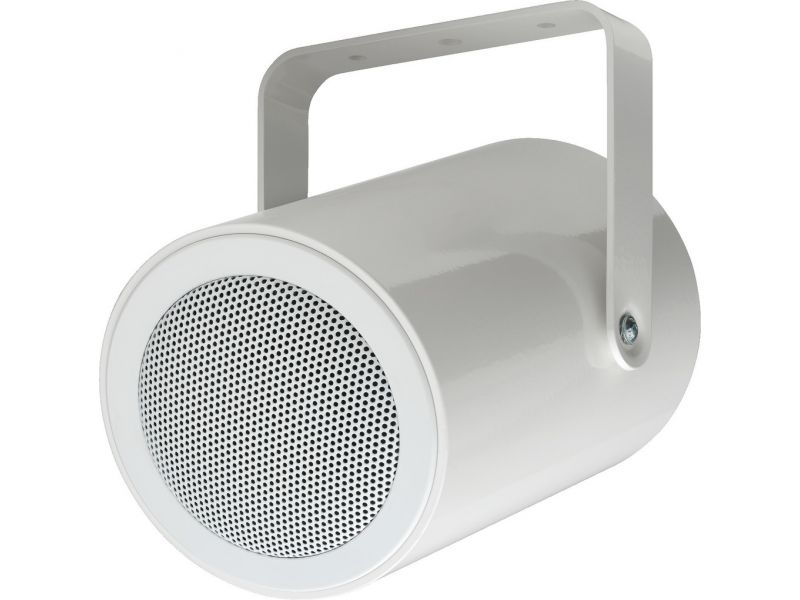

RL-1EN

PA sound projector for wall mounting,
with EN 54-24 certification.
  • 100 V line technique
  • 13 cm full range speaker
  • 100 V transformer with power taps on the cable 6/3/1.5 W
  • Connection via 4-core cable (length: 1.5 m)
  • Metal housing with front protective grille
  • Supplied with pan/tilt bracket and mounting accessories

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 80-20,000 Hz
Full range speaker 13 cm
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle/beam angle 130°
Radiation angle, horizontal 130°
Radiation angle, vertical 130°
Housing material aluminium
Colour white
Mounting device bracket
Admiss. ambient temp. -10 °C to +55 °C
Dimensions Ø 144 mm x 210 mm
Width Ø 144 mm
Height Ø 144 mm
Depth 210 mm
Weight 1.9 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.185 x 0.285 x 0.185 m
Gross weight 2.129 kg
Net weight 1.934 kg

Fisiere de descarcat

Fisa produsului RL-1EN konformitaetserklaerung-oem Manual de utilizare
