ESP-22/WS

Cod EAN: 4007754176131

PA hi-fi wall and ceiling speaker 100 V transmission technology 2-way version with pivoting dome tweeter Plastic housing with protective metal grille ABS plastic material, self-extinguishing according to UL 94V-0 Excellent sound characteristics For a...

Citeste mai mult

Intreaba despre produs
Cumpara acum

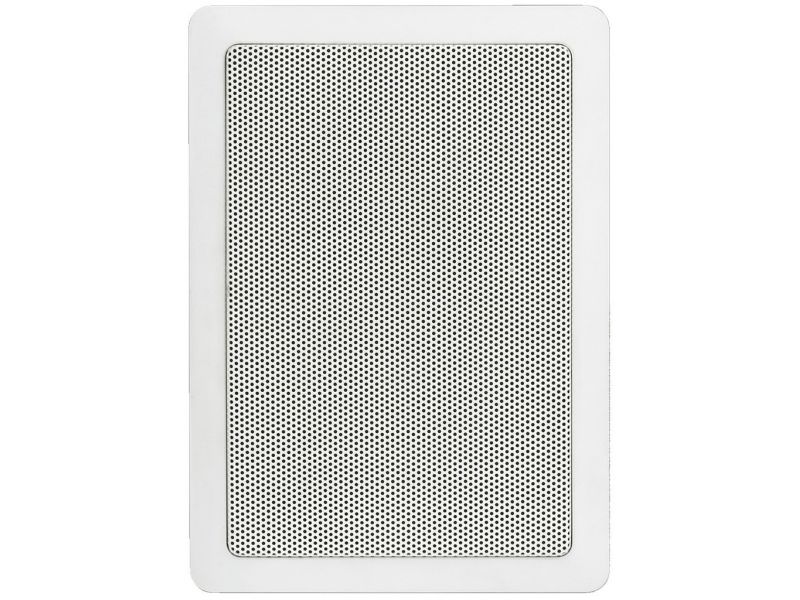

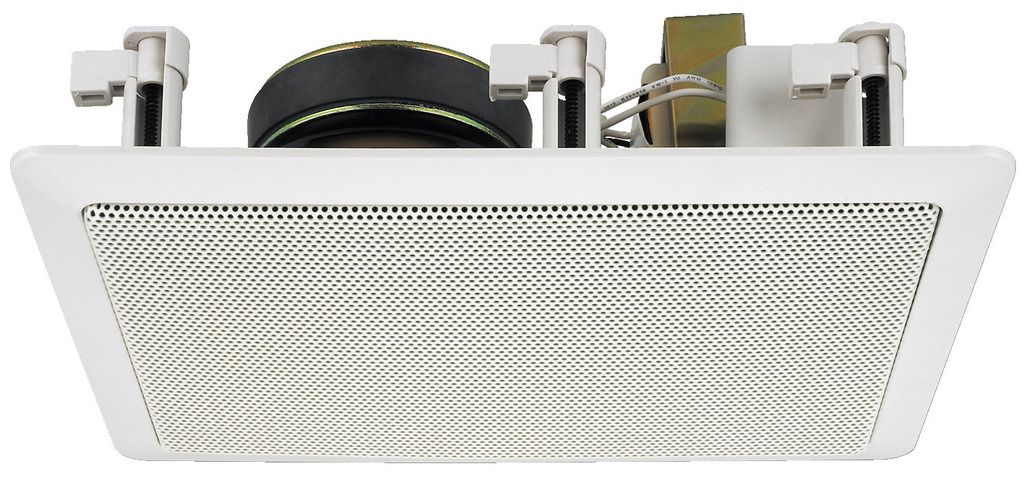

ESP-22/WS

PA hi-fi wall and ceiling speaker
  • 100 V transmission technology

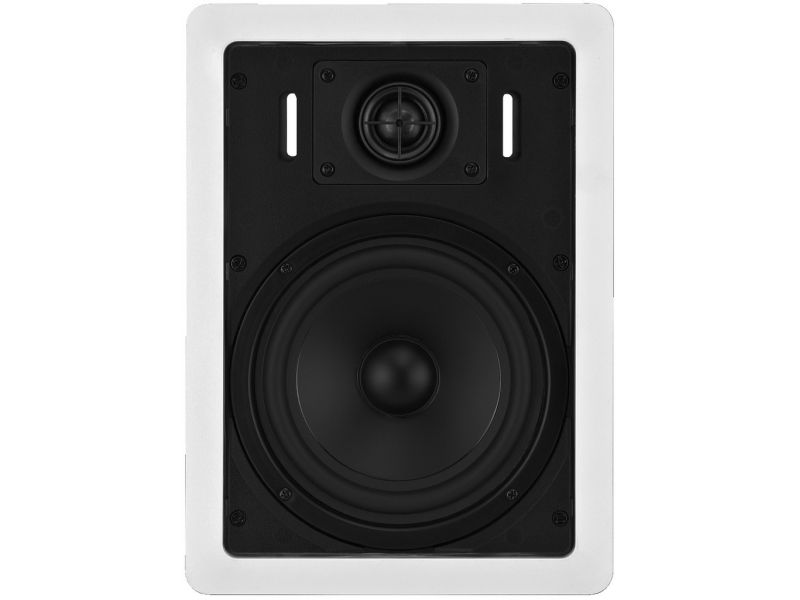

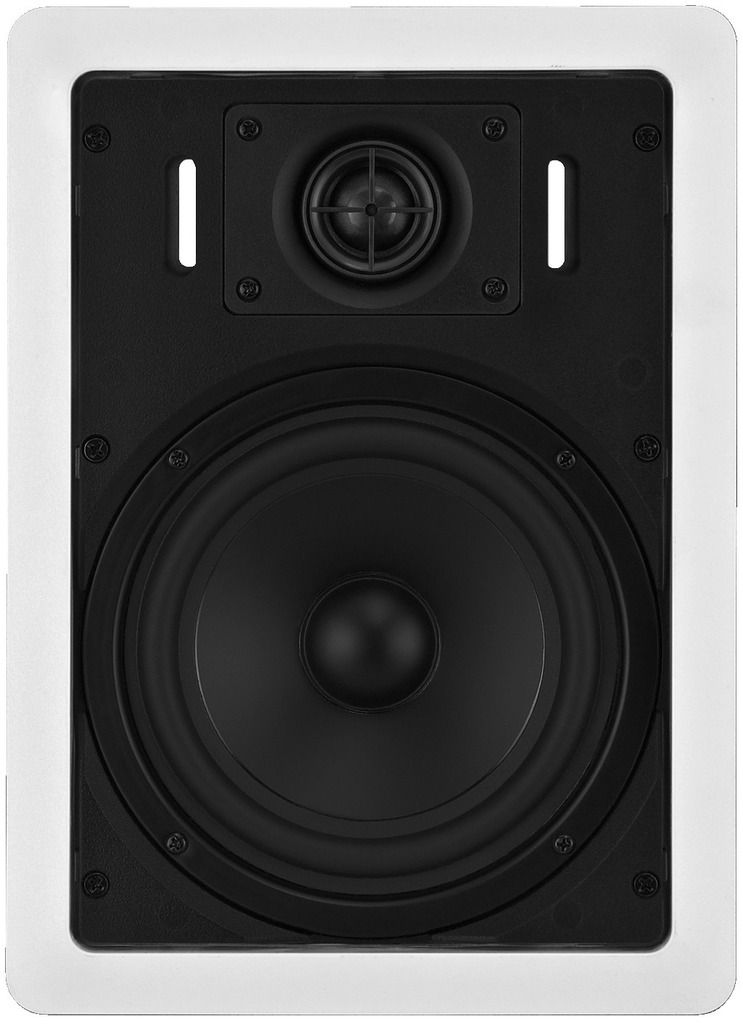

  • 2-way version with pivoting dome tweeter

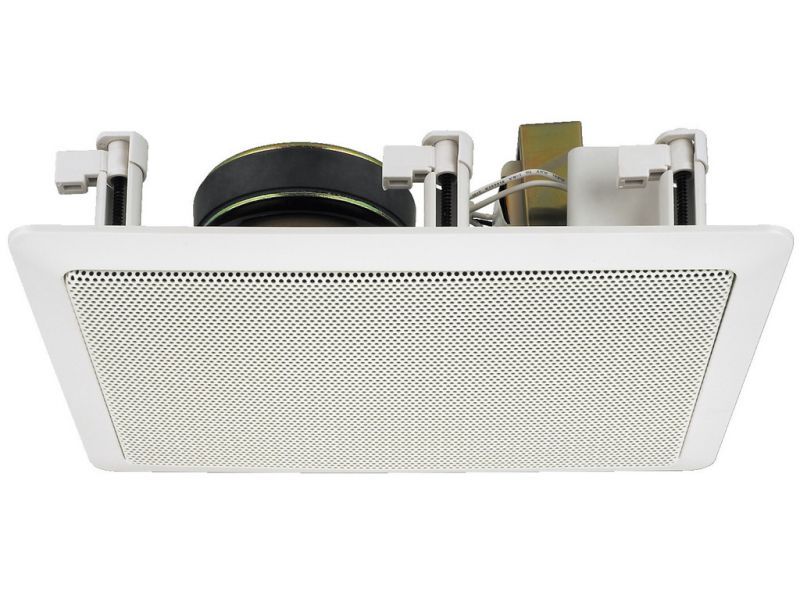

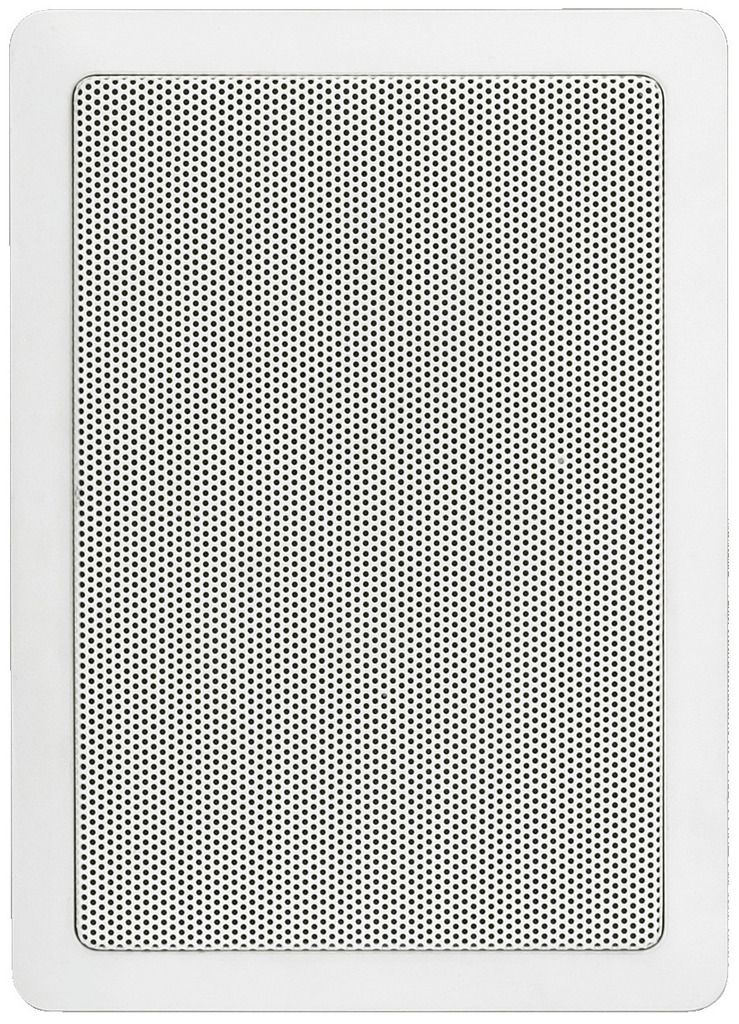

  • Plastic housing with protective metal grille
  • ABS plastic material, self-extinguishing according to UL 94V-0
  • Excellent sound characteristics
  • For a wall thickness/ceiling thickness from 8 to 35 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 50-20,000 Hz
Power rating (RMS) 20/15/10/5/2.5 W
SPL 88 dB/W/m

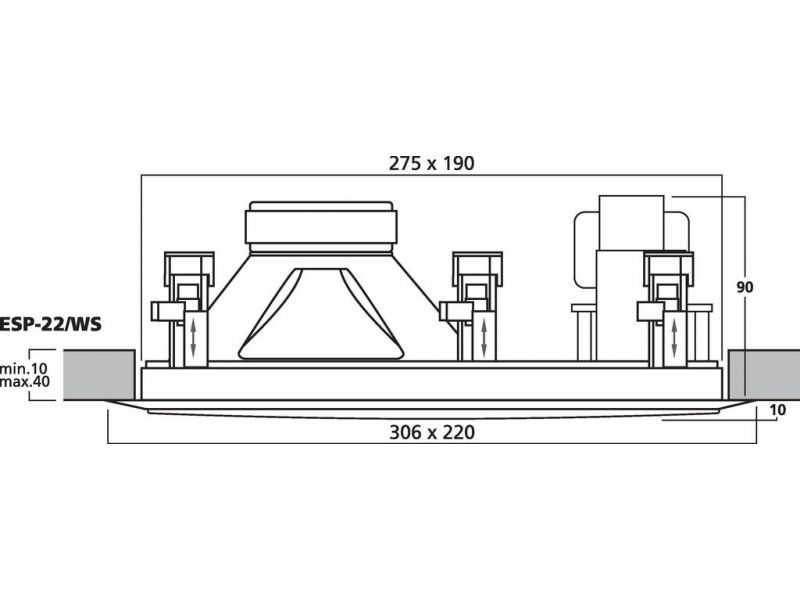

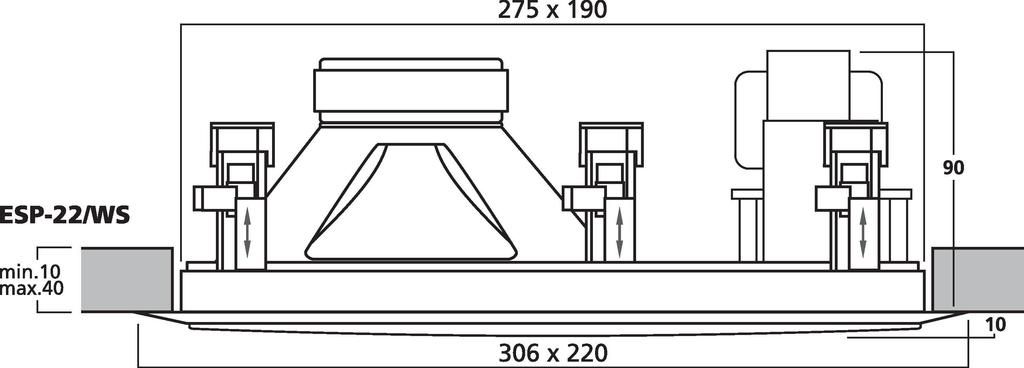

Mounting cutout 275 x 190 mm
Mounting depth 90 mm
Dimensions 306 x 220 x 100 mm
Width 306 mm
Height 220 mm
Depth 100 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 2.6 kg
Packing unit 1
Type of speaker 165
Packaging dimensions (W x H x L) 0.27 x 0.13 x 0.35 m
Gross weight 2.955 kg
Net weight 2.585 kg

Fisiere de descarcat

Fisa produsului ESP-22/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
