ESP-232/WS

Cod EAN: 4007754212945

Weatherproof 2-way PA wall-mount speaker system 100 V PA speaker system with an excellent sound 13 cm polypropylene bass-midrange speaker and dome tweeter 4 power taps Power selector switch with 8 Ω operating position Excellent efficiency for a speak...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ESP-232/WS

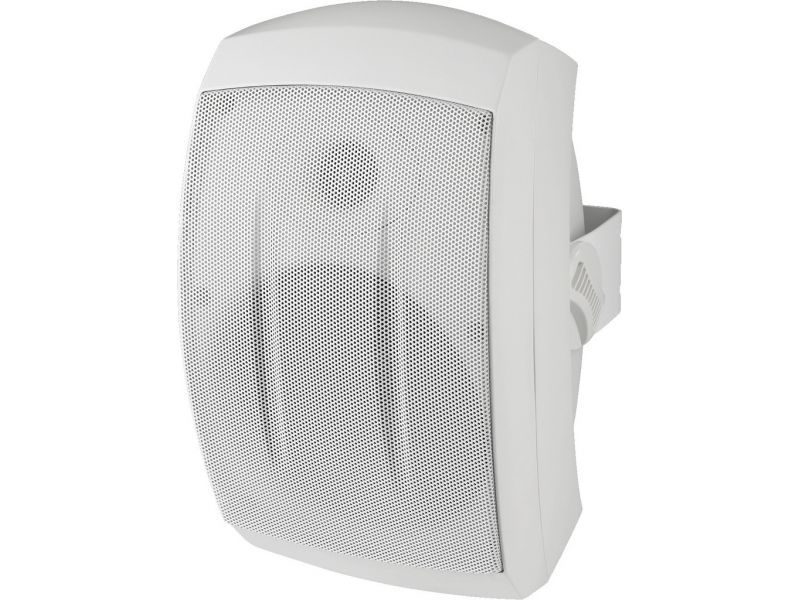

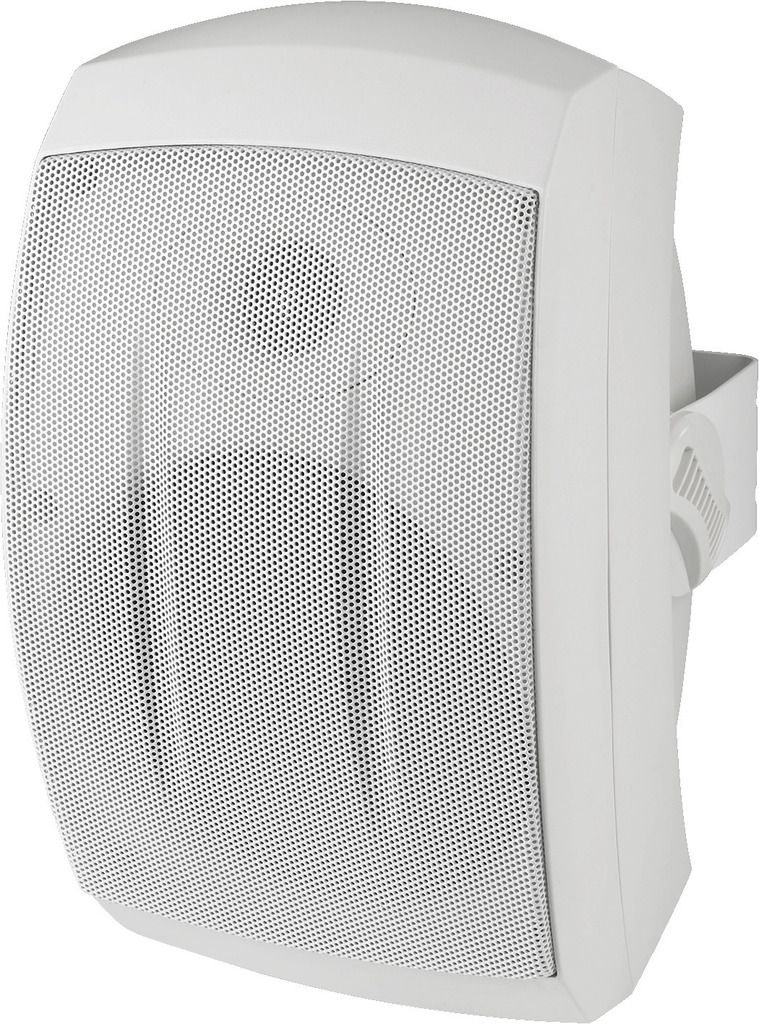

Weatherproof 2-way PA wall-mount speaker system
  • 100 V PA speaker system with an excellent sound
  • 13 cm polypropylene bass-midrange speaker and dome tweeter
  • 4 power taps
  • Power selector switch with 8 Ω operating position
  • Excellent efficiency for a speaker of such a compact size
  • Available in black (SW) or white (WS) plastic with respectively lacquered aluminium grille, modern design
  • Supplied with matching metal wall brackets

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 50 W
Power rating (RMS) 30/20/10/5 W (100 V)25 W (8 Ω)
Impedance 8 Ω

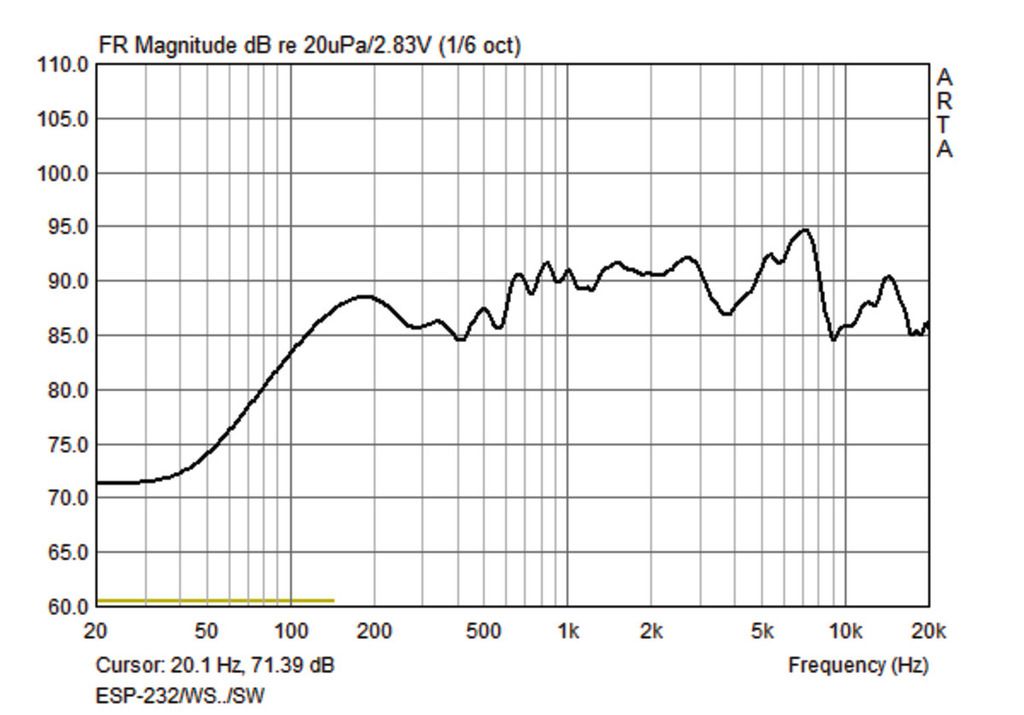

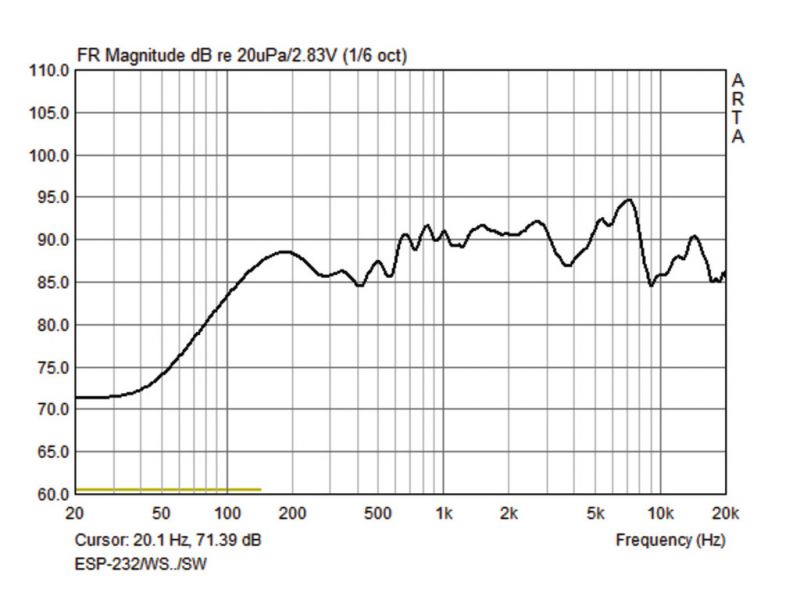

Frequency range 75-20,000 Hz
Number of speakers 2
Speaker size 13 cm (5")
SPL 89 dB

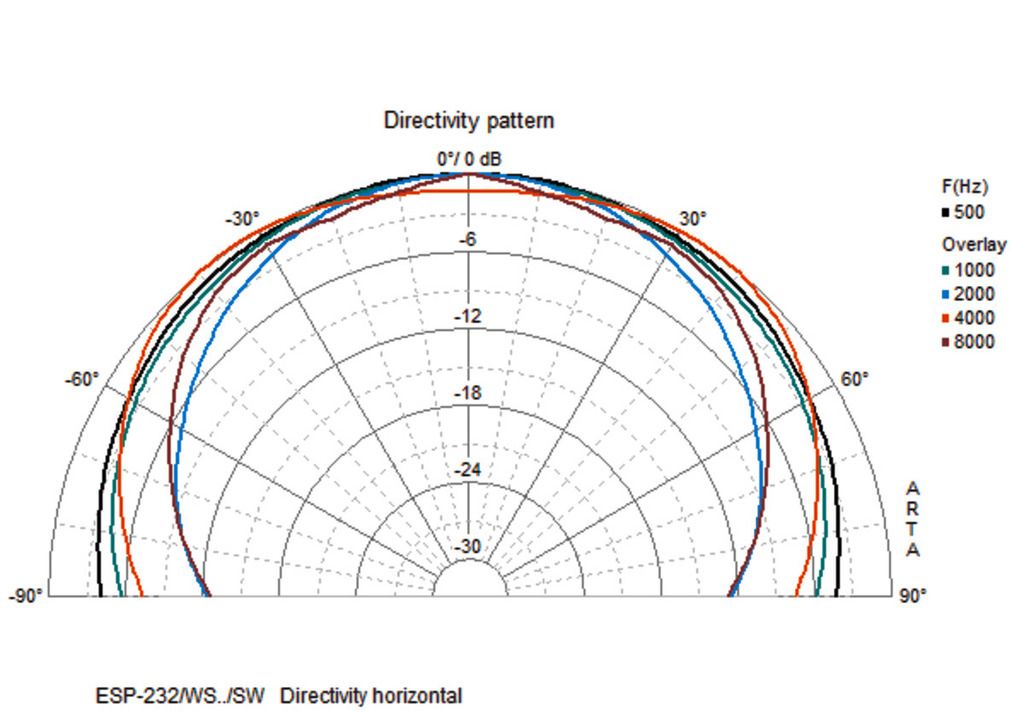

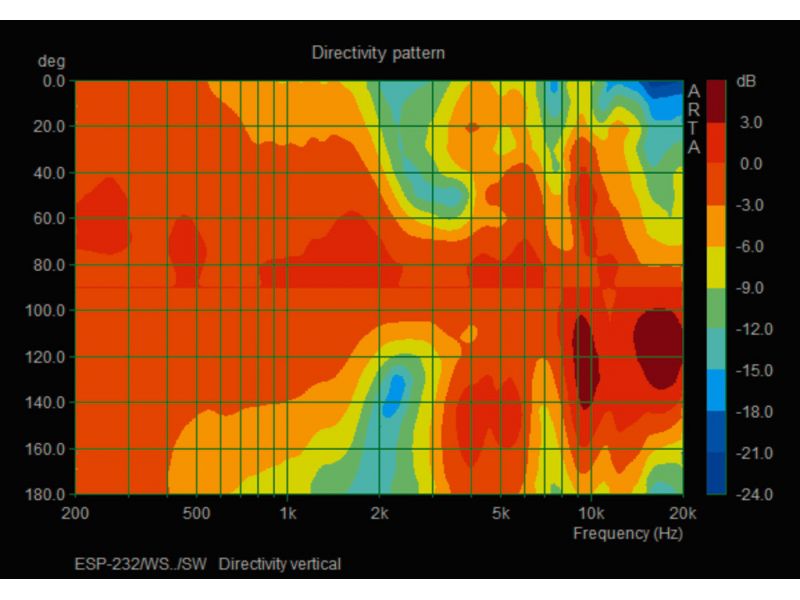

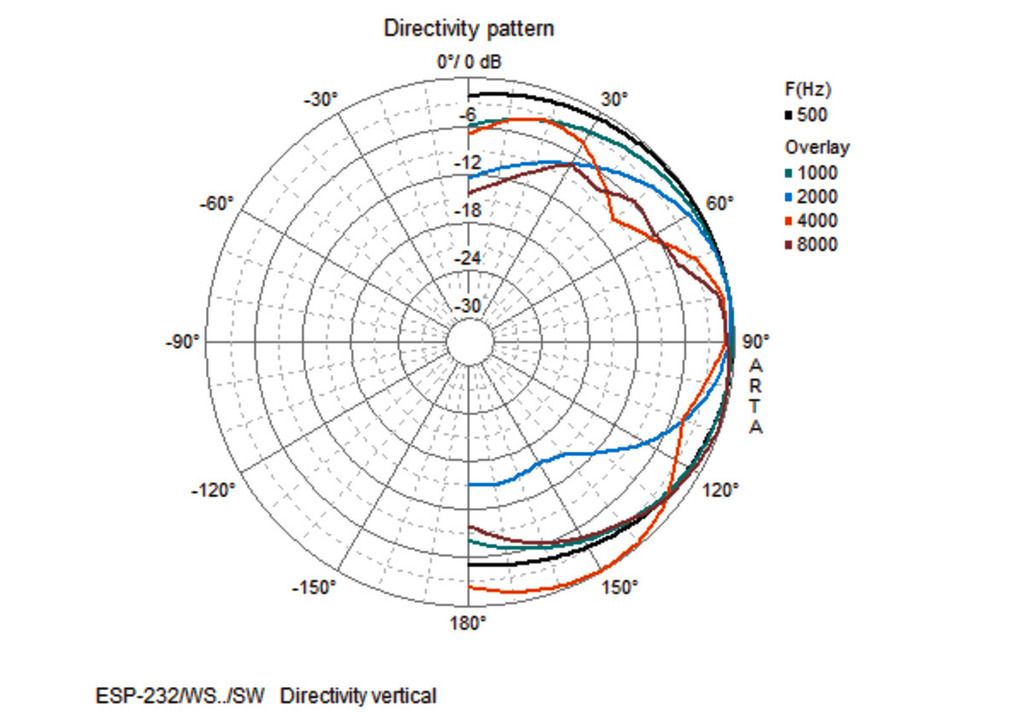

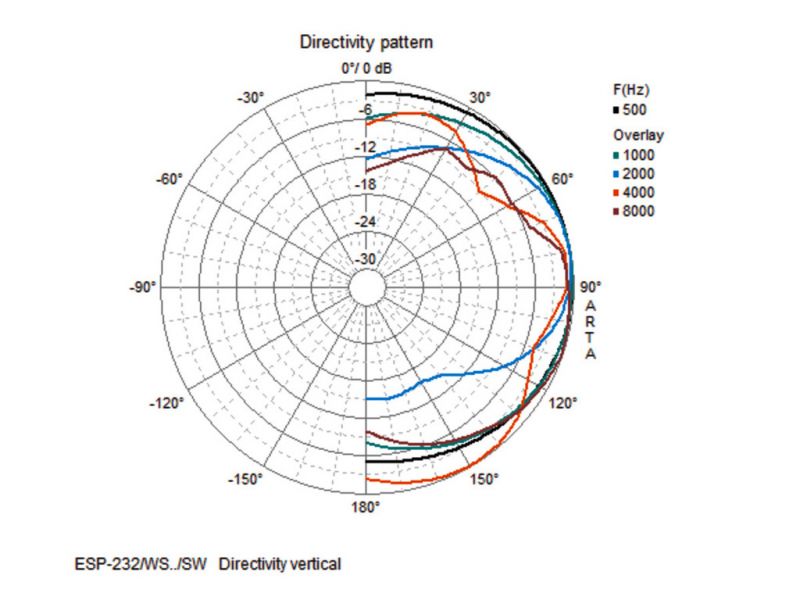

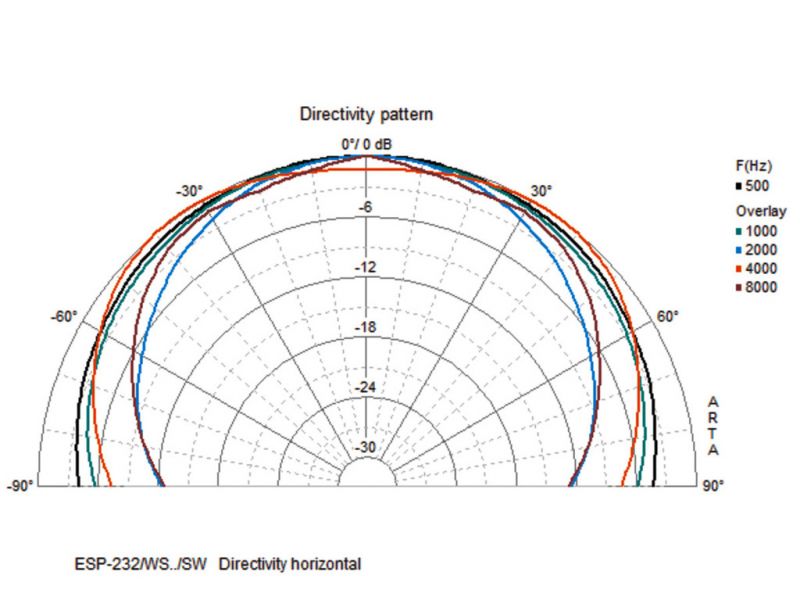

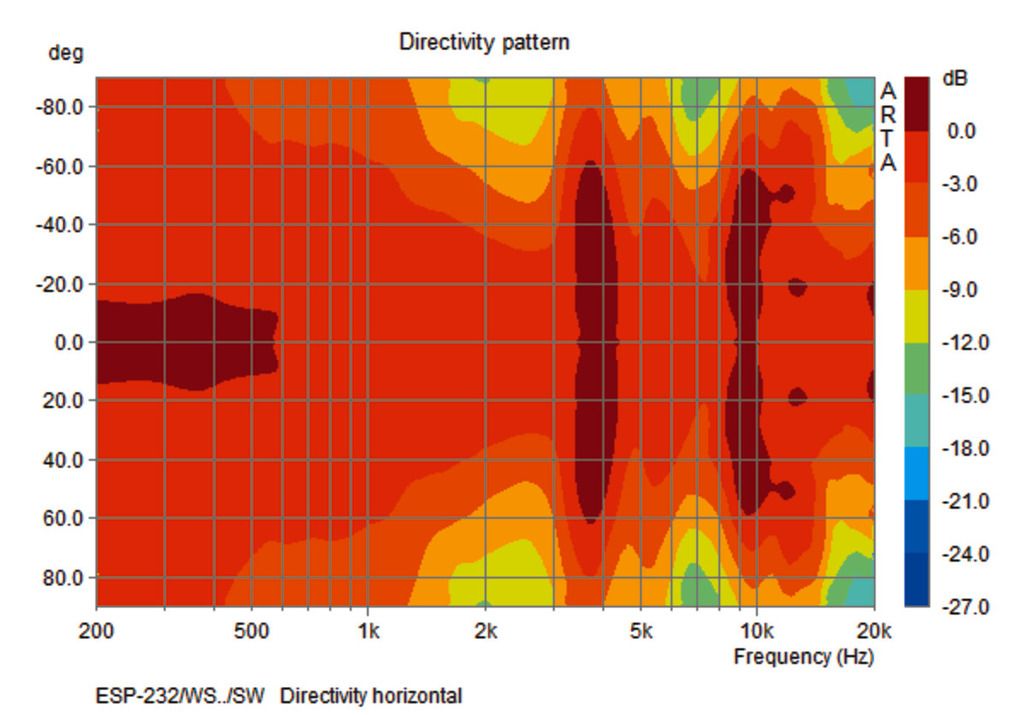

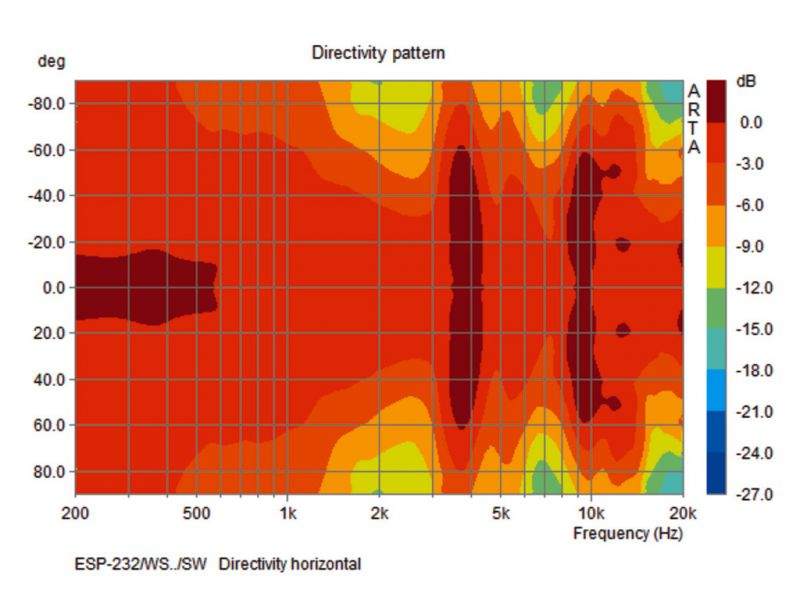

Radiation angle/beam angle H: 120°/V: 100°
Radiation angle, horizontal 120°

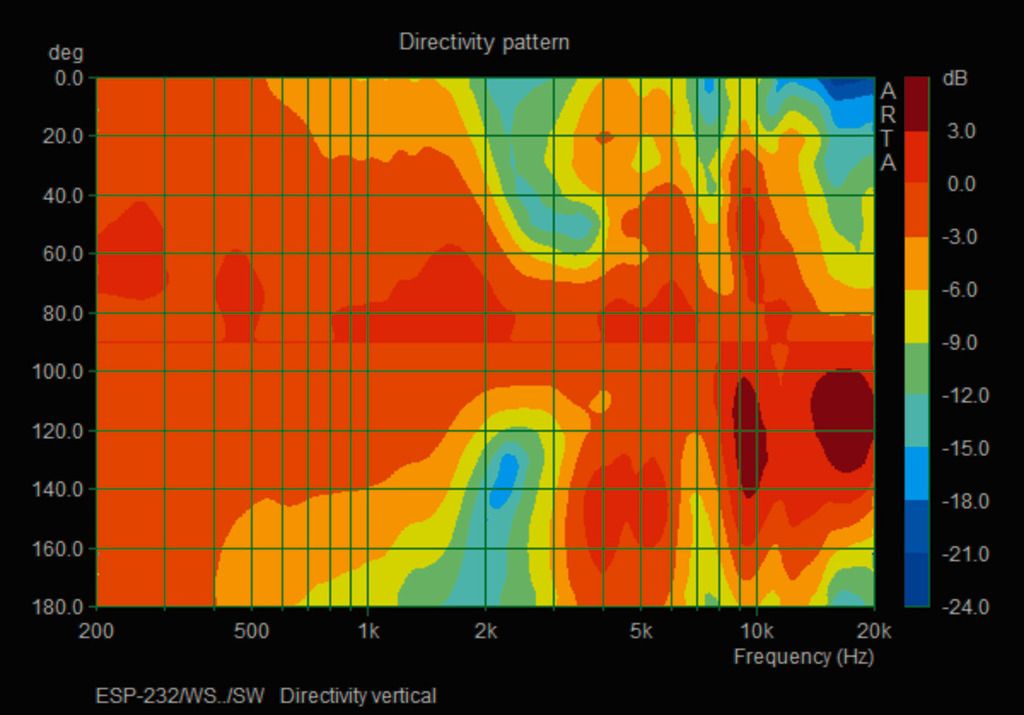

Radiation angle, vertical 100°
Housing material plastic
Colour white
Mounting device mounting bracket
Protection class IP55
Admiss. ambient temp. -20 °C to +50 °C
Dimensions 160 x 260 x 180 mm
Width 160 mm
Height 260 mm
Depth 180 mm
Weight 2.3 kg
Inputs spring-load. speaker term.
Packaging dimensions (W x H x L) 0.205 x 0.19 x 0.3 m
Gross weight 2.8 kg
Net weight 2.44 kg

Fisiere de descarcat

Fisa produsului ESP-232/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
