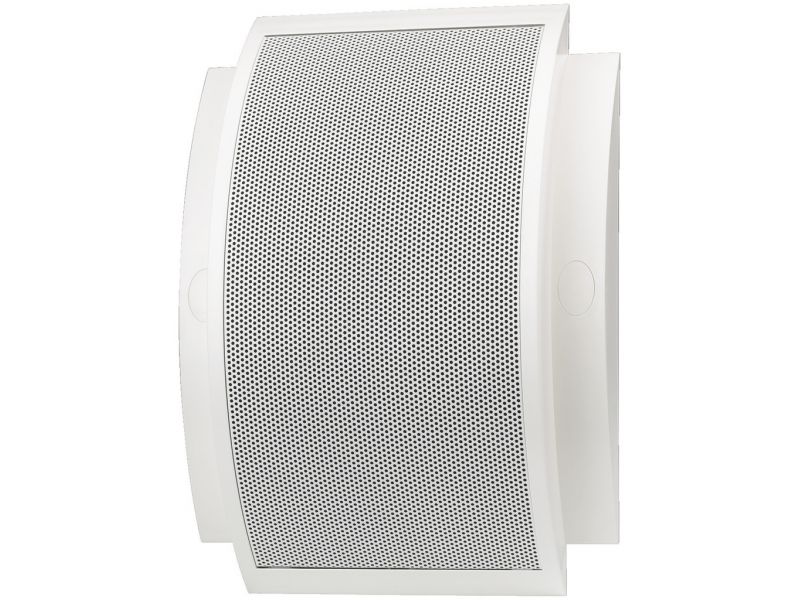

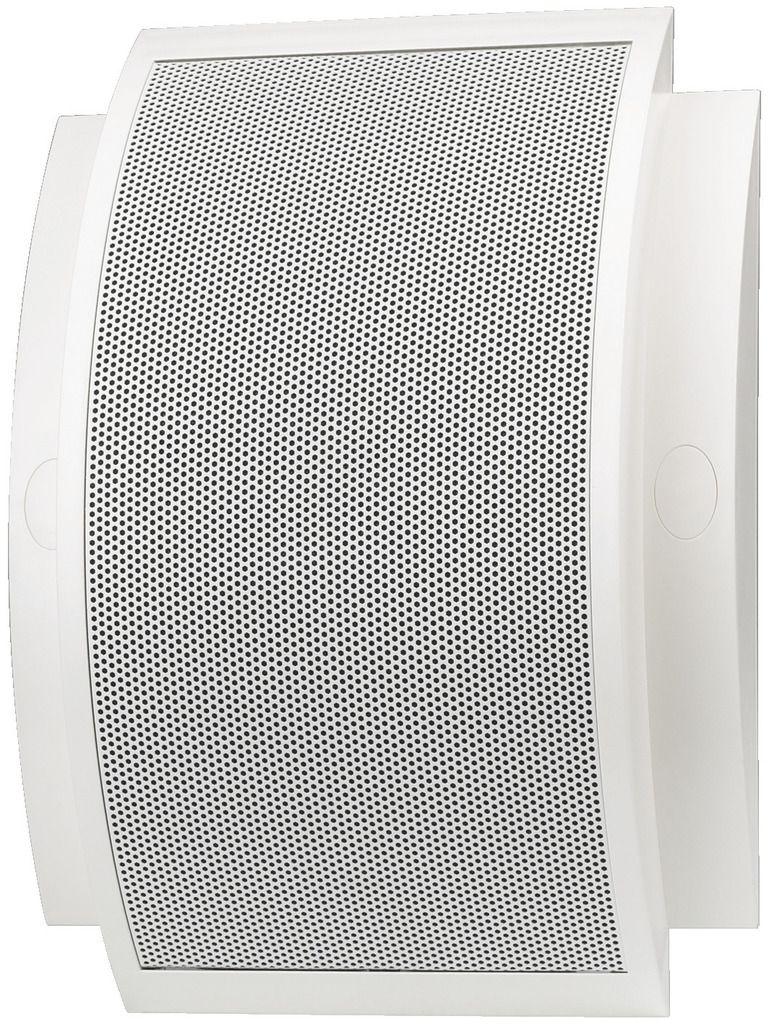

ESP-62/WS

Cod EAN: 4007754227475

PA wall speaker, with EN 54-24 certification. 100 V transmission technology via audio transformer with 3 power taps Full range speaker with a high-quality sound and a clear voice reproduction Plastic cabinet of a special design (open rear panel) wi...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ESP-62/WS

PA wall speaker,
with EN 54-24 certification.
  • 100 V transmission technology via audio transformer with 3 power taps
  • Full range speaker with a high-quality sound and a clear voice reproduction
  • Plastic cabinet of a special design (open rear panel) with protective metal grille
  • Symmetrical design allows for horizontal and vertical mounting
  • Supplied with mounting screws and screw head covers
  • Ball-proof according to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 100-19,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 101 dB (1 m) 86 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H180°/V180° (1 kHz) H180°/V1115° (2 kHz) H51°/V68° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 180° (2 kHz) 51° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 115° (2 kHz) 68° (4 kHz)
Housing material plastic
Colour white, RAL9010
Mounting device mounting screws
Protected against ball rebound yes
Admiss. ambient temp. -10 °C to +50 °C
Dimensions 240 x 330 x 85 mm
Width 240 mm
Height 330 mm
Depth 85 mm
Weight 1.2 kg
Inputs screw terminals
Packaging dimensions (W x H x L) 0.245 x 0.1 x 0.345 m
Gross weight 1.532 kg
Net weight 1.242 kg

Fisiere de descarcat

Fisa produsului ESP-62/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
