ETS-230/WS

Cod EAN: 4007754151275

Super Slimline Design PA column speaker, in an extruded aluminium cabinet, with top and bottom plates of aluminium. 100 V transmission technology 5-step power selector switch 2 x M6 threaded bushing Metal front grille Supplied with mounting bra...

Citeste mai mult

Intreaba despre produs
Cumpara acum

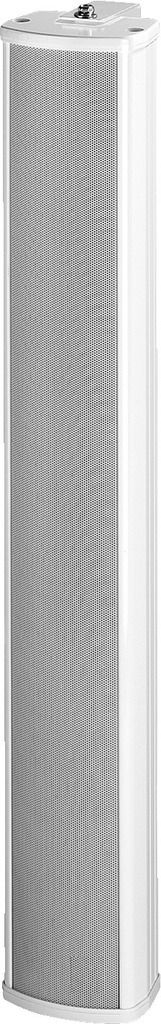

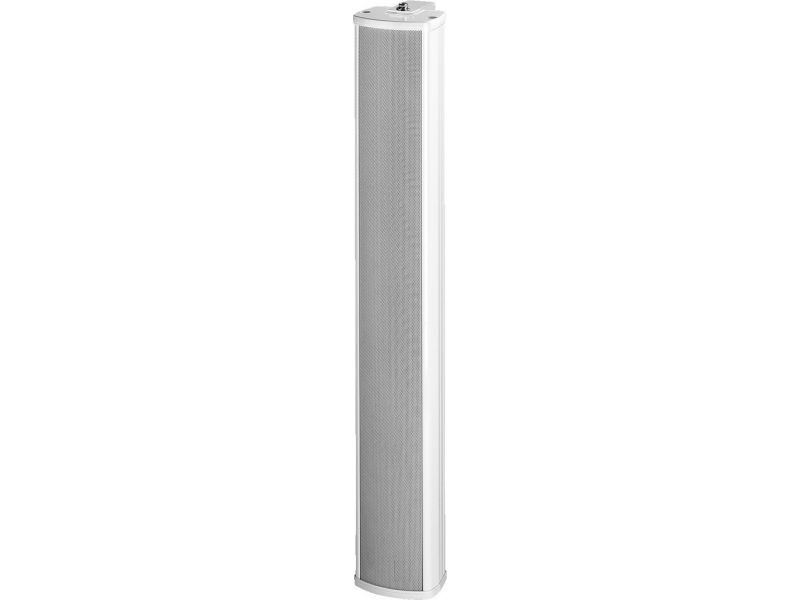

ETS-230/WS

Super Slimline Design
PA column speaker,
in an extruded aluminium cabinet, with top and bottom plates of aluminium.
  • 100 V transmission technology
  • 5-step power selector switch
  • 2 x M6 threaded bushing
  • Metal front grille

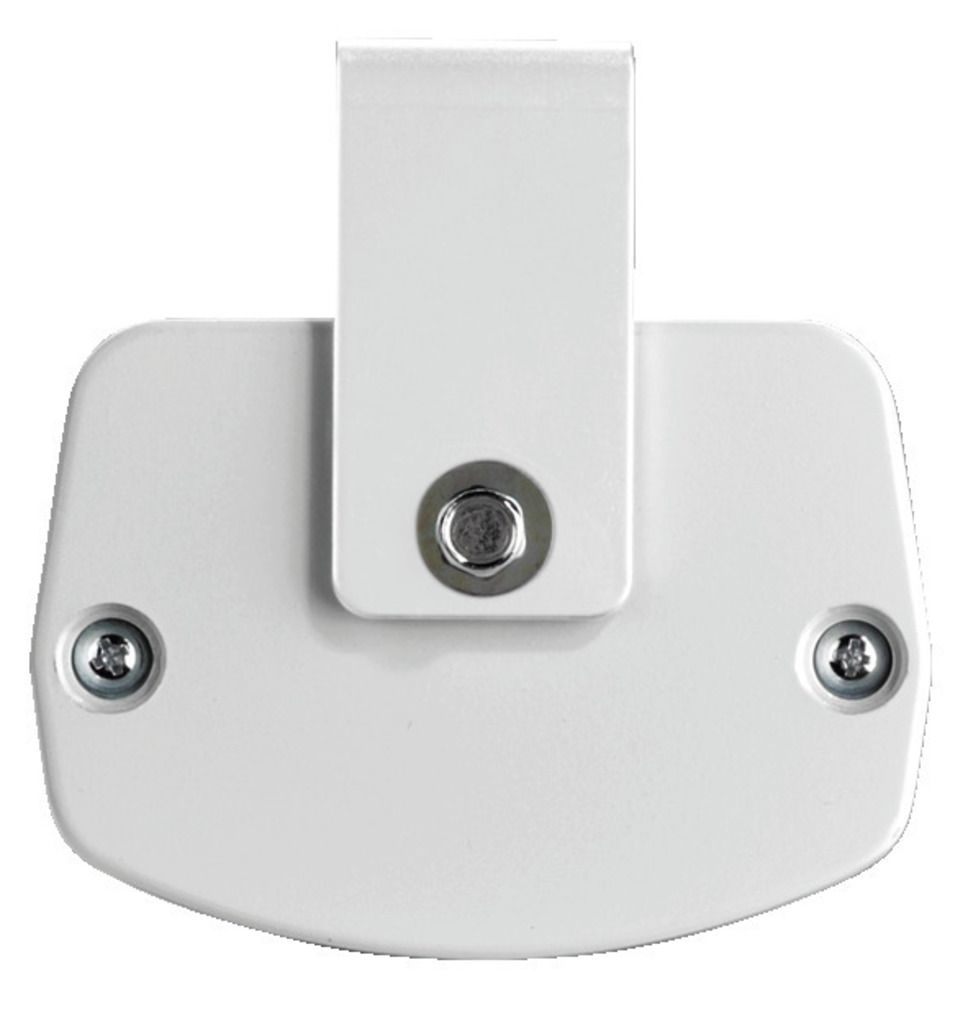

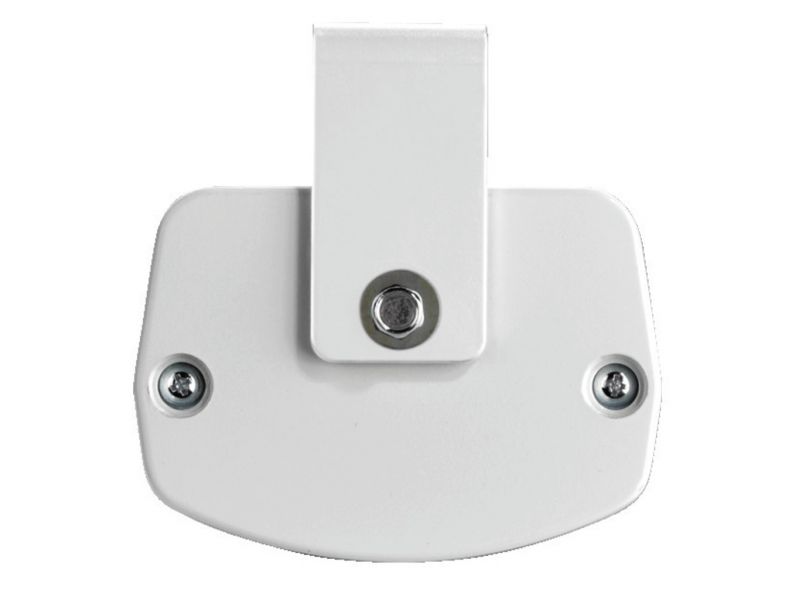

  • Supplied with mounting brackets
  • Connection via cable, 2 cores
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 30 W
Power rating (RMS) 30/15/7.5/3.75 W
Frequency range 200-15,000 Hz
Number of speakers 8
Speaker size 7.5 cm (3")
SPL 95 dB/W/m
Radiation angle/beam angle H: 150°/V: 30°
Radiation angle, horizontal 150°
Radiation angle, vertical 30°
Housing material aluminium
Colour white
Mounting device mounting brackets, M6
Admiss. ambient temp. 0-40 °C
Dimensions 105 x 687 x 85 mm
Width 105 mm
Height 687 mm
Depth 85 mm
Weight 3.9 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.15 x 0.13 x 0.76 m
Gross weight 4.365 kg
Net weight 3.91 kg

Fisiere de descarcat

Fisa produsului ETS-230/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
