ETS-422TW/WS

Cod EAN: 4007754232646

Weatherproof PA column speakers, with a top-quality sound. Weatherproof and hose-proof, extruded aluminium cabinet 100 V transmission technology 2-way version (with additional integrated tweeter for a clearly improved sound) Integrated crossover ne...

Citeste mai mult

Intreaba despre produs
Cumpara acum

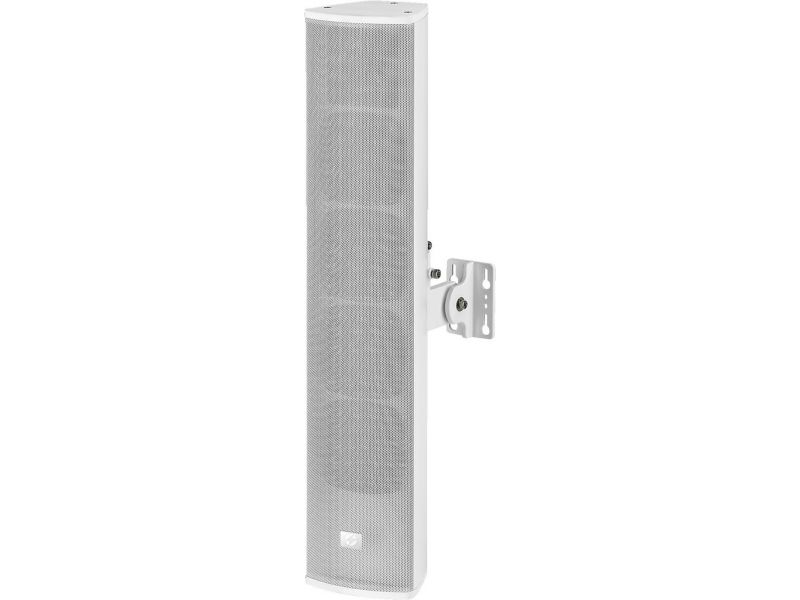

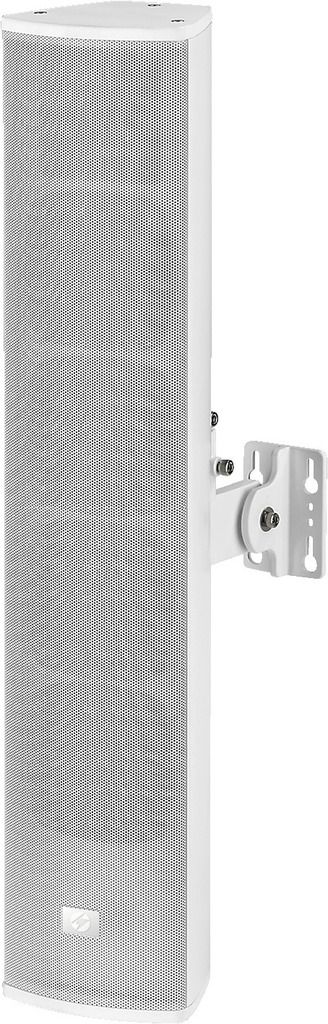

ETS-422TW/WS

Weatherproof PA column speakers,
with a top-quality sound.
  • Weatherproof and hose-proof, extruded aluminium cabinet
  • 100 V transmission technology
  • 2-way version (with additional integrated tweeter for a clearly improved sound)
  • Integrated crossover network
  • Aluminium front grille
  • Supplied with a robust tiltable and movable aluminium wall bracket
  • Connection via cable with 4 power taps
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/10/5/2.5 W
Frequency range 130-20,000 Hz
Number of speakers 4+1
Speaker size 10 cm (4")
SPL 92 dB/W/m
Radiation angle/beam angle H: 140°/V: 50°
Radiation angle, horizontal 140°
Radiation angle, vertical 50°
Housing material aluminium
Colour white
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Dimensions 124 x 610 x 108 mm
Width 124 mm
Height 610 mm
Depth 108 mm
Weight 4 kg
Inputs cable connection
Packaging dimensions (W x H x L) 0.165 x 0.2 x 0.72 m
Gross weight 4.84 kg
Net weight 4.17 kg

Fisiere de descarcat

Fisa produsului ETS-422TW/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
