ETS-530TW/SW

Cod EAN: 4007754214246

PA column speaker 100 V transmission technology or 8 Ω operation 2-way version (with additional integrated tweeter for a clearly improved sound) Integrated crossover network 6-step power selector switch with 8 Ω switching 2 x 6 mm threaded bushing Pl...

Citeste mai mult

Intreaba despre produs
Cumpara acum

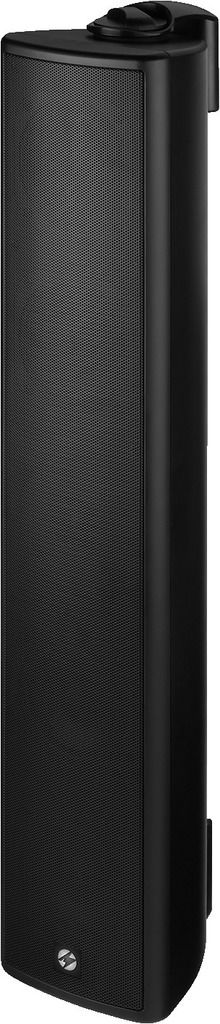

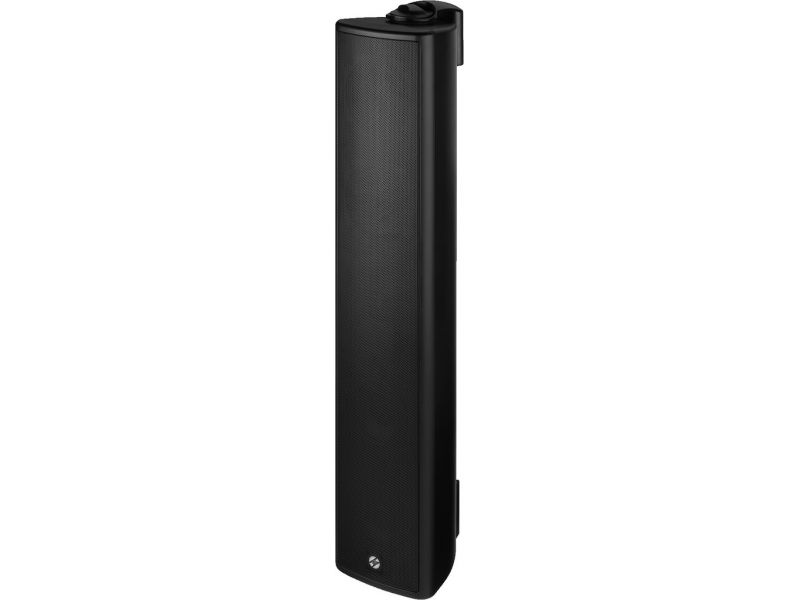

ETS-530TW/SW

PA column speaker
  • 100 V transmission technology or 8 Ω operation
  • 2-way version (with additional integrated tweeter for a clearly improved sound)
  • Integrated crossover network
  • 6-step power selector switch with 8 Ω switching
  • 2 x 6 mm threaded bushing
  • Plastic cabinet and protective metal grille in black (SW) or white (WS)
  • Supplied with mounting brackets
  • Connection via spring-loaded speaker terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 60 W
Power rating (RMS) 30/15/7.5/4/2 W (100 V) 30 W (8 Ω)
Impedance 8 Ω
Frequency range 85-20,000 Hz
System 2-way
Number of speakers 4+1
Speaker size 10 cm (4")
SPL 89 dB/W/m
Radiation angle/beam angle H: 140°/V: 40°
Radiation angle, horizontal 140°
Radiation angle, vertical 40°
Housing material plastic
Colour black
Mounting device mounting bracket
Admiss. ambient temp. 0-40 °C
Dimensions 128 x 620 x 140 mm
Width 128 mm
Height 620 mm
Depth 140 mm
Weight 4.5 kg
Inputs spring-load. term.
Packaging dimensions (W x H x L) 0.18 x 0.18 x 0.73 m
Gross weight 4.94 kg
Net weight 4.56 kg

Fisiere de descarcat

Fisa produsului ETS-530TW/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
