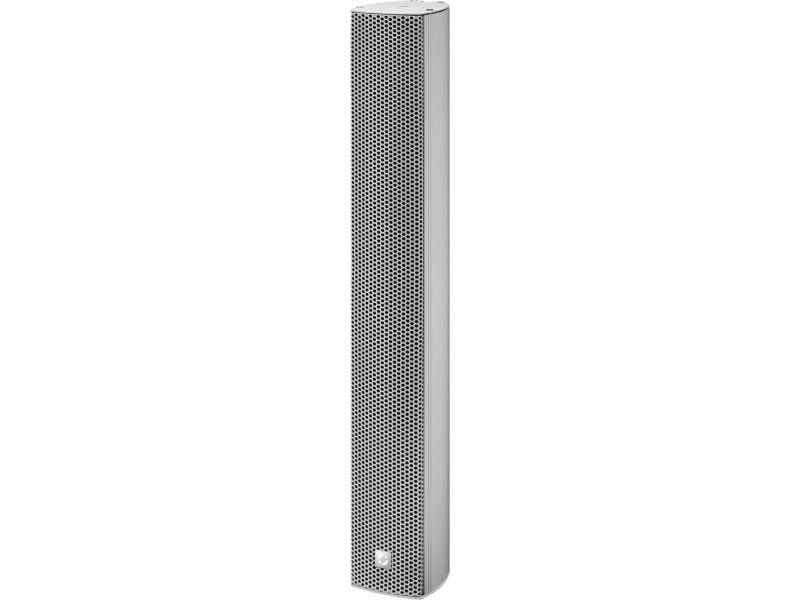

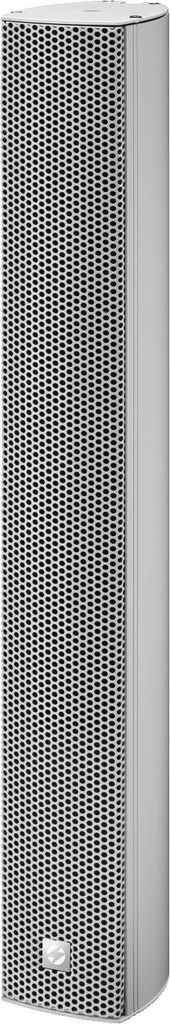

ETS-630DT

Cod EAN: 4007754258592

Active PA column speaker, with integrated Dante® module. 30 W class D amplifier 6 x 7.6 cm (3") full range speaker Decoding: 16/24/32 bits Sampling rates: 44.1/48/88.2/96 kHz PoE (Power over Ethernet) 2 x M12 threaded bushing Metal cabinet with w...

Citeste mai mult

Intreaba despre produs
Cumpara acum


ETS-630DT

Active PA column speaker,
with integrated Dante® module.
  • 30 W class D amplifier
  • 6 x 7.6 cm (3") full range speaker
  • Decoding: 16/24/32 bits
  • Sampling rates: 44.1/48/88.2/96 kHz
  • PoE (Power over Ethernet)
  • 2 x M12 threaded bushing
  • Metal cabinet with white metal front grille
  • Supplied with mounting brackets

System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Active/passive active
Transmission technology Dante ®
Total output power 40 W
Power rating (RMS) 30 W
Frequency range 120-18,000 Hz
Input signal Dante®
System full range
Full range speaker 6 x 7.6 cm
Number of speakers 6
Speaker size 7.6 cm (3")
SPL 95 dB/W/m
Max. rated SPL 110 dB
Radiation angle/beam angle H: 120°/V: 40°
Radiation angle, horizontal 120°
Radiation angle, vertical 40°
Housing material metal
Colour white
Mounting device mounting brackets
Admiss. ambient temp. 0-40 °C
Power supply PoE
Dimensions 95 x 610 x 120 mm
Width 95 mm
Height 610 mm
Depth 120 mm
Weight 5.57 kg
Inputs RJ45
Packaging dimensions (W x H x L) 0.18 x 0.205 x 0.72 m
Gross weight 6.32 kg
Net weight 5.57 kg

Fisiere de descarcat

Fisa produsului ETS-630DT gnu-general-public-license gnu-general-public-license konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
