MPX-206/SW

Cod EAN: 4007754208610

6-channel stereo mixer 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function 1 DJ microphone channel with switchable automatic...

Citeste mai mult

Intreaba despre produs
Cumpara acum

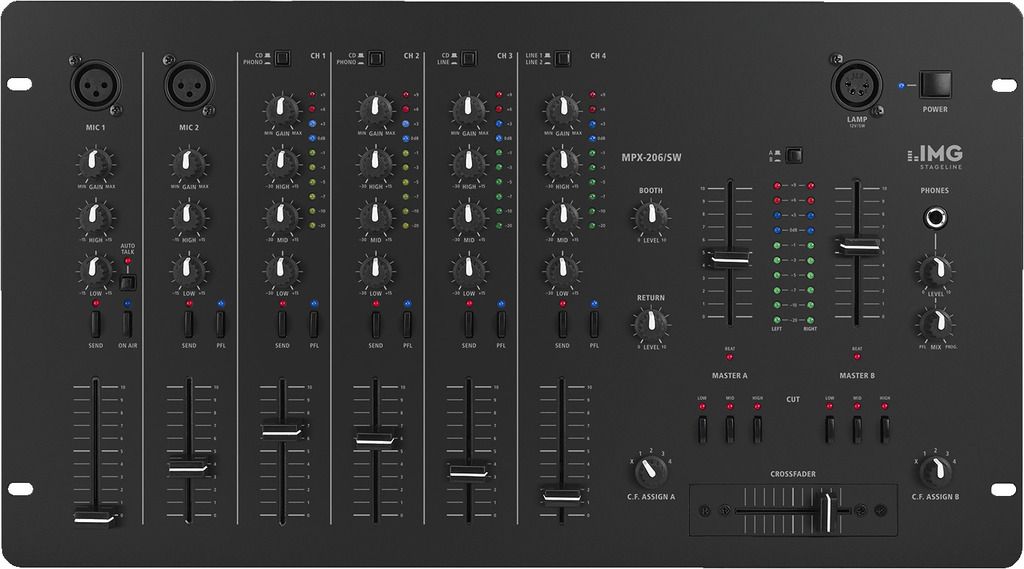

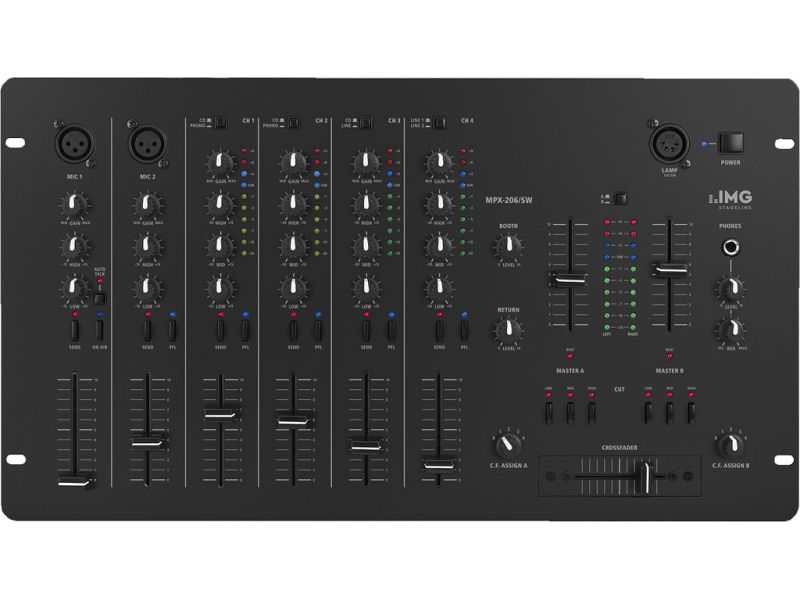

MPX-206/SW

6-channel stereo mixer
  • 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
  • 1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
  • 1 stereo effect way (send/return)
  • 2 master outputs, each with beat LED and 1 booth output
  • 1 record output
  • LED level display, switchable between both master outputs
  • Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
  • Adjustable headphone output
  • Fader start for the stereo inputs (channels 1-4)
  • Connection for gooseneck light GNL-404
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

No. of channels 6
No. of inputs 12
Mic input 1.5 mV, 2 x 6.3 mm jack
Line input 150 mV, 3 x RCA L/R
CD input 150 mV, 3 x RCA L/R
Phono input 3 mV, 2 x RCA L/R
Effect return 135 mV, 1 x RCA L/R
Master output 1 V/600 Ω, 1 x 3-pole XLR L/R
Record output 300 mV/600 Ω, 1 x RCA L/R
Monitor output 1 V/600 Ω, 1 x RCA L/R
Effect send 300 mV/600 Ω, 1 x RCA L/R
Headphones ≥ 8 Ω, 6.3 mm jack
Gooseneck lamp 12 V/5 W, 4-pole XLR
Frequency range 20-20,000 Hz
THD 0.05%
S/N ratio > 50 dB
Equalizer bass +15 dB, -30 dB/50 Hz
Equalizer midrange +15 dB, -30 dB/1 kHz
Equalizer treble +15 dB, -30 dB/10 kHz
Talkover -12 dB, switchable
Crossfader yes
Power supply ˜ 230 V/50 Hz/14 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 14 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 266 x 110 mm, 6 RS
Width 482 mm
Height 266 mm
Depth 110 mm
Rack units, RU 6
Weight 6.48 kg
Packaging dimensions (W x H x L) 0.305 x 0.16 x 0.56 m
Gross weight 7.82 kg
Net weight 6.48 kg

Fisiere de descarcat

Fisa produsului MPX-206/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
