NLT4FXX

Cod EAN: 7613187013409

NEUTRIK SPEAKON Connectors Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps. Contact resistance: < 2 mΩ Current rating: 50 A...

Citeste mai mult



NLT4FXX

NEUTRIK SPEAKON Connectors
Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.
  • Contact resistance: < 2 mΩ
  • Current rating: 50 A (music signal)
  • Self-extinguishing according to UL 94V-0

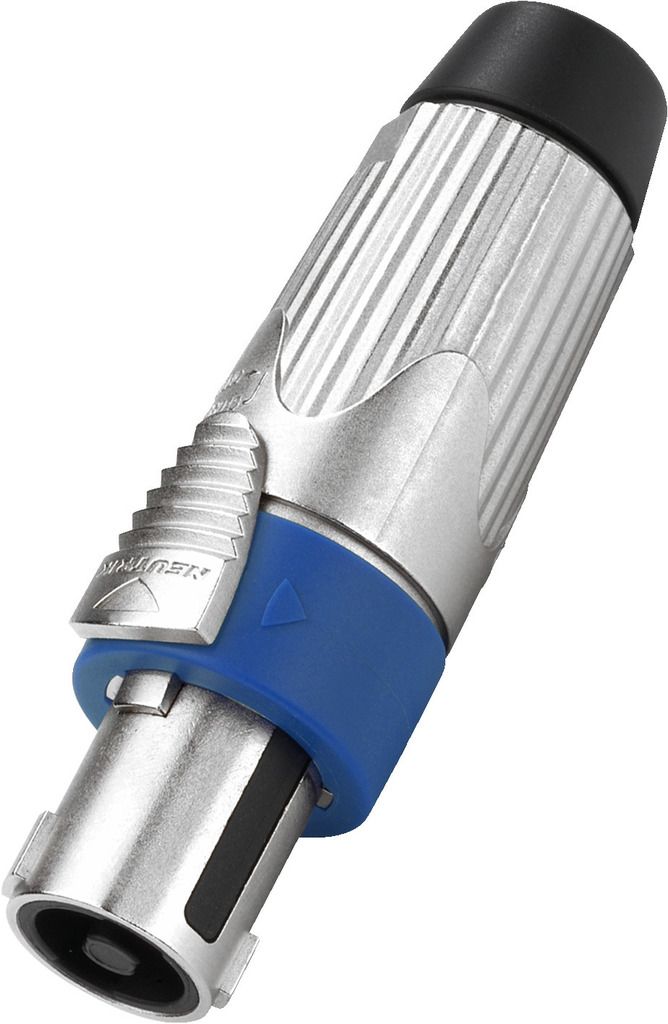

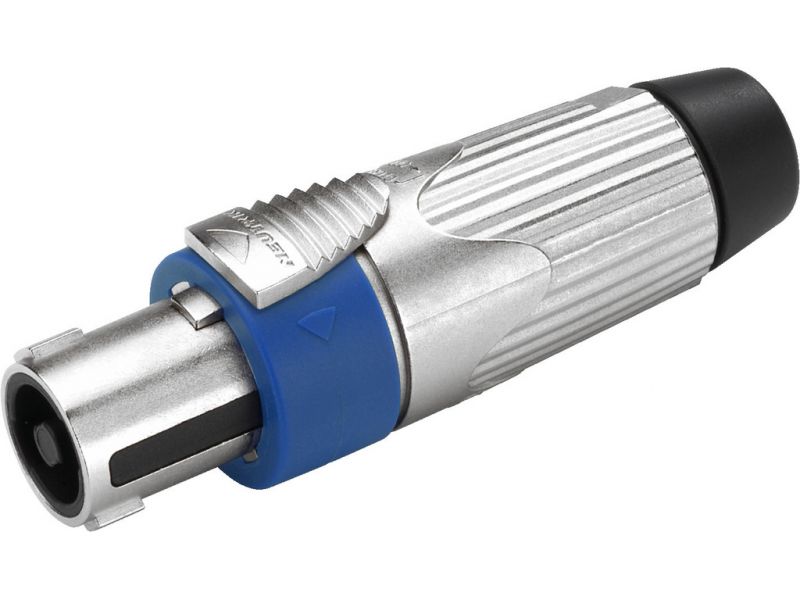

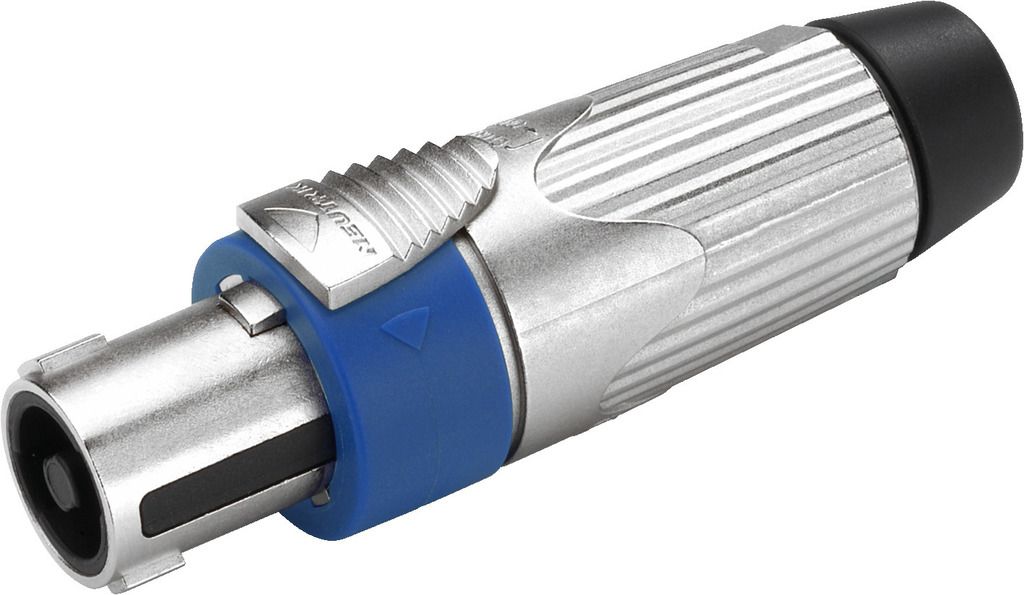

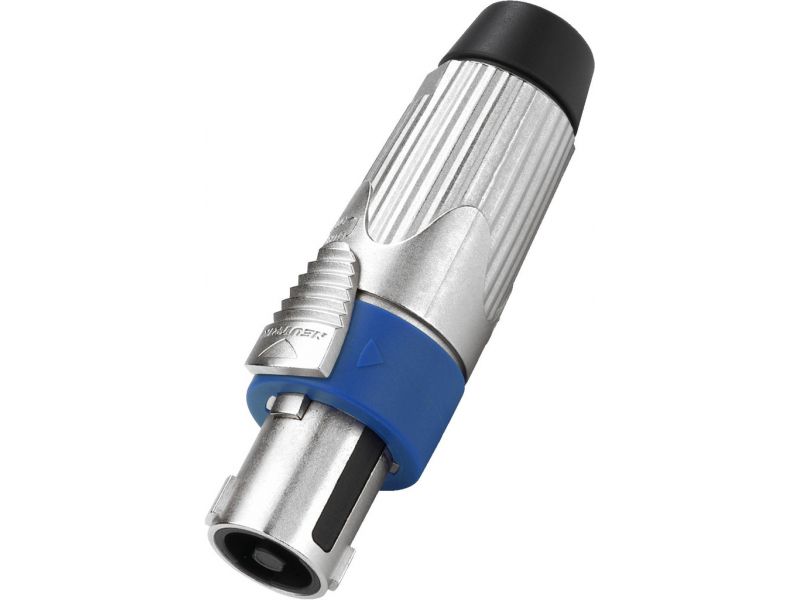

NEUTRIK SPEAKON plug
  • Metal body
  • Weatherproof when installed
  • 4-pole solder contact for litz wires up to 6 mm2
  • For cables: Ø 9-16 mm

Parametrii

Description plug
Type NEUTRIK SPEAKON
Quantity 1
Features weatherproof when installed
Colour/colour coding silver/blue
Power rating 250 V/40 A
Insulating resistance > 10 GΩ
Dielectric strength DC 4 kV
Certification UL 94 HB, IEC 68-2-20
Pole number 4
Cable inlet Ø 9-16 mm
Suitable cable cross section 6 mm2
Connection solder contacts
Strain relief self-adjusting clamps
Material nickel
Admiss. ambient temp. -30-+80 °C
Weight 80 g

Fisiere de descarcat
