FLAT-M200
Cod EAN: 4007754272536
Active PA stage monitor speaker system, 300 W Flat and very compact full range system Fitted with 4 x 10 cm (FaitalPRO, 4 x 4") full range speaker with neodymium magnets Class D amplifier system Sound pressure at nominal power: 122 dB Indication of s...

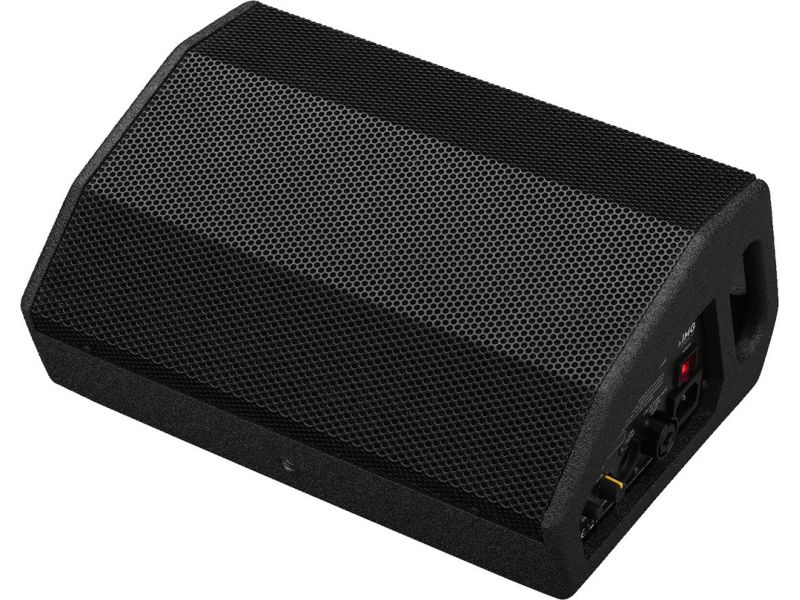

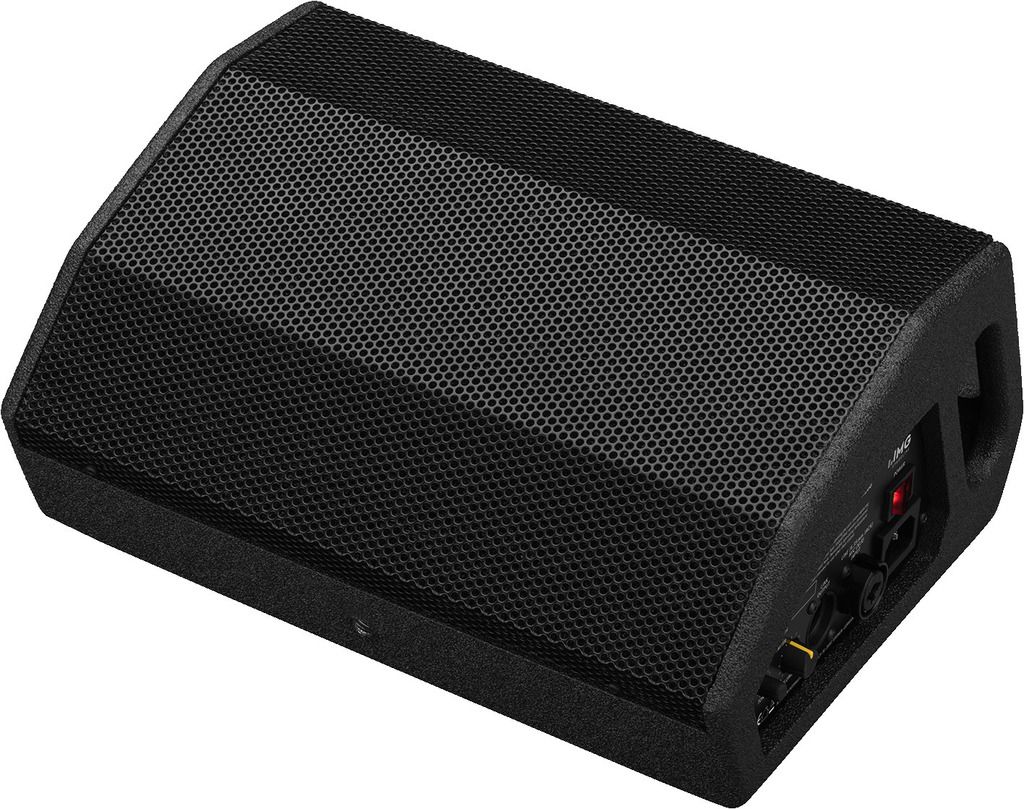

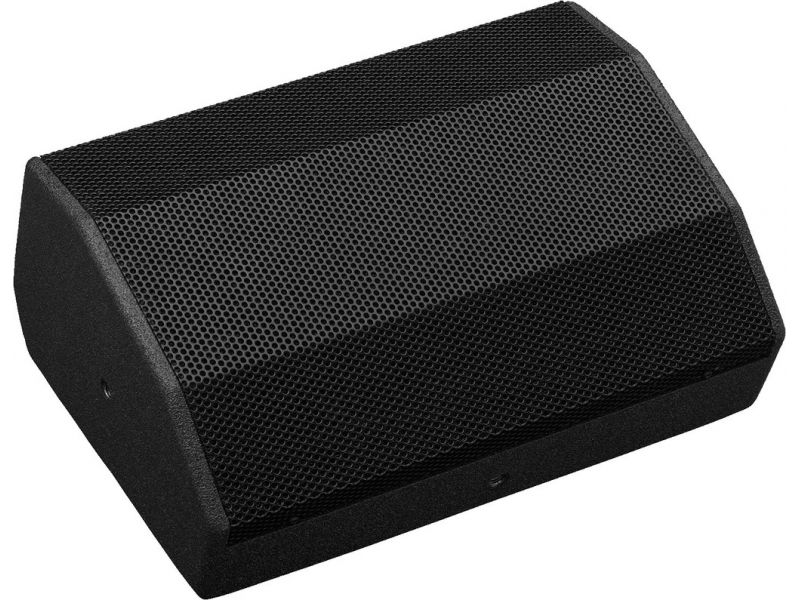

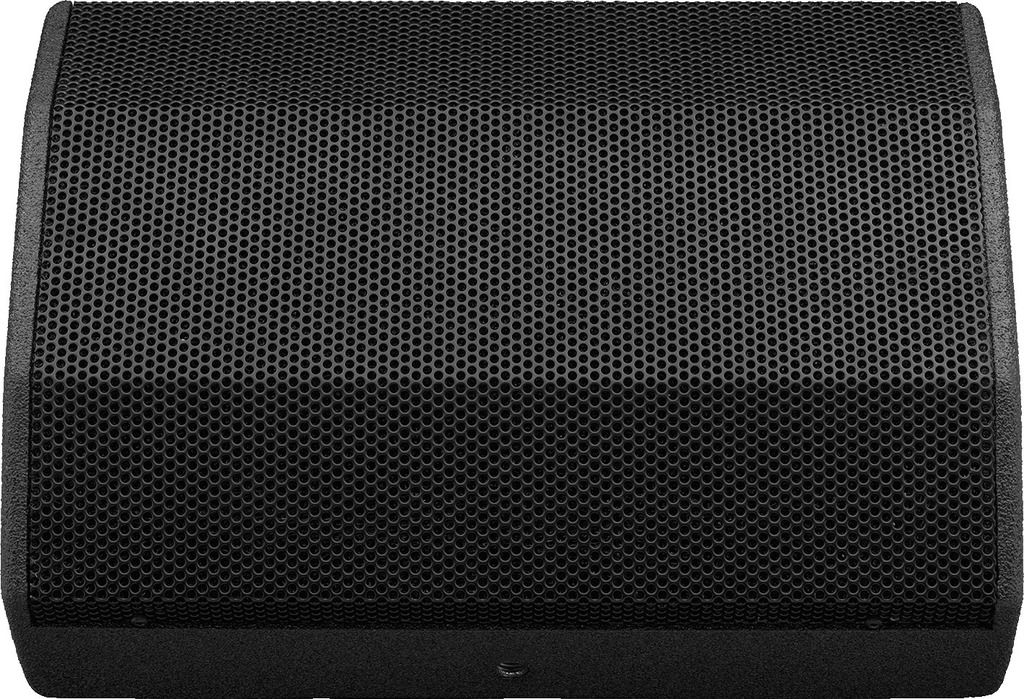

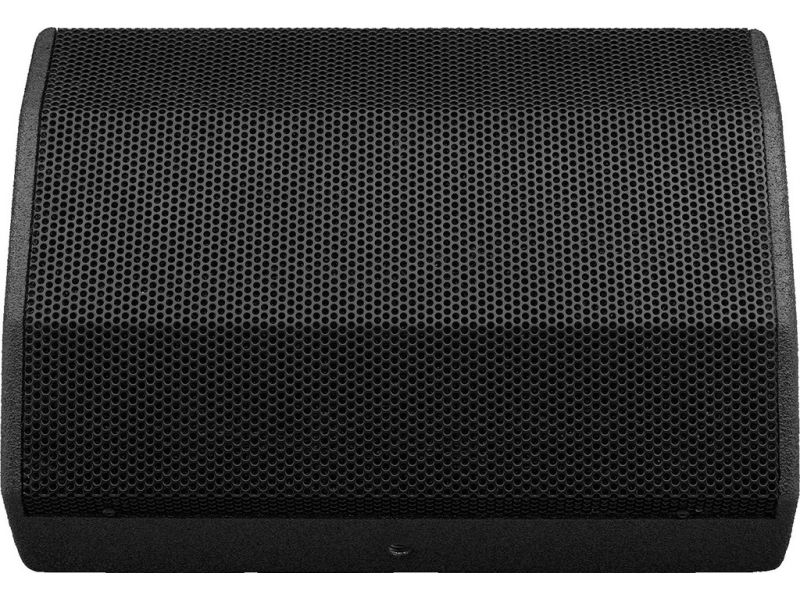

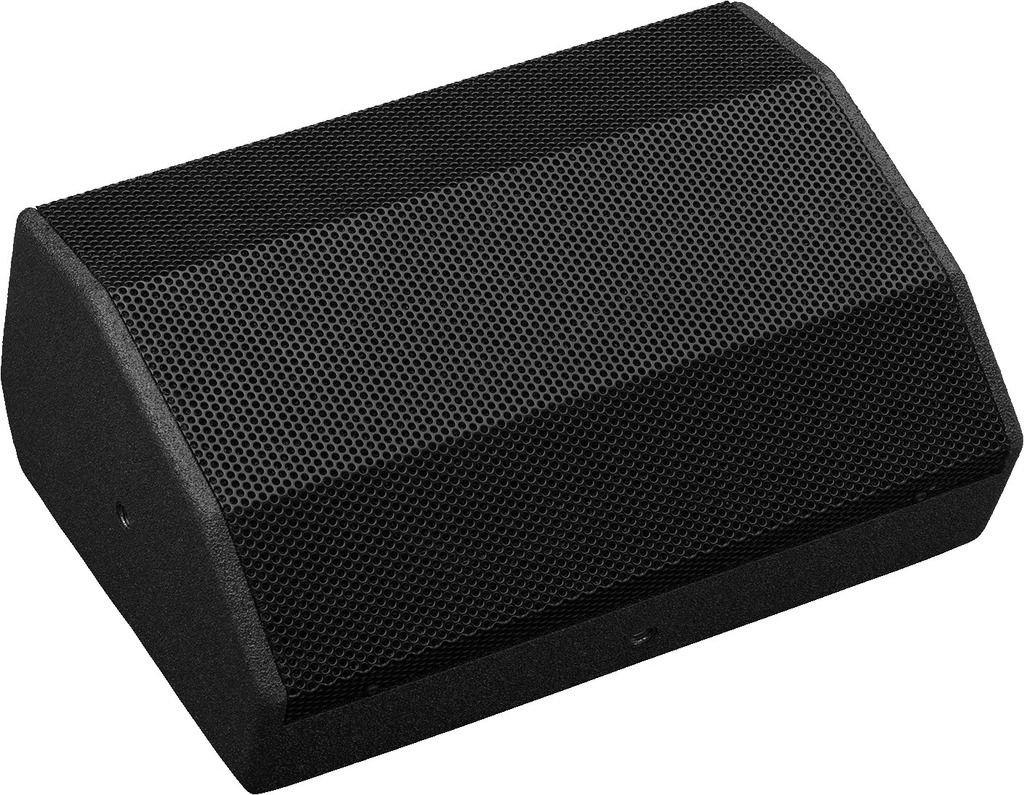

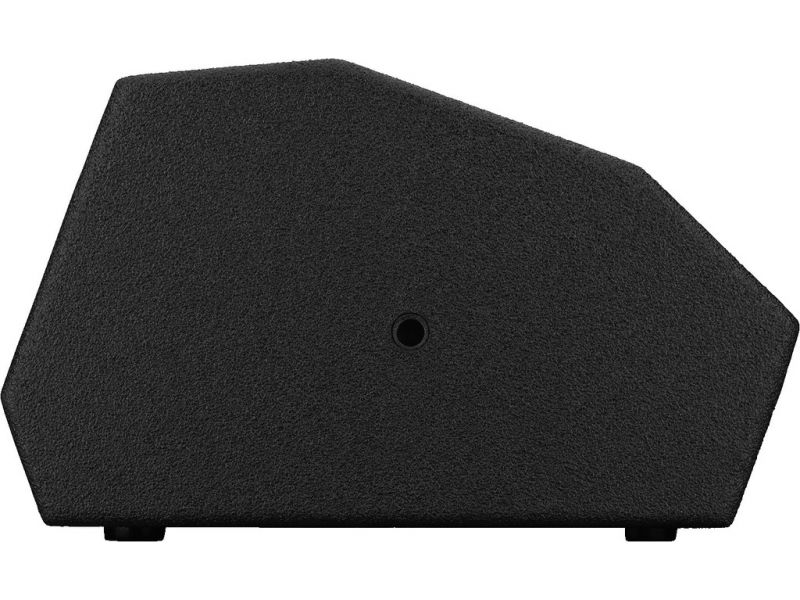

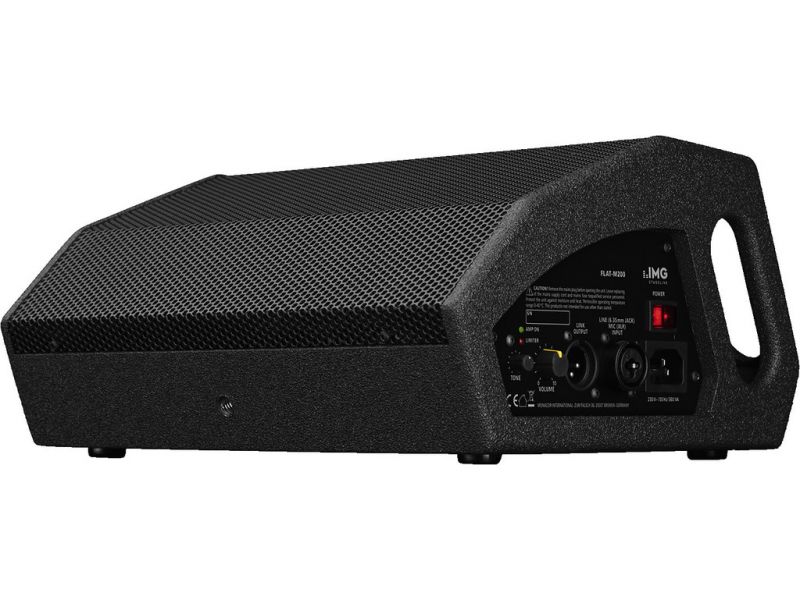

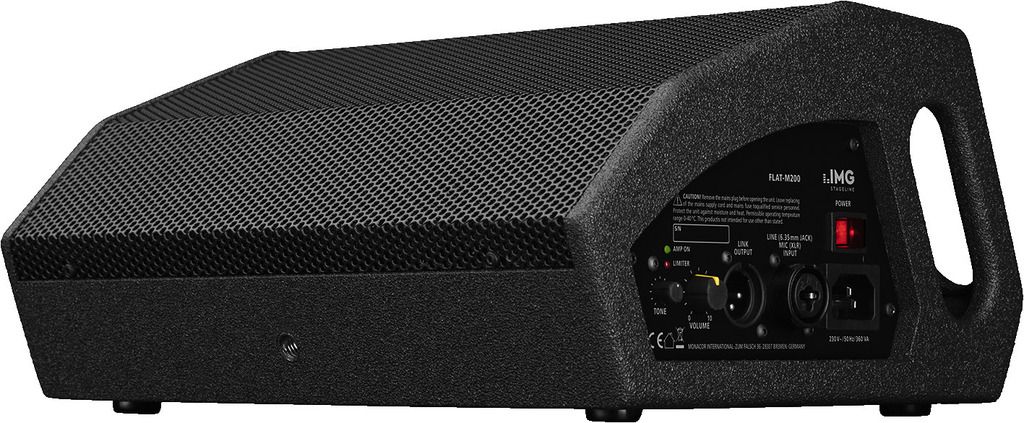

FLAT-M200
Active PA stage monitor speaker system, 300 W
- Flat and very compact full range system
- Fitted with 4 x 10 cm (FaitalPRO, 4 x 4") full range speaker with neodymium magnets
- Class D amplifier system
- Sound pressure at nominal power: 122 dB
- Indication of signal and limiter
- Volume control and tone control
- Balanced line/mic input and feed-through output
- High-quality multiplex wooden cabinet with protective metal grille

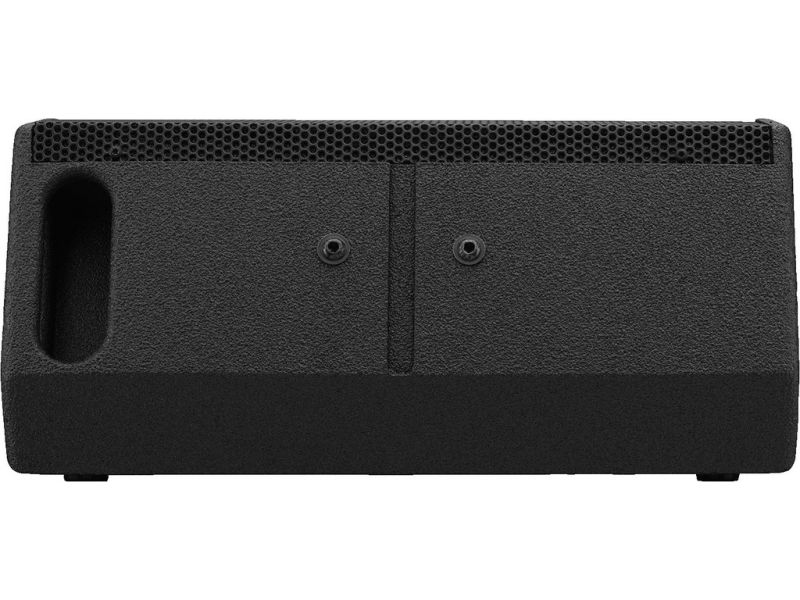

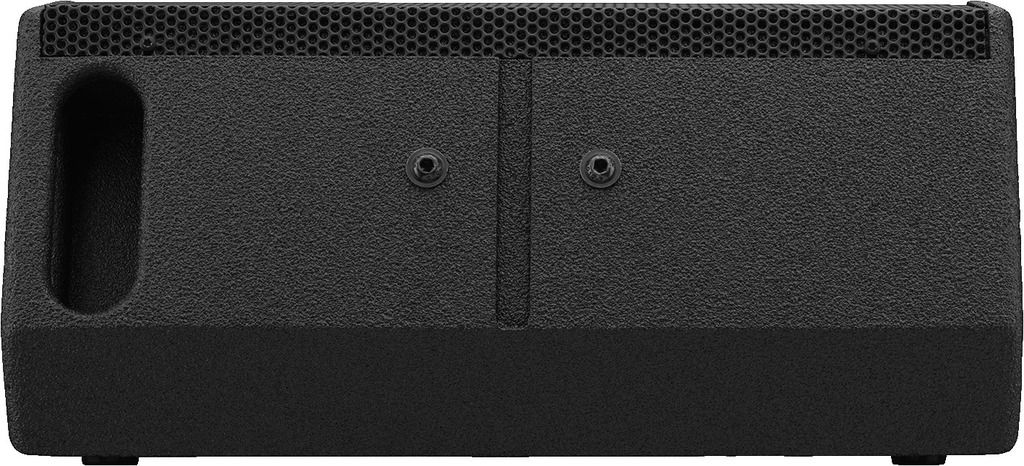

- 2 x M10 and 2 x M6 threaded inserts for stand adapter or mounting device
- Supplied with clamp for mounting, e.g. onto a microphone stand
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.
Parametrii
| Active/passive | active |
| Transmission technology | cable |
| Total output power | 300 W |
| Power rating (RMS) | 200 W |
| Frequency range | 70-20,000 Hz |
| Input signal | 25 mV/28 kΩ (line, bal.), 6 mV/20 kΩ (mic, bal.) |
| System | 4 x 4", full range |
| Full range speaker | 4 x 10 cm (FaitalPRO 4 x 4") full range speaker |
| Number of speakers | 4 |
| Speaker size | 10 cm (4") |
| SPL | 98 dB/W/m |
| Max. rated SPL | 122 dB |
| Radiation angle/beam angle | H: 50°/V: 70° |
| Radiation angle, horizontal | 50° |
| Radiation angle, vertical | 70° |
| Housing material | multiplex |
| Colour | black |
| Mounting device | 2 x M10 threaded insert, 2 x M6 threaded insert |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230 V/50 Hz/356 VA |
| Dimensions | 320 x 150 x 250 mm |
| Width | 320 mm |
| Height | 150 mm |
| Depth | 250 mm |
| Weight | 4.11 kg |

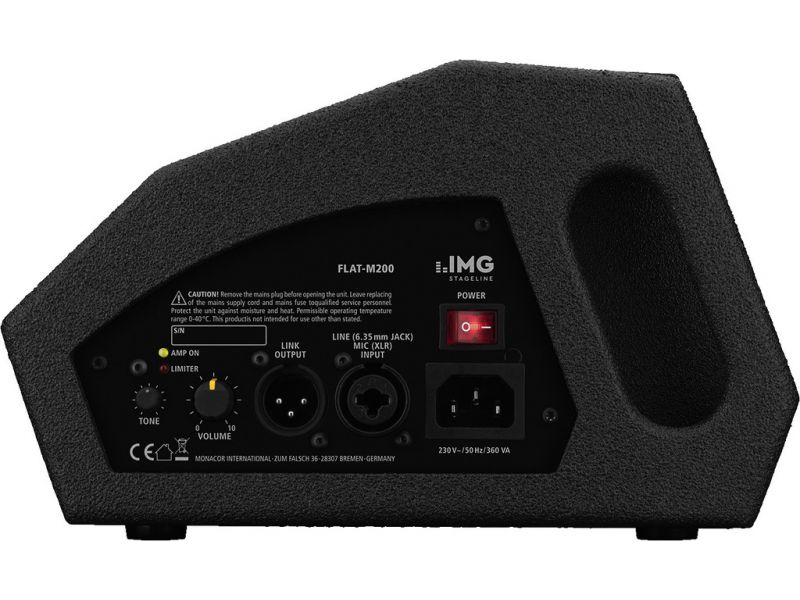

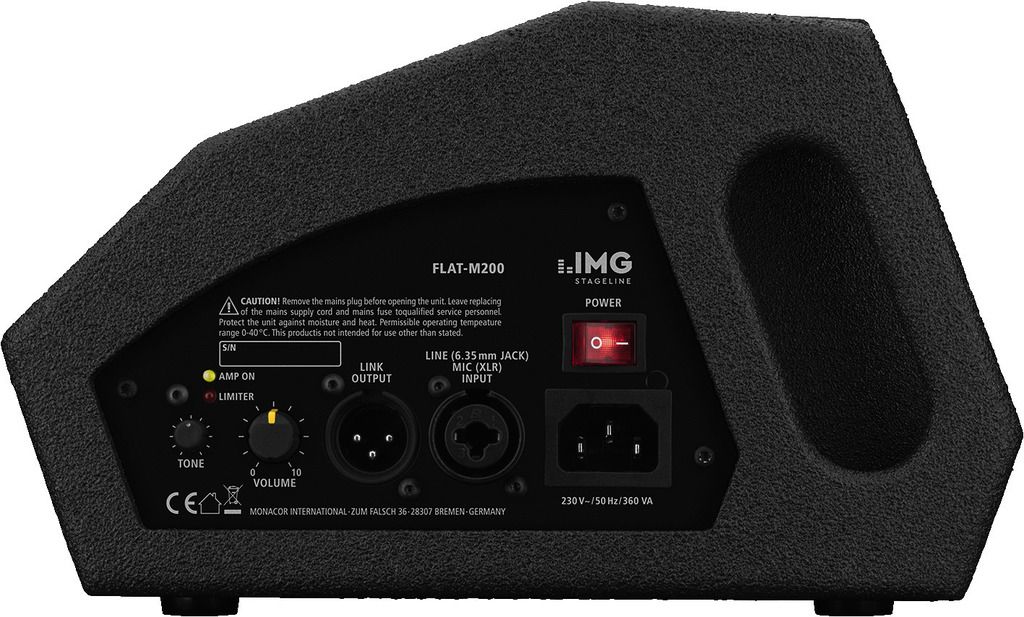

| Inputs | 1 x comb. XLR/6.3 mm (line/mic) |
| Outputs | 1 x XLR link out |
| Other features | limiter |
| Accessories | FLAT-M200BAG |
| Packaging dimensions (W x H x L) | 0.35 x 0.18 x 0.35 m |
| Gross weight | 4.82 kg |
| Net weight | 4.11 kg |
