HT-22/8

Cod EAN: 4007754008920

Cone tweeter, 10 W, 8 Ω Classic tweeter for hi-fi, car hi-fi and for replacement purposes Klang+Ton 02/2012 “The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the mi...

Citeste mai mult



HT-22/8

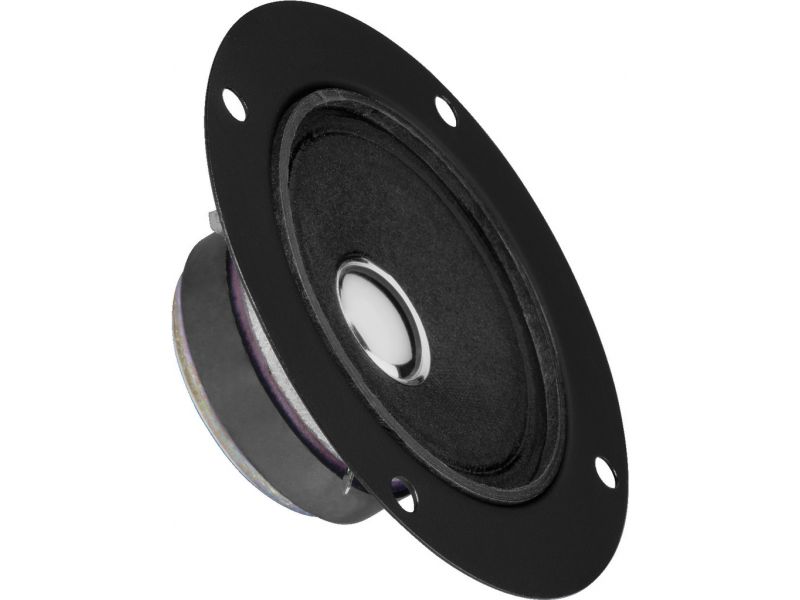

Cone tweeter, 10 W, 8 Ω
  • Classic tweeter for hi-fi, car hi-fi and for replacement purposes
Klang+Ton 02/2012
“The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values.”
Klang+Ton 02/2018
“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)

Parametrii

Impedance (Z) 8 Ω

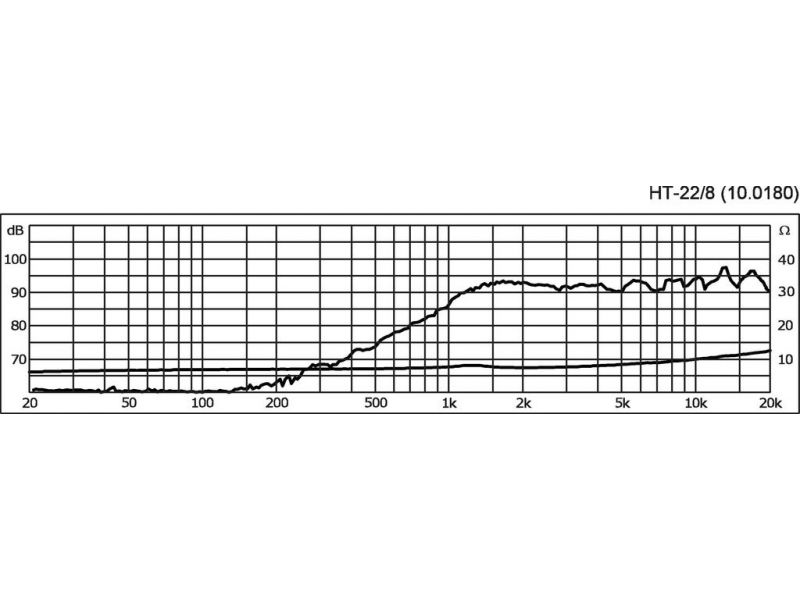

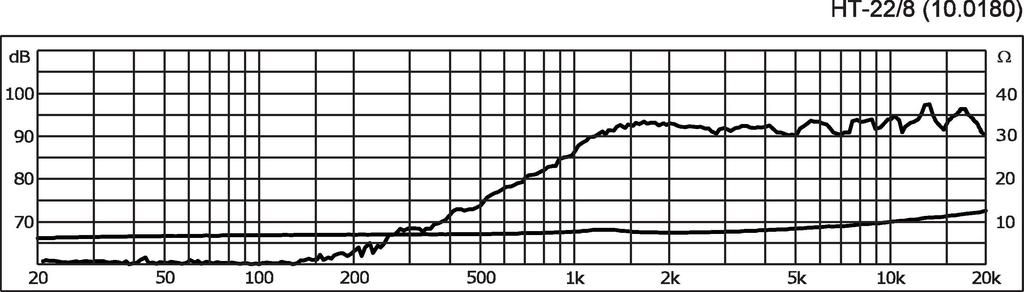

Frequency range fx-19,000 Hz
Resonant frequency (fs) 1,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 10 W
Peak music power output (MAX) 20 W
SPL 91 dB/W/m

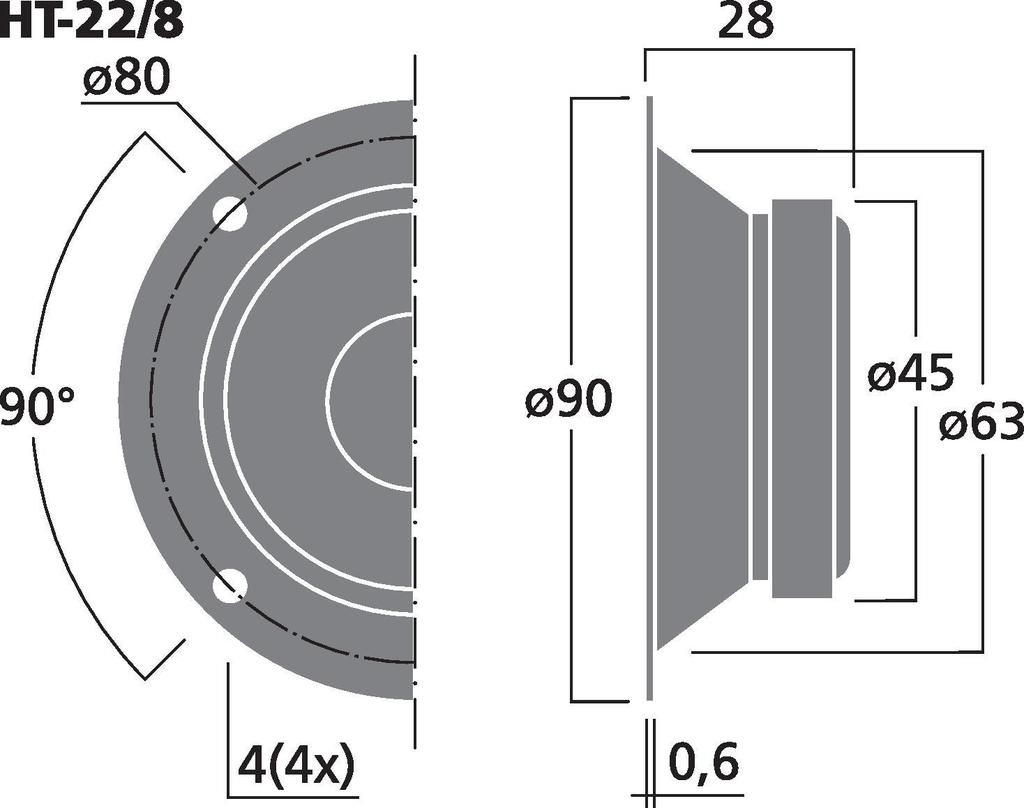

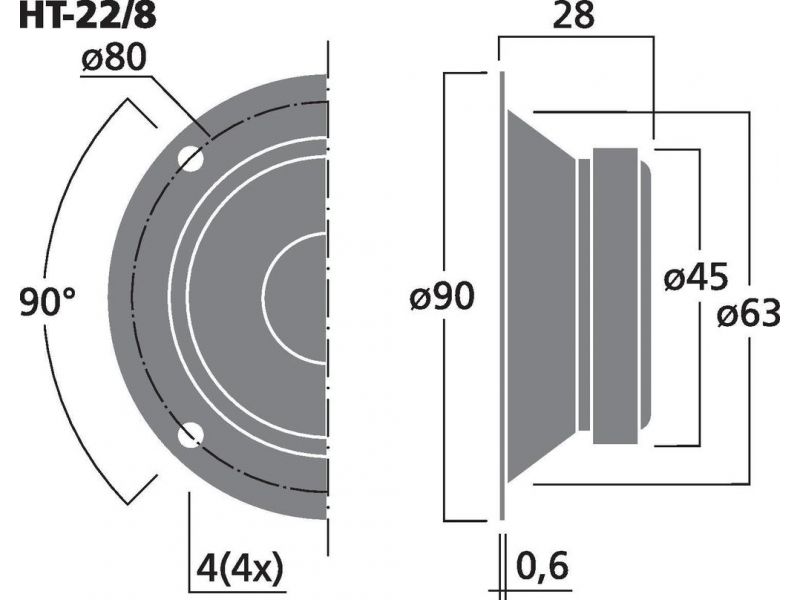

Voice coil diameter Ø 12 mm
Magnet diameter Ø 45 mm
Mounting cutout Ø 63 mm
Mounting depth 27.4 mm
Mounting hole diameter Ø 80 mm
Hole spacing X-axis 56 mm
Hole spacing Y-axis 56 mm
Dimensions Ø 90 mm x 28 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Depth 28 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.14 kg
Packing unit 1
Type of speaker 2"
Packing dimensions (W x H x L) 0.095 x 0.035 x 0.095 m
Gross weight 0.154 kg
Net weight 0.14 kg
