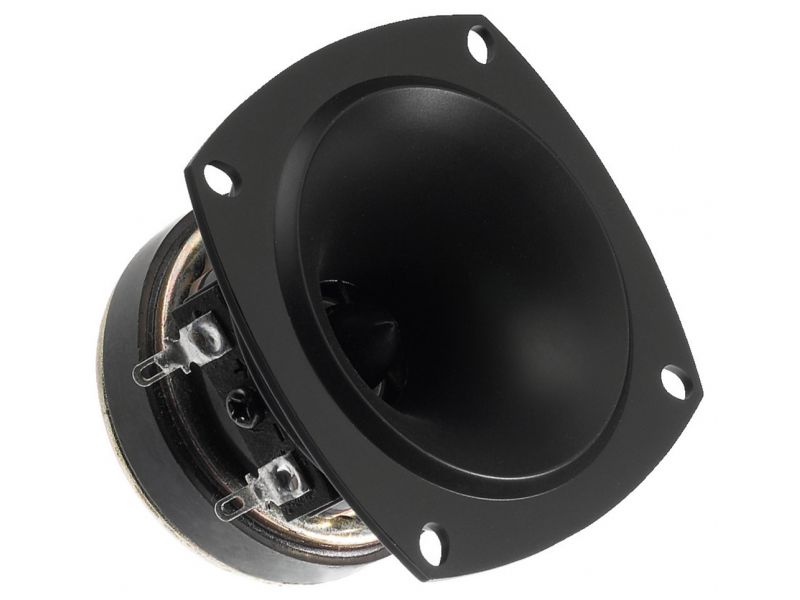

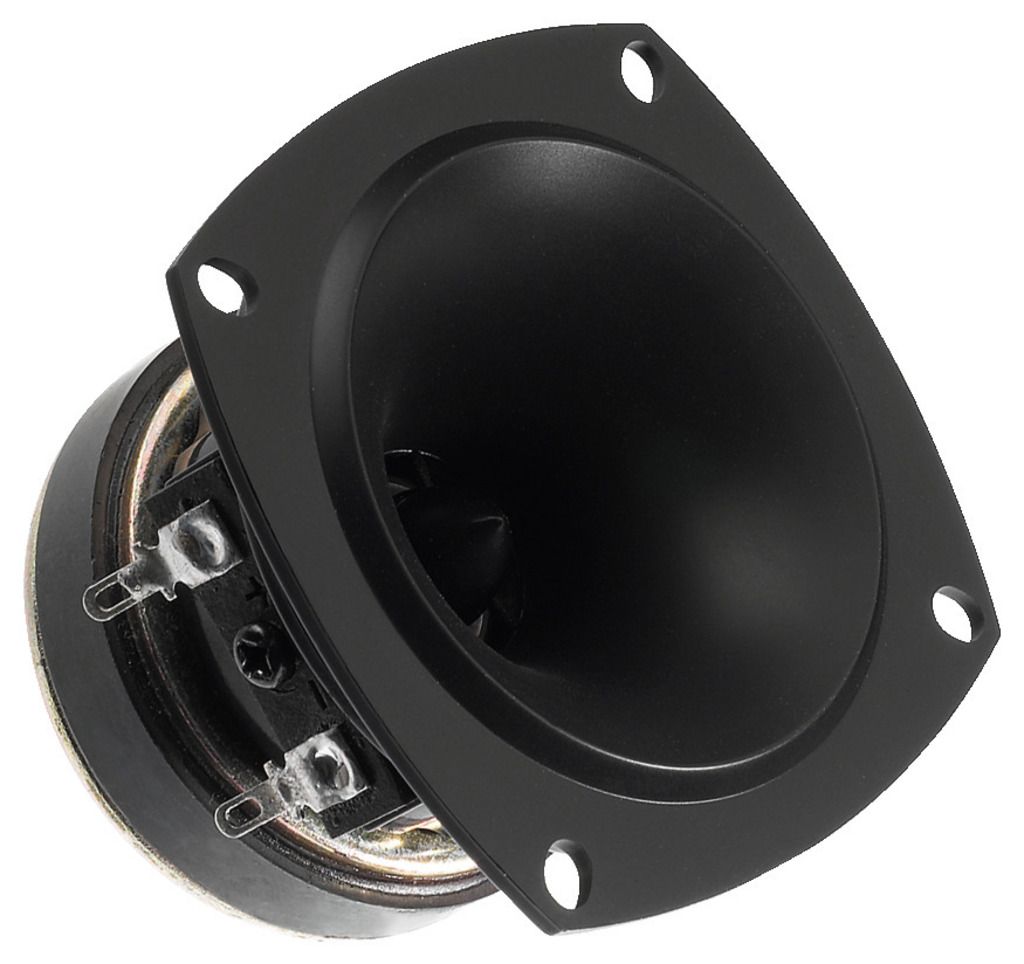

HT-30
Cod EAN: 4007754008937
Miniature PA horn tweeter, 50 W, 8 Ω Linear and wide bandwidth reproduction High power capability due to ferrofluid Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGZum Falsch 3628307 BremenGermanyinfo@monacor.com
HT-30
Miniature PA horn tweeter, 50 W, 8 Ω
- Linear and wide bandwidth reproduction
- High power capability due to ferrofluid
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametrii
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | fx-20 kHz |
| Resonant frequency (fs) | 2 kHz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 5 kHz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 100 W |
| SPL | 98 dB/W/m |

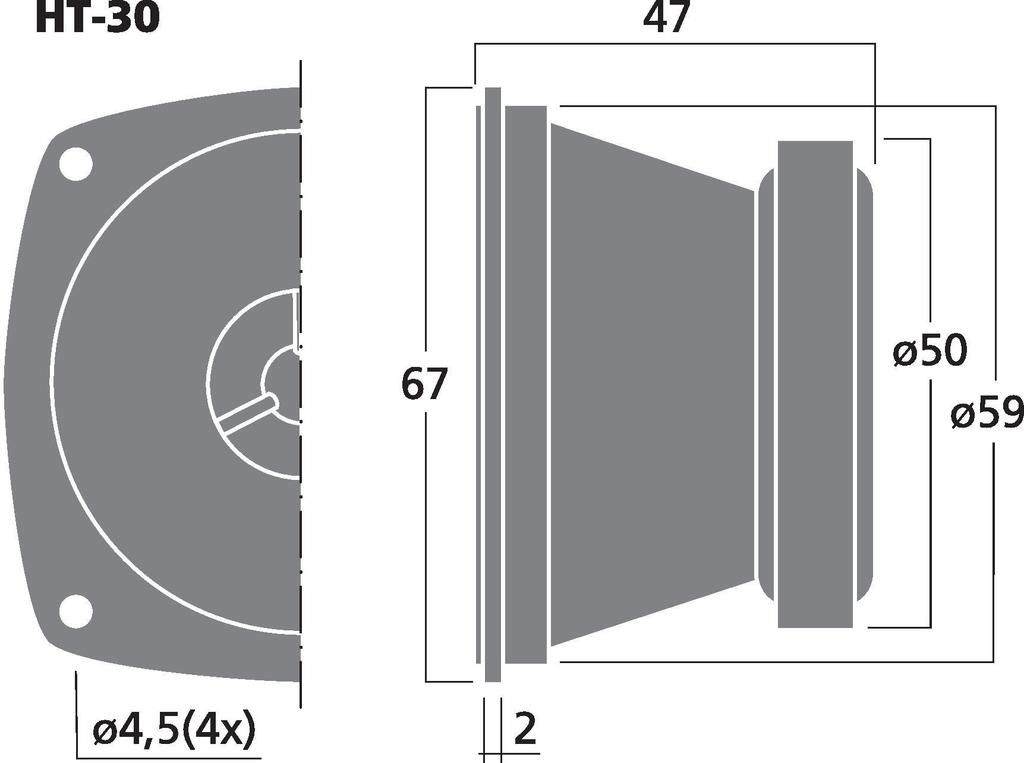

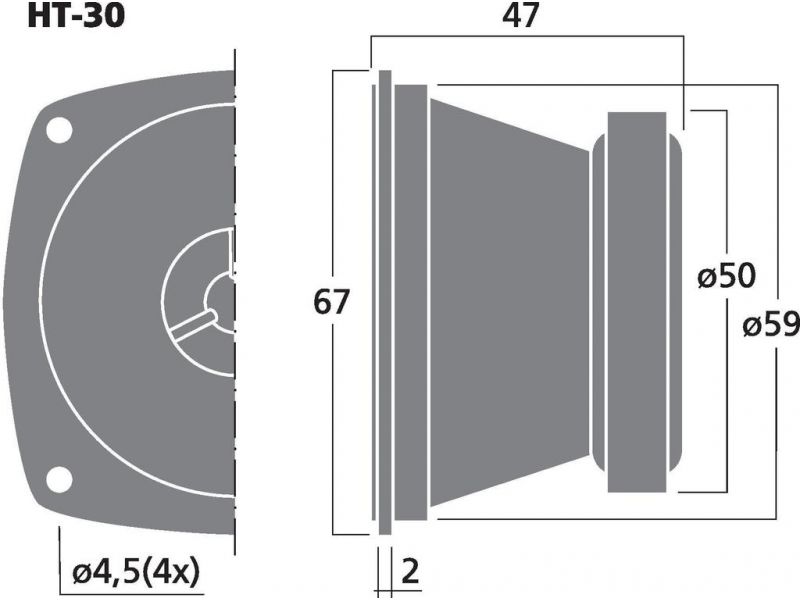

| Voice coil diameter | Ø 12 mm |
| Magnet diameter | Ø 50 mm |
| Mounting cutout | Ø 59 mm |
| Mounting depth | 45 mm |
| Dimensions | 67 x 67 x 47 mm |
| Width | 67 mm |
| Height | 67 mm |
| Depth | 47 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.18 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.07 x 0.055 x 0.07 m |
| Gross weight | 0.195 kg |
| Net weight | 0.18 kg |
