IT-130AK

Cod EAN: 4007754411966

Active weatherproof horn speaker Weatherproof and IP66 tested Integrated 30 W amplifier Volume control Easy replaceable connection cables via screw terminals Mobile application possible due to voltage supply of 12-24 V DC/2.5 A Manufacturer infor...

Citeste mai mult

Intreaba despre produs
Cumpara acum


IT-130AK

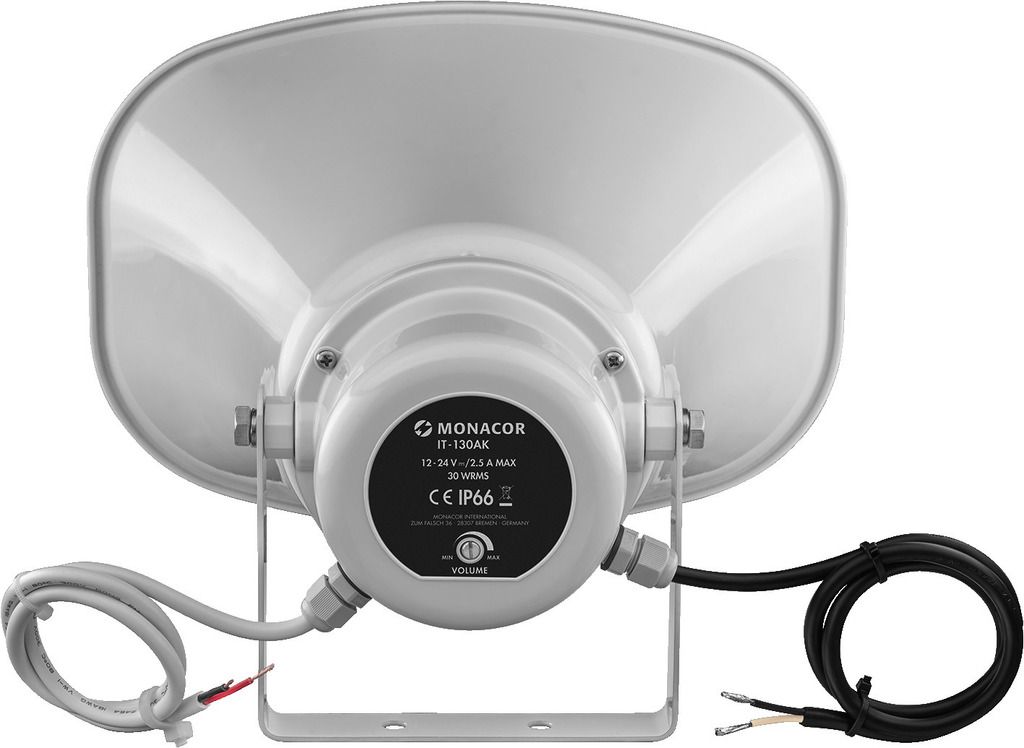

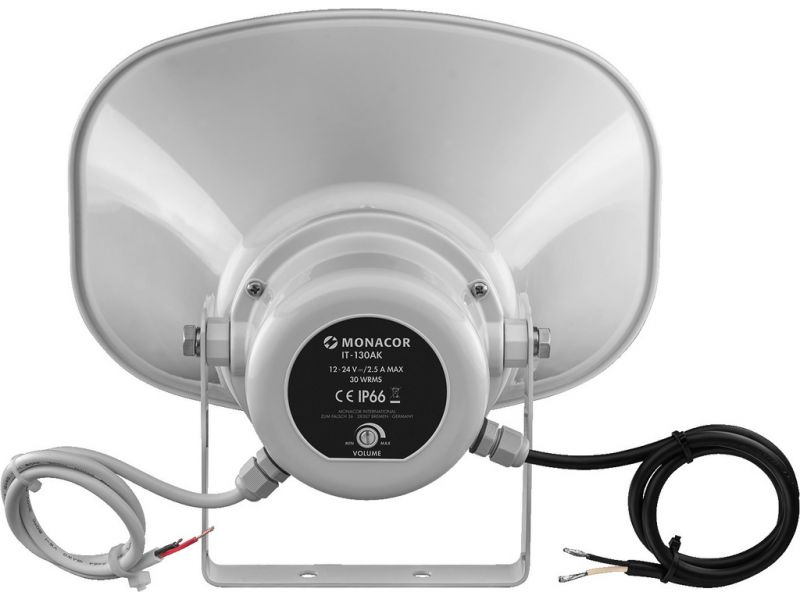

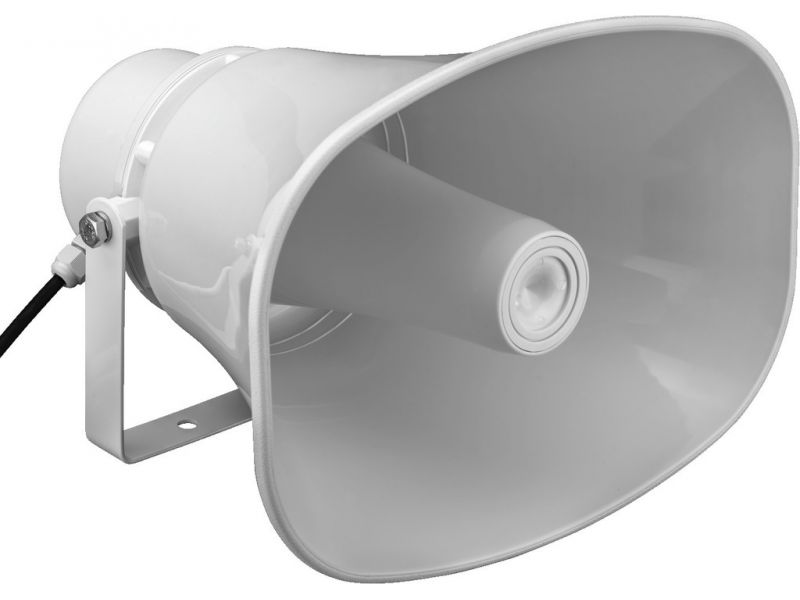

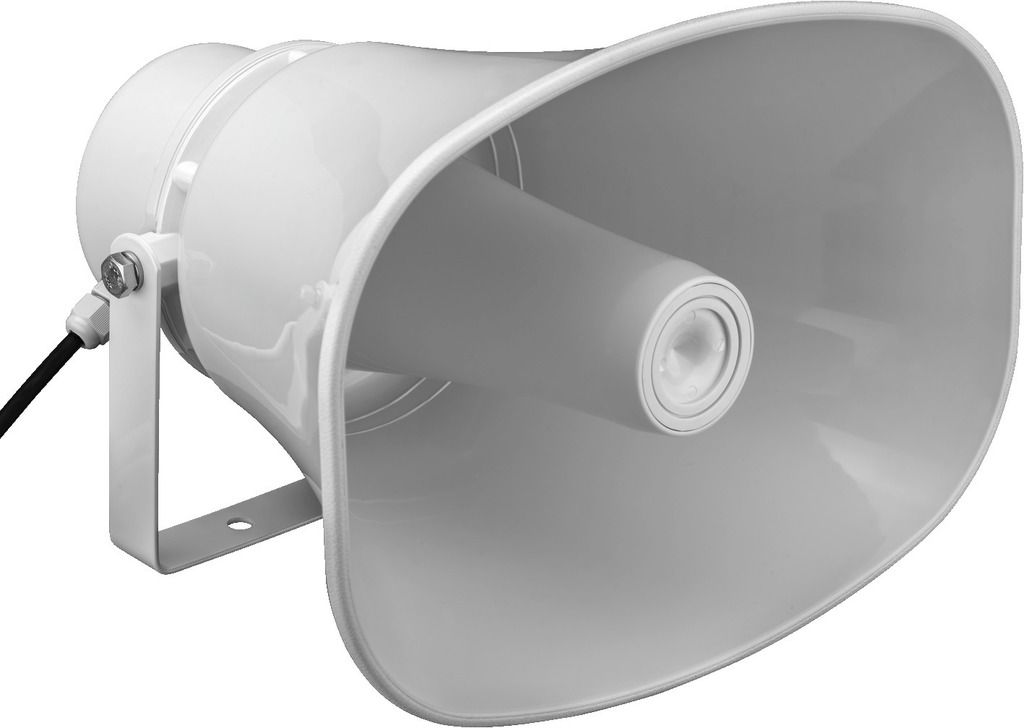

Active weatherproof horn speaker
  • Weatherproof and IP66 tested
  • Integrated 30 W amplifier
  • Volume control
  • Easy replaceable connection cables via screw terminals
  • Mobile application possible due to voltage supply of 12-24 V DC/2.5 A
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive active
Transmission technology cable
Total output power 30 W
Power rating (RMS) 20 W
Frequency range 250-16,000 Hz
Input signal 750 mV/5 kΩ (line)
Number of speakers 1
SPL 109 dB/W/m
Max. rated SPL 124 dB
Radiation angle/beam angle H: 100°/V: 50°
Radiation angle, horizontal 100°
Radiation angle, vertical 50°
Features volume control
Housing material ABS
Colour white
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Power supply 12-24 V DC/2.5 A
Dimensions 290 x 215 x 260 mm
Width 290 mm
Height 215 mm
Depth 260 mm
Weight 1.5 kg
Inputs open cable ends
Other features weatherproof
Packaging dimensions (W x H x L) 0.22 x 0.285 x 0.3 m
Gross weight 1.84 kg
Net weight 1.5 kg

Fisiere de descarcat

Fisa produsului IT-130AK konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
