TXS-606

Cod EAN: 4007754223507

Multifrequency receiver unit, with UHF PLL technology. 1,000 selectable UHF frequencies (672.000-696.975 MHz) in 10 groups with 100 frequencies each ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip micro...

Citeste mai mult

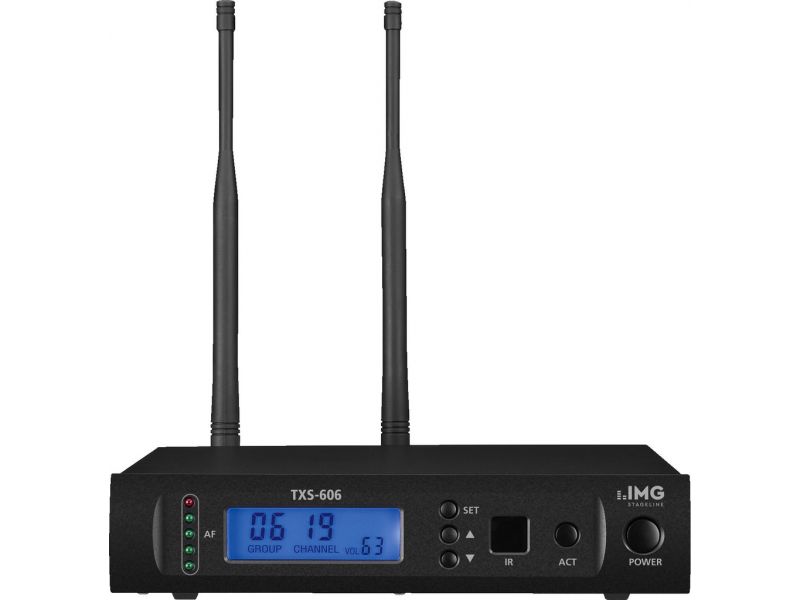

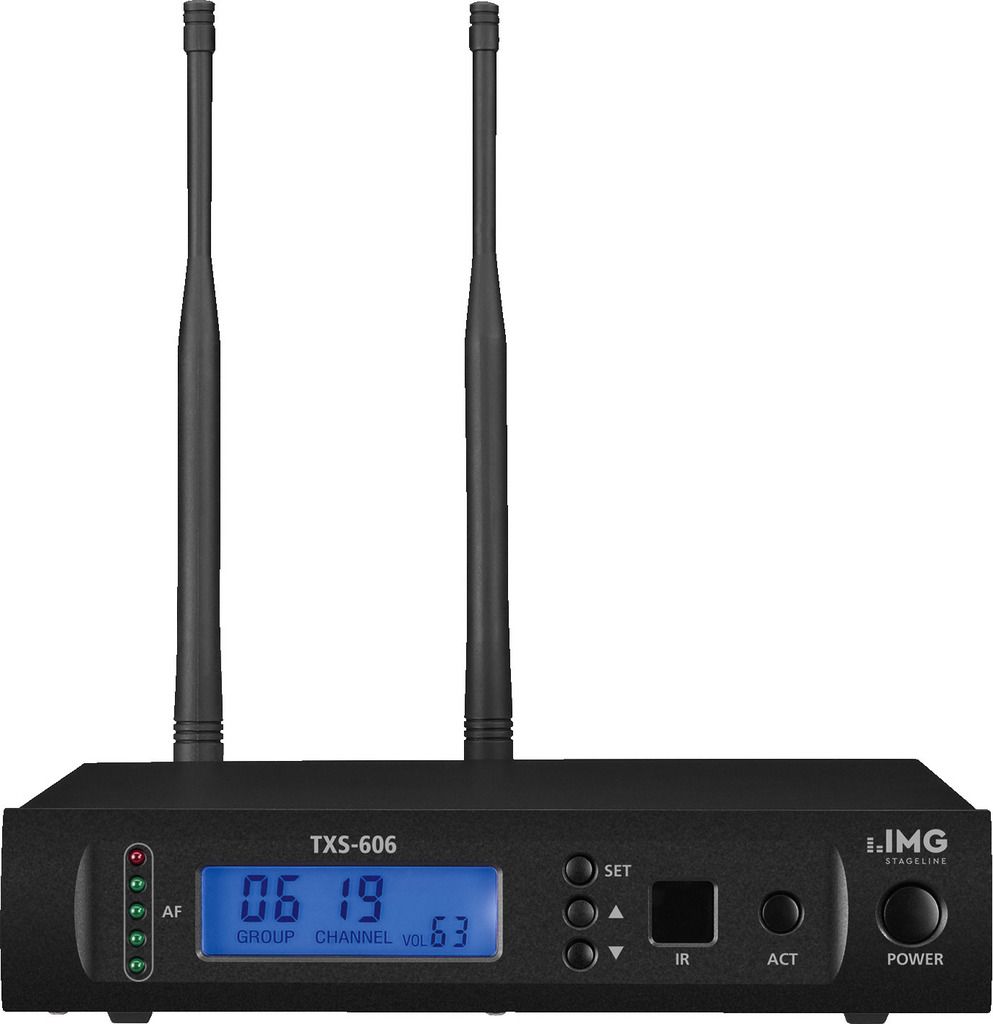

TXS-606

Multifrequency receiver unit,
with UHF PLL technology.
  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) in 10 groups with 100 frequencies each
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
  • Auto-scan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls
  • LCD for indicating group/channel, antenna A/B, RF receiving level and AF audio level
  • Additional LED level display for indicating audio level
  • XLR output and 6.3 mm output
  • 8 V supply voltage for active antennas or antenna amplifier (e.g. TXS-875B) is available
  • Robust metal housing
  • Supplied with power supply

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Parametrii

Description receiver unit
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 1
THD < 0.5%
Dynamic range 100 dB
RF S/N ratio 105 dB
Admiss. ambient temp. 0-40 °C
Audio signal receiver 350 mV/600 Ω (jack)25 mV/600 Ω (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 212 mm
Height receiver 45 mm
Depth receiver 180 mm
Weight receiver 930 g
Connections receiver 1 x XLR, bal.,1 x 6.3 mm jack, unbal.
