TXS-606DT/2
Cod EAN: 4007754276169
Wireless desktop microphone with integrated multifrequency transmitter, with UHF PLL technology. Electret microphone cartridge, cardioid polar pattern 350 mm gooseneck, removable 800 selectable UHF frequencies (672.000-691.975 MHz), can be synchron...

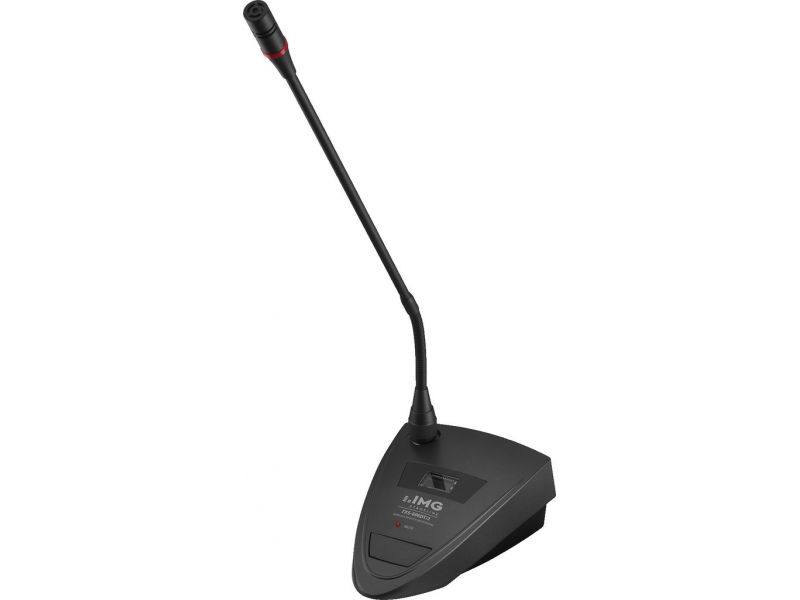

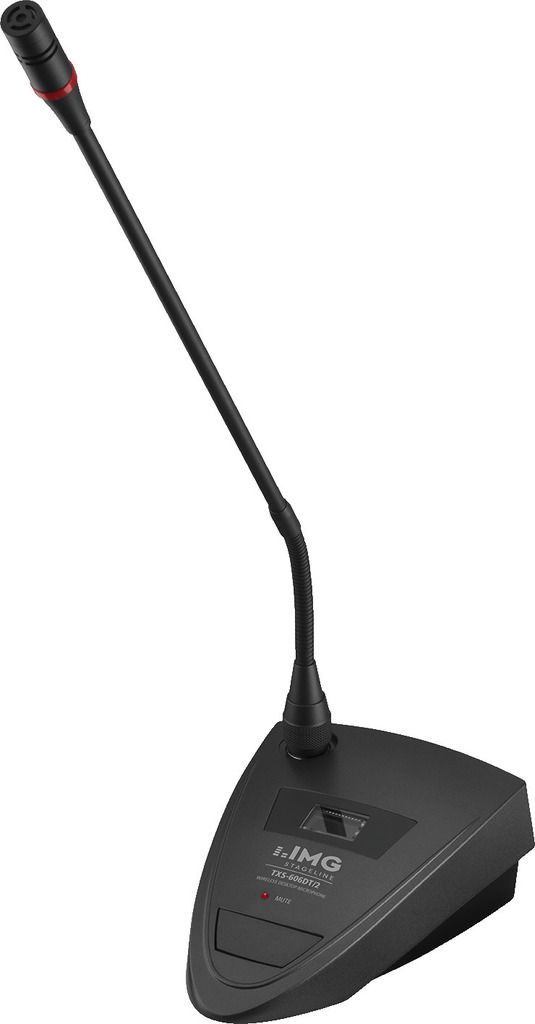

TXS-606DT/2
Wireless desktop microphone with integrated multifrequency transmitter,
with UHF PLL technology.
- Electret microphone cartridge, cardioid polar pattern
- 350 mm gooseneck, removable
- 800 selectable UHF frequencies (672.000-691.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
- Adjustable sensitivity
- Switchable transmitting power (high: 25 mW/low: 2.5 mW)
- LCD for indicating group/channel, audio level and battery status
- Power supply via 2 x 1.5 V battery AA size (not supplied)
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | microphone desk stand transmitter |
| Transmission method | wireless |
| Polar pattern | cardioid |
| System | electret |
| Carrier frequency range | 672.000-691.975 MHz |
| Transmitting power | 25 mW/2.5 mW |
| Power supply | 2 x 1.5 V batt. AA size |
| Operating time | > 8 h |
| Audio frequency range | 30-18,000 Hz |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 120 x 65 x 178 mm (w/o gooseneck) |
| Weight | 1.2 kg |
| Packaging dimensions (W x H x L) | 0.175 x 0.085 x 0.515 m |
| Gross weight | 1.677 kg |
| Net weight | 1.296 kg |
