TXS-686

Cod EAN: 4007754247329

8-channel multifrequency receiver unit, with UHF PLL technology. 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each) ACT function for transmitting selected frequency to pocket transmitter TXS-6...

Citeste mai mult

Intreaba despre produs
Cumpara acum


TXS-686

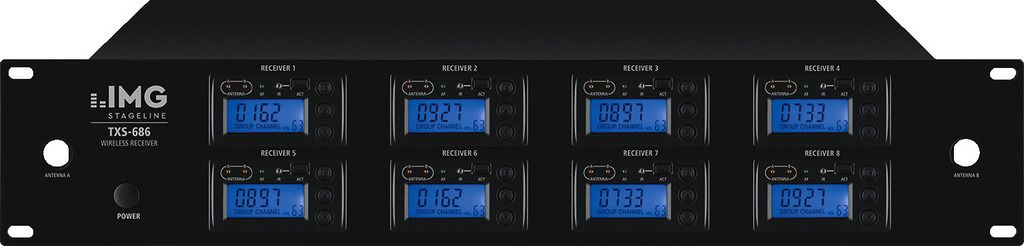

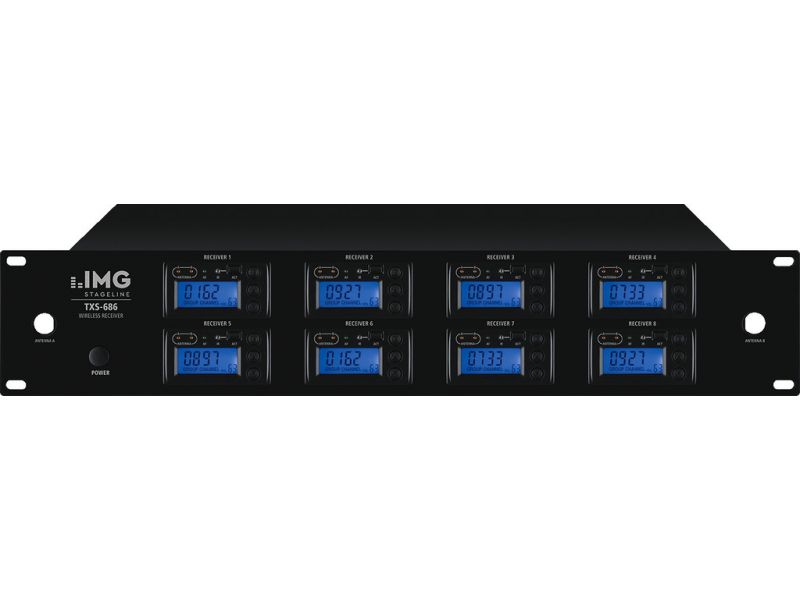

8-channel multifrequency receiver unit,
with UHF PLL technology.
  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
  • Auto-scan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • LCD for indicating group/channel, RF receiving level, AF audio level and additional LED display for indicating antenna A/B, audio signal of each channel
  • XLR output for each channel, bal.
  • 6.3 mm jack output for mixed signal
  • 8 V supply voltage for active antennas or antenna amplifiers is available
  • Robust metal housing
  • Supplied with power supply
  • 482 mm (19") rack installation, 2 RU

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com

Parametrii

Description receiver unit
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 8
THD < 0.5%
Dynamic range 100 dB
RF S/N ratio 105 dB
Admiss. ambient temp. 0-40 °C
Audio signal receiver 350 mV/600 Ω (jack)25 mV/600 Ω (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 482 mm
Height receiver 90 mm
Depth receiver 310 mm
Weight receiver 4.4 kg
Connections receiver 8 x XLR, bal.,1 x 6.3 mm jack, unbal.

Fisiere de descarcat

Fisa produsului TXS-686 konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
