IT-250TW

Cod EAN: 4007754238952

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an i...

Citeste mai mult

Intreaba despre produs
Cumpara acum


IT-250TW

The music horns from MONACOR are the state-of-the-art solution in order to use the full range of a horn speaker with a clearly extended frequency range.
The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn speakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required.

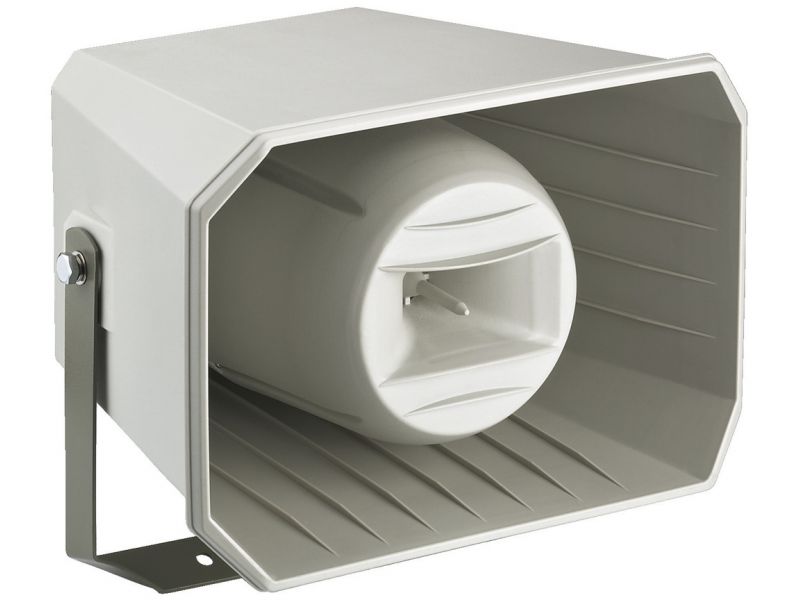

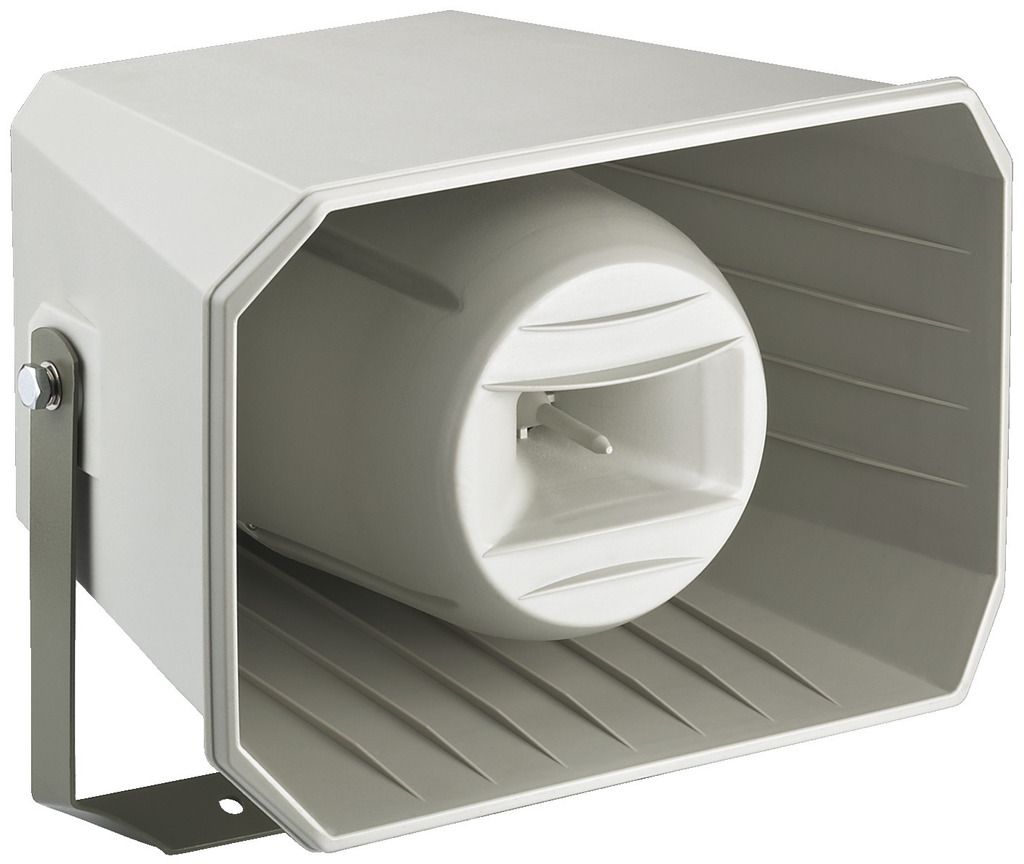

Weatherproof horn speaker (music horn), 2-way technology
  • 100 V transmission technology or 8 Ω operation
  • IP66 certified
  • High-performance music horn at an attractive price
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • ABS plastic housing
  • Supplied with mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 50 W
Power rating (RMS) 50/25/12.5/9/4.5/3.5 W (100 V) 50 W (8 Ω)
Impedance 8 Ω

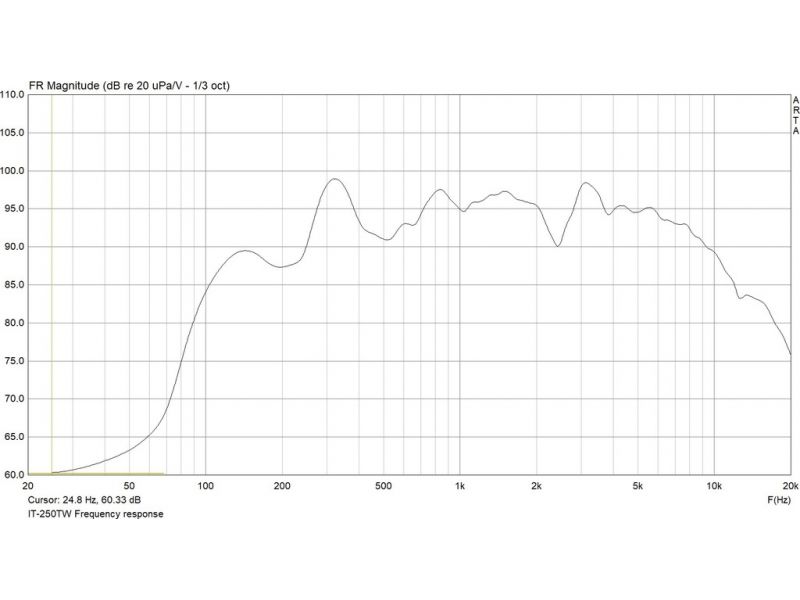

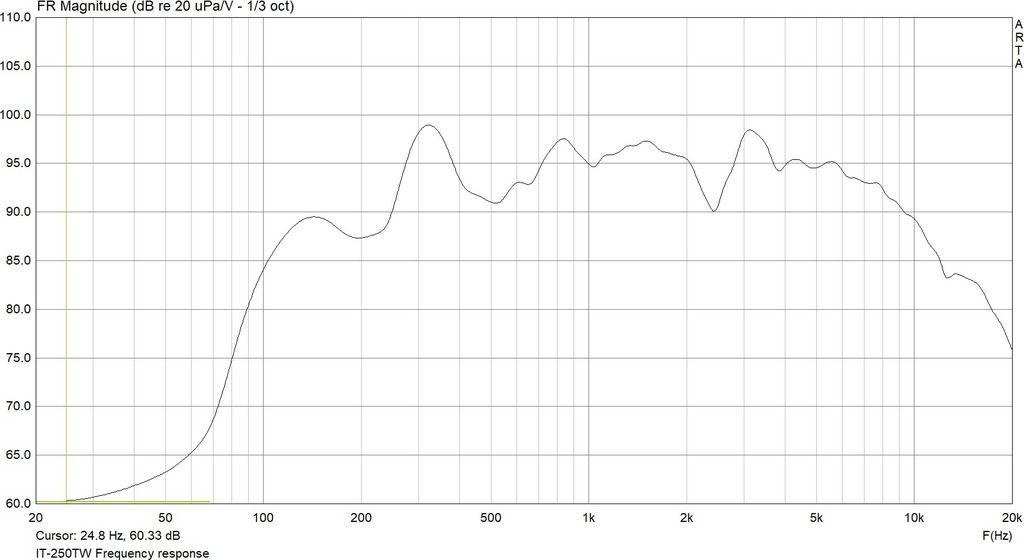

Frequency range 150-15,000 Hz
Number of speakers 2
SPL 97 dB/W/m
Max. rated SPL 114 dB

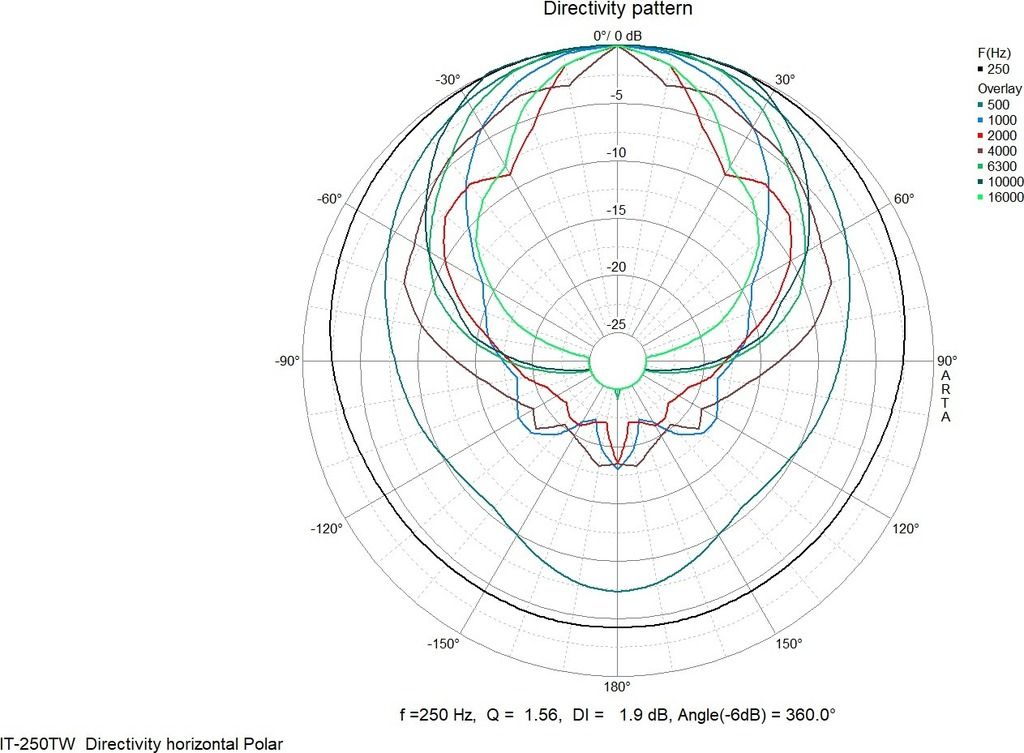

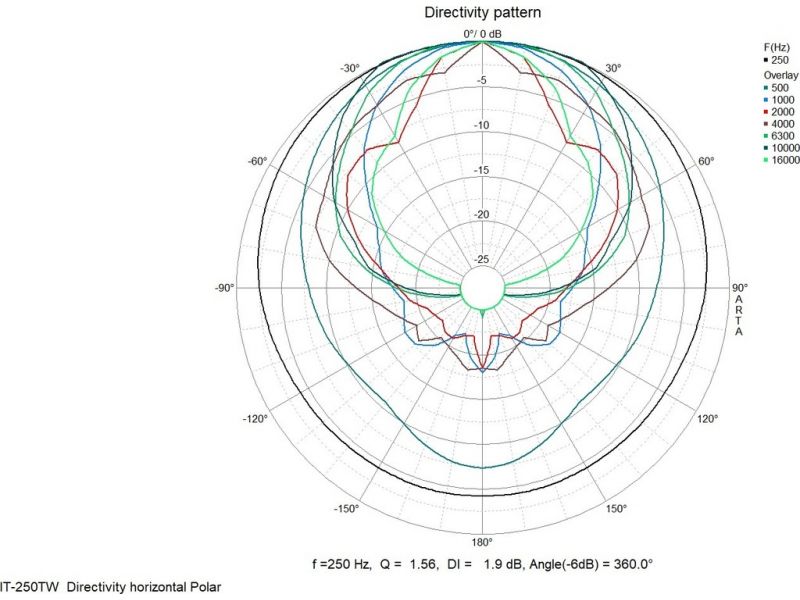

Radiation angle/beam angle H: 100°/V: 60°

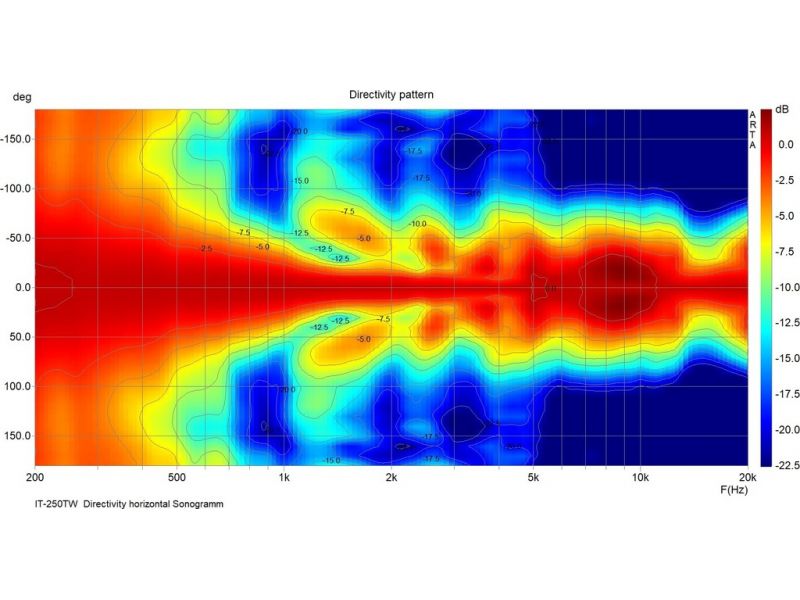

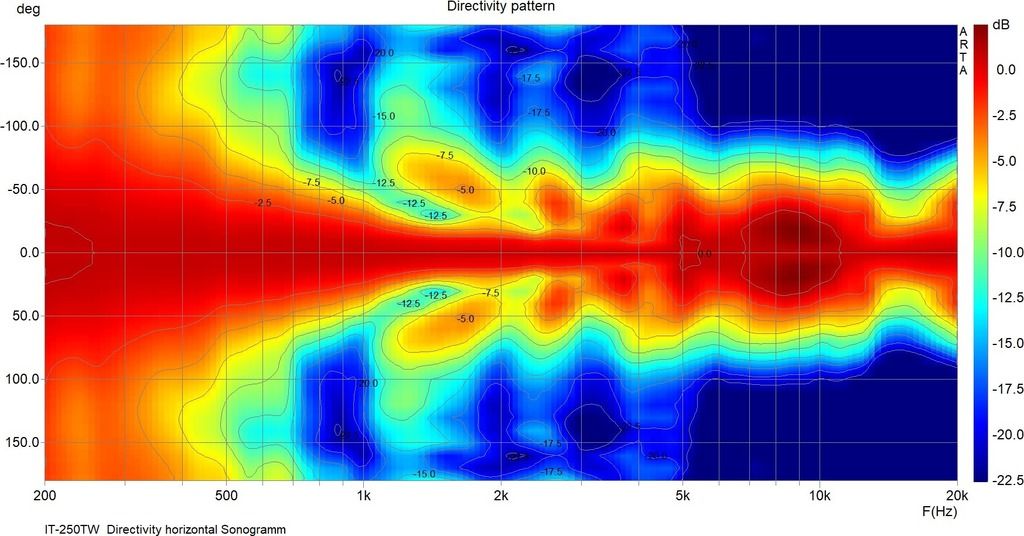

Radiation angle, horizontal 100°

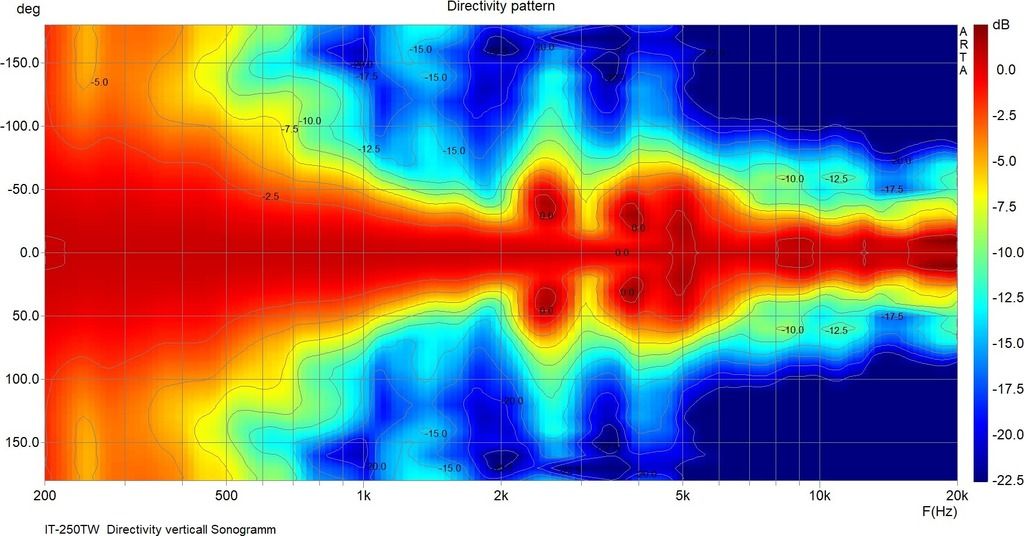

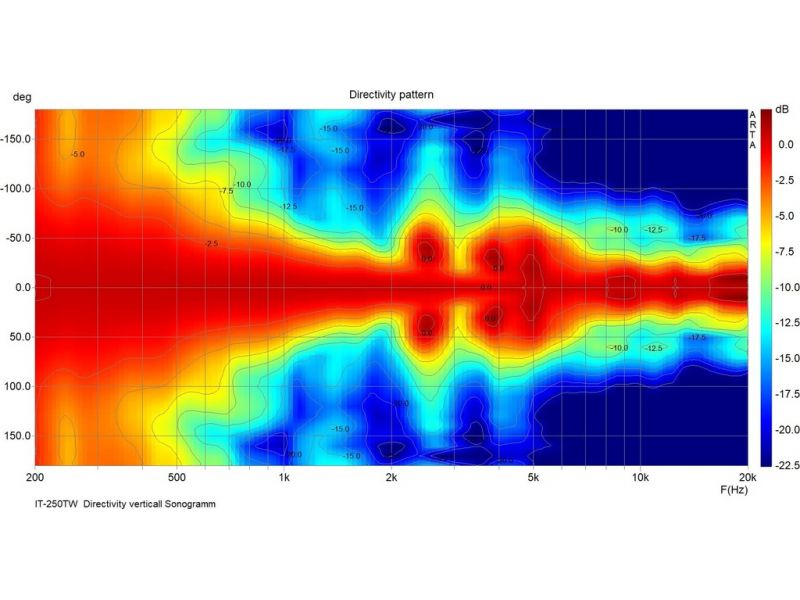

Radiation angle, vertical 60°
Features 2-way
Housing material ABS
Colour light grey
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C

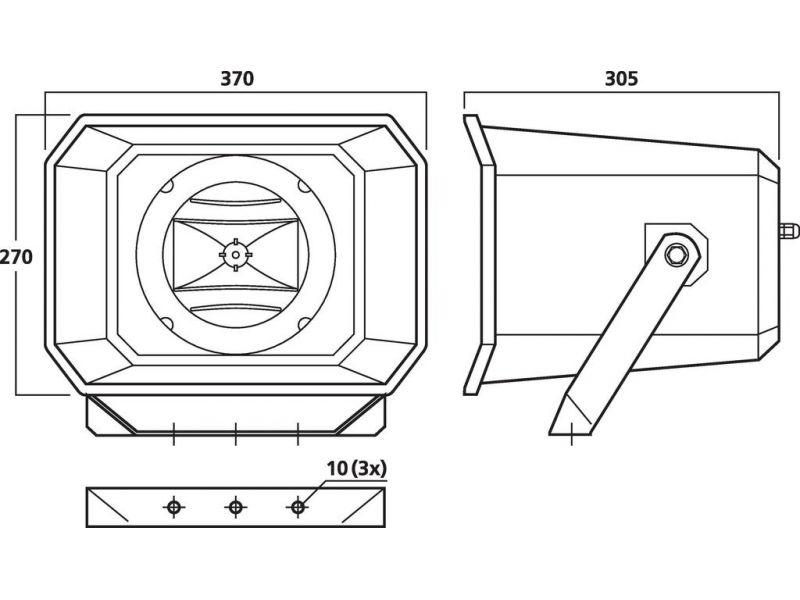

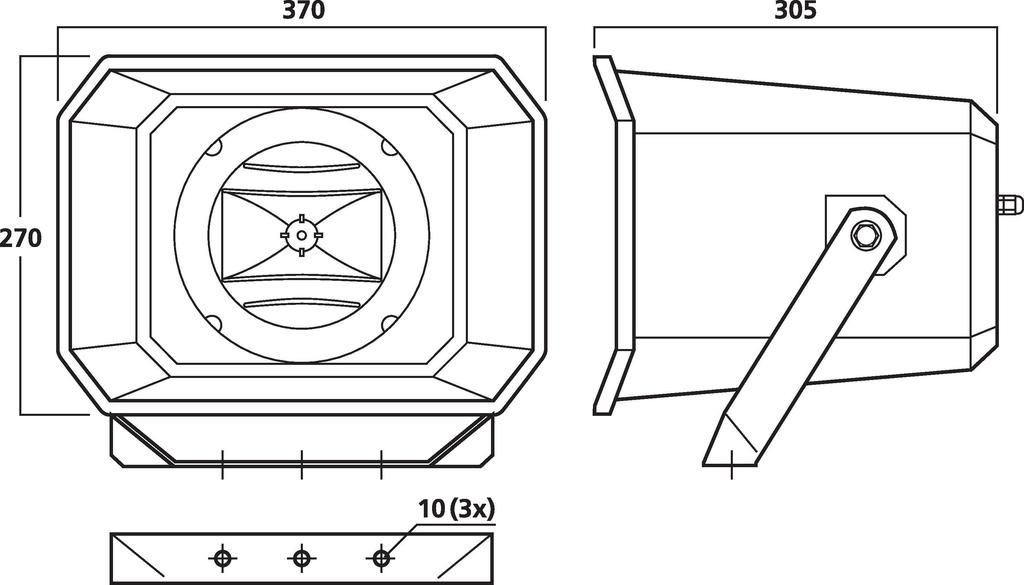

Dimensions 370 x 270 x 305 mm
Width 370 mm
Height 270 mm
Depth 305 mm
Weight 4.1 kg
Inputs screw terminals
Other features weatherproof
Packaging dimensions (W x H x L) 0.28 x 0.345 x 0.38 m
Gross weight 5.22 kg
Net weight 4.58 kg

Fisiere de descarcat

Fisa produsului IT-250TW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
