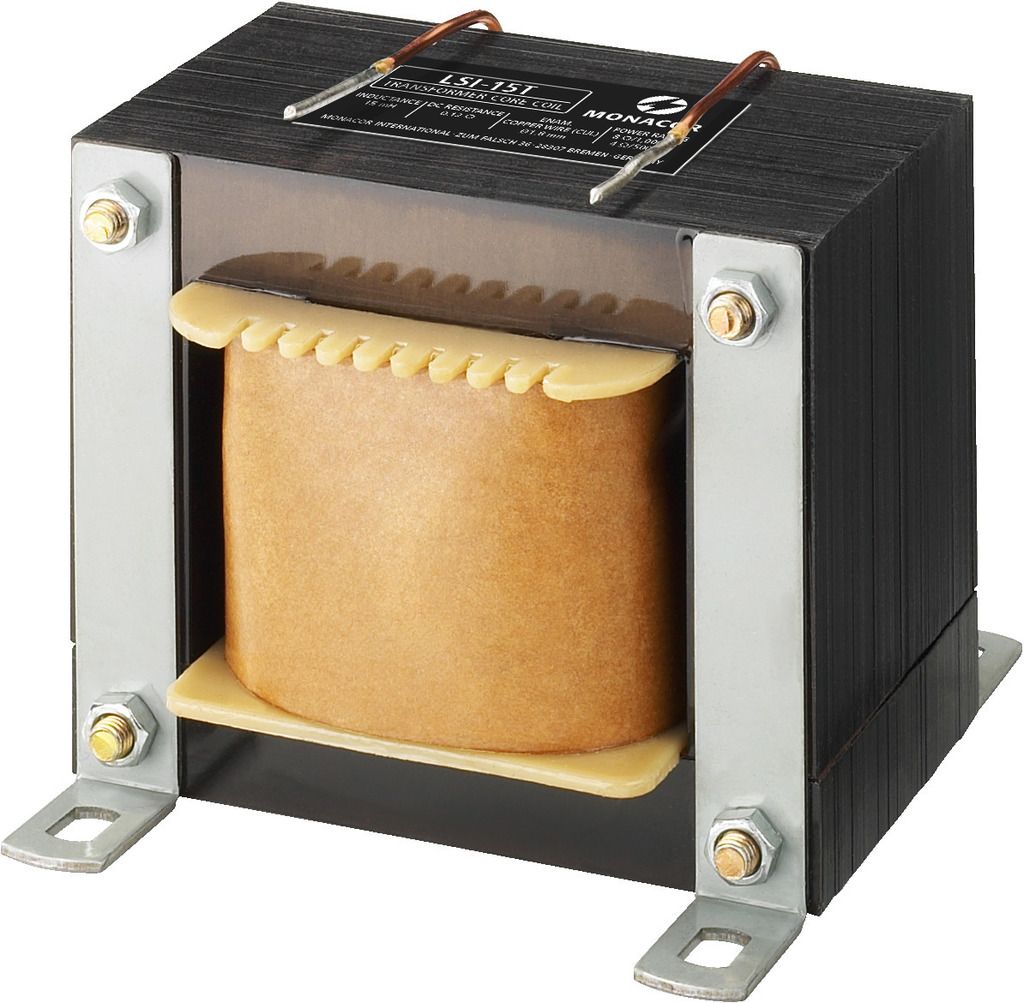

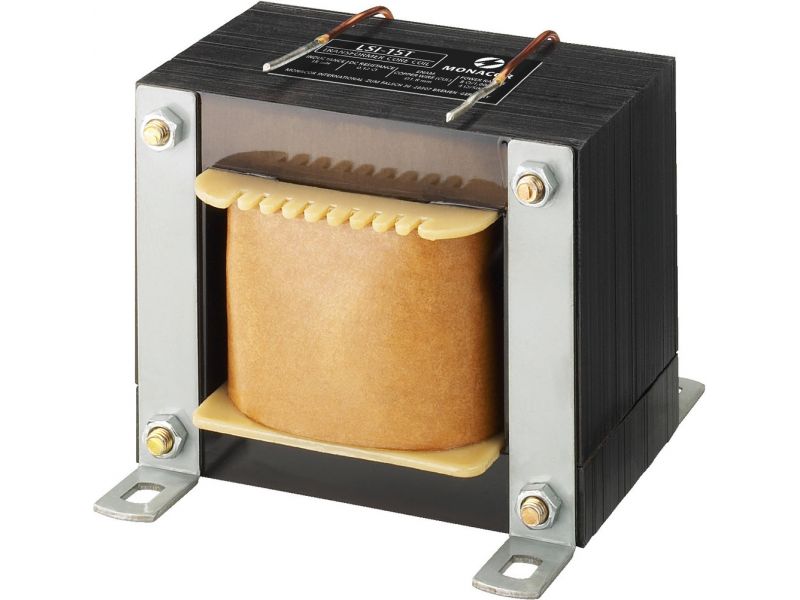

LSI-15T

Cod EAN: 4007754046908

Transformer core coil, 15 mH High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.



LSI-15T

Transformer core coil, 15 mH
High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Parametrii

Description transformer core coil
Nominal value 15 mH
Power rating 1,000 W/500 W
Enam. copper wire

(CUL)

Ø 1.8 mm
DC resistance 0.12 Ω
Saturation current

(50 Hz)

11.5 A
Packing unit 1
Dimensions 96 x 82 x 102 mm (EI-96)
Weight 3.48 kg
