IT-30

Cod EAN: 4007754031201

Weatherproof horn speaker 100 V transmission technology Weatherproof and IP66 tested Protected against powerful water jets Suitable for general indoor and outdoor applications Aluminium housing Mounting bracket and screws made of stainless steel 4-st...

Citeste mai mult

Intreaba despre produs
Cumpara acum


IT-30

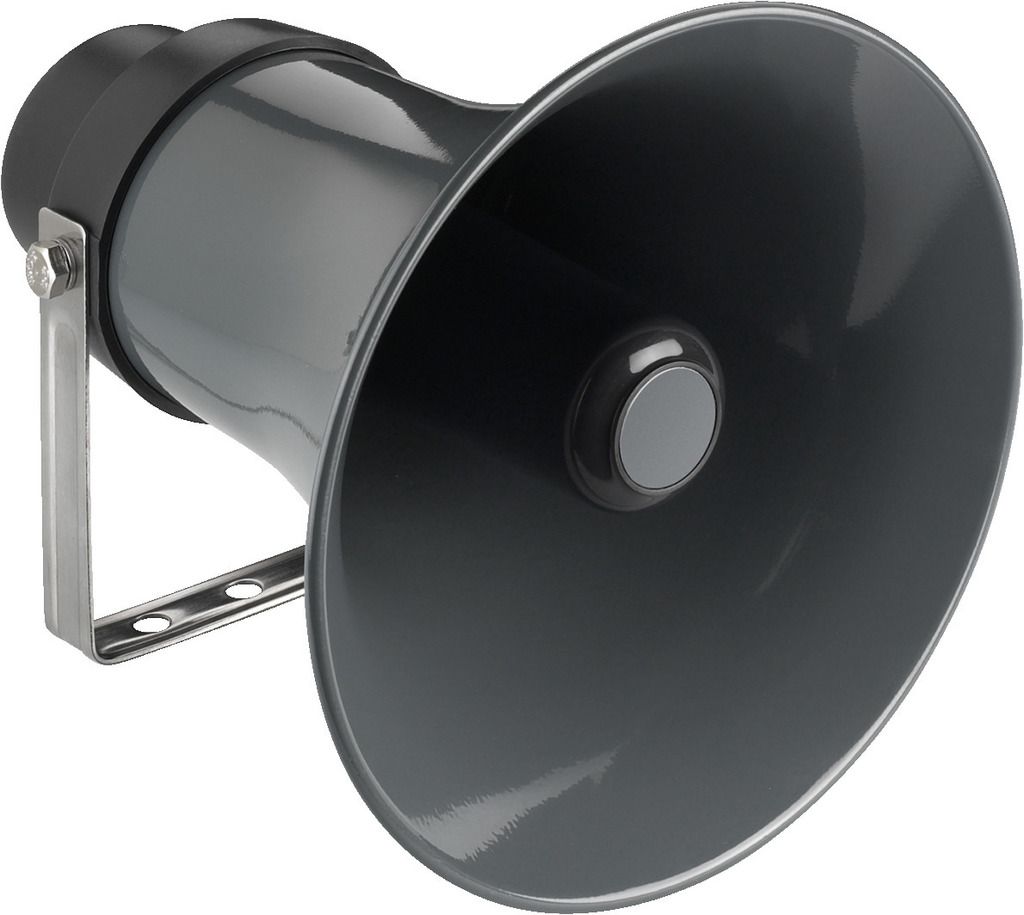

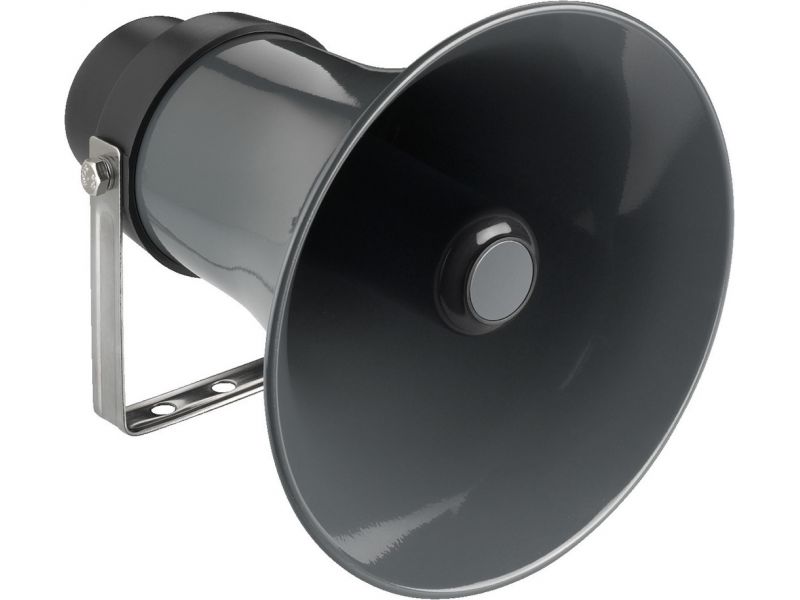

Weatherproof horn speaker
  • 100 V transmission technology
  • Weatherproof and IP66 tested
  • Protected against powerful water jets
  • Suitable for general indoor and outdoor applications
  • Aluminium housing
  • Mounting bracket and screws made of stainless steel
  • 4-step power selector switch
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/15/10/5 W
Frequency range 250-10,000 Hz
Number of speakers 1
SPL 108 dB/W/m

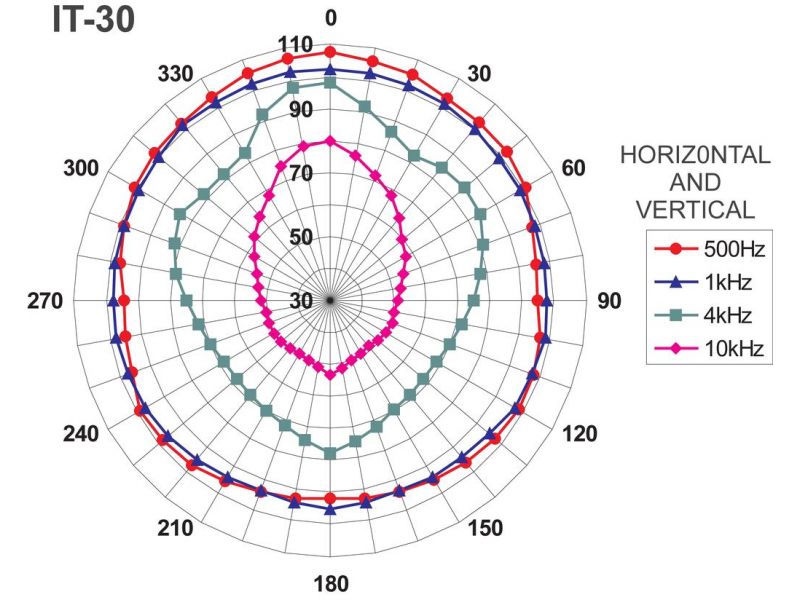

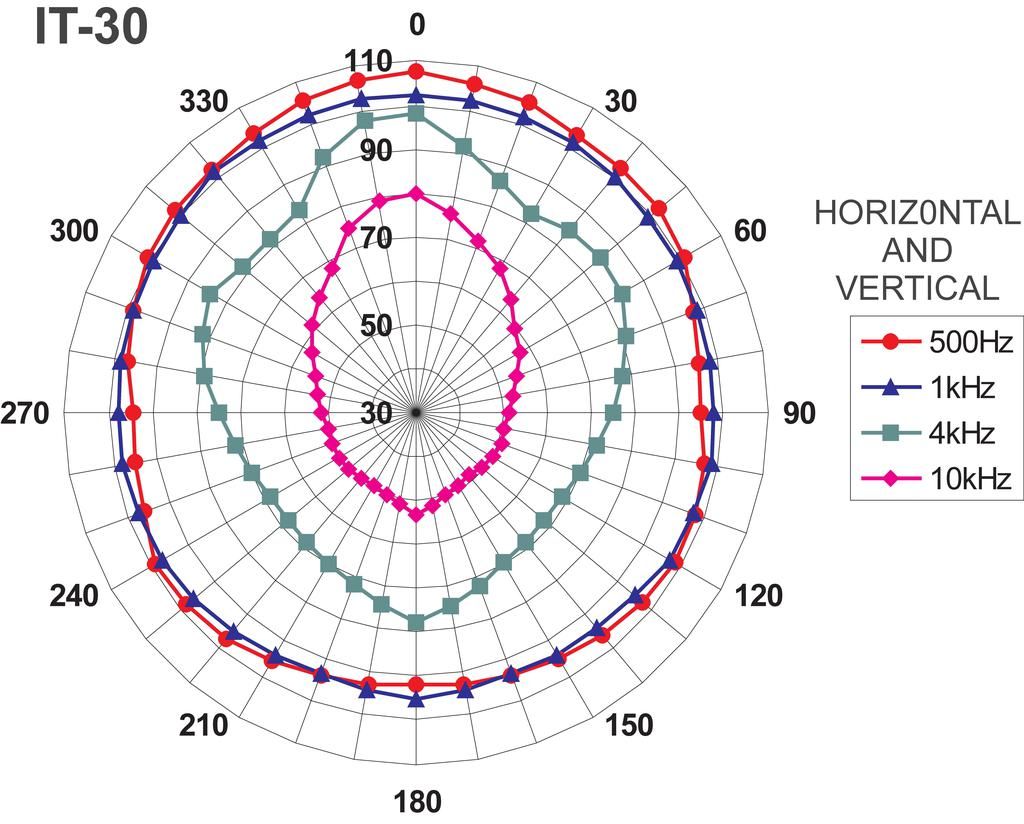

Radiation angle/beam angle H: 80°/V: 80°
Radiation angle, horizontal 80°
Radiation angle, vertical 80°
Features power selector switch
Housing material aluminium
Colour dark grey
Mounting device stainless steel mounting bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +50 °C
Dimensions Ø 265 mm x 310 mm
Width Ø 265 mm
Height Ø 265 mm
Depth 310 mm
Weight 2.25 kg
Inputs screw terminals
Replacement voice coil IT-230/VC
Other features weatherproof
Packaging dimensions (W x H x L) 0.29 x 0.34 x 0.29 m
Gross weight 2.96 kg
Net weight 2.25 kg

Fisiere de descarcat

Fisa produsului IT-30 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
