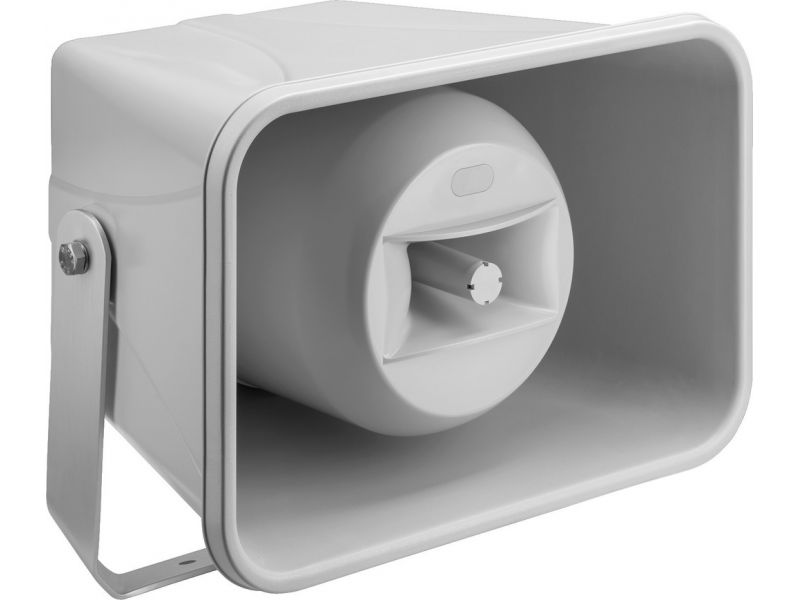

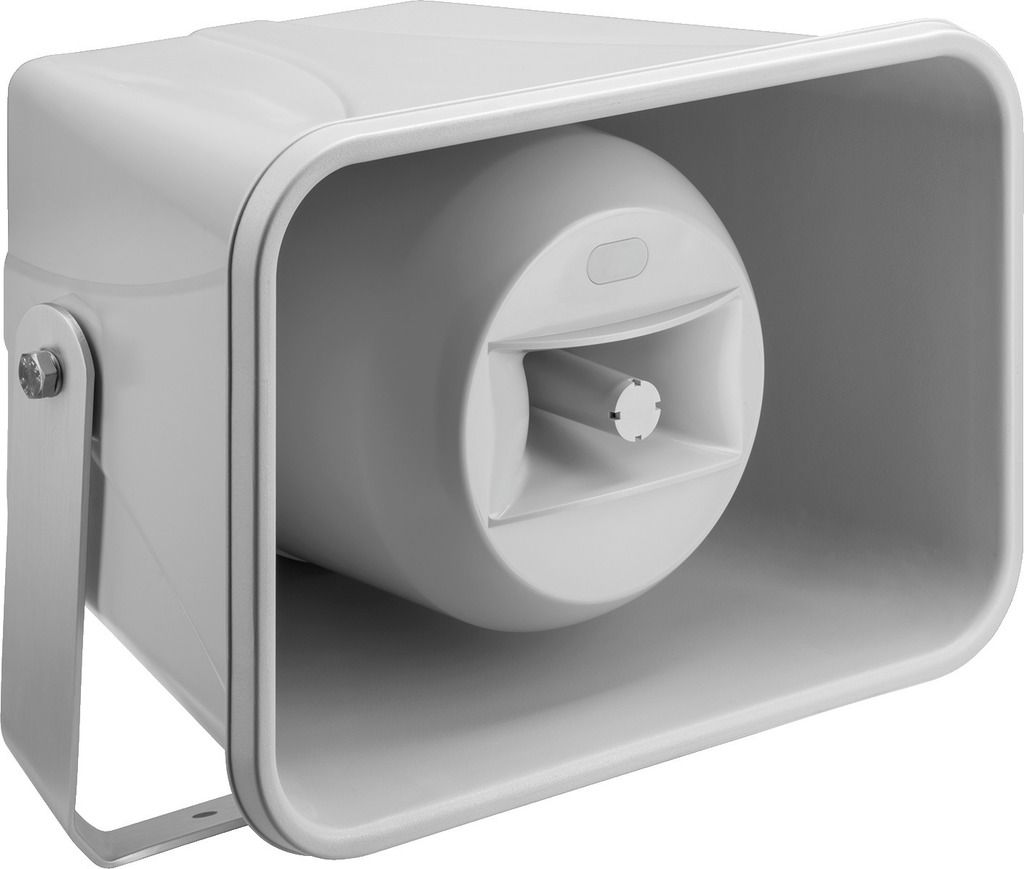

SPH-225C
Cod EAN 4007754157642
High-end bass speaker, 120 W, 8 Ω
Weatherproof horn speaker (music horn), 2-way technology and EN 54-24 certification 100 V line technique with 4 power taps: 30/15/7.5/3.75 W Weatherproof and IP66 certified High-quality music reproduction 16 cm bass-midrange speaker and 25 mm (1") ho...
Active/passive | passive |
Transmission technology | 100 V |
Total power rating | 30 W |
Power rating (RMS) | 30/15/7.5/3.75 W |
Frequency range | 100-20,000 Hz |
Bass speaker | 16 cm (6") |
Tweeter | 25 mm (1") |
Number of speakers | 2 |
Speaker size | 16 cm |
SPL | 101 dB/W/m |
Max. rated SPL | 116 dB |
Radiation angle/beam angle | H100°/V60° |
Radiation angle, horizontal | 100° |
Radiation angle, vertical | 60° |
Features | 2-way |
Housing material | ABS |
Colour | light grey |
Mounting device | mounting bracket |
Protection class | IP66 |
Admiss. ambient temp. | -20 °C to +90 °C |
Dimensions | 370 x 250 x 330 mm |
Width | 370 mm |
Height | 250 mm |
Depth | 330 mm |
Weight | 4.5 kg |
Inputs | screw terminals |
Other features | weatherproof, EN 54 |
Packaging dimensions (W x H x L) | 0.27 x 0.41 x 0.39 m |
Gross weight | 5.73 kg |
Net weight | 4.79 kg |
