LKB-1

Cod EAN: 4007754185027

Connection terminal, for 100 V PA speakers. 3-pole ceramic screw terminal For conductor cross-sections: 0.2-2.5 mm2 Thermal fuse 1 A/150 °C for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker li...

Citeste mai mult

Intreaba despre produs
Cumpara acum


LKB-1

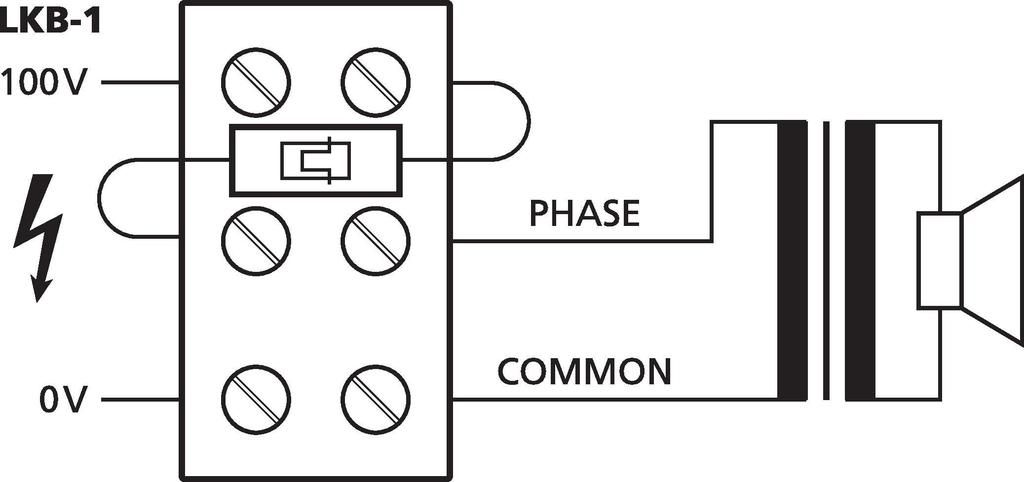

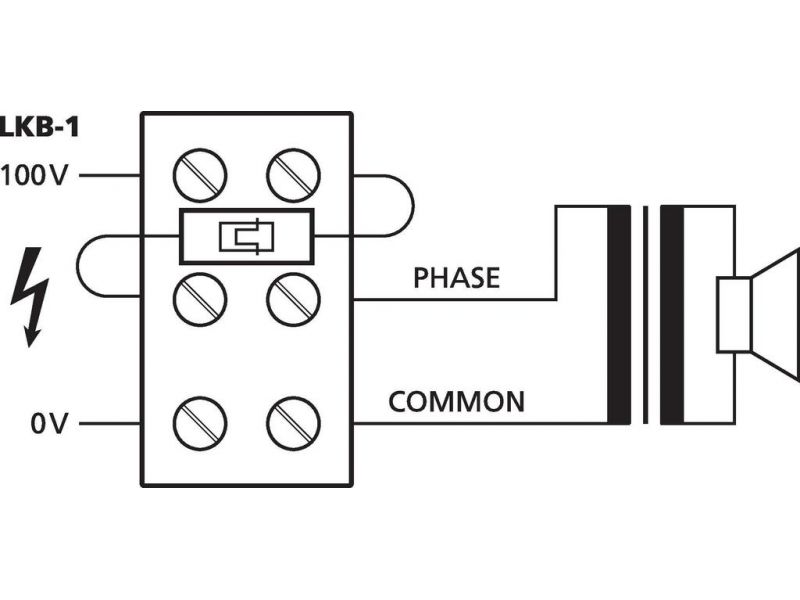

Connection terminal,
for 100 V PA speakers.

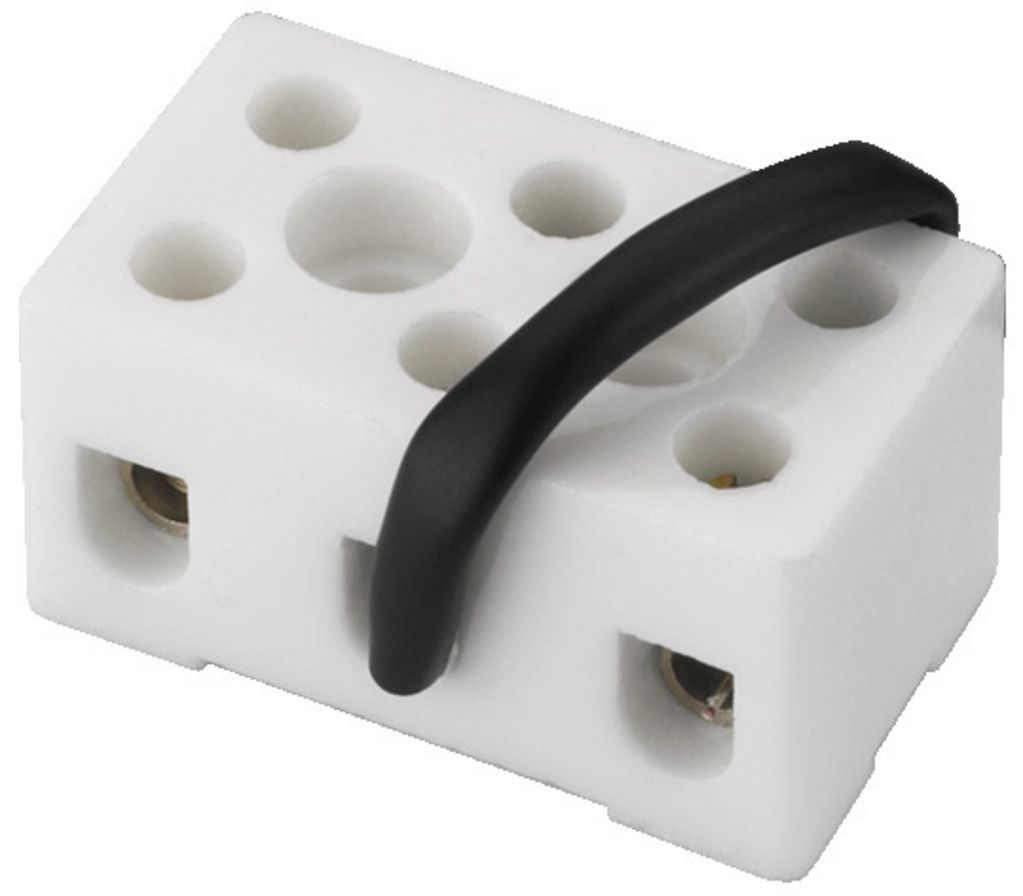

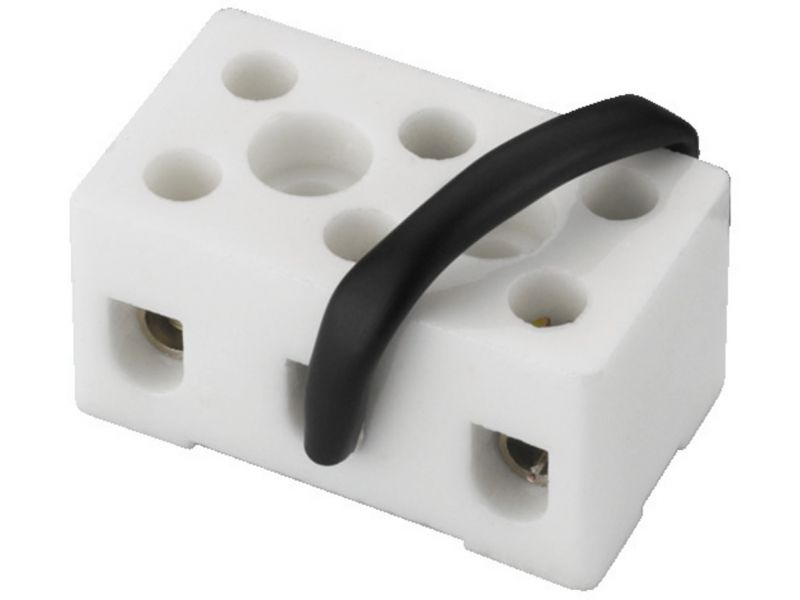

  • 3-pole ceramic screw terminal
  • For conductor cross-sections: 0.2-2.5 mm2
  • Thermal fuse 1 A/150 °C for disconnecting a faulty speaker in case of a short circuit (fire), so that the function of one speaker line is maintained
  • Dimensions: 35 x 20 x 20 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Description ceramic screw terminal
No. of contacts 3
Dimensions 35 x 20 x 20 mm
Width 35 mm
Height 20 mm
Depth 20 mm
Weight 0.028 kg

Fisiere de descarcat

Fisa produsului LKB-1 konformitaetserklaerung-ce konformitaetserklaerung-ukca
