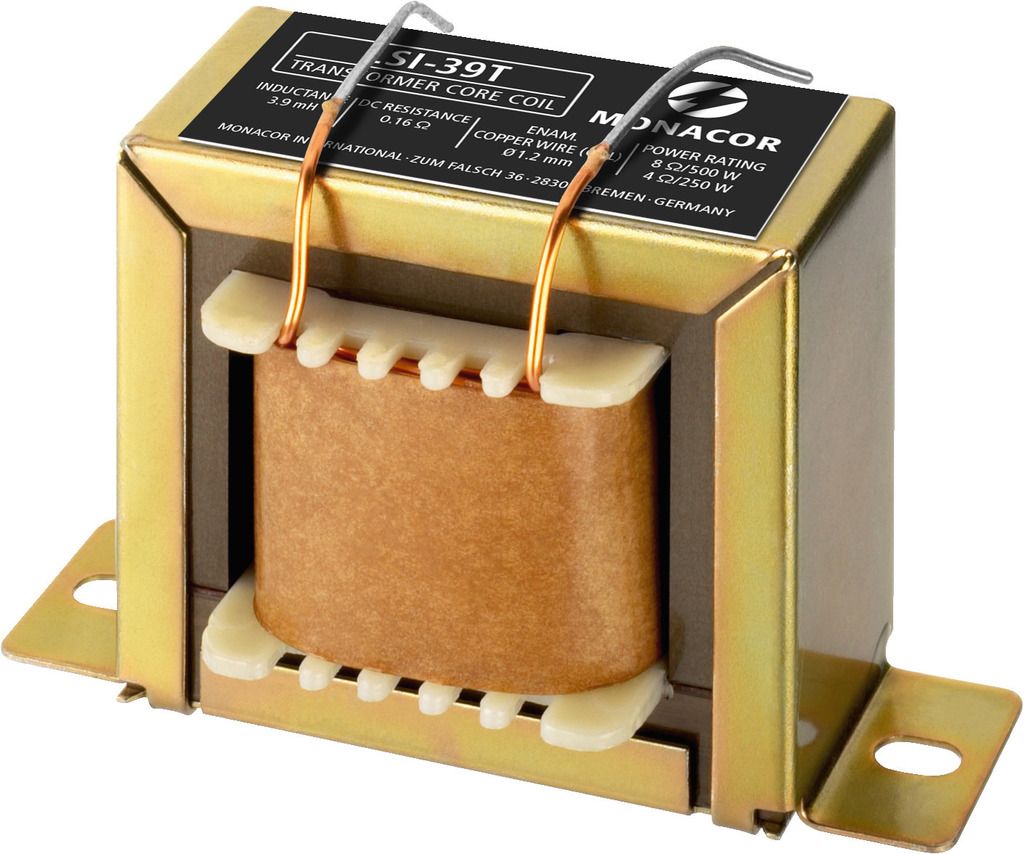

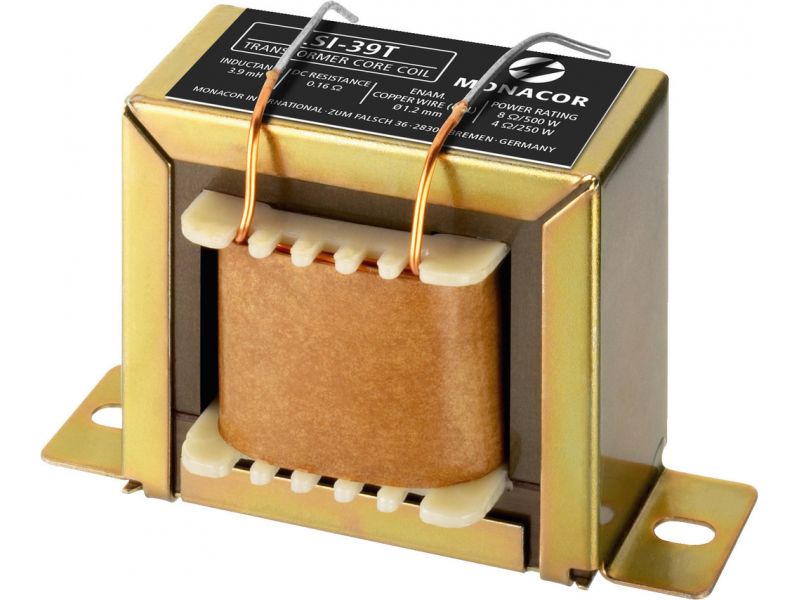

LSI-39T

Cod EAN: 4007754066876

Transformer core coil, 3.9 mH High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.



LSI-39T

Transformer core coil, 3.9 mH
High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Parametrii

Description transformer core coil
Nominal value 3.9 mH
Power rating 500 W/250 W
Enam. copper wire

(CUL)

Ø 1.2 mm
DC resistance 0.16 Ω
Saturation current

(50 Hz)

7.9 A
Packing unit 1
Dimensions 60 x 50 x 42 mm (EI-57)
Weight 0.556 kg
