MMX-11USB

Cod EAN: 4007754236644

2-channel miniature audio mixer, with 3 inputs and USB port. Integrated USB audio interface (will be identified and addressed as an external sound card) Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of d...

Citeste mai mult

Intreaba despre produs
Cumpara acum

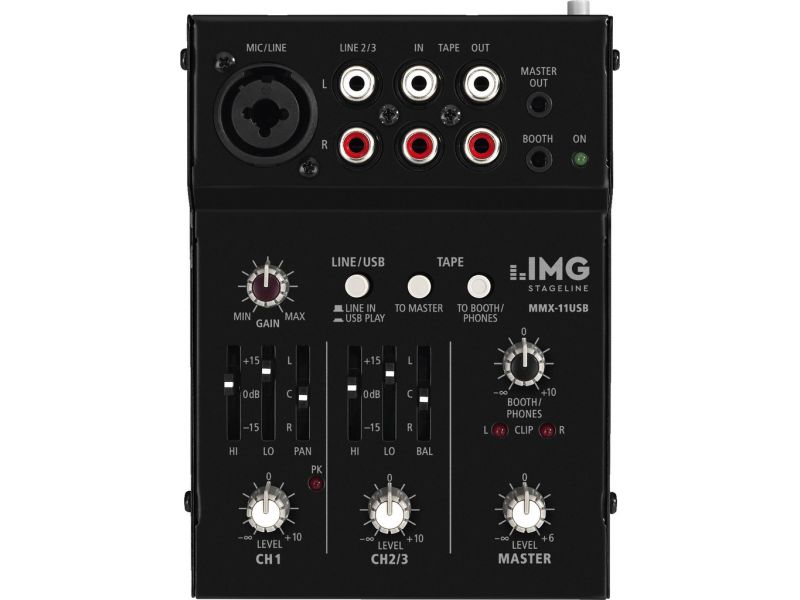

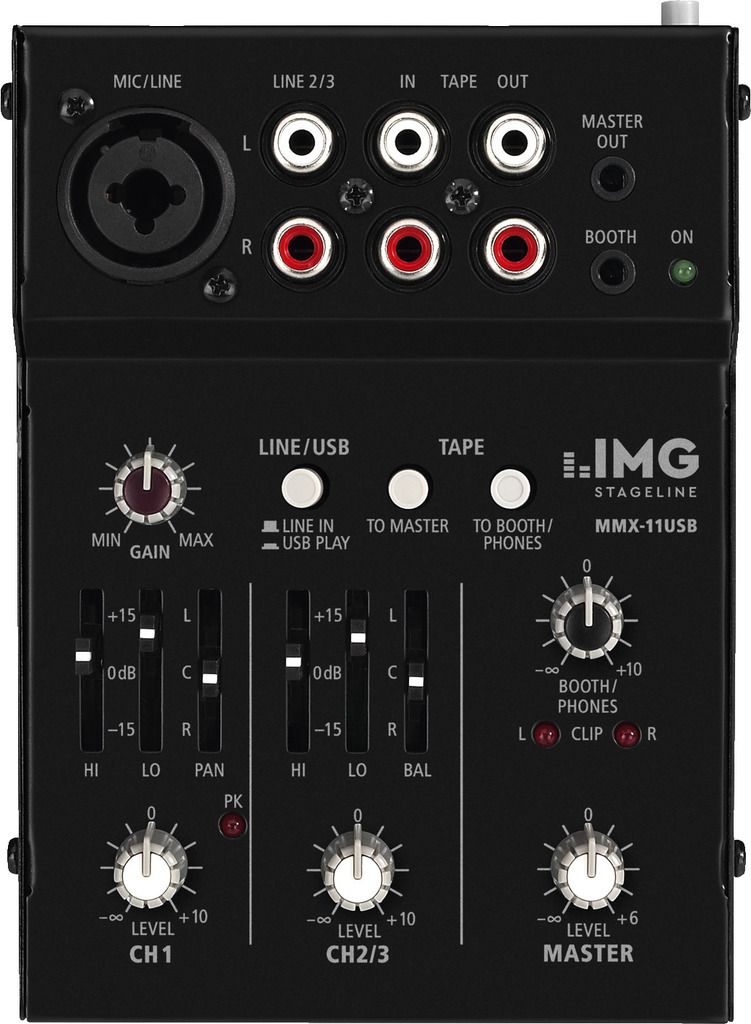

MMX-11USB

2-channel miniature audio mixer,
with 3 inputs and USB port.
  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 1 mono input channel with gain control, 2-way equalizer and pan pot, peak LED
  • 1 stereo input channel with level control, 2-way equalizer and balance control
  • Tape record/play connections
  • 1 x 3.5 mm stereo output (master)
  • Adjustable headphone output
  • +20 V phantom power, permanent
  • Clip LED
  • Robust metal housing of compact size
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

No. of channels 2
No. of inputs 3
Mic input 0.5 mV, 1 x 3-pole XLR
Line input 150 mV (stereo), 1 x RCA L/R2 mV (mono), 6.3 mm jack
Tape (play) 420 mV, 1 x RCA L/R
Master output 6 V max., 1 x 3.5 mm jack
Booth output 6 V max., 1 x 3.5 mm jack
Tape (rec) 1 x RCA L/R
USB yes
Frequency range 20-20,000 Hz
THD < 0.05%
S/N ratio 81 dB, weighted
Equalizer bass ±15 dB/80 Hz
Equalizer treble ±15 dB/12 kHz
Phantom power +20 V
Power supply via USB interface or via encl. power supply
Operating voltage (possible alternative) DC 5 V
Power supply (possible alternative) DC 500 mA
Admiss. ambient temp. 0-40 °C
Dimensions 102 x 45 x 140 mm
Width 102 mm
Height 45 mm
Depth 140 mm
Weight 430 g
Packaging dimensions (W x H x L) 0.14 x 0.07 x 0.18 m
Gross weight 0.615 kg
Net weight 0.48 kg
