MMX-4
Cod EAN: 4007754014990
Miniature microphone mixer 4 mono microphone channels Output level control, peak LED Supplied w/o battery Manufacturer information: MONACOR INTERNATIONAL GmbH & Co. KGZum Falsch 3628307 BremenGermanyinfo@monacor.com Safety Notes and Warning...

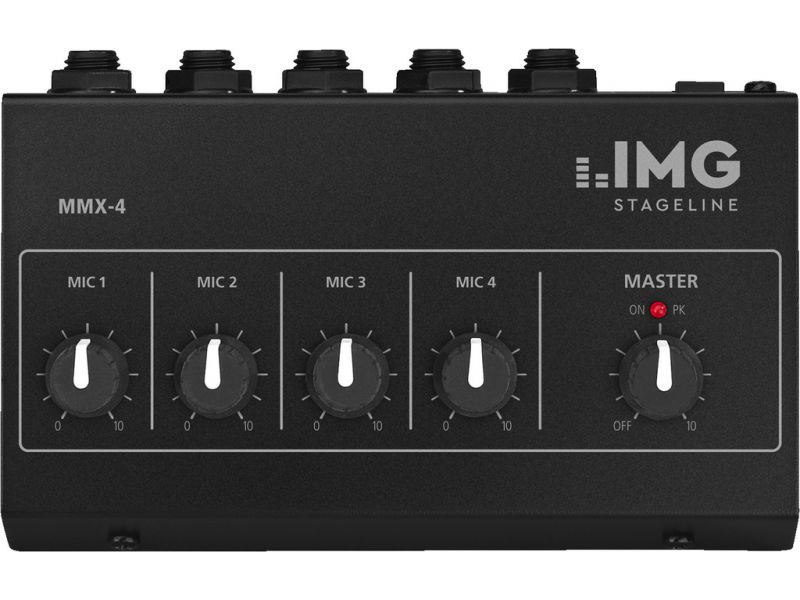

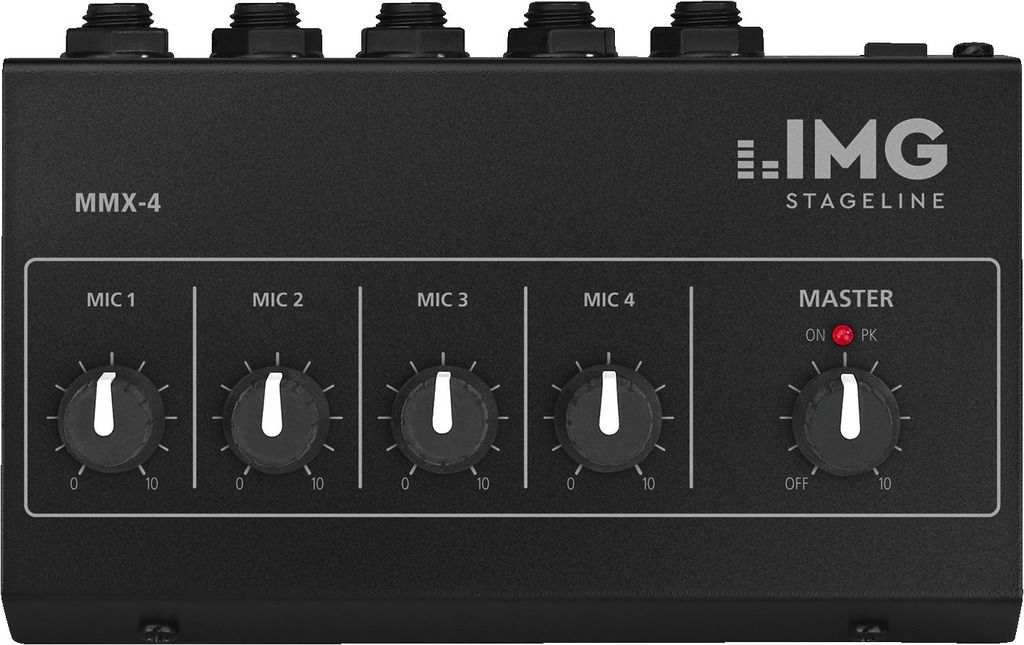

MMX-4
Miniature microphone mixer
- 4 mono microphone channels
- Output level control, peak LED
- Supplied w/o battery
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Input channels | 4 |
| Number of mix/mono | 4 |
| Mic input | 5 mV, 4 x 6.3 mm jack |
| Master output | 100 mV, 1 x 6.3 mm jack |
| Frequency range | 20-20,000 Hz |
| THD | < 0.5% |
| S/N ratio | 55 dB |
| Power supply | 9 V battery or via optional power supply PSS-600E |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 148 x 85 x 55 mm |
| Width | 148 mm |
| Height | 85 mm |
| Depth | 55 mm |
| Weight | 389 g |
| Packaging dimensions (W x H x L) | 0.085 x 0.055 x 0.15 m |
| Gross weight | 0.454 kg |
| Net weight | 0.389 kg |
