MMX-602/SW

Cod EAN: 4007754182736

Microphone line mixer, 6 channels. 6 stereo line inputs, 6 balanced mono microphone inputs, switchable Adjustable automatic talkover (-12 dB), switchable for channel 1 or channels 1+2 Balance control for each stereo input channel 3-way equalizer 12...

Citeste mai mult

Intreaba despre produs
Cumpara acum

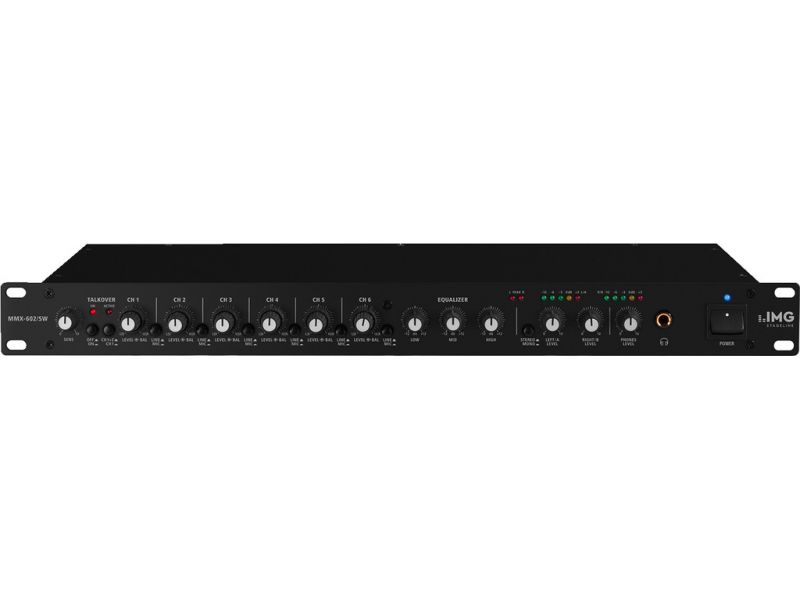

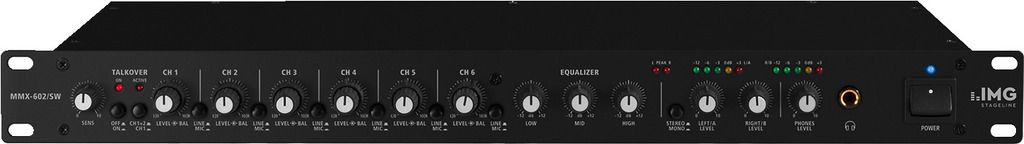

MMX-602/SW

Microphone line mixer,
6 channels.
  • 6 stereo line inputs, 6 balanced mono microphone inputs, switchable
  • Adjustable automatic talkover (-12 dB), switchable for channel 1 or channels 1+2
  • Balance control for each stereo input channel
  • 3-way equalizer
  • 12 V phantom power can be activated as required
  • LED VU meter, peak LED
  • Master output and record output
  • Output can be switched stereo/mono
  • Adjustable headphone output
  • 482 mm (19") rack installation, 1 RU
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Input channels 6
Number of mix/mono 6
No. of stereo 6

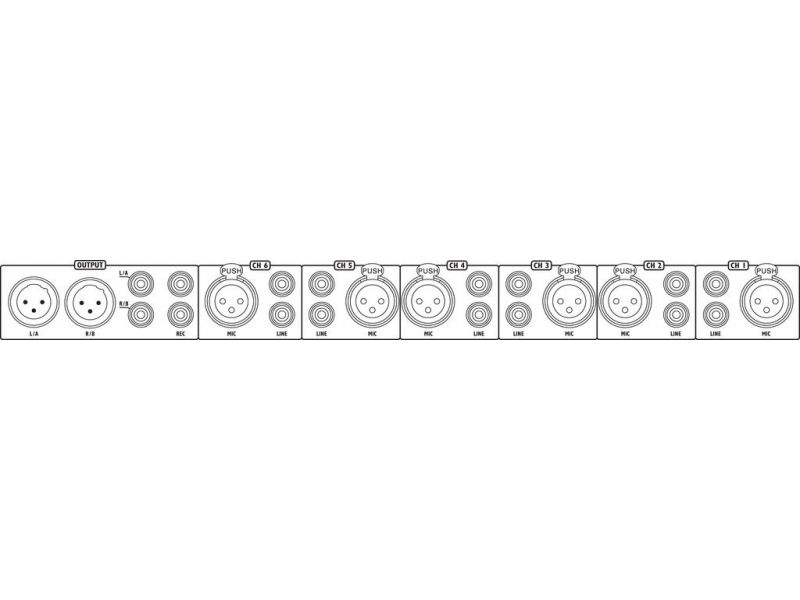

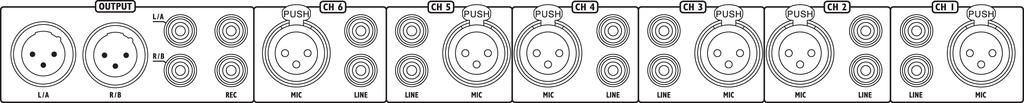

Mic input 1 mV/6.6 kΩ, 6 x 3-pole XLR, bal.
Line input 100 mV/10 kΩ, 6 x RCA L/R
Master output 1 V/600 Ω, 1 x RCA L/R 1 x 3-pole XLR L/R, bal.
Record output 310 mV/600 Ω, 1 x RCA L/R
Headphones > 8 Ω, 1 x 6.3 mm jack
Frequency range 20-20,000 Hz
THD 0.1%
S/N ratio 62 dB, unweighted
Equalizer bass ±12 dB/50 Hz
Equalizer midrange ±12 dB/1 kHz
Equalizer treble ±12 dB/10 kHz
Talkover -12 dB, manual
Power supply ˜ 230 V/50 Hz/12 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 12 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 47 x 208 mm, 1 RS
Width 482 mm
Height 47 mm
Depth 208 mm
Rack units, RU 1
Weight 2.8 kg
Packaging dimensions (W x H x L) 0.25 x 0.09 x 0.53 m
Gross weight 3.76 kg
Net weight 2.985 kg

Fisiere de descarcat

Fisa produsului MMX-602/SW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
