MOVE-08PMK2
Cod EAN: 4007754276589
Professional PA speaker system, 250 W, 8 Ω Compact professional full range bass-reflex system Cabinet made of birch plywood 20 cm (8", FaitalPro 8PR200) bass speaker 25 mm (1", 44 mm voice coil, Celestion CDX1-1747) horn tweeter, can be turned by 90°...

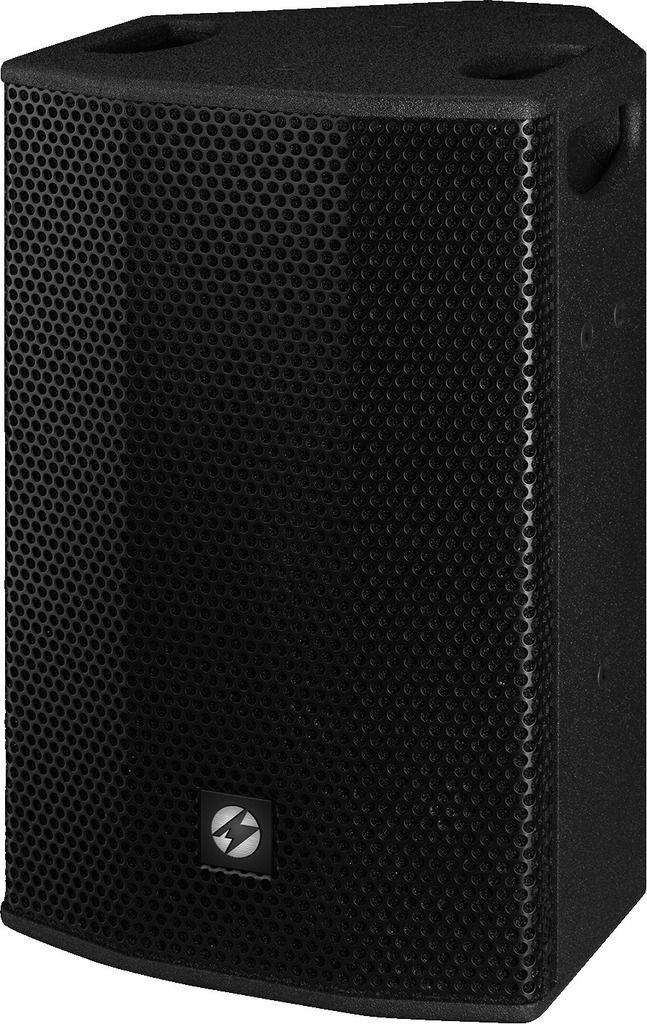

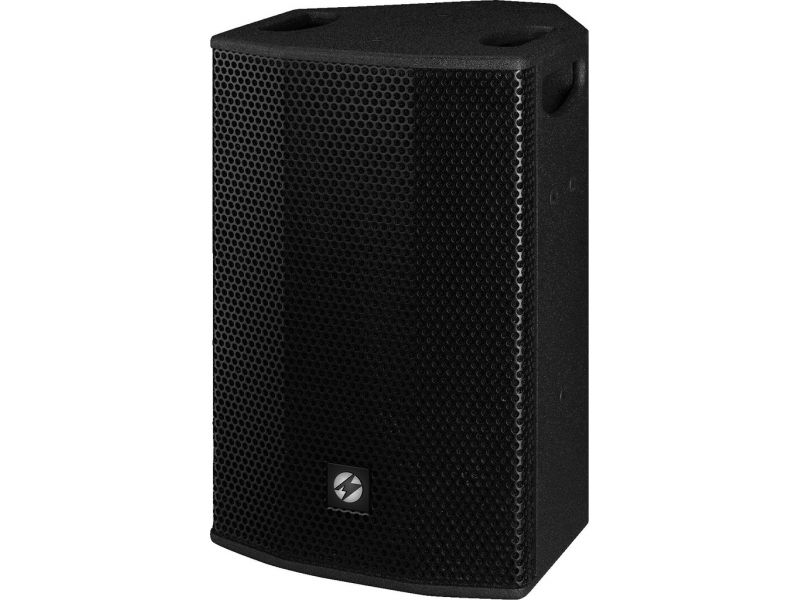

MOVE-08PMK2
Professional PA speaker system, 250 W, 8 Ω
- Compact professional full range bass-reflex system
- Cabinet made of birch plywood
- 20 cm (8", FaitalPro 8PR200) bass speaker
- 25 mm (1", 44 mm voice coil, Celestion CDX1-1747) horn tweeter, can be turned by 90°
- Switchable between passive operation and bi-amp active operation
- Neutral sound tuning
- Catch & Carry carrying handle
- M8 threaded inserts for suspended installation
- 2 x NEUTRIK SPEAKON terminal, in/out
- Stand sleeve, robust front grille
- Ball-proof acc. to DIN 18032, Part 3
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 500 W |
| Power rating (RMS) | 250 W |
| Impedance | 8 Ω |
| Frequency range | 65-20,000 Hz |
| System | 2-way bass-reflex |
| Bass speaker | 20 cm (8", FaitalPro 8PR200) |
| Tweeter | dyn. 25 mm mid-high range speaker (1", 44 mm voice coil, Celestion CDX1-1747) |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 95 dB/W/m |
| Max. rated SPL | 120 dB |
| Radiation angle/beam angle | H: 80°/V: 40°, horn can be turned by 90° |
| Radiation angle, horizontal | 80° |
| Radiation angle, vertical | 40° |
| Housing material | birch plywood |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Protected against ball rebound | yes |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 290 x 490 x 315 mm |
| Width | 290 mm |
| Height | 490 mm |
| Depth | 315 mm |
| Weight | 12.6 kg |
| Inputs | 1 x NEUTRIK SPEAKON |
| Outputs | 1 x NEUTRIK SPEAKON par.out |
| Accessories | MOVE-08/BAG |
| Packaging dimensions (W x H x L) | 0.29 x 0.49 x 0.315 m |
| Gross weight | 13.7 kg |
| Net weight | 12.63 kg |
