MPT-177

Cod EAN: 4007754181258

Piezo tweeter Very high sound pressure levelConsistent frequency response

Intreaba despre produs
Cumpara acum


MPT-177

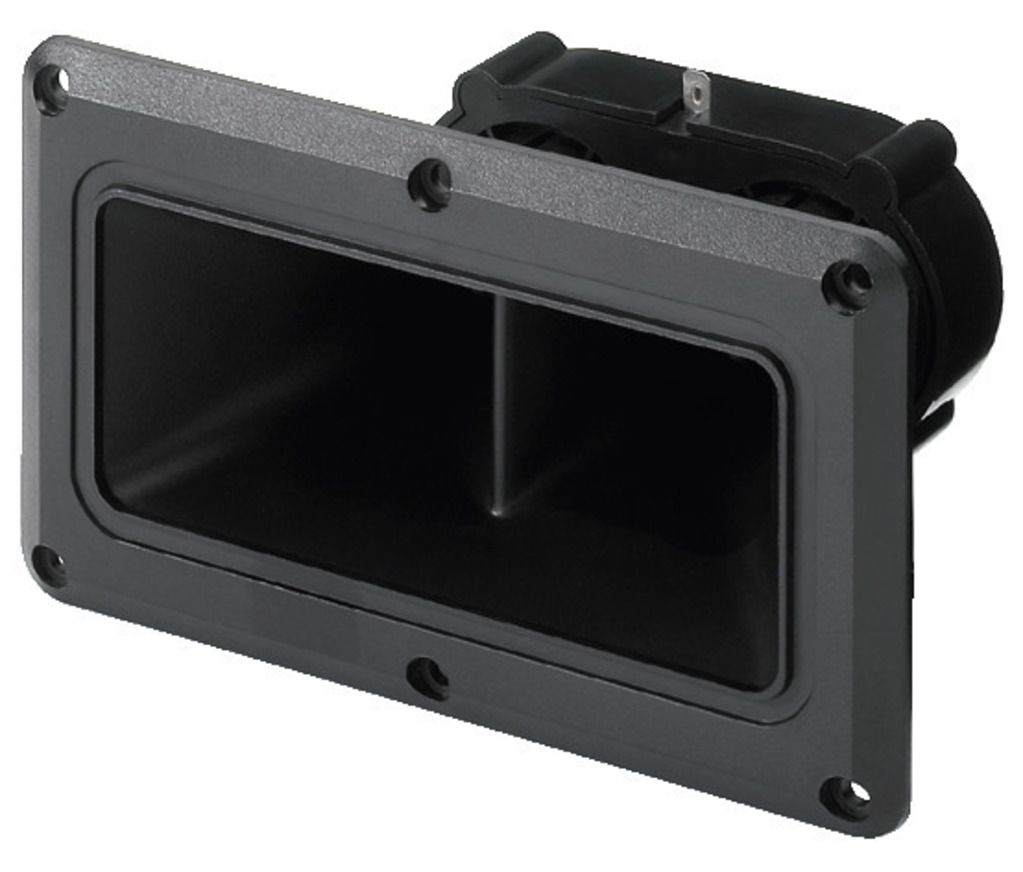

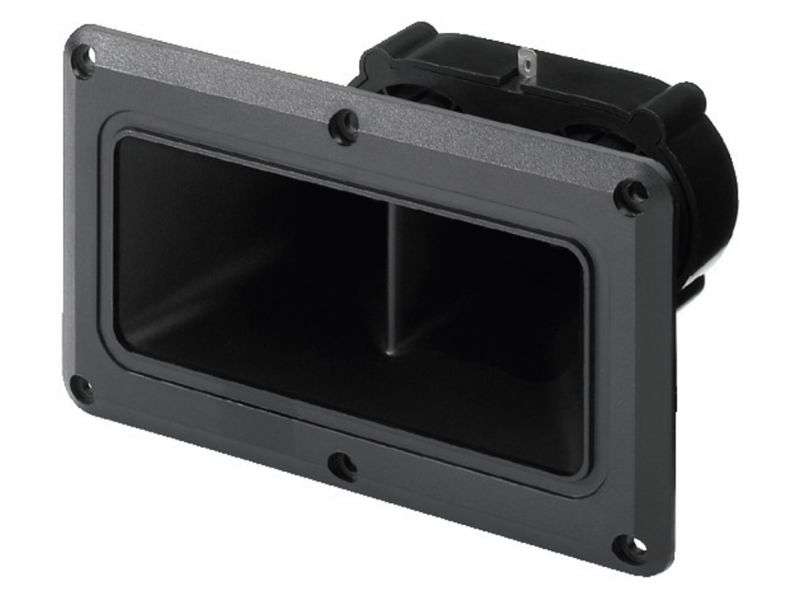

Piezo tweeter
  • Very high sound pressure level
  • Consistent frequency response

Parametrii

Impedance (Z) > 1,000 Ω
Transmission technology cable
Frequency range 3,500-20,000 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 115 W (8 Ω system) 225 W (4 Ω sSystem)
SPL 99 dB/W/m
Max. voltage ~ 30 V

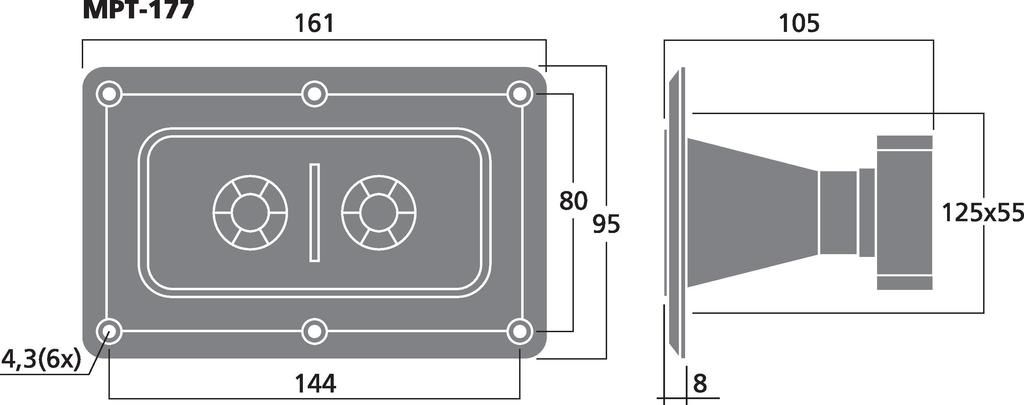

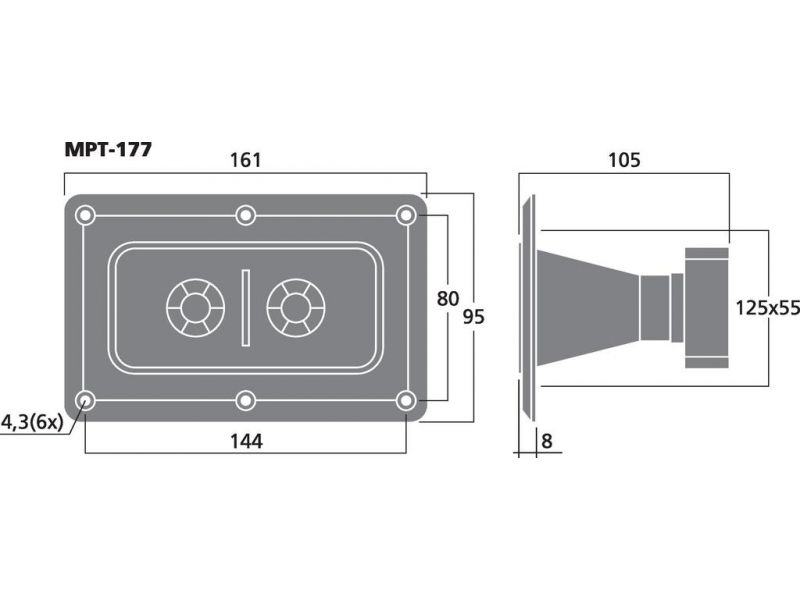

Mounting cutout 125 x 55 mm
Mounting depth 97 mm
Dimensions 161 x 95 x 105 mm
Width 161 mm
Height 95 mm
Depth 105 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.14 kg
Packing unit 1
Packaging dimensions (W x H x L) 0.1 x 0.105 x 0.165 m
Gross weight 0.151 kg
Net weight 0.145 kg

Fisiere de descarcat

Fisa produsului MPT-177 konformitaetserklaerung-ce konformitaetserklaerung-ukca
