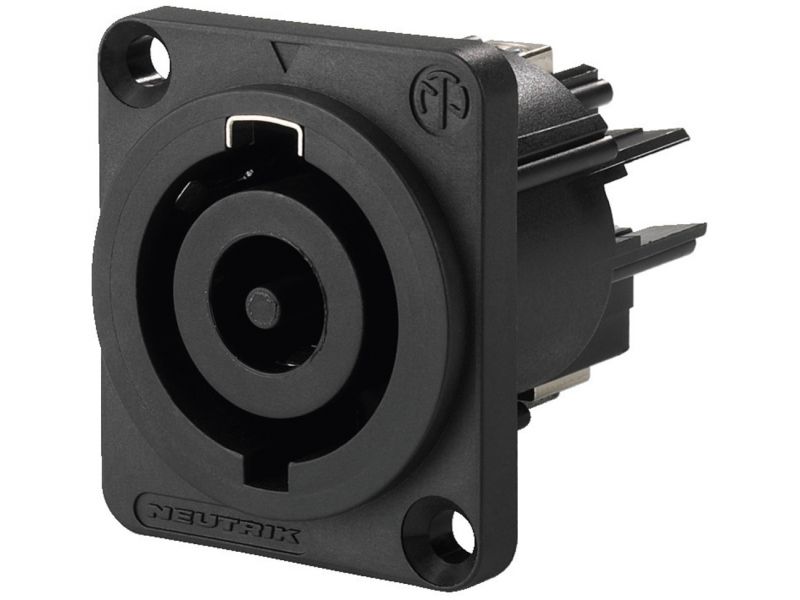

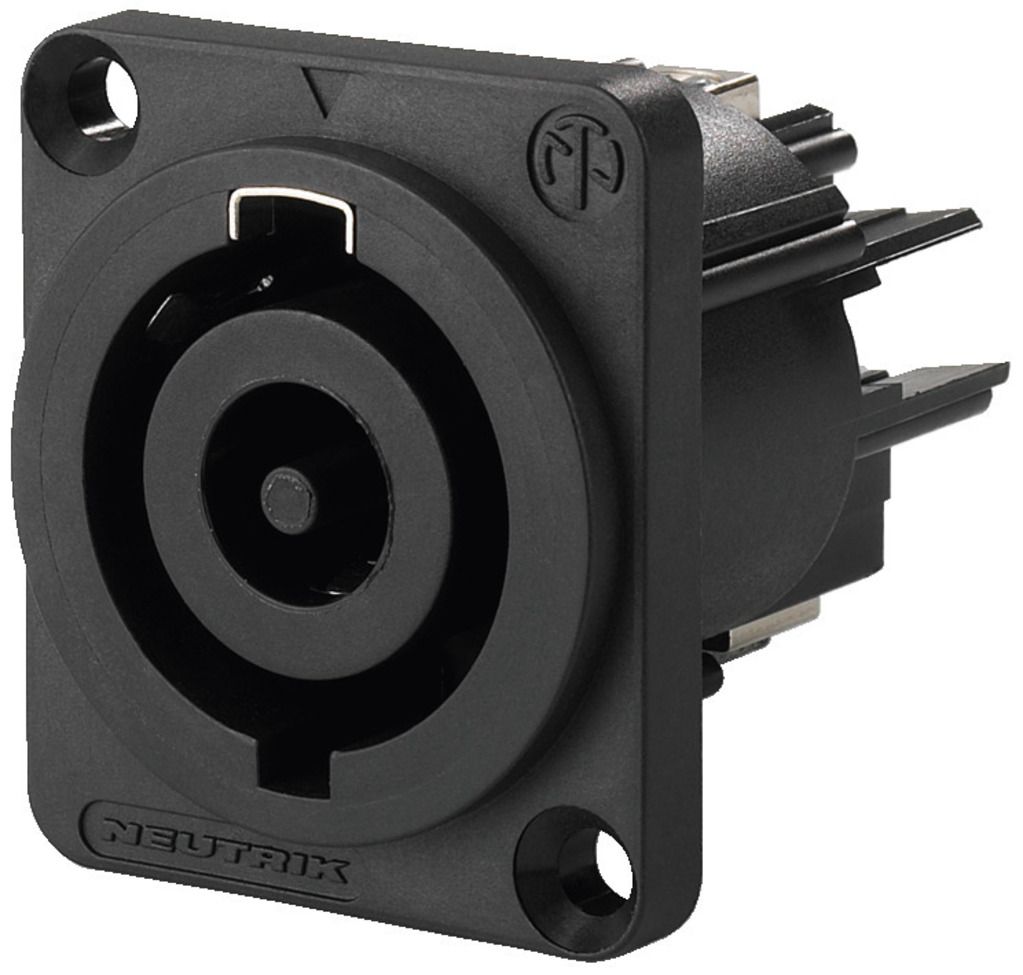

NAC-3MPHC

Cod EAN: 4007754206593

NEUTRIK POWERCON panel jack For mains connection with a high power rating of up to ˜ 250 V/32 A Screw terminal contacts for ground, phase and neutral connector For cable cores: 2.5-6 mm2



NAC-3MPHC

NEUTRIK POWERCON panel jack
  • For mains connection with a high power rating of up to ˜ 250 V/32 A
  • Screw terminal contacts for ground, phase and neutral connector
  • For cable cores: 2.5-6 mm2

Parametrii

Description panel jack
Type NEUTRIK POWERCON
Quantity 1
Features latching device, cable inlet with self-adjusting clamps
Colour/colour coding black
Power rating ˜ 250 V/32 A
Insulating resistance > 10 GΩ
Connection NEUTRIK-POWERCON/cable cores 2.5-6 mm2
Material metal
Admiss. ambient temp. -25 °C to +70 °C

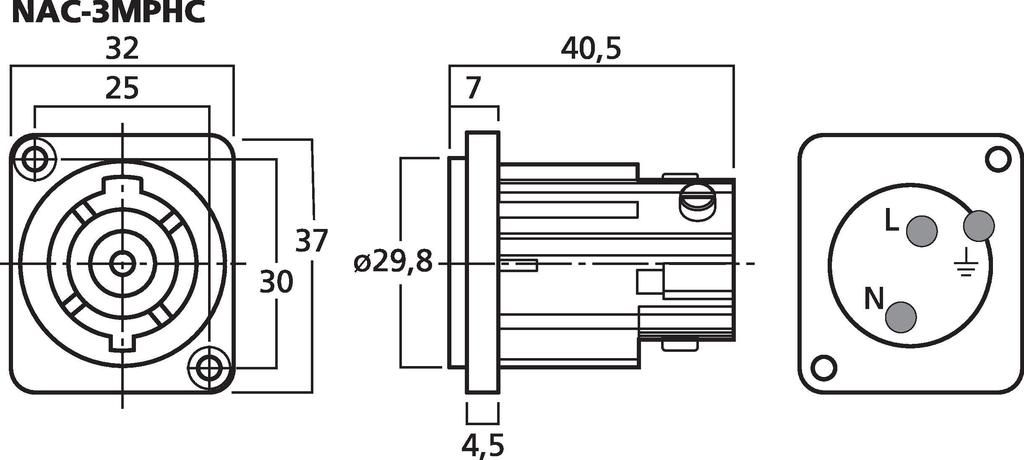

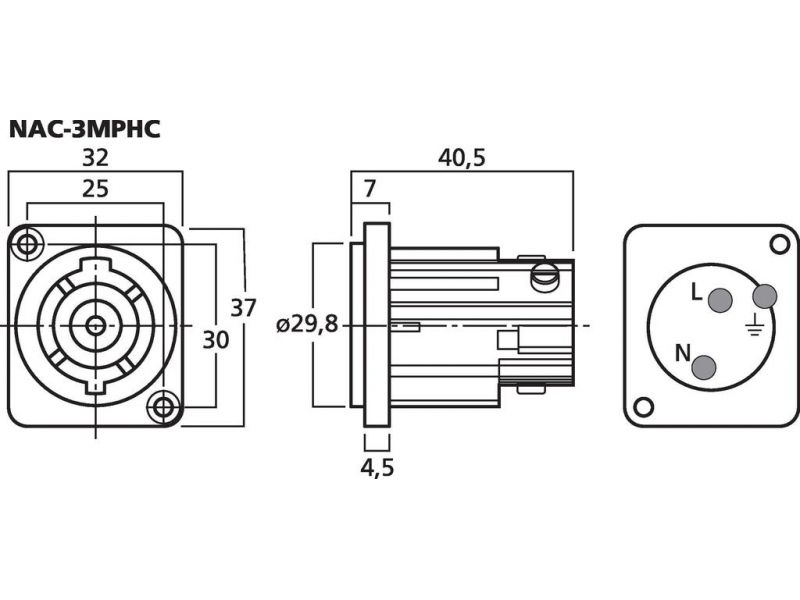

Dimensions 32 x 37 x 40.5 mm
Weight 26 g
