NAC3FPX-TOPSB

Cod EAN: 7613187011801

NEUTRIK POWERCON True1 TOP Connectors Complies with safety requirements of IEC 60320, VDE-certified For mains connection up to ˜ 250 V/16 A Connections for ground, phase and neutral conductor, connector can be connected under load Robust version with...

Citeste mai mult

Intreaba despre produs
Cumpara acum


NAC3FPX-TOPSB

NEUTRIK POWERCON True1 TOP Connectors
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ˜ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
  • Self-extinguishing according to UL 94V-0
  • Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)

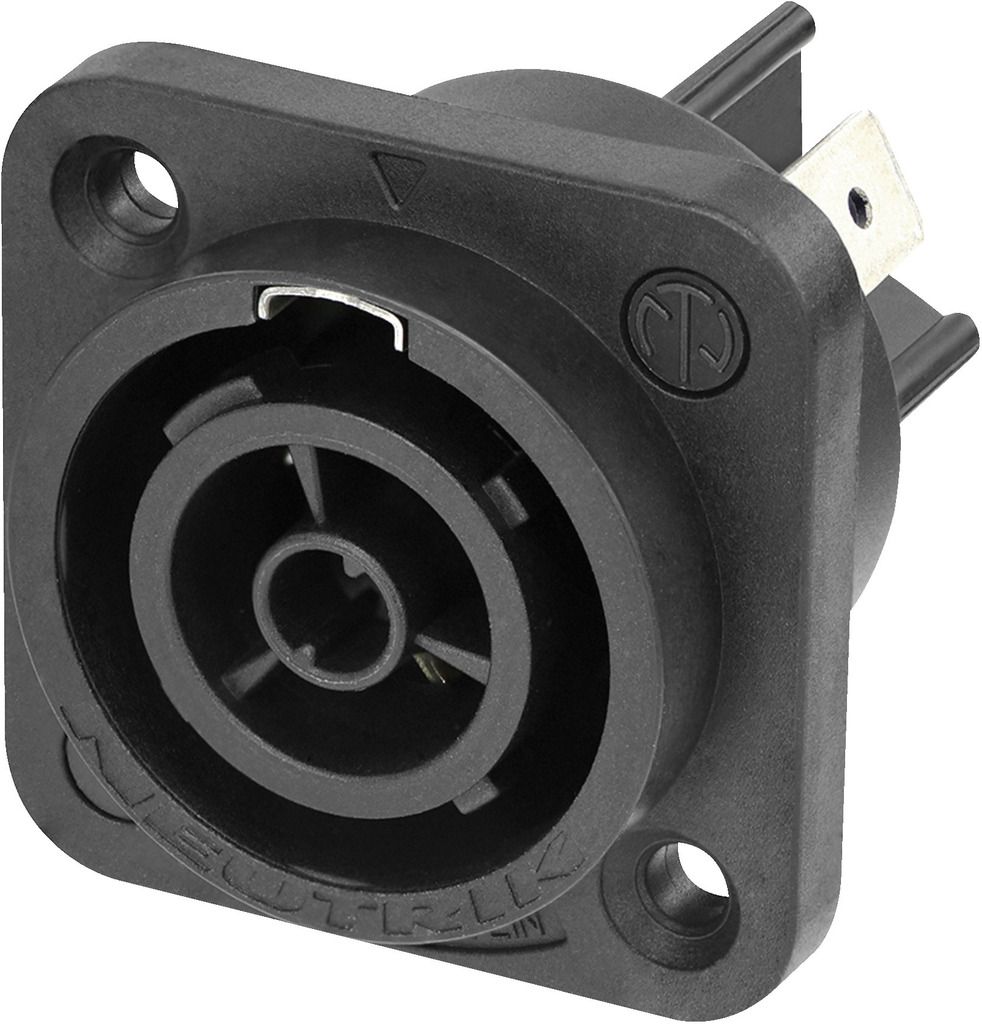

NEUTRIK POWERCON True1 TOP panel jack
  • Complies with safety requirements of IEC 60320, VDE-certified
  • For mains connection up to ˜ 250 V/16 A
  • Connections for ground, phase and neutral conductor, connector can be connected under load
  • Self-extinguishing according to UL 94V-0
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com

Parametrii

Description panel jack
Type NEUTRIK POWERCON TOP
Quantity 1
Features latching device
Colour/colour coding black
Power rating ˜ 250 V/16 A
Insulating resistance > 100 MΩ
Dielectric strength DC 4 kV/˜ 2.8 kV
Certification UL, VDE
Pole number 2+PE
Connection blade terminals, 6.35 mm
Material plastic
No. of contacts 2
Admiss. ambient temp. -30-+80 °C
Dimensions 35.4 x 35.4 x 43 mm
Length 43 mm
Weight 20 g

Fisiere de descarcat

Fisa produsului NAC3FPX-TOPSB
