NAC3MPX-TOPSB
Cod EAN: 7613187011818
NEUTRIK POWERCON True1 TOP Connectors Complies with safety requirements of IEC 60320, VDE-certified For mains connection up to ˜ 250 V/16 A Connections for ground, phase and neutral conductor, connector can be connected under load Robust version with...
NAC3MPX-TOPSB
NEUTRIK POWERCON True1 TOP Connectors
- Complies with safety requirements of IEC 60320, VDE-certified
- For mains connection up to ˜ 250 V/16 A
- Connections for ground, phase and neutral conductor, connector can be connected under load
- Robust version with latching device and cable inlet with self-adjusting clamps (plug and inline jack only)
- Self-extinguishing according to UL 94V-0
- Protection classs IP65 (NAC3FX-W-TOP and NAC3MX-W-TOP)

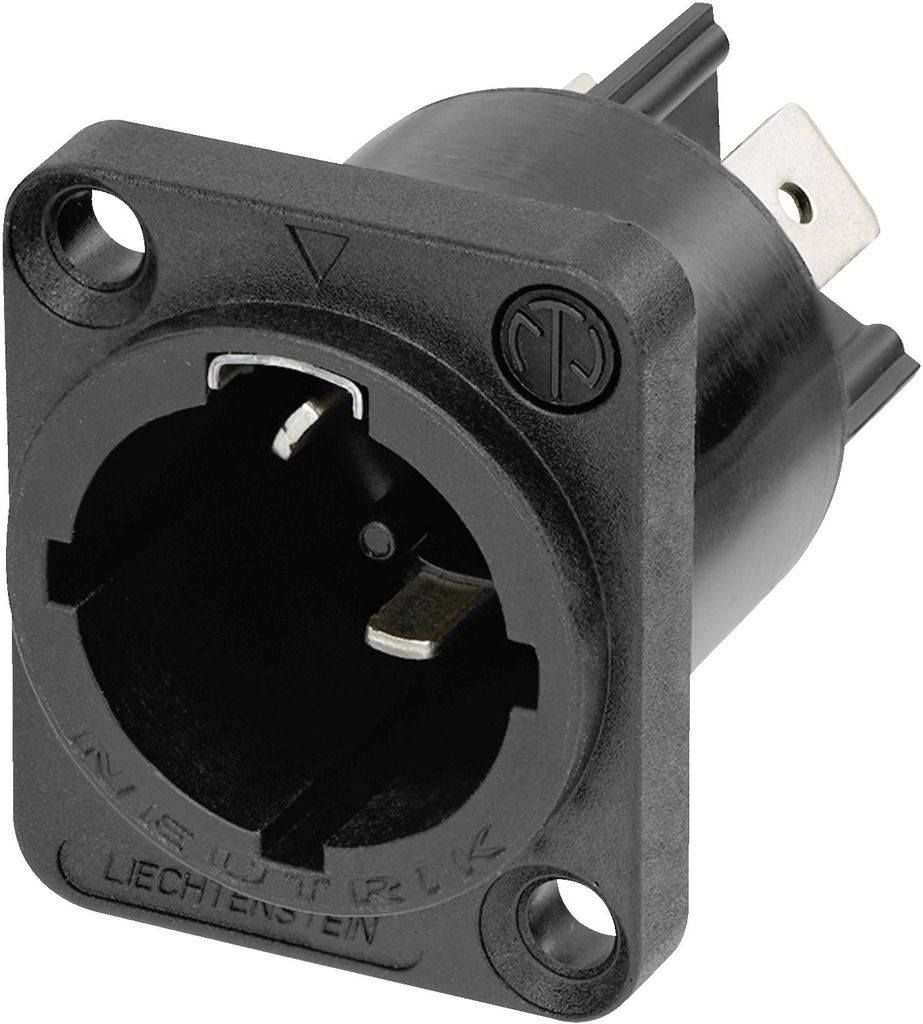

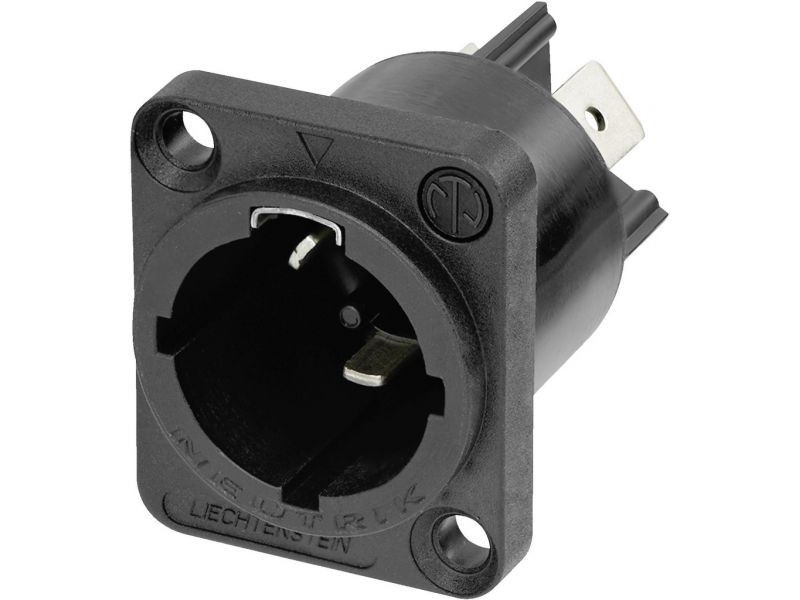

NEUTRIK POWERCON True1 TOP panel plug
- Complies with safety requirements of IEC 60320, VDE-certified
- For mains connection up to ˜ 250 V/16 A
- Connections for ground, phase and neutral conductor, connector can be connected under load
- Self-extinguishing according to UL 94V-0
Parametrii
| Description | panel plug |
| Type | NEUTRIK POWERCON TOP |
| Quantity | 1 |
| Features | latching device |
| Colour/colour coding | black |
| Power rating | ˜ 250 V/16 A |
| Insulating resistance | > 100 MΩ |
| Dielectric strength | DC 4 kV/˜ 2.8 kV |
| Certification | UL, VDE |
| Connection | blade terminals, 6.35 mm |
| Material | plastic |
| No. of contacts | 2 |
| Admiss. ambient temp. | -30-+80 °C |
| Dimensions | 26 x 31 x 38.2 mm |
| Weight | 11 g |
