KM-24120
Cod EAN: 4016842817467
Wall bracket for PA speaker systems, with patented expanding mandrel for a secure and low-resonance connection between wall bracket and PA speaker system via movable plastic splints. Black lacquered steel version Pivoting (approx. 180°) and tilting...

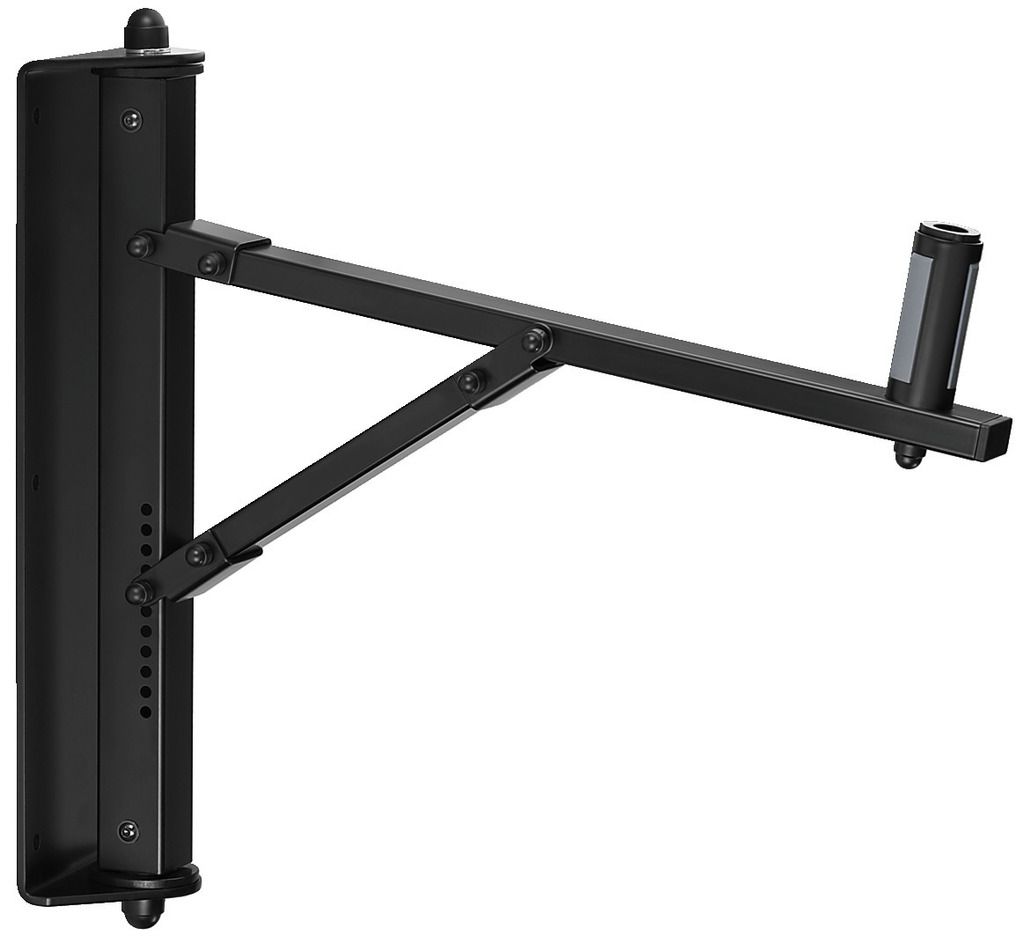

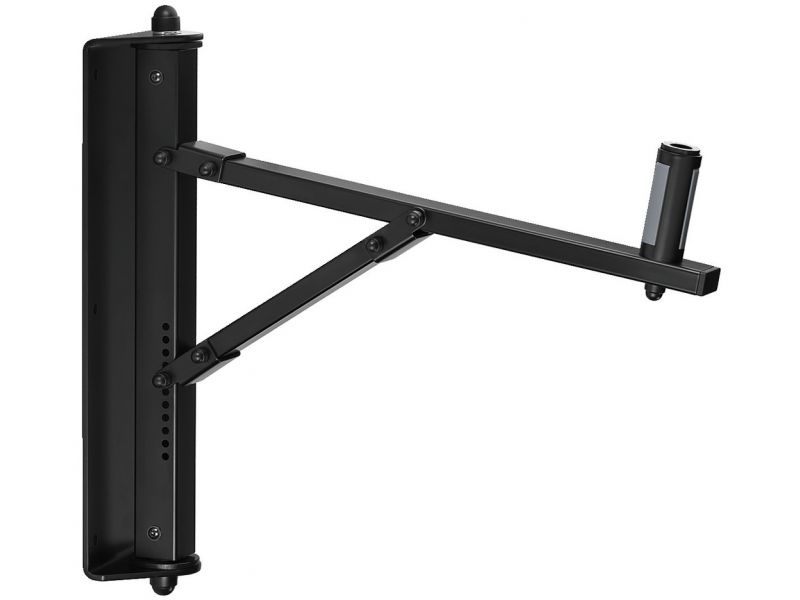

KM-24120
Wall bracket for PA speaker systems,
with patented expanding mandrel for a secure and low-resonance connection between wall bracket and PA speaker system via movable plastic splints.
- Black lacquered steel version
- Pivoting (approx. 180°) and tilting (approx. 22°), tilting angle adjustable in 11 steps

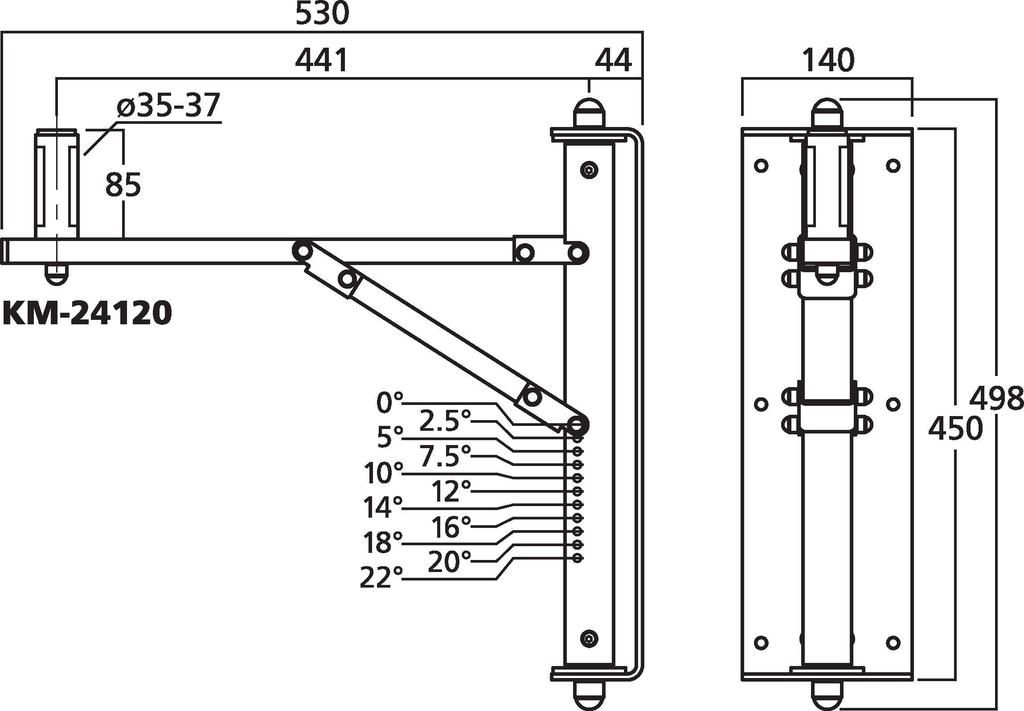

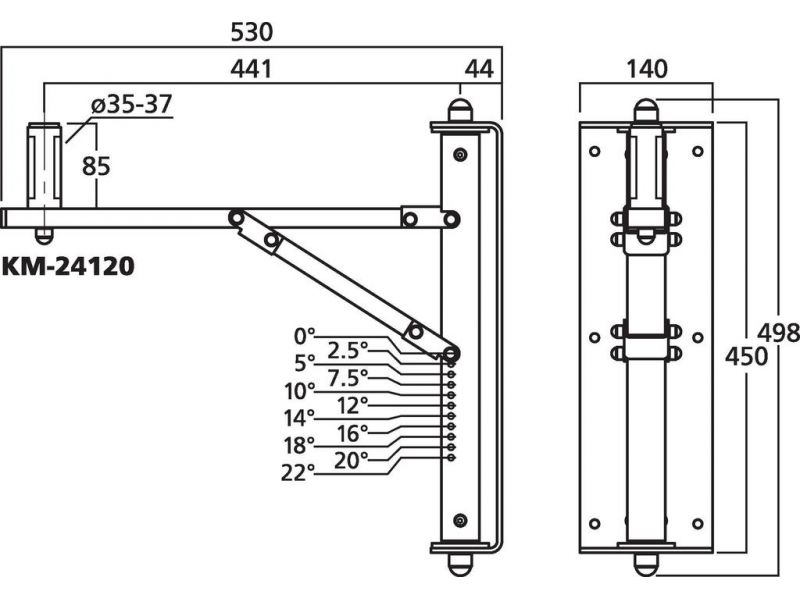

- Distance between mandrel and mounting plate: 420 mm
- Load capacity: 50 kg
- Weight: 6.2 kg
- GS approved
- Supplied in individual parts, instructions for assemby are included
Safety Note
To be installed by experts only! Pay attention to precise screw connection! Please use suitable safety ropes!
Manufacturer information:
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2 a
97877 Wertheim
Germany
contact@k-m.de
Kiesweg 2 a
97877 Wertheim
Germany
contact@k-m.de
Parametrii
| Description | wall bracket |
| Suitable for | PA speaker systems |
| Features | mandrel |
| Material | steel |
| Colour | black |
| Max. load/centr. weight concentr. | 50 kg |
| Mounting flange | 140 x 450 mm |
| Pivoting | 180° |
| Tilting | 22° |
| Length | 530 mm |
| Weight | 6.36 kg |
