NL4FXX-W-L
Cod EAN: 7613187017636
NEUTRIK SPEAKON Connectors Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps. Contact resistance: ≤ 2 mΩ Current rating: 250 V...
NL4FXX-W-L
NEUTRIK SPEAKON Connectors
Series of Speakon connectors for professional speaker connection technology. Robust design, latching device, all-insulated contacts, cable inlet with self-adjusting clamps.
- Contact resistance: ≤ 2 mΩ
- Current rating: 250 V (music signal)
- Self-extinguishing according to UL 94 V-0

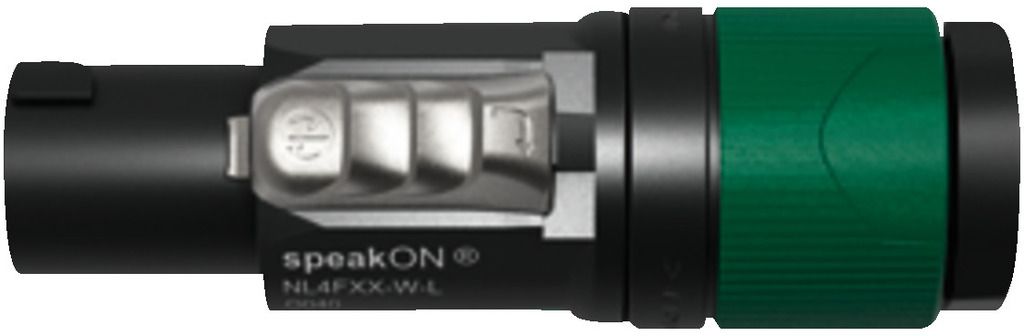

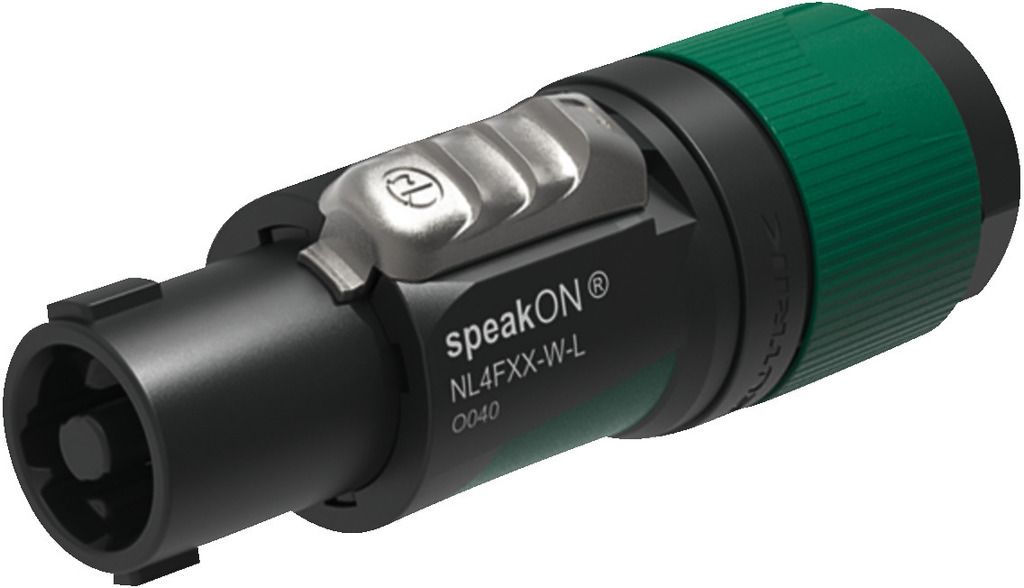

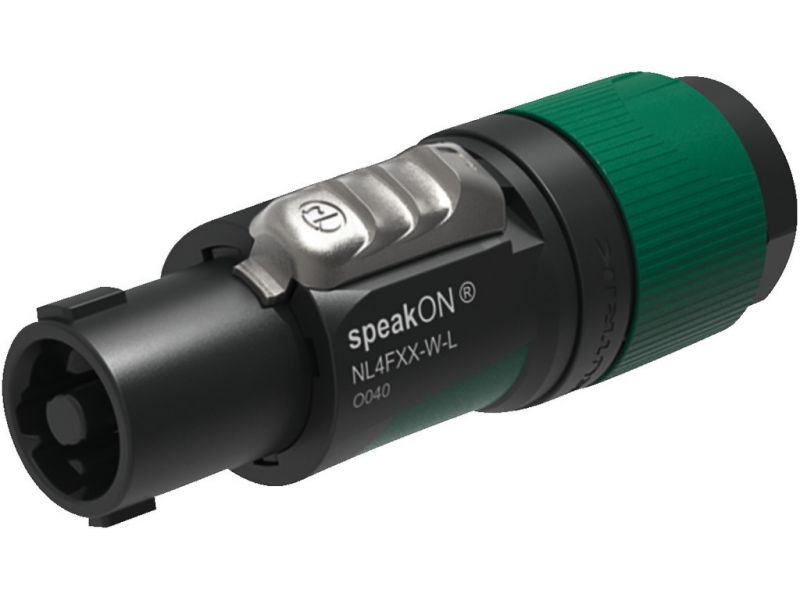

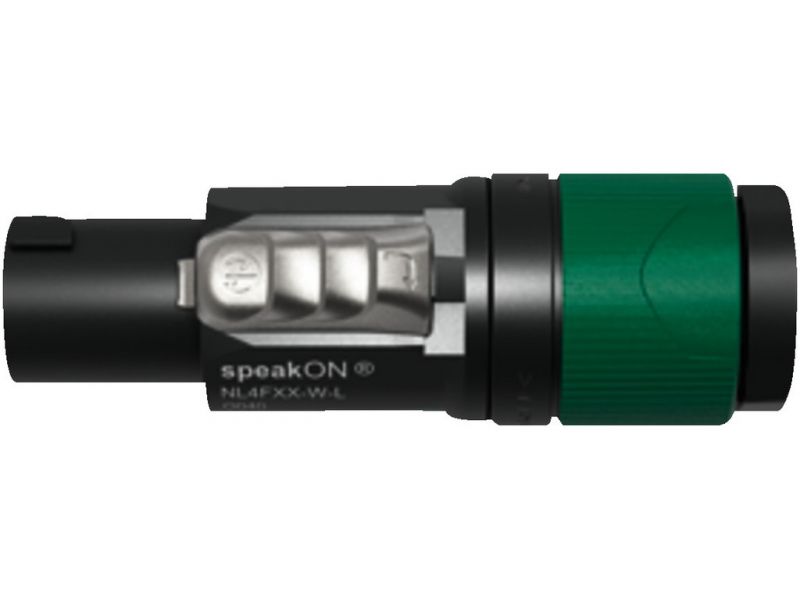

NEUTRIK SPEAKON plug
- 4-pole screw terminal for litz wires up to 4 mm2
- For cables: Ø 10-16 mm
Manufacturer information:
Neutrik AG
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Im alten Ried 143
9494 Schaan
Liechtenstein
neutrik@neutrikgroup.com
Parametrii
| Description | plug |
| Type | NEUTRIK SPEAKON |
| Quantity | 1 |
| Features | latching device |
| Colour/colour coding | blue, silver |
| Certification | UL 94 V-0 |
| Pole number | 4 |
| Cable inlet | Ø 10-16 mm |
| Suitable cable cross section | 4 mm2 |
| Connection | 4-pole screwed contact |
| Admiss. ambient temp. | -33-+80 °C |
| Weight | 44 g |
| Other features | IP20 |
