NR-10M

Cod EAN: 4007754239607

Flush-mount horn speaker (music horn) with full range speaker, 4 Ω For wall mounting and ceiling installation After installation weatherproof and IP54 certified 4 Ω speaker system 5 cm (2.5") full range speaker with horn front attachment Suitable for...

Citeste mai mult

Intreaba despre produs
Cumpara acum


NR-10M

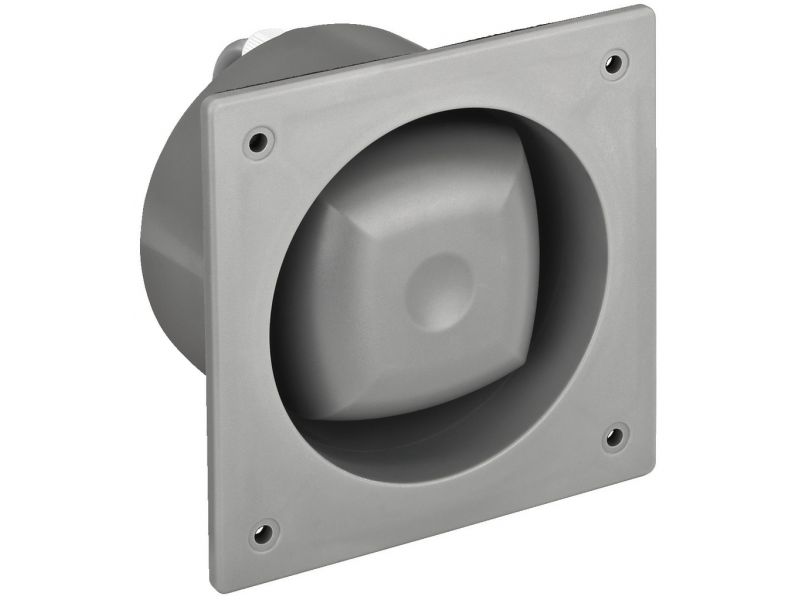

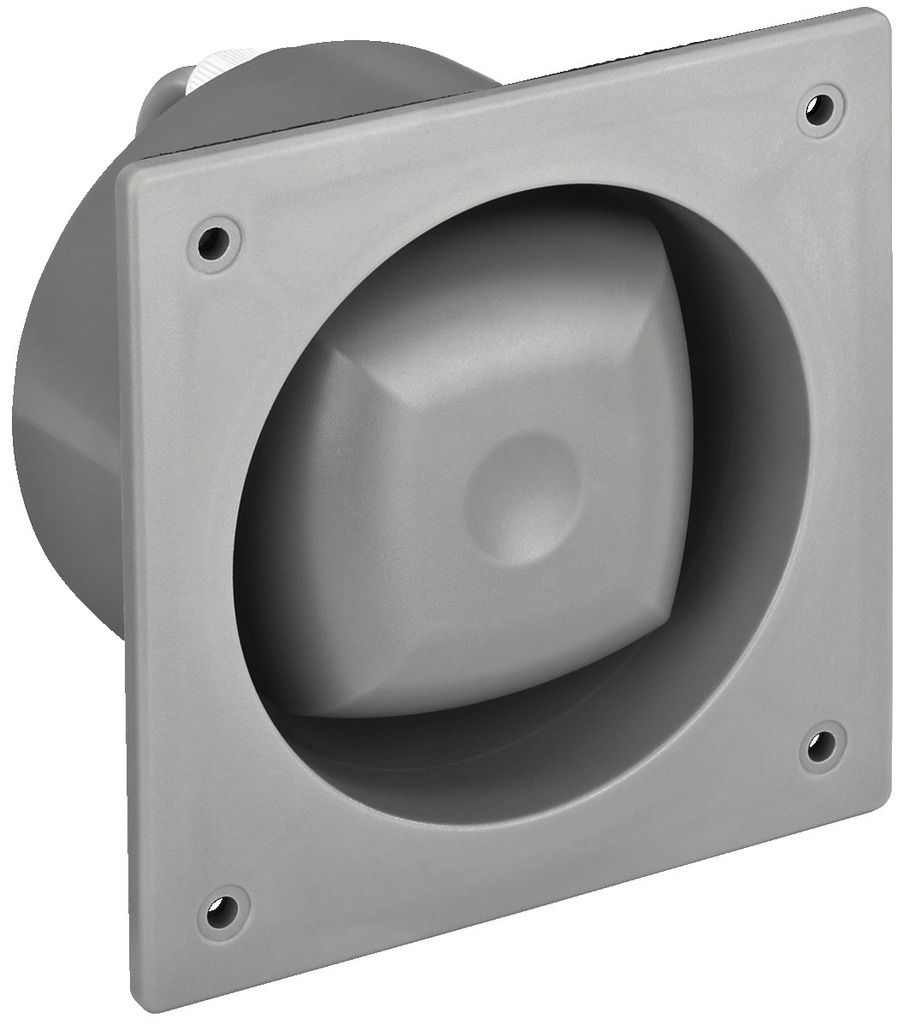

Flush-mount horn speaker (music horn) with full range speaker, 4 Ω
  • For wall mounting and ceiling installation
  • After installation weatherproof and IP54 certified
  • 4 Ω speaker system
  • 5 cm (2.5") full range speaker with horn front attachment
  • Suitable for general indoor and outdoor applications wherever a high sound pressure level and an excellent sound are required
  • ABS plastic housing
  • Mounting flange with foam rubber sealing
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology cable
Total power rating 20 W
Power rating (RMS) 10 W
Impedance 4 Ω
Frequency range 200-15,000 Hz
Number of speakers 1
SPL 98 dB/W/m
Radiation angle/beam angle H: 100°/V: 100°
Radiation angle, horizontal 100°
Radiation angle, vertical 100°
Features full range speaker
Housing material ABS
Colour grey
Mounting device mounting flange with foam rubber sealing
Protection class IP54
Admiss. ambient temp. 0-40 °C

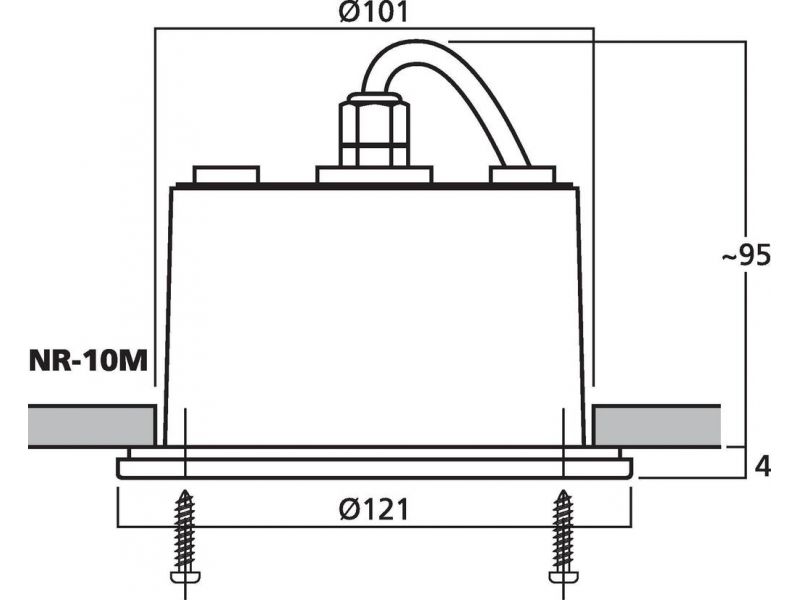

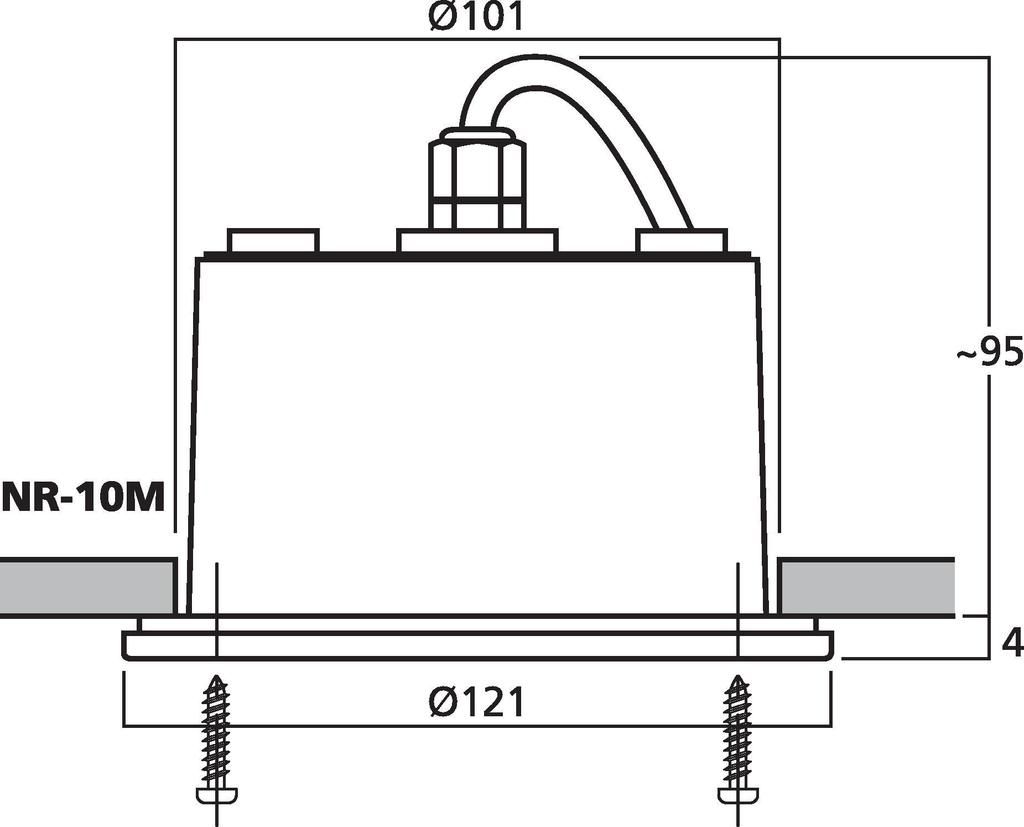

Dimensions 120 x 120 x 120 mm mounting cutout: Ø 101 mm
Width 120 mm
Height 120 mm
Depth 120 mm
Weight 0.48 kg
Inputs cable connection
Other features weatherproof
Packaging dimensions (W x H x L) 0.15 x 0.125 x 0.15 m
Gross weight 0.556 kg
Net weight 0.487 kg

Fisiere de descarcat

Fisa produsului NR-10M konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
