KU-516/VC
Cod EAN 4007754031584
Replacement voice coil

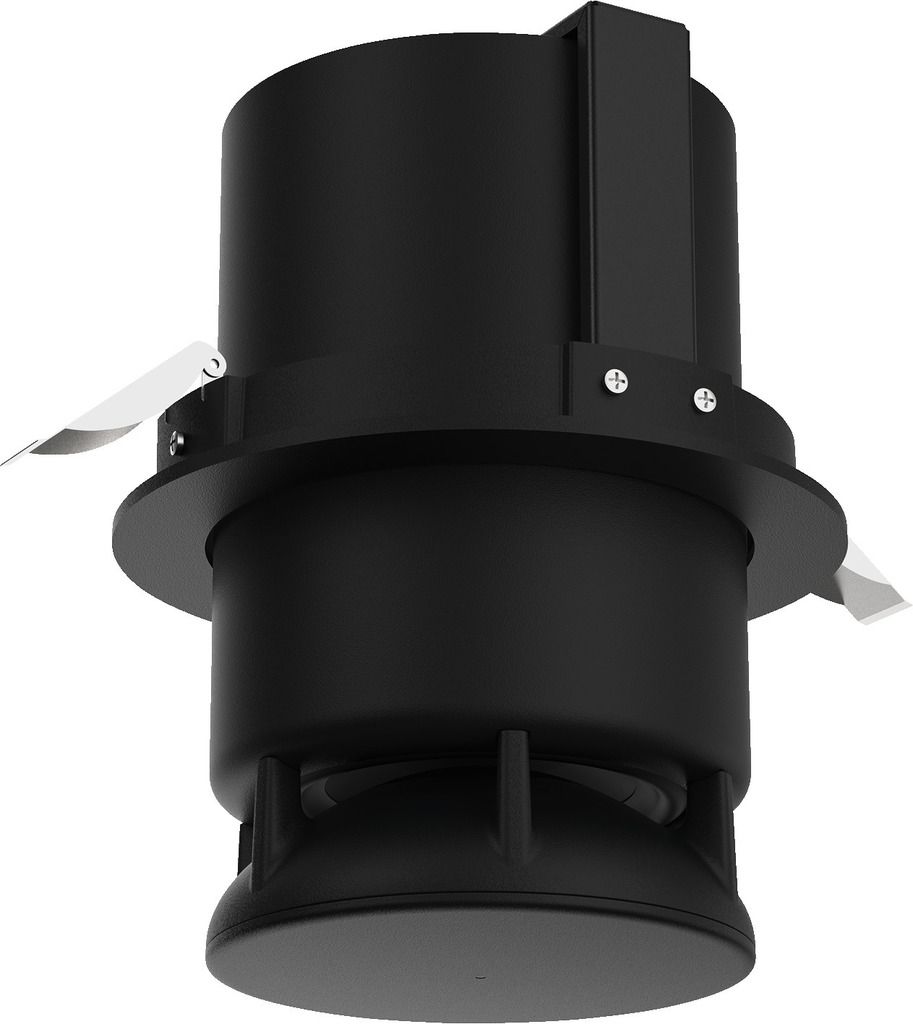

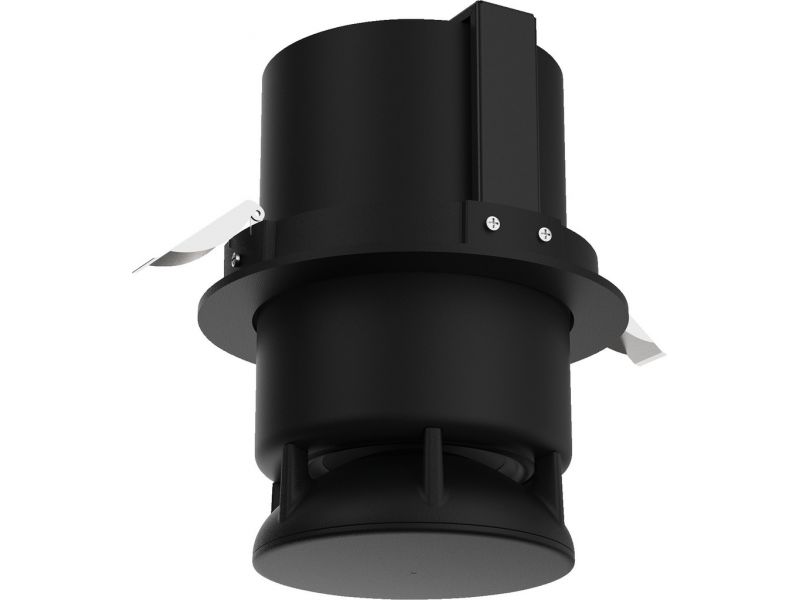

Spottune OMNI REC recessed speaker: wireless 360° ceiling mount speaker for installation into suspended ceilings. The minimum mounting depth is 45 mm, power is supplied via standard ceiling outlet using the supplied junction box. Instead of being o...
Active/passive | active |
Transmission technology | wireless |
Power rating (RMS) | 50 W, class D amplifier |
Frequency range | 50-15,000 Hz |
Max. rated SPL | 100 dB |
Radiation angle/beam angle | 360° radiation |
Colour | black |
Admiss. ambient temp. | 0-40 °C |
Power supply | ˜ 100-240 V/50-60 Hz/2 VA max.via standard ceiling outlet |
Dimensions | Ø 115 x 200 mm ceiling cutout: 155-160 mm mounting depth: 45-100 mm |
Width | Ø 115 mm |
Height | 200 mm |
Weight | 1.5 kg |
Other features | audio transmission: UHF band 1.8-1.9 GHz,operating range: approx. 50-100 m, depending on surrounding and place of application |
Packaging dimensions (W x H x L) | 0.175 x 0.335 x 0.175 m |
Gross weight | 2.2 kg |
Net weight | 1.8 kg |
